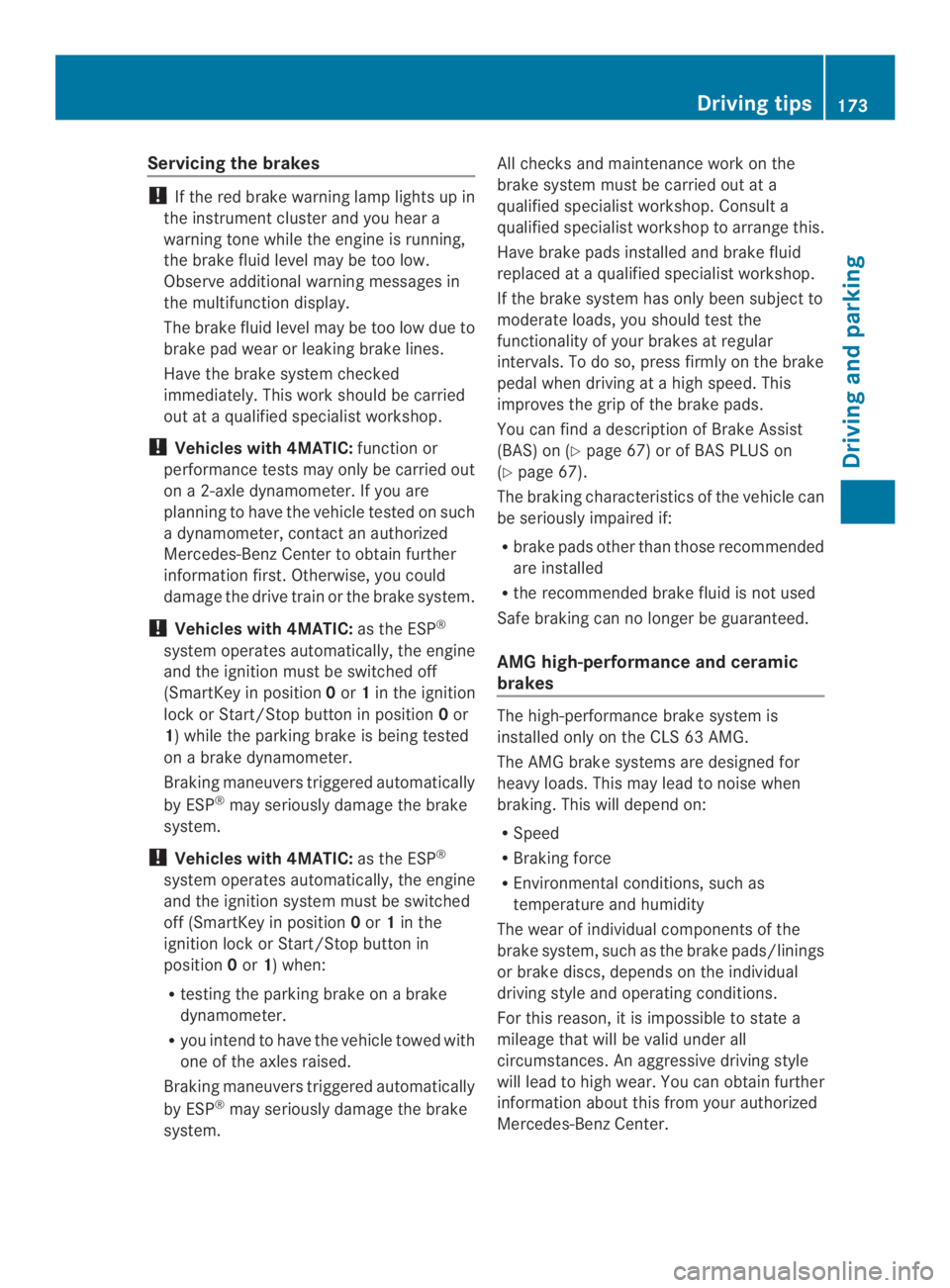

Servicing the brakes
!If the red brake warning lamp lights up in
the instrumentcluster and you hear a
warningtonewhile the engine is running,
the brakefluid level may be too low.
Observe additional warningmessages in
the multifunction display.
The brakefluid level may be too low due to
brakepad wear or leakingbrakelines.
Have the brakesystem checked
immediately. This work should be carried
out ataqualified specialist workshop.
!Vehicles with 4MATIC:function or
performancetests may only be carried out
ona2-axle dynamometer. If you are
planning to have the vehicle tested on such
adynamometer, contactanauthorized
Mercedes-BenzCenter to obtain further
information first. Otherwise, you could
damage the drive train or the brakesystem.
!Vehicles with 4MATIC:as the ESP®
system operates automatically, the engine
and the ignition must be switched off
(SmartKey in position0or1in the ignition
lock or Start/Stop button in position0or
1)while the parking brakeisbeing tested
onabrakedynamometer.
Brakingmaneuvers triggeredautomatically
by ESP®may seriouslydamagethebrake
system.
!Vehicles with 4MATIC:as theESP®
system operatesautomatically, theengine
and theignition system must be switched
off (SmartKey in position0or1in the
ignition lockorStart/Stopbuttonin
position0or1)when:
Rtesting theparking brakeonabrake
dynamometer.
Ryou intendtohave thevehicletowed with
oneoftheaxlesraised.
Braking maneuvers triggered automatically
by ESP®may seriouslydamagethebrake
system.
All checksand maintenance work on the
brakesystem must be carried out at a
qualified specialist workshop. Consult a
qualified specialist workshoptoarrangethis.
Havebrakepads installed and brakefluid
replacedataqualified specialist workshop.
If thebrakesystem has only been subject to
moderateloads,you should test the
functionalityofyour brakes at regular
intervals. To do so, press firmly on thebrake
pedal when driving atahigh speed. This
improvesthegripofthebrakepads.
You can findadescription of Brake Assist
(BAS) on (Ypage 67)orofBASPLUSon
(Ypage 67).
The braking characteristics of thevehiclecan
be seriouslyimpaired if:
Rbrakepads other than those recommended
are installed
Rtherecommended brakefluid is notused
Safe braking can no longer be guaranteed.
AMG high-performance and ceramic
brakes
The high-performance brake system is
installed only on the CLS 63 AMG.
The AMG brake systems are designed for
heavy loads. This may lead to noise when
braking. This will depend on:
RSpeed
RBraking force
REnvironmental conditions, such as
temperature and humidity
The wear of individualcomponentsofthe
brake system, such as the brake pads/linings
or brake discs, depends on the individual
driving style and operating conditions.
For this reason, it is impossibletostate a
mileage that will be valid under all
circumstances. An aggressive driving style
will lead to high wear. You can obtain further
information aboutthis from your authorized
Mercedes-BenzCenter.
Driving tips173
Driving and parking
Z

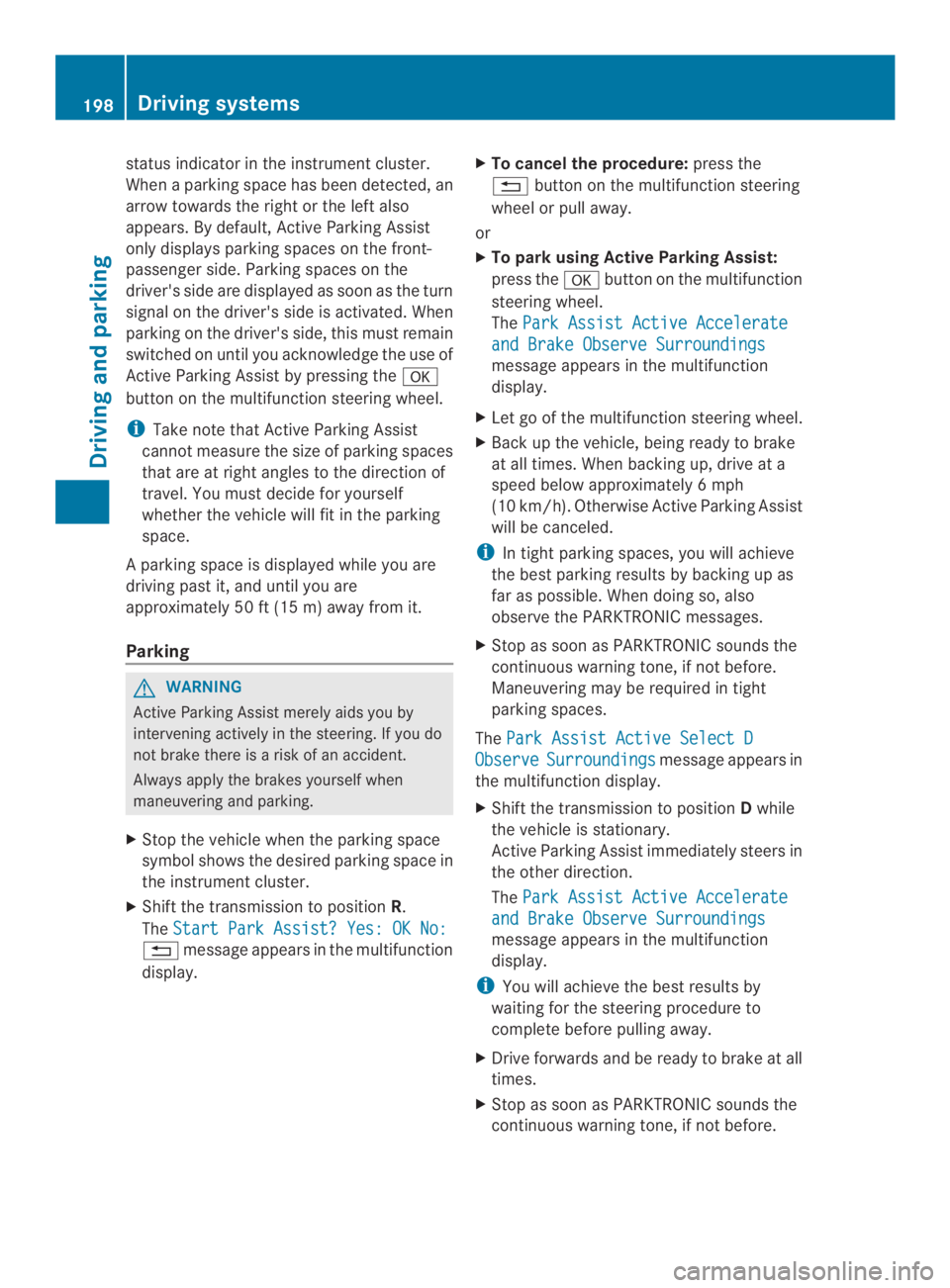

status indicator in the instrument cluster.
Whenaparking space has been detected, an
arrow towards the right or the left also
appears. By default, Active Parking Assist
only displays parking spaces on the front-
passenger side. Parking spaces on the
driver's side are displayed as soon as the turn
signal on the driver's side is activated. When
parking on the driver's side, this must remain
switched on until you acknowledge the use of
Active Parking Assist by pressing the
button on the multifunction steering wheel.
iTake note that Active Parking Assist
cannot measure the size of parking spaces
that are at right angles to the direction of
travel. You must decide for yourself
whether the vehicle will fit in the parking
space.
Aparking spaceisdisplayed while you are
driving past it, and until you are
approximately 50 ft (15 m) away from it.
Parking
GWARNING
ActiveParking Assist merely aids you by
intervening activelyinthesteering.Ifyou do
notbrakethere isariskofanaccident.
Always apply thebrakes yourself when
maneuveringand parking.
XStop thevehicle when theparking space
symbol shows thedesired parking spacein
theinstrumentcluster.
XShift thetransmission to positionR.
TheStart ParkAssist?Yes:OKNo:
message appearsinthemultifunction
display.
XTo cancel theprocedure:pressthe
buttononthemultifunction steering
wheel or pull away.
or
XTo park usingActiveParking Assist:
pressthebuttononthe multifunction
steering wheel.
ThePark Assist Active Accelerate
and Brake Observe Surroundings
message appears in the multifunction
display.
XLet go of the multifunction steering wheel.
XBack up the vehicle, being ready to brake
at all times. When backing up, drive at a
speed below approximately6mph
(10 km/h). Otherwise Active ParkingAssist
will be canceled.
iIn tight parkingspaces, you will achieve
the best parkingresults by backingupas
far as possible. When doing so, also
observe the PARKTRONICmessages.
XStop as soon as PARKTRONICsounds the
continuous warning tone, if not before.
Maneuveringmay be required in tight
parkingspaces.
ThePark Assist Active Select D
ObserveSurroundingsmessage appears in
the multifunction display.
XShift the transmission to positionDwhile
the vehicle is stationary.
Active ParkingAssist immediately steersin
the other direction.
ThePark Assist Active Accelerate
and Brake ObserveSurroundings
message appears in the multifunction
display.
iYou will achieve the best results by
waiting for the steering procedure to
completebefore pulling away.
XDriveforwards and be ready to brake at all
times.
XStop as soon as PARKTRONICsounds the
continuous warning tone, if not before.
198Driving systems
Driving and parking

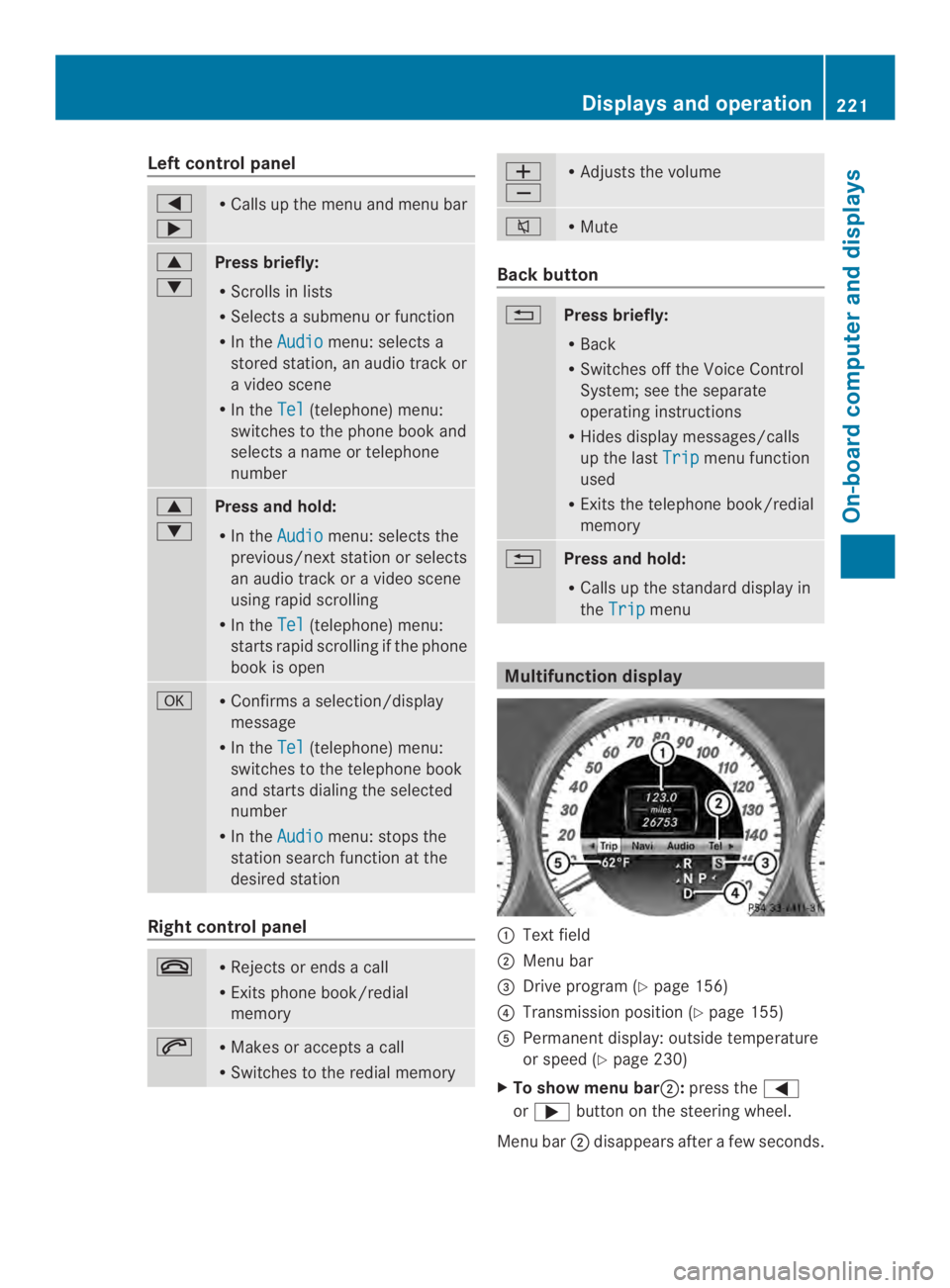

Left control panel
\n

RCalls up themenuand menubar


Press briefly:
RScrolls in lists
RSelectsasubmenu or function
RIn theAudiomenu: selects a
stored station, an audio track or
avideo scene
RIn theTel(telephone) menu:
switchestothephonebook and
selectsanameortelephone
number


Press and hold:
RIn theAudiomenu: selects the
previous/nextstation or selects
an audiotrack oravideoscene
using rapidscrolling
RIn theTel(telephone)menu:
starts rapidscrolling if the phone
book is open
RConfirmsaselection/display
message
RIn theTel(telephone)menu:
switches to the telephone book
and starts dialing the selected
number
RIn theAudiomenu:stops the
stationsearchfunctionatthe
desired station
Right controlpanel
RRejects or endsacall
RExits phone book/redial
memory
RMakes or acceptsacall
RSwitchestothe redialmemory


RAdjusts the volume

RMute
Backbutton
Press briefly:
RBack
RSwitchesoff the Voice Control
System; seethe separate
operating instructions
RHides displaymessages/calls
up the lastTripmenu function
used
RExits the telephone book/redial
memory
Press and hold:
RCallsupthe standard displayin
theTripmenu
Multifunctiondisplay
Text field
Menu bar
$Drive program(Ypage 156)
!Transmission position(Ypage 155)
Permanent display: outside temperature
or speed (Ypage 230)
XTo show menu bar:press the\n
orbutton on the steering wheel.
Menu bardisappears afterafew seconds.
Displays and operation221
On-boar dc omputer and displays
Z

Text fieldshows the selected menu or
submenu as well as display messages.
The following messages may appear in the
multifunction display:
\nShift recommendation (Ypage 161)
 Active Parking Assist (Ypage 196)
Adaptive Highbeam Assist
(Ypage 122)
ECO start/stop function
(Ypage 150)
HOLD function (Ypage 186)
Menus and submenus
Menu overview
Press the\norbutton on the
steeringwheel to call up the menu bar and
selectamenu.
Operating the on-board computer
(Ypage 220).
Dependingonthe equipment installed in the
vehicle, you can call up the following menus:
RTripmenu (Ypage 222)
RNavimenu (navigation instructions)
(Ypage 224)
RAudiomenu (Ypage 225)
RTelmenu (telephone) (Ypage 226)
RDriveAssistmenu (assistance)
(Ypage 227)
RServ.menu (Ypage 229)
RSettingsmenu (settings) (Ypage 229)
RAMGmenu in AMG vehicles (Ypage 234)
Trip menu
Standard display
XPress and hold thebutton on the
steeringwheel until theTripmenu with
trip odometerand odometeris
shown.
Trip computer "From Start" or "From
Reset"
Example: trip computer "From Start"
Distance
Time
$Average speed
!Average fuel consumption
XPress the\norbutton on the
steeringwheel to select theTripmenu.
XPressorto selectFrom Start
orFrom Reset.
The values in theFrom Startsubmenu are
calculated from the start ofajourney whilst
the values in theFrom Resetsubmenu are
calculated from the last time the submenu
was reset (Ypage 223).
TheFrom Starttrip computer is
automatically reset when:
Rthe ignition has been switched off for more
than four hours.
R999 hours have been exceeded.
R9,999 miles have been exceeded.
222Menus and submenus
On-board computer and displays

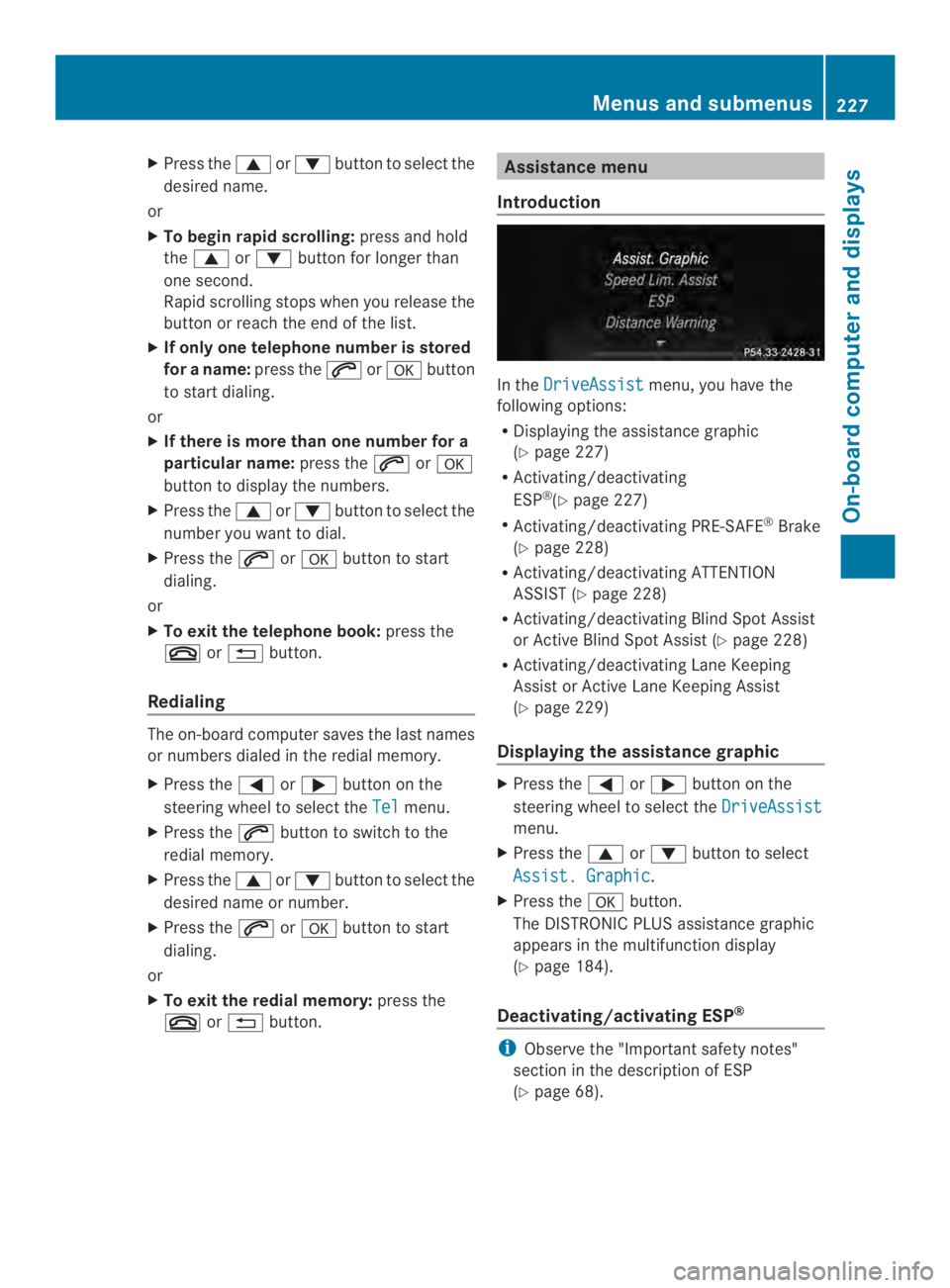

XPress theorbutton to select the
desired name.
or
XTo begin rapid scrolling:press and hold
theorbutton for longer than
one second.
Rapid scrolling stops when you release the
button or reach the end of the list.
XIf only one telephone number is stored
foraname:press theorbutton
to start dialing.
or
XIf thereismore thanone number for a
particular name:press theor
button to display the numbers.
XPress theorbutton to select the
number you want to dial.
XPress theorbutton to start
dialing.
or
XTo exit the telephone book:press the
orbutton.
Redialing
The on-board computer saves the last names
or numbers dialed in the redial memory.
XPress the\norbutton on the
steeringwheel to select theTelmenu.
XPress thebutton to switch to the
redial memory.
XPress theorbutton to select the
desired name or number.
XPress theorbutton to start
dialing.
or
XTo exit the redial memory:press the
orbutton.
Assistance menu
Introduction
In theDriveAssistmenu, you have the
following options:
RDisplaying the assistancegraphic
(Ypage 227)
RActivating/deactivating
ESP®(Ypage 227)
RActivating/deactivating PRE-SAFE®Brake
(Ypage 228)
RActivating/deactivating ATTENTION
ASSIST (Ypage 228)
RActivating/deactivating Blind Spot Assist
or Active Blind Spot Assist (Ypage 228)
RActivating/deactivating Lane Keeping
Assist or Active Lane Keeping Assist
(Ypage 229)
Displaying the assistance graphic
XPress the\norbutton on the
steeringwheel to select theDriveAssist
menu.
XPress theorbutton to select
Assist. Graphic.
XPress thebutton.
The DISTRONIC PLUS assistancegraphic
appears in the multifunction display
(Ypage 184).
Deactivating/activating ESP®
iObserve the "Importantsafetynotes"
sectioninthedescription of ESP
(Ypage 68).
Menusand submenus227
On-boar dc omputer and displays
Z

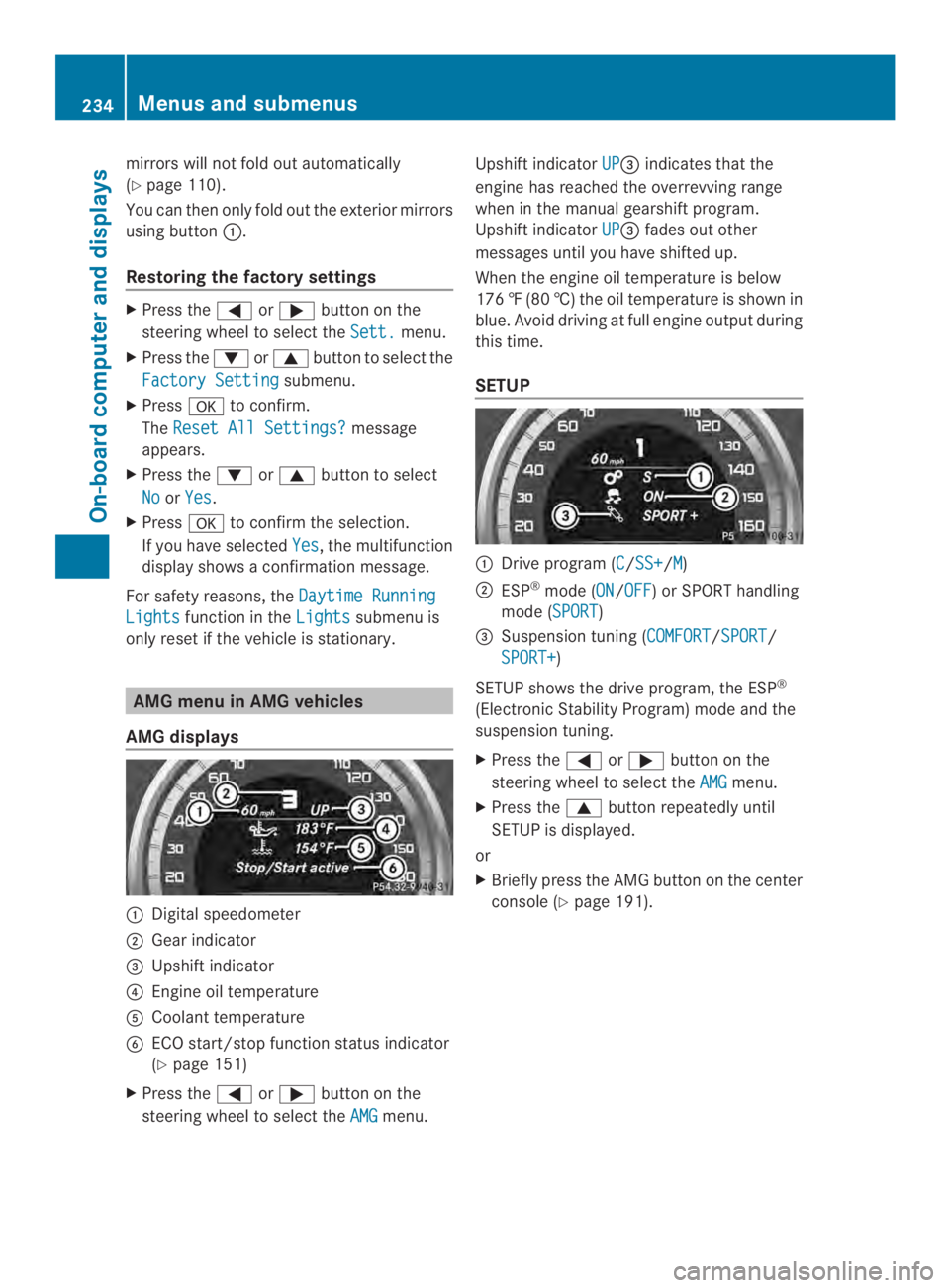

mirrors willnot fold out automatically
(Ypage110).
You can then only fold out the exterior mirrors
using button.
Restoringthe factory settings
XPress the\norbutton on the
steering wheeltoselect theSett.menu.
XPress theorbutton to select the
Factory Settingsubmenu.
XPressto confirm.
TheReset All Settings?message
appears.
XPress theorbutton to select
NoorYes.
XPressto confirm the selection.
If you have selectedYes,the multifunction
display showsaconfirmation message.
For safety reasons, theDaytime Running
Lightsfunction in theLightssubmenu is
only reset if the vehicleisstationary.
AMG menu in AMG vehicles
AMG displays
Digital speedometer
Gear indicator
$Upshift indicator
!Engine oil temperature
Coolant temperature
%ECO start/stop function status indicator
(Ypage 151)
XPress the\norbutton on the
steering wheel to select theAMGmenu.
Upshift indicatorUP$indicates that the
engine has reached the overrevving range
when in the manual gearshift program.
Upshift indicatorUP$fades out other
messages until you have shifted up.
When the engine oil temperature is below
176‡(80 †) the oil temperature is shownin
blue. Avoid drivingatfull engineoutput during
this time.
SETUP
Driveprogram (C/SS+/M)
ESP®mode (ON/OFF)orSPORT handling
mode (SPORT)
$Suspension tuning(COMFORT/SPORT/
SPORT+)
SETUP shows the drive program, the ESP®
(Electronic Stability Program) mode and the
suspension tuning.
XPress the\norbutton on the
steering wheel to select theAMGmenu.
XPress thebutton repeatedly until
SETUP is displayed.
or
XBriefly press the AMG button on the center
console (Ypage 191).
234Menus and submenus
On-boar dc omputer and displays

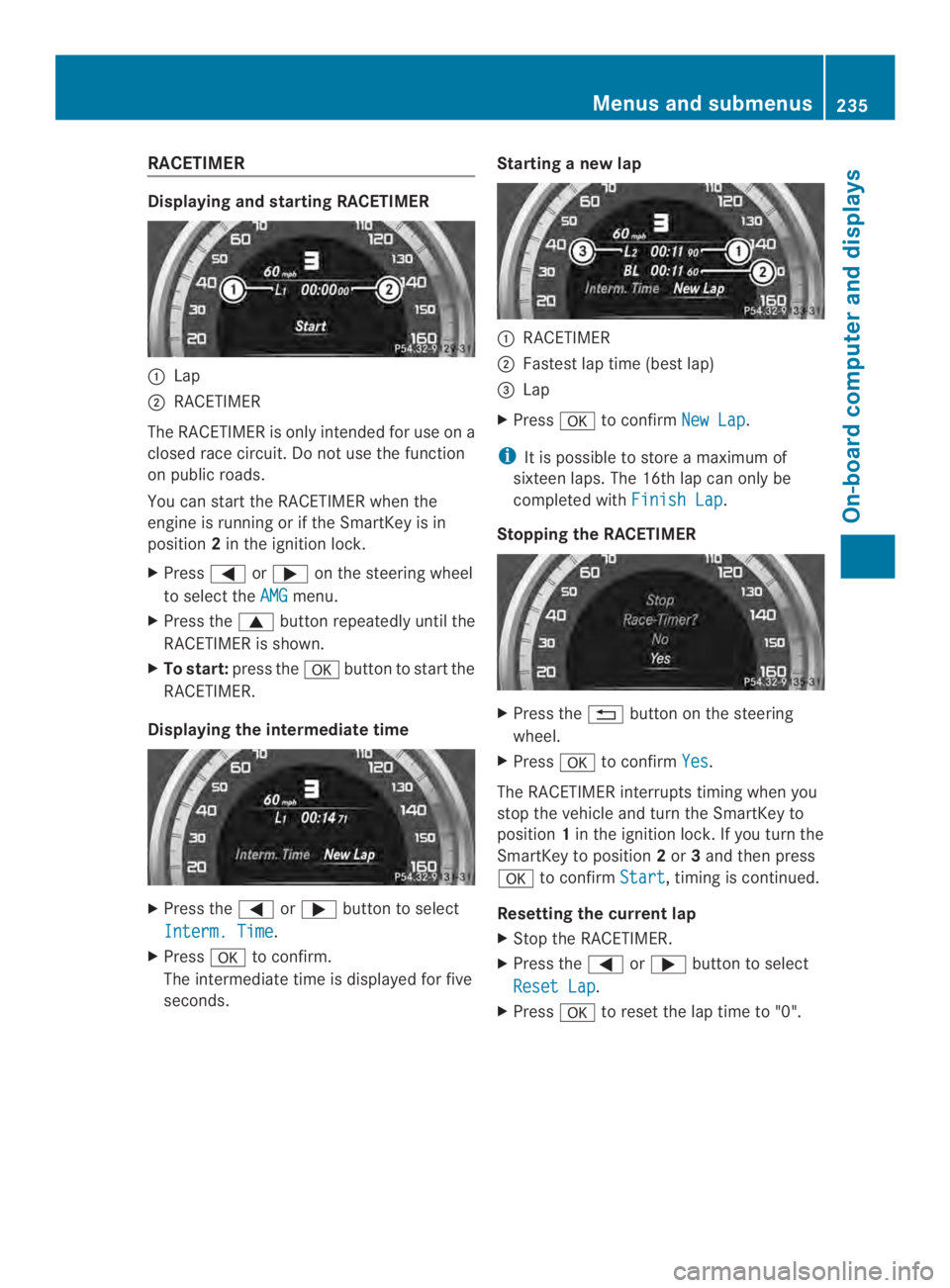

RACETIMER
Displaying and startingRACETIMER
Lap
RACETIMER
The RACETIMER is only intended for useona
closed race circuit. Do not usethe function
on public roads.
Youcan startthe RACETIMER when the
engine is running or if the SmartKey is in
position2in the ignition lock.
XPress\noron the steering wheel
to select theAMGmenu.
XPress thebutton repeatedlyuntilthe
RACETIMER is shown.
XTo start:press thebutton to startthe
RACETIMER.
Displaying the intermediate time
XPress the\norbutton to select
Interm. Time.
XPressto confirm.
The intermediate time is displayed for five
seconds.
Startinganewlap
RACETIMER
Fastest laptime (best lap)
$Lap
XPressto confirmNew Lap.
iIt is possible to storeamaximum of
sixteen laps. The 16th lapcan only be
completed withFinish Lap.
Stoppingthe RACETIMER
XPress thebutton on the steering
wheel.
XPressto confirmYes.
The RACETIMER interrupts timing when you
stop the vehicleand turn the SmartKey to
position1in the ignition lock. If youturn the
SmartKey to position2or3and then press
to confirmStart,timing is continued.
Resetting the current lap
XStop the RACETIMER.
XPress the\norbutton to select
ResetLap.
XPressto reset the laptime to "0".
Menus and submenus235
On-board computer and displays
Z

XPark the vehicle onalevel surface.
Only check the coolant level when the
vehicle is onalevel surface and the engine
has cooled down.
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
On vehicles with KEYLESS-GO, press the
Start/Stop button twice (Ypage 147).
XCheck the coolant temperature display in
the instrument cluster.
The coolant temperature must be below
158‡(70 †).
XTurn the SmartKey to position
0(Ypage 147) in the ignition lock.
XSlowly turn caphalfaturn counter-
clockwise to allow excess pressure to
escape.
XTurn capfurther counter-clockwise and
remove it.
If the coolant is at the level of marker bar
$in the filler neck when cold, there is
enough coolant in coolant expansion
tank.
If the coolant level is approximately 0.6 in
(1.5 cm) above marker bar$in the fuel
filler neck when warm, there is enough
coolant in expansion tank.
XIf necessary, add coolant that has been
tested and approved by Mercedes-Benz.
XReplace capand turn it clockwise as far
as it will go.
For further information on coolant,see
(Ypage 377).
Adding washer fluid to the windshield
washer system/headlampcleaning
system
GWARNING
Windshield washer concentrate is highly
flammable. If it comes intocontactwith hot
enginecomponentsorthe exhaust systemit
could ignite. There isariskoffire and injury.
Make sure that no windshield washer
concentrate is spilled nexttothe filler neck.
XTo open:pull capupwards by the tab.
XAdd the premixed washer fluid.
XTo close:press capontothe filler neck
until it engages.
The washer fluid reservoir is used for both the
windshield washer system and the headlamp
cleaning system.
If the washer fluid level drops below the
recommended minimum of1liter,amessage
appears in the multifunction display
promptingyou to refill the washer fluid
(Ypage 262).
Further information on windshield washer
fluid/antifreeze (Ypage 378).
Maintenance
ASSYST PLUS
Service messages
The ASSYSTPLUS service interval display
informsyou of the nextservice due date.
Maintenance309
Maintenance and care
Z
