2014 MERCEDES-BENZ CLS sensor

Convenience opening
XPointthe tip of the SmartKey at the driver's
door handle.
XPress and hold thebutton until the
side windows and the sliding sunroof are in
the desired position.
XTo interrupt convenienceopening:
release thebutton.
Convenienceclosing feature
Important safety notes
Information on the side window reversing
feature (Ypage 88).
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small
fingers
Rover the last4mmofthe closing movement
Rduring resetting
Rwhen closing the sliding sunroof again
manually immediately after automatic
reversing
This means that the reversing feature cannot
prevent someone being trapped in these
situations. There isarisk of injury.
Make sure that no body parts are in close
proximity during the closing procedure.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The closing process is stopped.
GWARNING
When the convenience closing feature is
operating, parts of the body could become
trapped in the closing area of the side window
and the sliding sunroof. There isarisk of
injury.
Observe the complete closing procedure
when the convenience closing feature is
operating. Make sure that no body parts are
in close proximity during the closing
procedure.
Proceed as follows if someone is trapped:
With the SmartKey:
Rrelease thebutton.
Rpress and hold thebutton until the
side windows and the sliding sunroof or the
panorama roof with power tilt/sliding
panel open again.
Using KEYLESS-GO:
Rrelease the sensor surface on the door
handle.
Rpull the door handle immediately and hold
it.
The side windows and the sliding sunroof
or the panorama roof with power tilt/
sliding panel open.
General notes
When you lock the vehicle, you can
simultaneously:
Rclose the side windows
Rclose the sliding sunroof
Using the SmartKey
The SmartKey must be close to the driver's
door handle.
XPoint the tip of the SmartKey at the driver's
door handle.
XPress and hold thebutton until the
side windows and the sliding sunroof are
fully closed.
XMake sure that all the side windows and the
sliding sunroof are closed.
XTo interrupt convenienceclosing:
release thebutton.
Using KEYLESS-GO
The KEYLESS-GO key must be outside the
vehicle. All the doors must be closed.
90Side windows
Opening and closing

XTouch recessed sensor surfaceon the
door handle until the side windows and the
sliding sunroof are fully closed.
iMake sure you only touch recessed
sensor surface.
XMake sure that all the side windows and the
sliding sunroof are closed.
XTo interrupt convenience closing:
release recessed sensor surfaceon the
door handle.
Resetting the side windows
Ifaside window can no longer be closed fully,
you must reset it.
XClose all the doors.
XTurn the SmartKey to position1or2in the
ignition lock.
XPull the corresponding switch on the door
control panel until the side window is
completely closed (Ypage 89).
XHold the switch for an additional second.
If the side window opens again slightly:
XImmediately pull the corresponding switch
on the door control panel until the side
window is completely closed (Ypage 89).
XHold the switch for an additional second.
XIf the corresponding side window remains
closed after the button has been released,
the side window has been reset correctly.
If this is not the case, repeat the steps
above again.
Side windows91
Opening and closing
Z

Automaticanti-glaremirrors
The rear-view mirror and theexteriormirror
on thedriver'sside automatically go intoanti-
glaremodeifthefollowingconditionsare met
simultaneously:
Rthe ignition is switched on and
Rincident light from headlamps strikes the
sensor in the rear-view mirror.
The mirrors do not go into anti-glare mode if
reverse gear is engaged or if the interior
lighting is switched on.
Parking position for the exterior
mirror on the front-passenger side
Setting and storing the parking position
Using reverse gear
Button for the driver's side exterior mirror
Button for the front-passenger side
exterior mirror
$Adjustment button
!Memory buttonM
You can position the front-passenger side
exterior mirror in suchaway that you can see
the rear wheel on that side as soon as you
engage reverse gear. You can store this
position.
XPark the vehicle and turn the SmartKey to
position2in the ignition lock
(Ypage 147).
XPress buttonfor the exterior mirror on
the front-passenger side.
XEngage reverse gear.
The exterior mirror on the front-passenger
side moves to the preset parking position.
XUse adjustmentbutton$to adjust the
exterior mirror toaposition that allows you
to see the rear wheel and the curb.
The parking position is stored.
iIf you shift the transmission to another
position, the exterior mirror on the front-
passenger side returnstothe driving
position.
Using the memorybutton
Button for the driver's side exterior mirror
Button for the front-passenger side
exterior mirror
$Adjustment button
!Memory buttonM
You can position the front-passenger side
exterior mirror in suchaway that you can see
the rear wheel on that side as soon as you
engage reverse gear. This setting can be
stored using memory buttonM!.
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
XWith the exterior mirror on the front-
passenger side activated, use adjustment
button$to adjust the exterior mirror. In
the exterior mirror, the rear wheel and the
curb should be visible.
Mirrors111
Seats, steering wheel and mirrors
Z

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please notethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related systemsand functions.
iRead the information on qualified
specialist workshops: (Ypage 26).
Exterior lighting
Generalnotes
For reasonsofsafety, Mercedes-Benz
recommends that you drive with the lights
switched on even during the daytime.
Therefore, your vehicle is equipped with
special daytime running lamps. In some
countries, operation of the headlamps varies
due to legal requirements and self-imposed
obligations.
If you wish to drive during the daytime without
lights, switchoff the daytime running lamps
function in the on-board computer
(Ypage 230).
Driving abroad
Symmetrical low-beam headlamps
Switchthe headlamps to symmetrical low
beam in countries in which traffic drives on
the opposite side of the road from the country
where the vehicle is registered. This prevents
glare to oncoming traffic. When using
symmetrical lights, the edge of the road is not
lit as widely and as far ahead as normal.
Have the headlamps converted ataqualified
specialist workshop as close to the border as
possible before drivinginthesecountries.
Asymmetrical low beam
Have the headlamps converted back to
asymmetrical low-beam headlamps at a
qualified specialist workshop as soon as
possible after crossing the border again.
Setting the exterior lighting
Setting options
Exterior lightingcan be set using:
Rthe light switch
Rthe combination switch(Ypage 119)
Rthe on-board computer (Ypage 230)
Light switch
Operation

Left-handstanding lamps
\nRight-hand standing lamps
Parkinglamps, licenseplate and
instrumentclusterlighting
\rAutomatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
If you hearawarningtonewhen you leave the
vehicle, the lightsmay still be switched on.
XTurn the light switchto\r.
116Exterior lighting
Light sa nd windshield wipers

The exterior lighting (except the parking/
standinglamps) switches off automatically if
you:
Rremove the SmartKey from the ignition lock
Ropen the driver's door with the SmartKey
in position0.
Automatic headlampmode
GWARNING
When the light switch is set to\r,the low-
beam headlamps may not be switched on
automatically if there is fog, snow or other
causes of poor visibility due to the weather
conditions such as spray. There isarisk of an
accident.
In such situations, turn the light switch to
.
The automatic headlamp feature is only an
aid. The driver is responsible for the vehicle's
lighting at all times.

Left-hand standinglamps
\nRight-hand standinglamps
Parking lamps, license plate and
instrument cluster lighting
\rAutomatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
\ris the favored light switch setting. The
light setting is automatically selected
accordingtothe brightness of the ambient
light (exception: poor visibility due to weather
conditions such as fog, snow or spray):
RSmartKey in position1in the ignition lock:
the parking lamps are switched on or off
automatically depending on the brightness
of the ambient light.
RWith the engine running: if you have
activated the daytime runninglamps
function via the on-board computer,the
daytime runninglamps or the low-beam
headlamps and parking lamps are switched
on or off automatically depending on the
brightness of the ambient light.
XTo switch on automatic headlamp
mode:turn the light switch to\r.
Only for Canada:
The daytime runninglamps improve the
visibility of your vehicle during the day. The
daytime runninglamps function is required by
law in Canada. It cannot therefore be
deactivated.
When the engine is runningand the vehicle is
stationary: if you move the selector lever from
adrive position toP,the daytime running
lamps/low-beam headlamps go out after
three minutes.
When the engine is running, the vehicle is
stationary and in high ambient light: if you
turn the light switch to,the daytime
runninglamps and parking lamps switch on.
If the engine is runningand you turn the light
switch to,the manual settings take
precedenceover the daytime runninglamps.
USA only:
The daytime runninglamps improve the
visibility of your vehicle during the day. To do
this, the daytime runninglamps function must
be switched on using the on-board computer
(Ypage 230).
If the engine is runningand you turn the light
switch toor,the manual settings
Exterior lighting117
Lights and windshield wipers
Z

take precedence overthe daytime running
lamps.

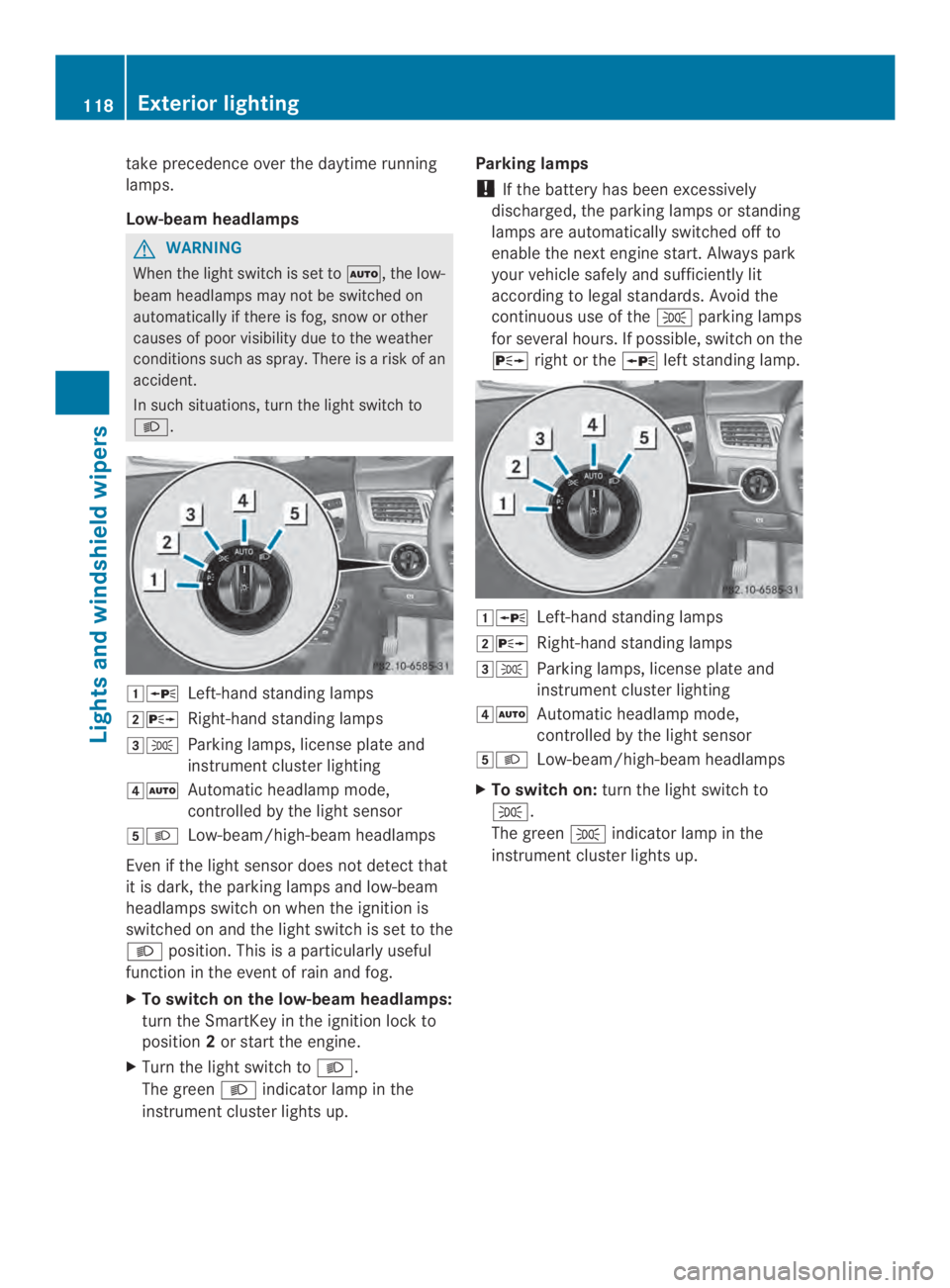

Low-beam headlamps
GWARNING
When the lightswitchisset to\r,thelow-
beam headlampsmay not be switchedon
automatically if there is fog, snow or other
causes of poor visibility due to theweather
conditions such as spray. Thereisarisk of an
accident.
In such situations, turnthe light switch to
.

Left-hand standing lamps
\nRight-hand standing lamps
Parking lamps, license plate and
instrumentcluster lighting
\rAutomatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
Even if the light sensor does not detect that
it is dark,the parking lamps and low-beam
headlamps switchonwhen the ignition is
switched on and the light switchisset to the
position. This isaparticularly useful
function in the eventofrain and fog.
XTo switch on thelow-beam headlamps:
turnthe SmartKey in the ignition lock to
position2or start the engine.
XTurn the light switchto.
The greenindicator lamp in the
instrumentcluster lightsup.
Parking lamps
!If the battery has been excessively
discharged, the parking lamps or standing
lamps are automatically switched off to
enable the nextengine start. Alwayspark
your vehiclesafelyand sufficiently lit
according to legalstandards.Avoid the
continuoususe of theparking lamps
for severalhours.Ifpossible, switch on the
\nright or theleft standinglamp.

Left-hand standinglamps
\nRight-hand standinglamps
Parking lamps, license plate and
instrument cluster lighting
\rAutomatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
XTo switch on:turn the light switch to
.
The greenindicator lamp in the
instrument cluster lights up.
118Exterior lighting
Lights and windshiel dw ipers

Standing lamps

Left-hand standing lamps
\nRight-hand standing lamps
Parking lamps, license plate and
instrumentcluster lighting
\rAutomatic headlamp mode,
controlled by the light sensor
Low-beam/high-beam headlamps
Switchingonthe standinglamps ensuresthe
corresponding side of thevehicle is
illuminated.
XTo switch on thestanding lamps:the
SmartKey is notintheignition lockoritis
in position0.
XTurn thelight switch to(left-handside
of thevehicle)or\n(right-hand side of
thevehicle).
Combination switch
Turn signal
High-beam headlamps
Turn signal, right
$High-beam flasher
!Turn signal, left
XTo indicatebriefly:pressthecombination
switch briefly to thepressure pointinthe
direction of arrowor!.
The corresponding turn signal flashes three
times.
XTo indicate:press the combination switch
beyond the pressure point in the direction
of arrowor!.
High-beam headlamps
High-beam headlamps
Turn signal, right
$High-beam flasher
!Turn signal, left
XTo switch on the high-beam headlamps:
turn the SmartKey in the ignition lock to
position2or start the engine.
XTurn the light switch toor\r.
XPress the combination switch beyond the
pressure point in the direction of
arrow.
In the\rposition, the high-beam
headlamps are only switched on when it is
dark and the engine is running.
Exterior lighting119
Lights and windshield wipers
Z

You can use this function to set the
headlamps to change betweenlow beam and
high beam automatically. The system
recognizes vehicles with their lights on, either
approaching from the opposite direction or
traveling in front of your vehicle, and
consequently switches the headlamps from
high beam to low beam.
The system automatically adapts the low-
beam headlamp range depending on the
distance to the other vehicle. Once the
system no longer detectsany other vehicles,
it reactivates the high-beam headlamps.
The system's optical sensor is located behind
the windshield near the overhead control
panel.
Switching Adaptive Highbeam Assist
on/off
High-beam headlamps
Turn signal, right
$High-beam flasher
!Turn signal, left
XTo switch on:turn the light switch to
\r.
XPress the combination switch beyond the
pressure point in the direction of
arrow.
Theindicator lamp in the
multifunction display lights up if it is dark
and the light sensor activates the low-beam
headlamps.
If you are driving at speeds above
approximately 28 mph (45 km/h):
The headlamp range is set automatically
depending on the distance between the
vehicle and other road users.
If you are driving at speeds above
approximately 35 mph (55 km/h) and no
other road users have been detected:
The high-beam headlamps are switched on
automatically. Theindicator lamp in
the instrument cluster also lights up.
If you are driving at speeds below
approximately 30 mph (45 km/h) or other
road users have been detected or the roads
are adequately lit:
The high-beam headlamps are switched off
automatically. Theindicator lamp in
the instrument cluster goes out. The
indicator lamp in the multifunction display
remains lit.
XTo switch off:move the combination
switch back to its normal position or move
the light switch to another position.
Theindicator lamp in the instrument
cluster goes out.
Headlamps fogged up on the inside
The headlamps may fog up on the inside if
there is high atmospheric humidity.
XSwitch on the light and drive off.
The level of moisture diminishes,
depending on the length of the journey and
the weather conditions (humidity and
temperature).
If the level of moisture does not diminish:
XHave the headlamps checked ataqualified
specialist workshop.
122Exterior lighting
Lights and windshield wipers
