XPress MB Infocall button.
This initiatesacall to the Mercedes-Benz
Customer Assistance Center. The indicator
lamp in MB Infocall buttonflashes while
the connection is being made. The
ConnectingCallmessage appears in the
multifunction display and COMAND is
muted.
Ifaconnection can be made, theCall
Connectedmessage appears in the
multifunction display.
Ifamobile phone network and GPS reception
are available, the system transfers data to the
Mercedes-Benz Customer Assistance Center,
for example:
RCurrent location of the vehicle
RVehicle identification number
iThe COMAND display indicates thatacall
is active. During the call, you can change to
the navigation menu by pressing the NAVI
button on COMAND,for example.
Voice output is not available.
Avoice connection is established between
the Mercedes-Benz Customer Assistance
Center and the vehicle occupants. You can
obtain information on how to operate your
vehicle's systems, on the location of the
nearest authorized Mercedes-Benz Center,
and on further products and services offered
by Mercedes-Benz USA.
USA only: you can find further information on
the mbrace system under "Owners Online" at
http://www.mbusa.com.
iThe system has not been able to initiate
an MB Info call, if:
Rthe indicator lamp in MB Info call
buttonis flashing continuously.
Rno voice connection to the Mercedes-
Benz Customer Assistance Center was
established.
This may be because the corresponding
mobile phone network is not available.
TheCall Failedmessage appears in the
multifunction display.
XTo endacall:press thebutton on the
multifunctionsteering wheel.
or
XPress the corresponding button for ending
aphone callonCOMAND.
Call priority
When service calls areactive, e.g.Roadside
Assistance or MB Info calls, an emergency
call can still be initiated. In this case, an
emergencycall will take priority and override
all other active calls.
The indicator lamp of the respective button
flashes until the call is ended. An emergency
call can only be terminated by the Mercedes-
Benz Customer Assistance Center.
All other calls can be ended by pressing:
Rthebutton on the multifunction
steeringwheel
Ror the corresponding COMAND button for
endingatelephone call
iWhenacall is initiated, the audio system
is muted. The mobile phone is no longer
connected to COMAND. However, if you
want to use your mobile phone, do so only
when the vehicle is stationary and inasafe
location.
Downloading destinations in COMAND
Downloading destinations
Destination Download gives you access to a
data bank with over 15 million Points of
Interest (POIs). These can be downloaded on
the navigation system in your vehicle. If you
know the destination,the address can be
downloaded. Alternatively, you can obtain the
location of Points of Interest (POIs)/
important destinationsinthe vicinity.
Furthermore, you can download routes with
up to 20 way points.
You are prompted to confirm route guidance
to the address entered.
294Features
Stowage and features

XSelectYeswith the\norbuttons
on the COMAND system.
XConfirm with the
button on the
COMAND system.
The system calculatesthe route and
subsequently starts the route guidance with
the address entered.
iIf youselectNo,the address can be saved
in the address book.
iThe Destination Download function is
available if the corresponding mobile
phone network is available and data
transfer is possible.
iYoucan onlyusethe Destination
Download function if the vehicleis
equipped withanavigation system.
Route Assistance
Thisservice is part of the mbrace PLUS
Packageand cannotbepurchased
separately.
iYou can also use the Route Assistance
function if your vehicle is not equipped with
anavigation system.
Within the framework of this service, you
receiveaprofessional and reliable form of
navigation support without having to leave
your vehicle.
The customer servicerepresentativefinds a
suitable route depending on your vehicle's
currentposition and the desired destination.
You will then be guided live through the
current route section.
Search&Send
General notes
iTo use "Search&Send", your vehicle
must be equipped with mbrace and a
navigation system. You must also have an
mbrace servicesubscription.
"Search&Send" isadestination entry
service.Adestination address which is found
on Google Maps®can be transferred via
mbrace directly to your vehicle's navigation
system.
Specifying and sending the destination
address
XGo to the website http://
www.maps.google.com and enter a
destination address intothe entry field.
XTo send the destination address to the
e-mail address of your mbrace
account:click on the corresponding
button.
iExample:
If you select 'Sendtovehicle' and then
'Mercedes-Benz', the destination address
will be sent to your vehicle.
XWhen the "Send" dialog window appears:
In the relevant field, enter the e-mail
address which you specified when
activating your mbrace account.
XClick "Send".
iInformation on specific commands such
as "Address entry" or "Send" can be found
on the website.
Calling up destination addresses
XSwitchonthe ignition.
The destination address is loaded intothe
vehicle's navigation system.
Adisplay message appears, asking
whether navigation should be started.
XSelectYesby sliding and turning
the COMAND controller and confirm
with.
The system calculates the routeand
subsequently starts the routeguidance
withtheaddress entered.
iIf you selectNo,theaddress can be saved
in theaddress book.
iIf you have sentmorethanone
destination address,eachindividual
destination must be confirmed separately.
Features295
Stowage and featu res
Z

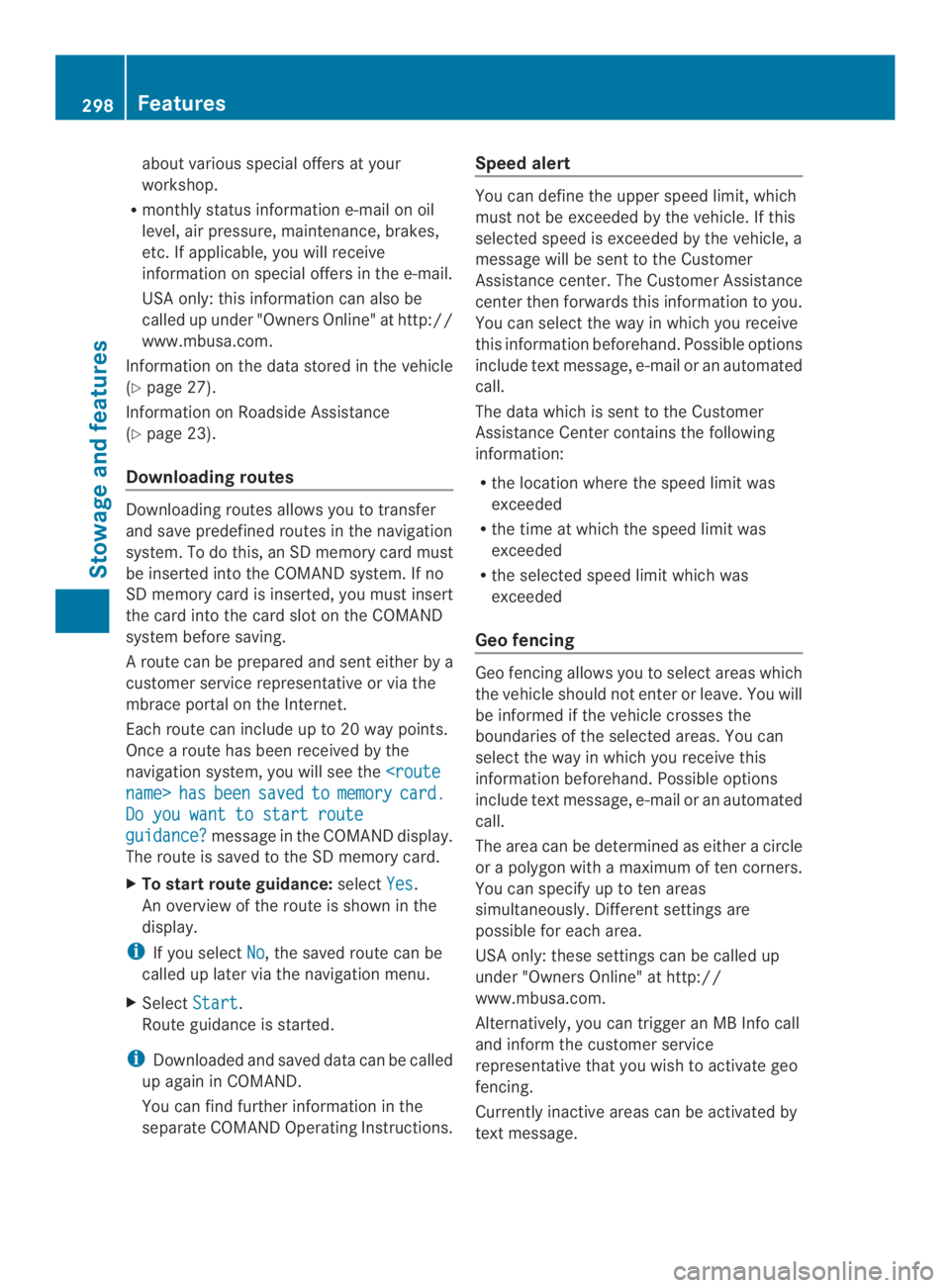

about various special offers at your
workshop.
Rmonthly status informatione-mail on oil
level,air pressure, maintenance, brakes,
etc. If applicable,you willreceive
information on special offers in the e-mail.
USA only:this information can alsobe
called up under "Owners Online" at http://
www.mbusa.com.
Information on the data stored in the vehicle
(Ypage27).
Information on RoadsideAssistance
(Ypage23).
Downloading routes
Downloading routes allows you to transfer
and save predefined routes in the navigation
system. To do this, an SD memory card must
be inserted into the COMAND system. If no
SD memory card is inserted, you must insert
the card into the card slot on the COMAND
system before saving.
Aroute can be prepared and sent either by a
customer service representative or via the
mbrace portal on the Internet.
Each route can include up to 20 way points.
Oncearoute has been received by the
navigation system, you will see the name>hasbeensavedtomemorycard.
Do you want to start route
guidance?message in the COMAND display.
The route is saved to the SD memory card.
XTo startrouteguidance:selectYes.
An overview of the route is shown in the
display.
iIf you selectNo,the saved route can be
called up later via the navigation menu.
XSelectStart.
Route guidance is started.
iDownloaded and saved data can be called
up again in COMAND.
You can find further information in the
separate COMAND Operating Instructions.
Speed alert
You can define the upper speed limit, which
must not be exceeded by the vehicle. If this
selected speed is exceeded by the vehicle, a
message will be sent to the Customer
Assistance center. The Customer Assistance
center then forwards this information to you.
You can select the way in which you receive
this information beforehand. Possible options
include text message, e-mail or an automated
call.
The data which is sent to the Customer
Assistance Center contains the following
information:
Rthe location where the speed limit was
exceeded
Rthe time at which the speed limit was
exceeded
Rthe selected speed limit which was
exceeded
Geo fencing
Geo fencing allows you to select areas which
the vehicle should not enter or leave. You will
be informed if the vehicle crosses the
boundaries of the selected areas. You can
select the way in which you receive this
information beforehand. Possible options
include text message, e-mail or an automated
call.
The area can be determined as eitheracircle
orapolygon withamaximum of ten corners.
You can specify up to ten areas
simultaneously. Different settings are
possible for each area.
USA only: these settings can be called up
under "Owners Online" at http://
www.mbusa.com.
Alternatively, you can trigger an MB Info call
and inform the customer service
representative that you wish to activate geo
fencing.
Currently inactive areas can be activated by
text message.
298Features
Stowage and features

The battery and the cover of the positive
terminal clamp must be installed securely
during operation.
Comply with safety precautions and take
protective measures when handling
batteries.
Risk of explosion.
Fire, open flames and smokingare
prohibited when handling the
battery. Avoid creatingsparks.
Battery acid is caustic. Avoid
contact with skin, eyes or clothing.
Wear suitable protective clothing,
especially gloves, apron and
faceguard.
Rinse any acid spills immediately
with clear water. Contact a
physician if necessary.
Wear eye protection.
Keep children away.
Observe this Operator's Manual.
For safety reasons, Mercedes-Benz
recommends that you only use batteries
which have been tested and approved for
your vehicle by Mercedes-Benz.These
batteries provide increased impact
protection to prevent vehicle occupants from
suffering acid burns should the battery be
damaged in the event of an accident.
In order for the battery to achieve the
maximum possible service life, it must always
be sufficiently charged.
The vehicle battery, like other batteries, can
discharge over time if you do not use the
vehicle. In this case, have the battery
disconnected ataqualified specialist
workshop. You can also charge the battery
withacharger recommended by Mercedes-
Benz.Contactaqualified specialist workshop
for further information.
Have the battery condition of charge checked
more frequently if you use the vehicle mainly
for short trips or if you leave it standingidle
foralengthy period. Consultaqualified
specialist workshop if you wish to leave your
vehicle parked foralong period of time.
iRemove the SmartKey if you park the
vehicle and do not require any electrical
consumers. The vehicle will then use very
little energy, thus conserving battery
power.
iIf the power supply has been interrupted,
e.g. if you reconnect the battery, you will
have to:
Rset the clock.Information on setting the
clock can be found in the separate
operating instructions.
On vehicles with COMAND and a
navigation system, the clock is set
automatically.
Rreset the function for folding the exterior
mirrors in/out automatically, by folding
the mirrors out once (Ypage 110).
Charging the battery
GWARNING
During charging and jump-starting, explosive
gases can escape from the battery. There is a
risk of an explosion.
Particularly avoid fire, open flames, creating
sparks and smoking. Ensure there is sufficient
ventilation while charging and jump-starting.
Do not lean overabattery.
GWARNING
Battery acid is caustic. There isarisk of injury.
Avoid contact with the skin, eyes or clothing.
Do not inhale any battery gases. Do not lean
324Battery (vehicle)
Breakdown assistance
