2014 MERCEDES-BENZ CLS cruise control

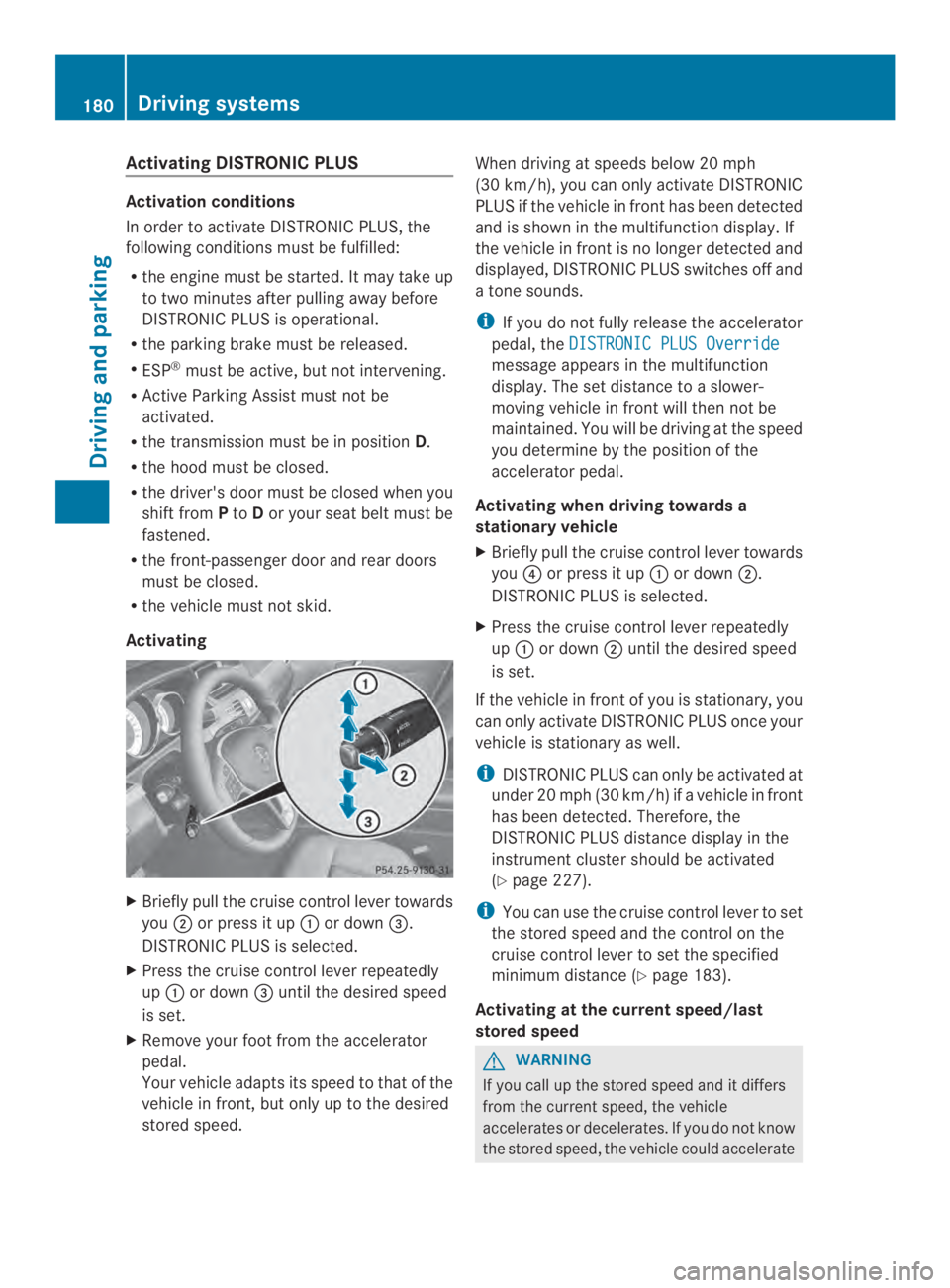

Activating DISTRONIC PLUS
Activation conditions
In order to activateDISTRONICPLUS, the
followingconditionsmustbefulfilled:
Rthe enginemust be started. It may take up
to two minutes after pulling away before
DISTRONIC PLUS is operational.
Rthe parkingbrake must be released.
RESP®must be active, but not intervening.
RActive ParkingAssist must not be
activated.
Rthe transmission must be in positionD.
Rthe hood must be closed.
Rthe driver's door must be closed when you
shift fromPtoDor your seat belt must be
fastened.
Rthe front-passenger door and rear doors
must be closed.
Rthe vehicle must not skid.
Activating
XBriefly pull the cruise control lever towards
youor press it upor down$.
DISTRONIC PLUS is selected.
XPress the cruise control lever repeatedly
upor down$until the desired speed
is set.
XRemove your foot from the accelerator
pedal.
Your vehicle adapts its speed to that of the
vehicle in front, but only up to the desired
stored speed.
When driving at speeds below 20 mph
(30 km/h),you can only activate DISTRONIC
PLUS if the vehicle in front has been detected
and is shown in the multifunction display.If
the vehicleinfront is no longerdetected and
displayed, DISTRONIC PLUS switches off and
atonesounds.
iIf you do not fully release the accelerator
pedal, theDISTRONIC PLUS Override
message appears in the multifunction
display. The set distancetoaslower-
movingvehicle in frontwill then not be
maintained. You will be driving at the speed
you determine by the position of the
accelerator pedal.
Activating when driving towardsa
stationary vehicle
XBriefly pull the cruise control lever towards
you!or press it upor down.
DISTRONIC PLUS is selected.
XPress the cruise control lever repeatedly
upor downuntil the desired speed
is set.
If the vehicle in frontofyou is stationary, you
can only activate DISTRONIC PLUS once your
vehicle is stationary as well.
iDISTRONIC PLUS can only be activated at
under 20 mph (30 km/h) ifavehicle in front
has been detected. Therefore, the
DISTRONIC PLUS distancedisplay in the
instrument cluster should be activated
(Ypage 227).
iYou can use the cruise control lever to set
the stored speed and the control on the
cruise control lever to set the specified
minimum distance(Ypage 183).
Activating at the current speed/last
stored speed
GWARNING
If you call up the stored speed and it differs
from the currentspeed, the vehicle
accelerates or decelerates. If you do not know
the stored speed, the vehicle could accelerate
180Driving systems
Driving and parking

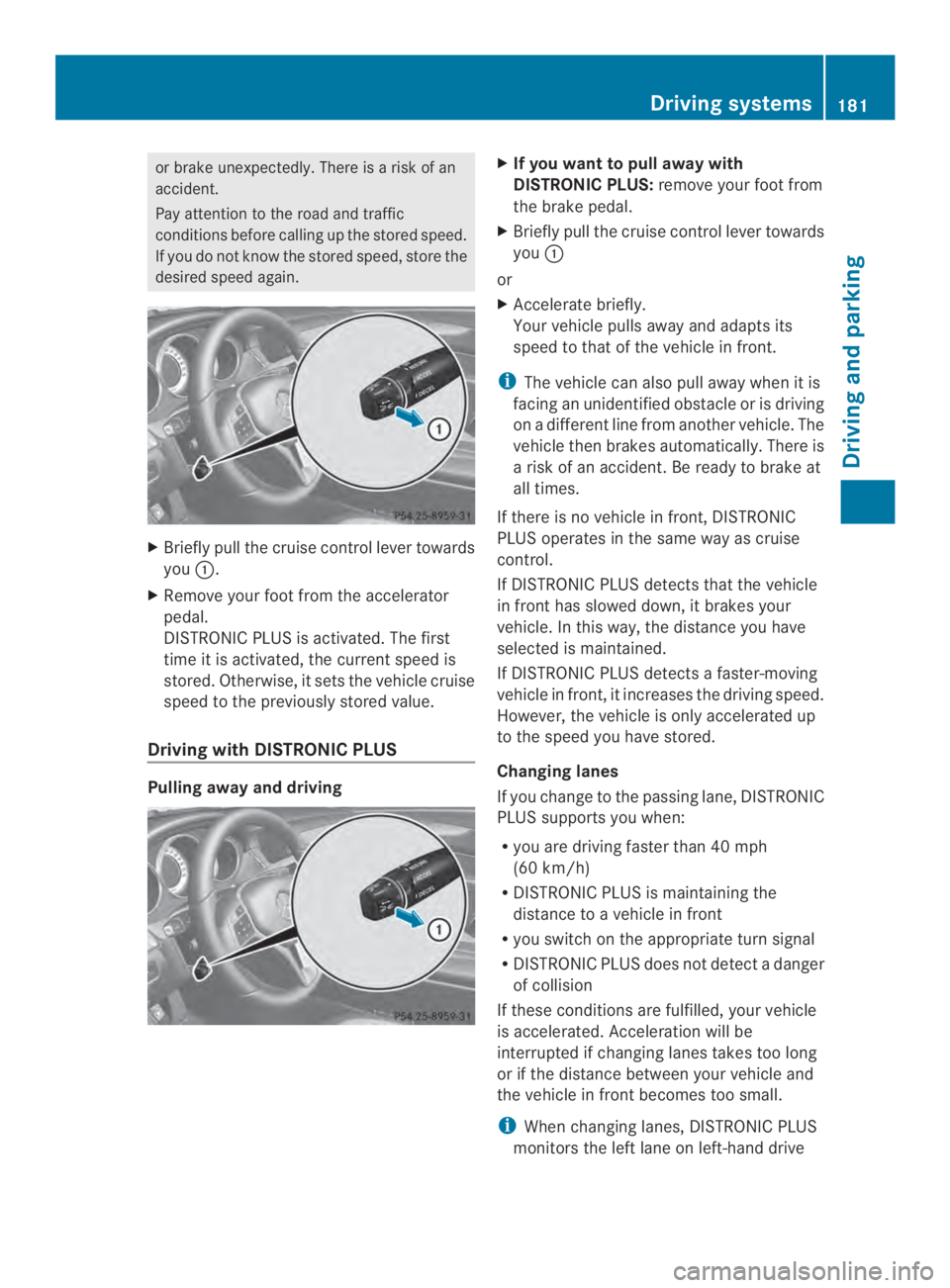

or brake unexpectedly. There isarisk of an
accident.
Pay attention to the road and traffic
conditions before calling up the stored speed.
If you do not know the stored speed, store the
desired speed again.
XBriefly pull the cruise control lever towards
you.
XRemove your foot from the accelerator
pedal.
DISTRONIC PLUS is activated. The first
time it is activated, the current speed is
stored. Otherwise, it sets the vehicle cruise
speed to the previously stored value.
Driving with DISTRONIC PLUS
Pulling away and driving
XIf you want to pull away with
DISTRONIC PLUS:remove your foot from
the brake pedal.
XBriefly pull the cruise control lever towards
you
or
XAccelerate briefly.
Your vehicle pulls away and adapts its
speed to that of the vehicle in front.
iThe vehicle can also pull away when it is
facing an unidentified obstacle or is driving
onadifferent line from another vehicle. The
vehicle then brakes automatically. There is
arisk of an accident.Beready to brake at
all times.
If there is no vehicle in front,DISTRONIC
PLUS operates in the same way as cruise
control.
If DISTRONIC PLUS detectsthat the vehicle
in front has slowed down, it brakes your
vehicle. In this way, the distance you have
selected is maintained.
If DISTRONIC PLUS detectsafaster-moving
vehicle in front,itincreases the driving speed.
However, the vehicle is only accelerated up
to the speed you have stored.
Changing lanes
If you change to the passing lane, DISTRONIC
PLUS supports you when:
Ryou are driving faster than 40 mph
(60 km/h)
RDISTRONIC PLUS is maintaining the
distance toavehicle in front
Ryou switch on the appropriate turn signal
RDISTRONIC PLUS does not detectadanger
of collision
If these conditions are fulfilled, your vehicle
is accelerated. Acceleration will be
interrupted if changing lanes takes too long
or if the distance between your vehicle and
the vehicle in front becomes too small.
iWhen changing lanes, DISTRONIC PLUS
monitors the left lane on left-hand drive
Driving systems181
Driving and parking
Z

vehicles and the right lane on right-hand
drive vehicles.
Vehicles with COMAND
Example:traffic circle
iThe following function is not operational
in all countries.
DISTRONIC PLUS usesadditionalinformation
from yournavigation system so that it can
react appropriately to certain traffic
situations. This is the case if, while following
avehicle, DISTRONIC PLUS is active and you:
Rapproach or drive throughatraffic circle
RapproachaT-intersection
Rturn off atahighwayexit
Even if the vehicleinfront leaves the
detection range, DISTRONIC PLUS
temporarily maintains the current driving
speedand does not accelerate. This is based
on the current map data in the navigation
system.
Afterwards, the vehicleaccelerates back to
the speedyou set.
Stopping
GWARNING
Never get out of the vehiclewhen DISTRONIC
PLUS is activated.
DISTRONIC PLUS must alsonever be
operated, activated or deactivated by a
passenger or from outside the vehicle.
DISTRONIC PLUS does not replace the
parking brake and must not be used for
parking.
The DISTRONIC PLUS braking effect is
canceled and the vehiclecan start moving if:
RDISTRONIC PLUS is deactivated using the
cruise control lever.
Ryou accelerate.
Rthere isamalfunction in the system or an
interruption in the power supply,e.g.
battery failure.
Rthe electricalsystem in the engine
compartment, the battery or the fuses are
tamperedwith.
Rthe battery is disconnected.
If you wishtoleave the vehicleorpark it,
deactivate DISTRONIC PLUS and secure the
vehicleagainst rolling away.
If DISTRONIC PLUS detects that the vehicle
in front is stopping, it brakes yourvehicle until
it is stationary.
Onceyour vehicle is stationary, it remains
stationary and you do not need to depress the
brake.
iDepending on the specified minimum
distance, your vehicle will come to a
standstill atasufficientdistancebehindthe
vehicle in front.The specified minimum
distance is set using the control on the
cruise control lever.
When DISTRONIC PLUS is activated, the
transmission is shifted automatically to
positionPif:
Rthe driver's door is open and the driver's
seat belt is unfastened.
Rthe engine is switched off, unless it is
automatically switched off by the ECO
start/stop function.
Rthe hood is opened.
Rasystem malfunction occurs.
Rthe power supply is not sufficient.
182Driving systems
Driving and parking

Settingaspeed
XPress the cruise control lever upfor a
higherspeed or downforalower speed.
XTo adjust the set speed in1mph
increments(1km/h increments):briefly
press the cruise controllever upor
downto the pressure point.
Everytime the cruise controllever is
pressed upor down,the last speed
stored is increased or reduced.
XTo adjust the set speed in5mph
increments(10 km/h increments):
briefly press the cruise controllever
upor downto the pressure point.
Everytime the cruise controllever is
pressed upor down,the last speed
stored is increased or reduced.
iIf you accelerate to overtake, DISTRONIC
PLUS adjusts the vehicle's speed to the last
speed stored after you have finished
overtaking.
Setting the specified minimum distance
You can set the specified minimum distance
for DISTRONIC PLUS by varying the time span
between one and two seconds. With this
function,you can set the minimum distance
that DISTRONIC PLUS keeps to the vehicle in
front, dependentonvehicle speed. You can
see this distanceinthe multifunction display
(Ypage 184).
iMake sure that you maintainasufficient
distancetothe vehicle in frontand comply
with the minimumdistanceasrequiredby
law. Adjust the distancetothe vehicle in
front if necessary.
You can set the specified minimum distance
for DISTRONIC PLUS by varyingthe timespan
between one and two seconds.With this
function,you can set the minimum distance
that DISTRONIC PLUS keepstothe vehicle in
front,dependent on vehicle speed. You can
see this distanceinthe multifunction display
(Ypage 184).
XTo increase:turncontrolin direction
$.
DISTRONIC PLUS thenmaintainsagreater
distancebetween your vehicle and the
vehicle in front.
XTo decrease:turncontrolin
direction.
DISTRONICPLUSthen maintainsashorter
distance between your vehicle and the
vehicle in front.
DISTRONIC PLUS displays in the
speedometer
Driving systems183
Driving and parking
Z

When DISTRONIC PLUS is activated, one or
two segmentsin the set speed range light
up.
If DISTRONIC PLUS detectsavehicle in front,
segmentsbetween speed of the vehicle in
frontand stored speed$light up.
iFor design reasons, the speed displayed
in the speedometer may differ slightly from
the speed set for DISTRONIC PLUS.
DISTRONIC PLUS displays in the
multifunction display
General notes
In the assistancegraphics display menu
(Ypage 227)ofthe on-board computer, you
can select the assistancegraphics display.
Display when DISTRONIC PLUS is
deactivated
Vehicle in front, if detected
Distance indicator, currentdistanceto
the vehicle in front
$Specified minimum distancetothe
vehicle in front; adjustable
!Own vehicle
XSelect theDistanceDisplayfunction
using the on-board computer
(Ypage 227).
Display when DISTRONIC PLUS is
activated
Vehicle in front, if detected
Specified minimum distancetothe
vehicle in front; adjustable
$Own vehicle
!DISTRONIC PLUS active (textonly
appears when the cruise control lever is
actuated)
You will see the stored speed for about five
seconds when you activateDISTRONIC PLUS.
XSelect theDistanceDisplayfunction
using the on-board computer
(Ypage 227).
iYou will see the stored speed for about
five seconds when you activate DISTRONIC
PLUS.
Deactivating DISTRONIC PLUS
184Driving systems
Driving and parking

There are several ways to deactivate
DISTRONIC PLUS:
XBriefly press the cruise control lever
forwards.
or
XBrake, unless the vehicle is stationary.
When you deactivate DISTRONIC PLUS, you
will see theDISTRONIC PLUS Offmessage
in the multifunction display for approximately
five seconds.
iThe last speed stored remains stored until
you switch off the engine.
iDISTRONIC PLUS is not deactivated if you
depress the accelerator pedal.
DISTRONIC PLUS is automatically
deactivated if:
Ryou engage the parking brake
Ryou are driving slower than 15 mph
(25 km/h) and there is no vehicle in front,
or if the vehicle in frontisnolonger
detected
RESP®intervenes or you deactivate ESP®
Rthe transmission is in theP,RorNposition
Ryou pull the cruise control lever towards
you in order to pull away and the front-
passenger door or one of the rear doors is
open
Rthe vehicle has skidded
Ryou activateActive Parking Assist
If DISTRONIC PLUS is deactivated, you will
hearawarning tone. You will see the
DISTRONIC PLUS Offmessage in the
multifunction display for approximately five
seconds.
Tips for driving with DISTRONIC PLUS
General notes
Pay particular attention in the following traffic
situations:
RCornering, going into and coming out of a
bend
RVehicles traveling onadifferent line
ROther vehicles changinglanes
RNarrow vehicles
RObstructions and stationary vehicles
RCrossing vehicles
In such situations, brake if necessary.
DISTRONIC PLUS is then deactivated.
Cornering, going into and coming out of a
bend
The ability of DISTRONIC PLUS to detect
vehicles when cornering is limited. Your
vehicle may brake unexpectedly or late.
Vehicles traveling onadifferent line
DISTRONIC PLUS may not detectvehicles
traveling onadifferent line. The distance to
the vehicle in frontwill be too short.
Driving systems185
Driving and parking
Z

Outsidetemperature display
You should pay special attention to road
conditions when temperatures are around
freezing point.
The outside temperature display is in the
multifunction display (Ypage 221).
Changes in the outside temperature are
displayed afterashort delay.
Speedometer with segments
The segments in the speedometer indicate
which speed range is available.
RCruise control activated (Ypage 175):
The segments light up from the stored
speed to the maximum speed.
RDISTRONIC PLUS activated (Ypage 177):
One or two segments in the set speed
range light up.
RDISTRONIC PLUS detectsavehicle in front:
The segments between the speed of the
vehicle in frontand the stored speed light
up.
Operatingthe on-board computer
Overview
Multifunctiondisplay
Right control panel
$Switches on the VoiceControl System;
see the separateoperating instructions
!Backbutton
Left control panel
XTo activatethe on-board computer:turn
the SmartKey to position1in the ignition
lock.
You can control the multifunction displayand
the settings in the on-board computer using
the buttons on the multifunction steering
wheel.
220Displays and operation
On-board computer and displays

You can determinewhether the multifunction
display shows some messages in miles or
kilometers.
XPress the\norbutton on the
steeringwheel to selecttheSett.menu.
XPress theorbutton to select the
Inst. Clustersubmenu.
XPressto confirm.
XPress theorbutton to select the
Display Unit Speed-/Odometer:
function.
You will see the selected setting:kmor
miles.
XPress thebutton to save the setting.
The selected unit of measurement for
distance applies to:
Rthe digital speedometer in theTripmenu
Rodometer and the trip odometer
Rtrip computer
Rcurrent consumption and the range
Rthe navigation instructions in theNavi
menu
Rcruise control
RDISTRONIC PLUS
RASSYST PLUS service interval display
Selecting the permanent display function
You can determine whether the multifunction
displaypermanently shows your speed or the
outside temperature.
XPress the\norbutton on the
steering wheel to select theSett.menu.
XPress theorbutton to select the
Inst. Clustersubmenu.
XPressto confirm.
XPress theorbutton to select the
Permanent Display:function.
You will see the selected settingOutside
TemperatureorSpeedometer [km/h]
(USA)/Speedometer [mph](Canada).
XPress thebutton to save the setting.
iThe speed is shown in km/h (USA)/mph
(Canada).
Lights
Setting the brightness of the instrument
cluster lighting and switches
The lighting in the instrumentcluster,inthe
displays and the controls in the vehicle
interior can be adjusted using the
Brightness Display/Switches:function.
XPress the\norbutton on the
steeringwheel to selecttheSett.menu.
XPress theorbutton to select the
Lightssubmenu.
XPressto confirm.
XPress theorbutton to select the
Brightness Display/Switches:
function.
You will see the selected setting.
XPressto confirm.
XPress theorbutton to adjust the
brightness to any level fromLevel 1to
Level 5(bright).
XPress theorbutton to save the
setting.
If the light switch is set to\r,or
,the brightness is dependent upon
the brightness of the ambient light.
iThe light sensor in the instrumentcluster
automatically controls the brightnessof
the multifunction display.
In daylight, the displays in the instrument
cluster are not illuminated.
Switching thedaytime running lamps on/
off
iThis function is not available in Canada.
XPress the\norbutton on the
steeringwheel to selecttheSett.menu.
XPress theorbutton to select the
Lightssubmenu.
XPressto confirm.
230Menus and submenus
On-board computer and displays
