2014 MAZDA MODEL CX-9 buttons

Black plate (18,1)
To change the seatback angle, press the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
To adjust the seat height, move the switch
up or down.
qSeat Position Memoryí
The driver's seat position memory
function allows you to program a desired
seat position and outside mirror angle
position. The personalized positions can
be easily activated with the simple touch
of a button. The programmed positions
can also be activated when unlocking the
doors using a programmed advanced key/
retractable type key.
Seat positions and outside mirror angle
positions for up to three people can be
programmed into the memory using the
three available programming buttons.
CAUTION
When activating the seat position, do
not place your hands or fingers
around the seat bottom. The seat
moves to the desired position
automatically, and if your hands or
fingers are placed around the seat
bottom, it could cause injury.
NOTE
lOnly operate the seat memory function
while the vehicle is parked.
lVehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Programming
1. Adjust the seat and outside mirror angle to the desired positions.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-5)
Height Adjustment (page 2-6)
Outside Mirrors (page 3-64)
2-6
Essential Safety Equipment
íSome models.
Seats
CX-9_8DA3-EA-13G_Edition2 Page18
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (19,1)
2. Press the SET button followed by oneof the programming buttons (1, 2, or 3)
within about 5 seconds. A beep sound
is heard after the programming is
completed.
SET button
NOTE
If the programming button (1, 2, or 3) you
have selected is already programmed, it will be
overwritten with the new setting.
Activating the seat and outside mirrors
to their pre-programmed positions
1. Shift the selector lever to the P
position.
2. Press the programming button (1, 2, or 3) that you selected when
programming your seat and outside
mirror angle positions. A beep sound is
heard after the adjustment to the
programmed positions is completed. NOTE
lWhen the ignition is switched to ACC or off,
a pre-programmed seat position can be
activated regardless of the selector lever
position.
lIf the seat and outside mirror angles are
already adjusted to the positions you are
activating, the seat and outside mirrors do
not move, however, a beep sound is heard
to confirm that the adjustment operation is
completed.
Activating the seat and outside mirror
angle positions when unlocking with an
advanced key/retractable type key
Your desired seat and outside mirror angle
positions can be activated when unlocking
the doors. Perform the following
procedure using the advanced key/
retractable type key.
1. Adjust the seat and outside mirror
angle to the desired positions.
2. Switch the ignition off.
3. Press the SET button next to the programming buttons and then the
unlock button on the advanced key/
retractable type key you want to
program within about 5 seconds. A
beep sound is heard when the operation
is completed.
When the driver's door is unlocked using
a programmed advanced key/retractable
type key, the seat and outside mirror
angles are activated to their programmed
positions if the driver's door is opened
within about 40 seconds. A beep sound is
heard after the adjustment to the
programmed positions is completed.
Essential Safety Equipment
Seats
2-7
CX-9_8DA3-EA-13G_Edition2 Page19
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

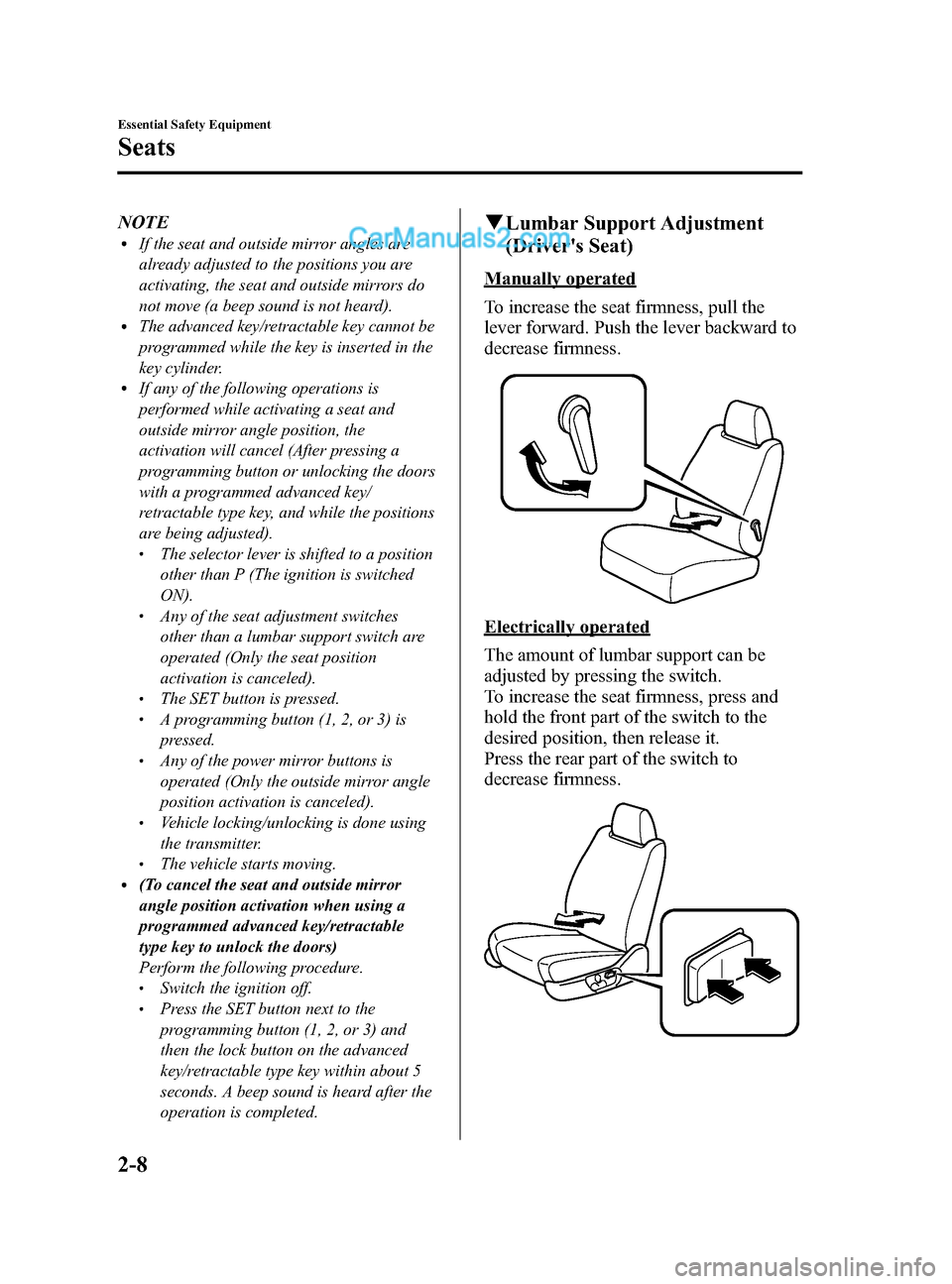

Black plate (20,1)
NOTElIf the seat and outside mirror angles are
already adjusted to the positions you are
activating, the seat and outside mirrors do
not move (a beep sound is not heard).
lThe advanced key/retractable key cannot be
programmed while the key is inserted in the
key cylinder.
lIf any of the following operations is
performed while activating a seat and
outside mirror angle position, the
activation will cancel (After pressing a
programming button or unlocking the doors
with a programmed advanced key/
retractable type key, and while the positions
are being adjusted).
lThe selector lever is shifted to a position
other than P (The ignition is switched
ON).
lAny of the seat adjustment switches
other than a lumbar support switch are
operated (Only the seat position
activation is canceled).
lThe SET button is pressed.lA programming button (1, 2, or 3) is
pressed.
lAny of the power mirror buttons is
operated (Only the outside mirror angle
position activation is canceled).
lVehicle locking/unlocking is done using
the transmitter.
lThe vehicle starts moving.l(To cancel the seat and outside mirror
angle position activation when using a
programmed advanced key/retractable
type key to unlock the doors)
Perform the following procedure.
lSwitch the ignition off.lPress the SET button next to the
programming button (1, 2, or 3) and
then the lock button on the advanced
key/retractable type key within about 5
seconds. A beep sound is heard after the
operation is completed.
qLumbar Support Adjustment
(Driver's Seat)
Manually operated
To increase the seat firmness, pull the
lever forward. Push the lever backward to
decrease firmness.
Electrically operated
The amount of lumbar support can be
adjusted by pressing the switch.
To increase the seat firmness, press and
hold the front part of the switch to the
desired position, then release it.
Press the rear part of the switch to
decrease firmness.
2-8
Essential Safety Equipment
Seats
CX-9_8DA3-EA-13G_Edition2 Page20
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (88,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enable the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors and the liftgate without operating the key.lStarting the engine without operating the key.
Additional functions are available using the buttons on the advanced key.
Refer to Operation Using Advanced Key Functions on page 3-13.
lThe following operations are possible using the transmitter of the keyless entry system
from a distance (Lock/Unlock/Panic/Liftgateíbutton):lLocking/unlocking the doors and the liftgate.lOpening/closing the power liftgateí.lOpening the power windows and the moonroofí.lOperating the theft-deterrent systemí.lTurning on the alarm.lLocking/unlocking the doors or starting the engine using the auxiliary key.
WARNING
Do not leave the key in your vehicle with children and keep them in a place where
your children will not find or play with them: Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. Children may find these new kinds of keys to be
an interesting toy to play with and could cause the power windows or other controls
to operate, or even make the vehicle move.
Radio waves from the advanced key may affect medical equipment such as
pacemakers: Before using the advanced key near people who use medical equipment, ask the
medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.lRefer to Immobilizer System (page 3-53) for information regarding keys and engine starting.l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-61) for information regarding keys and the prevention of
vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
CX-9_8DA3-EA-13G_Edition2 Page88
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (91,1)
qAdvanced Key Maintenance
CAUTION
Ø Make sure the battery is installed
with the correct pole facing
upward. Battery leakage could
occur if it is not installed correctly.
Ø When replacing the battery, be
careful not to touch any of the
internal circuitry and electrical
terminals, bend the electrical
terminals, or get dirt in the
transmitter as the transmitter
could be damaged.
Ø There is the danger of explosion if
the battery is not correctly
replaced.
Ø Replace only with the same type
battery (CR2025 or equivalent).
Ø Dispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire or water.
ØNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is turned off.
lThe system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
lThe system's operational range is
reduced. Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Insert a small, flathead screwdriver into
the groove shown in the figure and
rotate the screwdriver to open the cover
slightly.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
CX-9_8DA3-EA-13G_Edition2 Page91
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (99,1)
NOTElIn extremely cold weather or after the
vehicle has not been driven in several days,
let the engine warm up without operating
the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
Turning the engine off
1. Move the shift lever to the P position.
2. Switch the ignition from ON to ACC.
NOTE
When the engine is turned off and the ignition
is switched from ACC to OFF, the KEY
indicator light (green) flashes in the instrument
cluster for about 30 seconds if the battery
power of the advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page 3-7).
3. Push in the start knob from the ACCposition and turn it to the OFF.
CAUTION
When leaving the vehicle, make sure
the ignition is switched to OFF.
NOTE
lWhen switching the ignition to OFF, the
ignition switch has to be pushed in from the
ACC position and turned. Without being
pushed in, the ignition switch stops at the
ACC position and the vehicle battery may
be discharged if the ignition switch is left in
the ACC position. When leaving the vehicle,
make sure the ignition is switched to OFF.
lIf the vehicle is left with the ignition not
switched to OFF, a beep sound is heard and
the indicator light flashes to notify the
driver.
Refer to Warning Beep (page 3-18).
Operation Using Advanced
Key Functions
q Keyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and the liftgate, and
opens the power windows and the
moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob in the OFF position, the
system is fully operational. If the ignition is
not switched off or the start knob is pushed
in, the system does not operate.
lAll doors and the liftgate cannot be locked
by pressing the lock button while any door
or the liftgate is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
CX-9_8DA3-EA-13G_Edition2 Page99
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (100,1)
Transmitter
with power liftgate
Lock button
Unlock button
Power liftgate button
Operation indicator
light
Panic button
without power liftgate
Lock buttonUnlock buttonOperation indicator light
Panic button
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to the following pages:
Opening/Closing the Power Windows (page
3-44)
Opening/Closing the moonroof (page 3-52)
The operation indicator light flashes when
the buttons are pressed. Lock button
To lock the doors and the liftgate, press
the lock button. A beep sound will be
heard once and the hazard warning lights
will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
NOTE
lA beep sound can be heard for confirmation
when the doors are locked using the
advanced keyless transmitter. If you prefer,
the beep sound can be turned off.
Refer to Personalization Features on page
10-8.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to Theft-Deterrent System on page
3-61.
NOTElAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-9_8DA3-EA-13G_Edition2 Page100
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (108,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry Systemí
This system remotely locks and unlocks
the doors and the liftgate, and opens the
power windows and the moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
Ø Get the transmitter wet.
Ø Disassemble the transmitter.
Ø Expose the transmitter to any kind
of magnetic field.
Ø Expose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-24).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
3-22
Knowing Your Mazda
íSome models.
Doors and Locks
CX-9_8DA3-EA-13G_Edition2 Page108
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G
