qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to Opening/Closing the Power Windows
and the moonroof from Outside (page 3-44).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound and the
hazard warning lights will flash once. NOTE
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. Also, the hazard
warning lights will not flash and the horn
will not sound.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to Theft-Deterrent System on page
3-61.
lAll doors and the liftgate cannot be locked
when the key is in the ignition switch.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and the hazard warning lights will flash
twice.
Knowing Your Mazda
Doors and Locks
3-23
CX-9_8DA3-EA-13G_Edition2 Page109
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (110,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to Theft-Deterrent System on page 3-61.
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
Turning on the alarm
Pressing the panic button once will trigger
the alarm for about 2 minutes and 30
seconds, and the following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
q Transmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
Ø Install the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
Ø When replacing the battery, be
careful not to touch any of the
internal circuitry and electrical
terminals, bend the electrical
terminals, or get dirt in the
transmitter as the transmitter
could be damaged.
Ø There is the danger of explosion if
the battery is not correctly
replaced.
Ø Replace only with the same type
battery (CR1620 or equivalent).
Ø Dispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-21).
3-24
Knowing Your Mazda
Doors and Locks
CX-9_8DA3-EA-13G_Edition2 Page110
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (121,1)
(Without power liftgate)
Lever
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Manually closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qPower Liftgateí
The power liftgate opens/closes
electrically by operating switches in the
vehicle or the buttons on the keyless entry
system transmitter.
Refer to Keyless Entry System on page
3-13.
WARNING
Be sure to watch the power liftgate as
it opens or closes, and make sure that
it closes completely:
Opening or closing the power liftgate
while not watching it move is
dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely
and, if left unnoticed, could result in
serious injury or death if an occupant
were to fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating
it.
Always confirm the safety of the area
around the power liftgate before
operating it electrically. Not checking the area around the
liftgate for people before operating it
using the power liftgate switch or the
button on the keyless entry system is
dangerous. A person could become
caught between the liftgate and an
obstruction while it is opening
electrically or between the liftgate
and vehicle while it is closing
electrically, resulting in an accident
and serious injury.
Never allow children to operate the
power liftgate system: Allowing children to operate the
power liftgate switch and the keyless
entry system is dangerous. Children
are not aware of the dangers of
people getting fingers and hands
caught in a moving liftgate. If
someone's neck, head or hands get
caught in a closing door, it could
result in death or serious injury.
Knowing Your Mazda
Doors and Locks
3-35íSome models.
CX-9_8DA3-EA-13G_Edition2 Page121
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (153,1)
NOTElDo not use glass cleaner or suspend objects
on or around the light sensor. Otherwise,
light sensor sensitivity will be affected and
may not operate normally.
Light sensor
Light sensor
lFor information regarding the 3 buttons
(
,,) on the auto-dimming
mirror, refer to HomeLink Wireless Control
System (page 5-88).
lThe auto-dimmer function is canceled when
the ignition is switched ON and the shift
lever is in reverse (R).
Knowing Your Mazda
Steering Wheel and Mirrors
3-67
CX-9_8DA3-EA-13G_Edition2 Page153
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (178,1)
Ignition Switch
Auxiliary key (with advanced key)
NOTE
When starting the engine using the advanced
key, refer to Starting the Engine (page 3-10).
When starting the engine with the
auxiliary key, perform the following
procedure.
1. Remove the auxiliary key from theadvanced key (page 3-17).
2. Make sure the start knob is in the OFF position.
3. Remove the start knob by pulling it outward while pressing the buttons on
both the left and right sides.
4. Insert the auxiliary key in the ignitionswitch.
qIgnition Switch Positions
With advanced
key
Without advanced
key
OFF
The power supply to electrical devices is
turned off. Only in this position can the
key be removed.
5-2
Driving Your Mazda
Starting and Driving
CX-9_8DA3-EA-13G_Edition2 Page178
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (266,1)

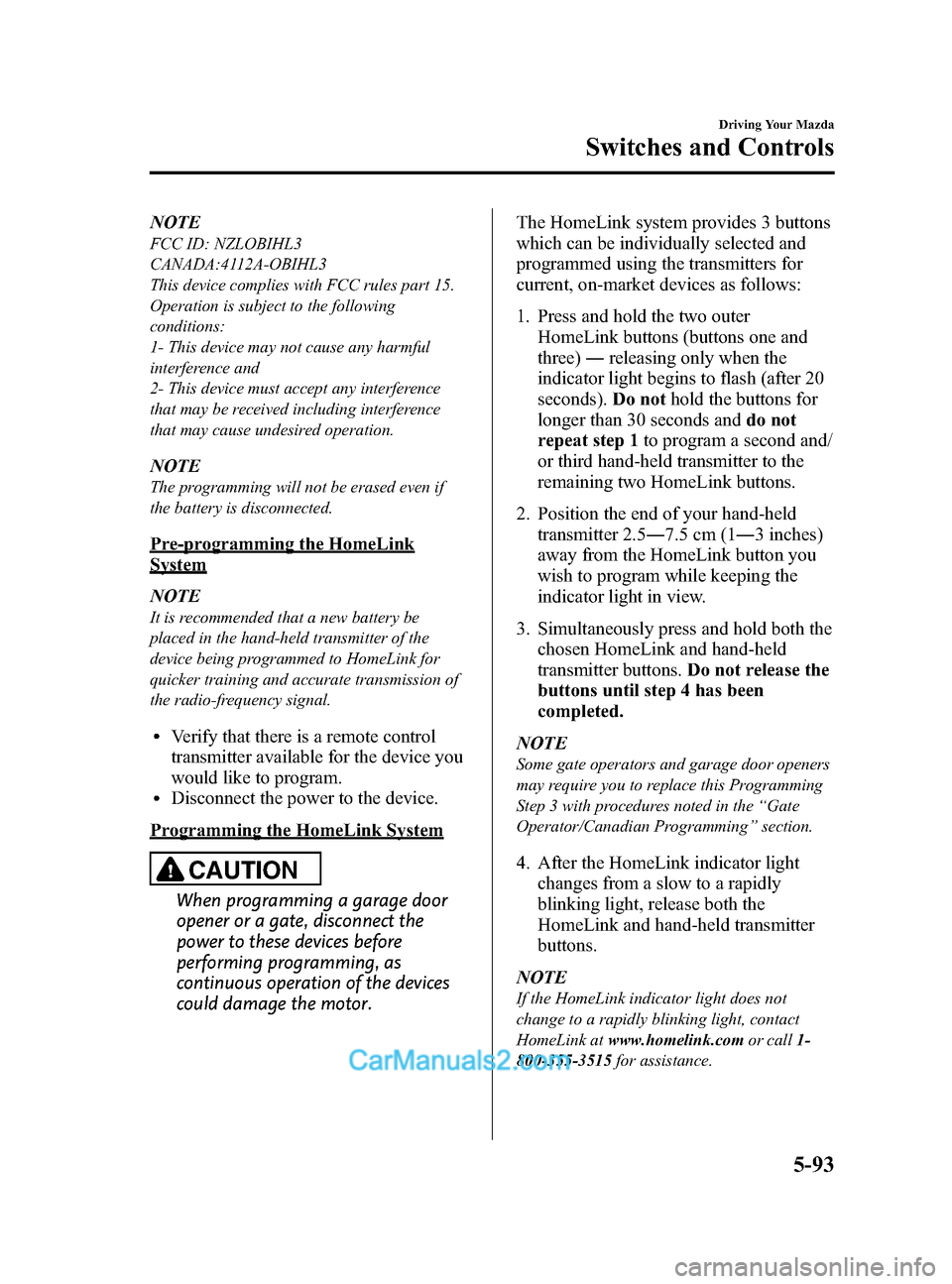

The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:
1. Position the end of your hand-heldtransmitter 2.5 ―7.5 cm (1 ―3 inches)
away from the HomeLink button you
wish to program while keeping the
indicator light in view.
2. Simultaneously press and hold both the chosen HomeLink and hand-held
transmitter buttons. Do not release the
buttons until step 3 has been
completed.
NOTE
Some gate operators and garage door openers
may require you to replace this Programming
Step 2 with procedures noted in the “Gate
Operator/Canadian Programming ”section.
3. After the HomeLink indicator light
changes from a slow to a rapidly
blinking light, release both the
HomeLink and hand-held transmitter
buttons.
NOTE
If the HomeLink indicator light does not
change to a rapidly blinking light, contact
HomeLink at www.homelink.com or call1-
800-355-3515 for assistance.
4. Firmly press and hold the programmed
HomeLink button for five seconds, and
then release it. Perform this operation
two times to activate the door. If the
door does not activate, press and hold
the just-trained HomeLink button and
observe the indicator light.
If the indicator light stays on constantly,
programming is complete and your
device should activate when the
HomeLink button is pressed and released. NOTE
To program the remaining two HomeLink
buttons, begin with
“Programming ”―step 1.
If the indicator light blinks rapidly for
two seconds and then turns to a
constant light, continue with
“ Programming ”steps 5 ―7to complete
the programming of a rolling code
equipped device (most commonly a
garage door opener).
5. At the garage door opener receiver
(motor-head unit) in the garage, locate
the “learn ”or “smart ”button. This can
usually be found where the hanging
antenna wire is attached to the motor-
head unit.
6. Firmly press and release the “learn ”or
“ smart ”button. (The name and color of
the button may vary by manufacturer.)
NOTE
There are 30 seconds in which to initiate step
7.
7. Return to the vehicle and firmly press,
hold for two seconds and release the
programmed HomeLink button. Repeat
the “press/hold/release ”sequence a
second time, and, depending on the
brand of the garage door opener (or
other rolling code equipped device),
repeat this sequence a third time to
complete the programming process.
HomeLink should now activate your
rolling code equipped device.
NOTE
To program the remaining two HomeLink
buttons, begin with “Programming ”―step 1.
For questions or comments, please contact
HomeLink at www.homelink.com or1-
800-355-3515.
5-90
Driving Your Mazda
Switches and Controls
CX-9_8DA3-EA-13G_Edition2 Page266
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (267,1)
Gate operator/Canadian Programming
Canadian radio-frequency laws require
transmitter signals to“time-out ”(or quit)
after several seconds of transmission ―
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are
designed to “time-out ”in the same
manner.
If you live in Canada or you are having
difficulties programming a gate operator
by using the “Programming ”procedures
(regardless of where you live), replace
“ Programming HomeLink ”step 2 with
the following:
NOTE
If programming a garage door opener or gate
operator, it is advised to unplug the device
during the “cycling ”process to prevent
possible overheating.
Continue to press and hold the HomeLink
button while you press and release ―
every two seconds (“ cycle ”) your hand-
held transmitter until the frequency signal
has successfully been accepted by
HomeLink. (The indicator light will flash
slowly and then rapidly.) Proceed with
“ Programming ”step 3 to complete.
Operating the HomeLink System
Press the programmed HomeLink button
to operate a programmed device. The
code will continue being transmitted for a
maximum of 20 seconds.
Reprogramming the HomeLink system
To program a device to HomeLink using a
HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink
button. DO NOT release the button.
2. The indicator light will begin to flash after 20 seconds. Without releasing the
HomeLink button, proceed with
“Programming ”- step 1.
Erasing Programmed HomeLink
Buttons
To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (
,)
on the auto-dimming mirror until the
HomeLink indicator light begins to flash
after approximately 10 seconds.
Verify that the programming has been
erased when you resell the vehicle.
q Type B
NOTE
HomeLink and HomeLink house are registered
trademarks of Johnson Controls.
Driving Your Mazda
Switches and Controls
5-91
CX-9_8DA3-EA-13G_Edition2 Page267
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (269,1)
NOTE
FCC ID: NZLOBIHL3
CANADA:4112A-OBIHL3
This device complies with FCC rules part 15.
Operation is subject to the following
conditions:
1- This device may not cause any harmful
interference and
2- This device must accept any interference
that may be received including interference
that may cause undesired operation.
NOTE
The programming will not be erased even if
the battery is disconnected.
Pre-programming the HomeLink
System
NOTE
It is recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink for
quicker training and accurate transmission of
the radio-frequency signal.
lVerify that there is a remote control
transmitter available for the device you
would like to program.
lDisconnect the power to the device.
Programming the HomeLink System
CAUTION
When programming a garage door
opener or a gate, disconnect the
power to these devices before
performing programming, as
continuous operation of the devices
could damage the motor.The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:
1. Press and hold the two outer
HomeLink buttons (buttons one and
three) ―releasing only when the
indicator light begins to flash (after 20
seconds). Do nothold the buttons for
longer than 30 seconds and do not
repeat step 1 to program a second and/
or third hand-held transmitter to the
remaining two HomeLink buttons.
2. Position the end of your hand-held transmitter 2.5 ―7.5 cm (1 ―3 inches)
away from the HomeLink button you
wish to program while keeping the
indicator light in view.
3. Simultaneously press and hold both the chosen HomeLink and hand-held
transmitter buttons. Do not release the
buttons until step 4 has been
completed.
NOTE
Some gate operators and garage door openers
may require you to replace this Programming
Step 3 with procedures noted in the “Gate
Operator/Canadian Programming ”section.
4. After the HomeLink indicator light
changes from a slow to a rapidly
blinking light, release both the
HomeLink and hand-held transmitter
buttons.
NOTE
If the HomeLink indicator light does not
change to a rapidly blinking light, contact
HomeLink at www.homelink.com or call1-
800-355-3515 for assistance.
Driving Your Mazda
Switches and Controls
5-93
CX-9_8DA3-EA-13G_Edition2 Page269
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G
