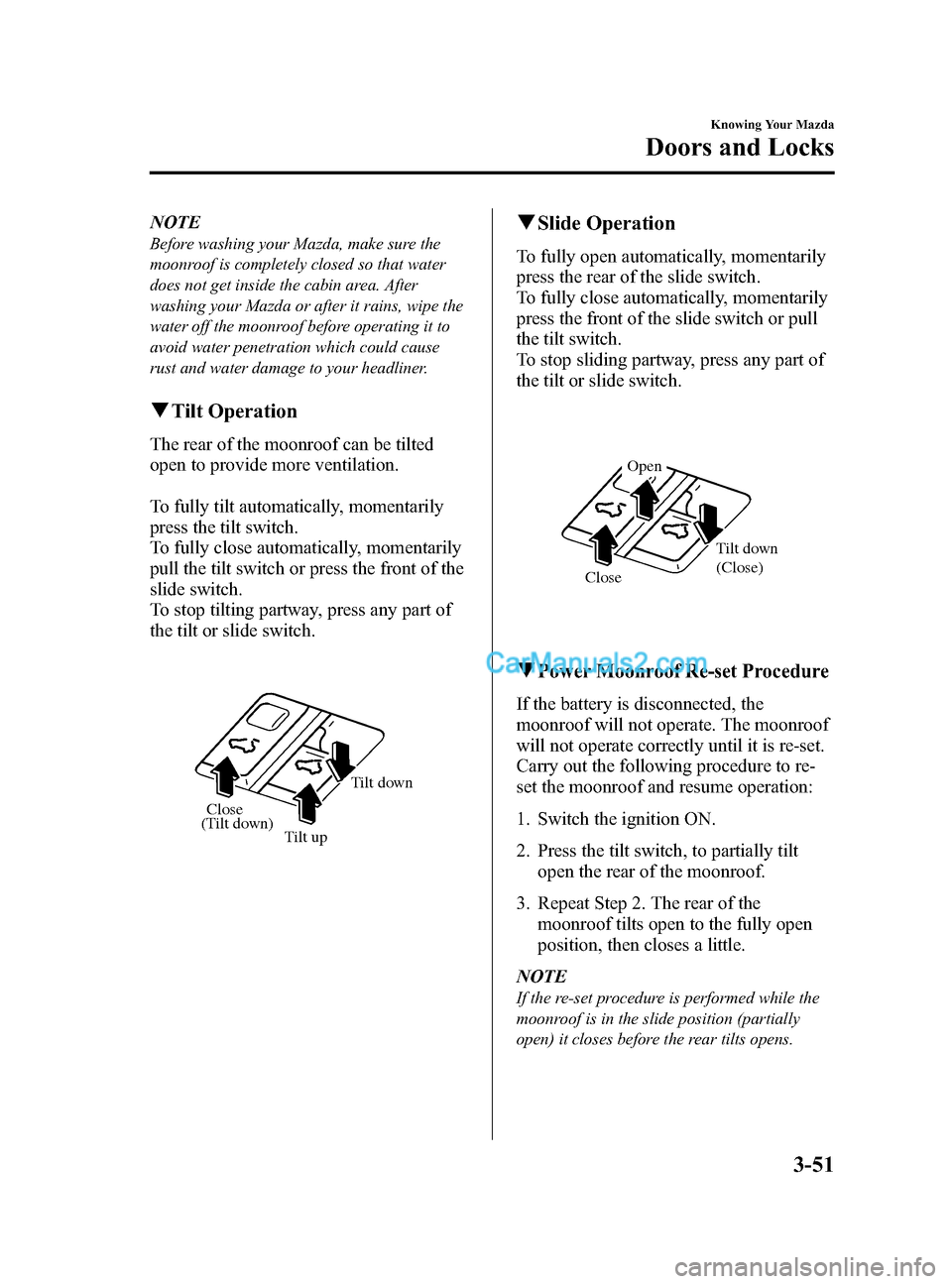

NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt switch.
To fully close automatically, momentarily
pull the tilt switch or press the front of the
slide switch.
To stop tilting partway, press any part of
the tilt or slide switch.
Close
Tilt upTilt down
(Tilt down)
q Slide Operation
To fully open automatically, momentarily
press the rear of the slide switch.
To fully close automatically, momentarily
press the front of the slide switch or pull
the tilt switch.
To stop sliding partway, press any part of
the tilt or slide switch.
Close Tilt down
(Close)
Open
qPower Moonroof Re-set Procedure
If the battery is disconnected, the
moonroof will not operate. The moonroof
will not operate correctly until it is re-set.
Carry out the following procedure to re-
set the moonroof and resume operation:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
3. Repeat Step 2. The rear of the moonroof tilts open to the fully open
position, then closes a little.
NOTE
If the re-set procedure is performed while the
moonroof is in the slide position (partially
open) it closes before the rear tilts opens.
Knowing Your Mazda
Doors and Locks
3-51
CX-9_8DA3-EA-13G_Edition2 Page137
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (138,1)
qEngine-off Moonroof Operation
The moonroof can be operated for about
40 seconds after the ignition is switched
from ON to ACC or switched off with all
doors closed. If any door is opened, the
moonroof will be inoperable.
qOpening/Closing the Moonroof
from Outside
The moonroof can be opened or closed
from outside the vehicle after the doors
and the liftgate are closed.
Refer to Opening/Closing the Power
Windows and the Moonroof from Outside
on page 3-44.
qJam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof during closing
operation, the moonroof will stop and
open halfway.
WARNING
Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
closing. If fingers are caught, serious
injuries could occur.
NOTE
lDepending on driving conditions, a closing
moonroof could stop and start opening
when the moonroof feels a shock that is
similar to something blocking it.
lThe moonroof's jam-safe function does not
function while the moonroof is initializing.
q Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
Ø The sunshade does not tilt. To
avoid damaging the sunshade, do
not push up on it.
Ø Do not close the sunshade while
the moonroof is opening. Trying to
force the sunshade closed could
damage it.
3-52
Knowing Your Mazda
Doors and Locks
CX-9_8DA3-EA-13G_Edition2 Page138
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (139,1)

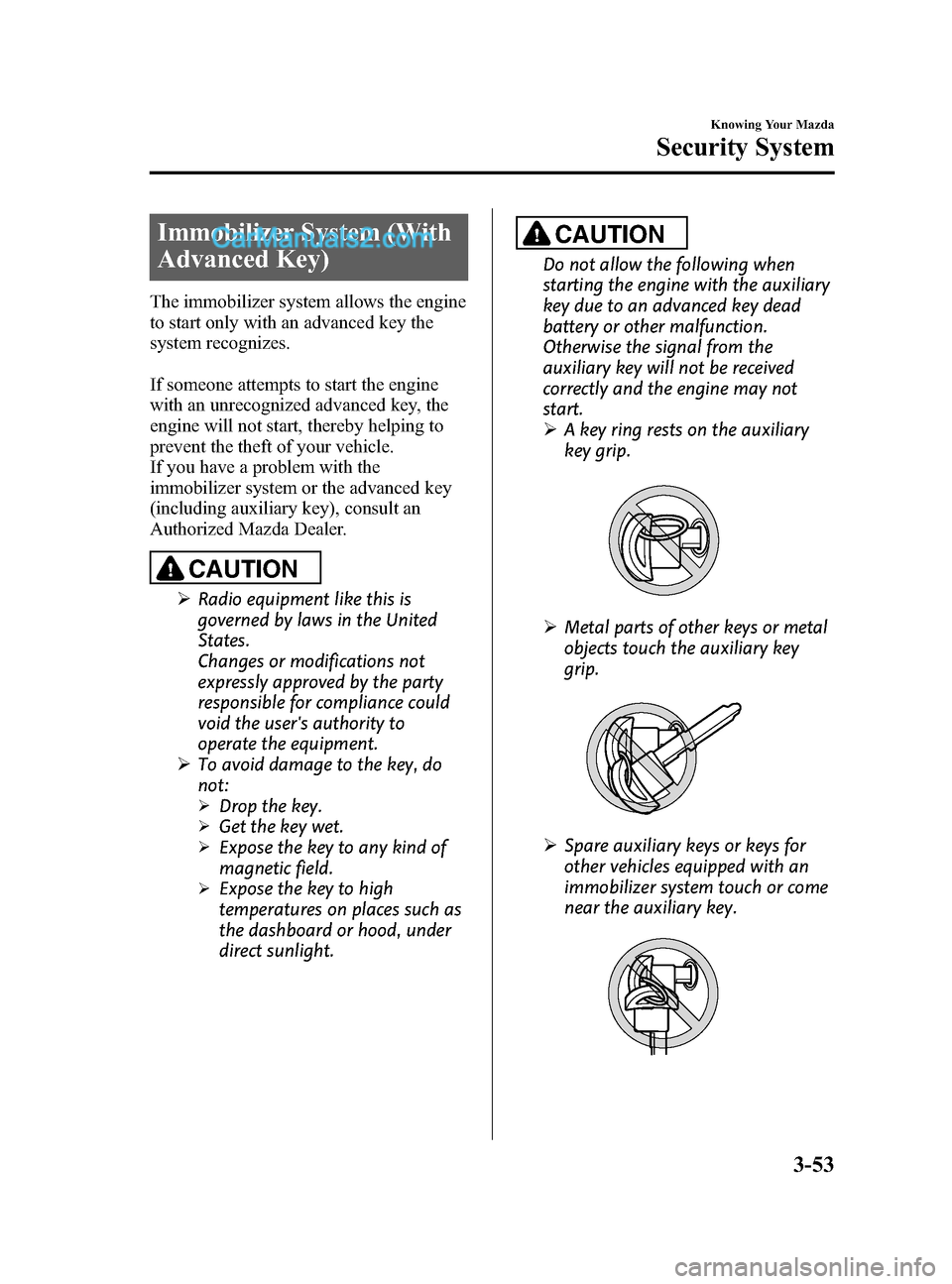

Immobilizer System (With
Advanced Key)
The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.
If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.
ØA key ring rests on the auxiliary
key grip.
ØMetal parts of other keys or metal
objects touch the auxiliary key
grip.
ØSpare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.
Knowing Your Mazda
Security System
3-53
CX-9_8DA3-EA-13G_Edition2 Page139
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (140,1)
ØDevices for electronic purchases, or
security passage which touch or
come near the auxiliary key.
NOTE
lThe advanced keys (including auxiliary key)
carry a unique electronic code. For this
reason, and to assure your safety, obtaining
a replacement advanced key (including
auxiliary key) requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare advanced key in case
one is lost. If an advanced key is lost,
consult an Authorized Mazda Dealer as
soon as possible.
lIf you lose an advanced key (including
auxiliary key), an Authorized Mazda Dealer
will reset the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer system.
Bring all the remaining advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.
3-54
Knowing Your Mazda
Security System
CX-9_8DA3-EA-13G_Edition2 Page140
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (141,1)
Declaration of Conformity
Immobilizer system
Knowing Your Mazda
Security System
3-55
CX-9_8DA3-EA-13G_Edition2 Page141
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (142,1)
qOperation
Arming
The system is armed when the ignition is
switched from ON to ACC or OFF. The
security indicator light in the instrument
cluster flashes every two seconds until the
system is disarmed.
Disarming
The system is disarmed when the ignition
is switched ON with the registered
advanced key.
The security indicator light illuminates for
about three seconds and turns off.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer. NOTE
lThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove compartment. Move the advanced key
to another place, switch the ignition off,
and then restart the engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, switch the ignition to ACC or
switch the ignition off and wait for a while,
then restart the engine. If it does not start
after 3 or more tries, contact an Authorized
Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
3-56
Knowing Your Mazda
Security System
CX-9_8DA3-EA-13G_Edition2 Page142
Monday, September 9 2013 4:7 PM
Form No.8DA3-EA-13G

Black plate (143,1)
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Immobilizer System
(Without Advanced Key)
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
Ø Radio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
Ø To avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
Knowing Your Mazda
Security System
3-57
