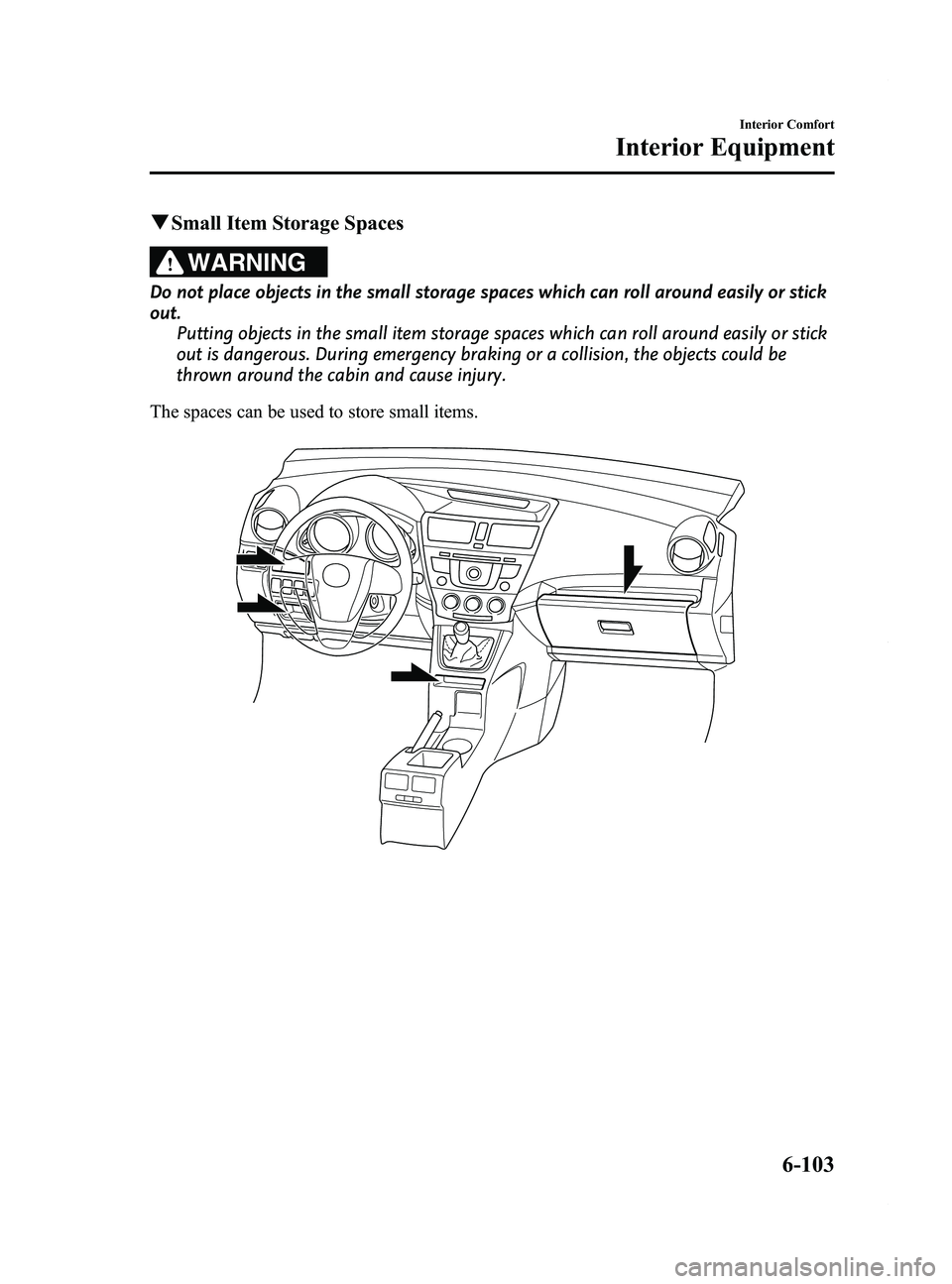

qSmall Item Storage Spaces
WARNING
Do not place objects in the small storage spaces which can roll around easily or stick
out.
Putting objects in the small item storage spaces which can roll around easily or stick
out is dangerous. During emergency braking or a collision, the objects could be
thrown around the cabin and cause injury.
The spaces can be used to store small items.
Interior Comfort
Interior Equipment
6-103
Mazda5_8DH4-EA-13H_Edition3 Page297
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (298,1)
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
qUnderseat Storage
If your vehicle has a right second-row
storage box (page 6-105), when using the
storage box, small items can be stored
under the both bottoms of the second-row
seats.
To use the under seat storage
Pull the strap and lift the seat bottom up
and forward.
6-104
Interior Comfort
Interior Equipment
Mazda5_8DH4-EA-13H_Edition3 Page298
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (299,1)
CAUTION
Do not store items above the marked
line indicated in the illustration
below. If the items are stored above
the marked line, the seat bottom will
not lock and could cause serious
injury.
Marked line
To return the seat bottom
Carefully lower the seat bottom backward
until it locks in place. Attempt to lift the
seat bottom to make sure it is firmly
locked down.
CAUTION
When returning the seat-bottom to
its upright position, make sure there
is no object lodged between the
seatback and the seat belt buckle. If
the seat-bottom is returned to its
upright position in this condition it
could damage the seat belt buckle. If
the seat belt buckle does not return
to its position after removing the
obstruction, move the buckle
rearward with your hand and then
lower the seat-bottom.
Buckle
qStorage Boxí
The storage box is stowed under the
bottom of the right second-row seat.
Small items can be stored in this box.
Interior Comfort
Interior Equipment
6-105íSome models.
Mazda5_8DH4-EA-13H_Edition3 Page299
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (300,1)
To use the storage box
1. Pull the strap and lift the seat bottomup and forward.
NOTE
If it is hard to lift the seat bottom, raise the
reclining lever and lean back slightly.
2. Pull out the storage box.
3. More items can be stowed if the coveris removed.
NOTE
The cover can be kept in the seatback pocket of
the driver's seat.
4. Carefully lower the seat bottom
backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.
To stow the storage box
1. Clean out the inside of the storage box,and then attach the cover to it.
2. Pull the strap and lift the seat bottom up and forward.
3. Make sure the underseat storage area is empty before storing it.
4. Carefully lower the seat bottom backward until it locks in place.
Attempt to lift the seat bottom to make
sure it is firmly locked down.
When folding the seatback of the right
second-row seat, make sure the storage
box is stowed. If the storage box is not
stowed, it could be damaged.
6-106
Interior Comfort
Interior Equipment
Mazda5_8DH4-EA-13H_Edition3 Page300
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (301,1)
CAUTION
When returning the seat-bottom to
its upright position, make sure there
is no object lodged between the
seatback and the seat belt buckle. If
the seat-bottom is returned to its
upright position in this condition it
could damage the seat belt buckle. If
the seat belt buckle does not return
to its position after removing the
obstruction, move the buckle
rearward with your hand and then
lower the seat-bottom.
Buckle
qCargo Securing Loops
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
q
Cargo Sub-Compartment
Lift the cover.
Trunk board
Cargo sub-
compartment
Interior Comfort
Interior Equipment
6-107
Mazda5_8DH4-EA-13H_Edition3 Page301
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (302,1)
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
q Luggage Compartment
A golf bag can be carried in the luggage
compartment.
To place a golf bag in the luggage
compartment, use the following
procedure:
1. Remove the cover for the side storage
space.
2. Insert the top of the golf bag into theside storage space.
Side storage space
NOTElSome golf bags cannot fit depending on
their size.
lGolf bags up to nine inches in diameter can
be carried.
6-108
Interior Comfort
Interior Equipment
Mazda5_8DH4-EA-13H_Edition3 Page302
Tuesday, January 14 2014 9:20 AM
Form No.8DH4-EA-13H

Black plate (303,1)
Accessory Sockets
Switch the ignition to ACC or ON.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
Rear
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
Ø Noise may occur on the audio
playback or TV reception
depending on the device connected
to the accessory socket.
Ø Depending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-109
Mazda5_8DH4-EA-13H_Edition3 Page303
