*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.



Climate Control System..................................................................... 5-2
Operating Tips ............................................................................... 5-2
Vent Operation .............................................................................. 5-3
Manual Climate Control ............................................................... 5-5
Automatic Climate Control ........................................................... 5-9
Dual-Zone Automatic Climate Control ....................................... 5-12
Audio System .................................................................................... 5-16
Antenna ....................................................................................... 5-16
Operating Tips for Audio System ............................................... 5-17
Audio Set (Type A) ..................................................................... 5-26
Audio Set (Type B) ..................................................................... 5-38
Audio Control Switch Operation
* ............................................... 5-58
AUX/USB/iPod mode ................................................................. 5-59
Bluetooth
® ......................................................................................... 5-75
Bluetooth® (Type A/Type B)* ...................................................... 5-75
Bluetooth® Hands-Free (Type A)* ............................................... 5-95
Bluetooth® Hands-Free (Type B)* ............................................. 5-102
Bluetooth® Audio (Type A)* ...................................................... 5-114
Bluetooth® Audio (Type B)* ...................................................... 5-116
Troubleshooting (Type A/Type B)* ........................................... 5-129
Interior Equipment ........................................................................ 5-133
Sunvisors ................................................................................... 5-133
Interior Lights ........................................................................... 5-134
Accessory Sockets .................................................................... 5-136
Cup Holder ................................................................................ 5-137
Bottle Holder ............................................................................. 5-138
Storage Compartments .............................................................. 5-139
/C\FCA&('#*A'FKVKQPKPFD

*Some models.5–29
Interior Features
Audio System
NOTE
If not operated for several seconds, the
display returns to the previous display. To
reset bass, treble, fade, and balance, press
the menu button (
) for 2 seconds.
The unit will beep and “ CLEAR ” will be
displayed.
Automatic Level Control (ALC)
The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.
BT SETUP mode
*
Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth
®
transmission function can be listened to
via wireless transmission over the vehicle's
speakers. Using the BT SETUP mode,
these devices can be programmed to the
Bluetooth
® unit or changed (page 5-78 ).
Time adjustment
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-30 ).
/C\FCA&('#*A'FKVKQPKPFD

5–41
Interior Features
Audio System
Return to previous screen
1. Touch the
icon.
Displaying the home screen
1. Touch the
icon.
Home screen
Icon Function
Applications
Information such as average fuel economy, maintenance, and warnings can be verifi ed.
Audio
Operates audio such as the radio and CDs. The audio source most recently used is
displayed. An audio source which cannot be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the
icon again.
Communication
Bluetooth ® related functions are available.
Navigation (vehicles with navigation system)
Navigation screen is displayed.
Settings
Overall setting menu (Such as AD-Disp, display, sound, safety, Bluetooth ® , Wi-Fi™ and
Language).
/C\FCA&('#*A'FKVKQPKPFD

5–55
Interior Features
Audio System
Settings
Select the icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:
Tab Item Function
AD-Disp Height
Brightness Control
Other Refer to Active Driving Display on page 4-19 .
Display Refer to Volume/Display/Sound Controls on page 5-42 .
Safety Smart City Brake Support
Blind Spot Monitoring Volume
Other Refer to Smart City Brake Support (SCBS) on
page 4-72 .
Refer to Blind Spot Monitoring (BSM) System
on page 4-108 .
Refer to Forward Obstruction Warning (FOW)
on page 4-116 .
Refer to Lane Departure Warning System
(LDWS) on page 4-119 .
Sound Refer to Volume/Display/Sound Controls on page 5-42 .
Vehicle Rain Sensing Wiper
Door Lock
Other Refer to Windshield Wipers on page 4-53 .
Refer to Auto Lock/Unlock Function on page
3-17 .
Refer to Transmitter on page 3-4 .
Refer to Locking, Unlocking with Request
Switch (With the advanced keyless function)
on page 3-13 .
Refer to Turn and Lane-Change Signals on
page 4-51 .
Refer to Illuminated Entry System on page
5-135 .
Refer to High Beam Control System (HBC) on
page 4-48 .
Refer to Lights-On Reminder on page 7-36 .
Refer to Headlights on page 4-41 .
Refer to Daytime Running Lights on page
4-47 .
Devices Bluetooth Refer to Bluetooth
® Preparation (Type B) on
page 5-92 .
Network Management Wi-Fi™ is used to obtain Navi POI/Real Time
Traffi c function (Such as gas prices, weather,
nearest restaurant)
/C\FCA&('#*A'FKVKQPKPFD

*Some models.5–58
Interior Features
Audio System
Audio Control Switch
Operation
*
Without Bluetooth ® Hands-Free
With Bluetooth ® Hands-Free
Adjusting the Volume
To increase the volume, press up the
volume switch (
).
To decrease the volume, press down the
volume switch (
).
Seek Switch
AM/FM radio
Press the seek switch (
,). The radio
switches to the next/previous stored station
in the order that it was stored.
Press and hold the seek switch (
,) to
seek all usable stations at a higher or lower
frequency whether programmed or not.
Radio stations which have been previously
stored in the auto memory tuning (Type
A)/favorite radio (Type B) can be called
up by pressing the seek switch (
,)
while any radio station stored in the auto
memory tuning (Type A)/favorite radio
(Type B) is being received. Radio stations
can be called up in the order they were
stored with each press of the switch
(
,).
/C\FCA&('#*A'FKVKQPKPFD

*Some models.5–59
Interior Features
Audio System

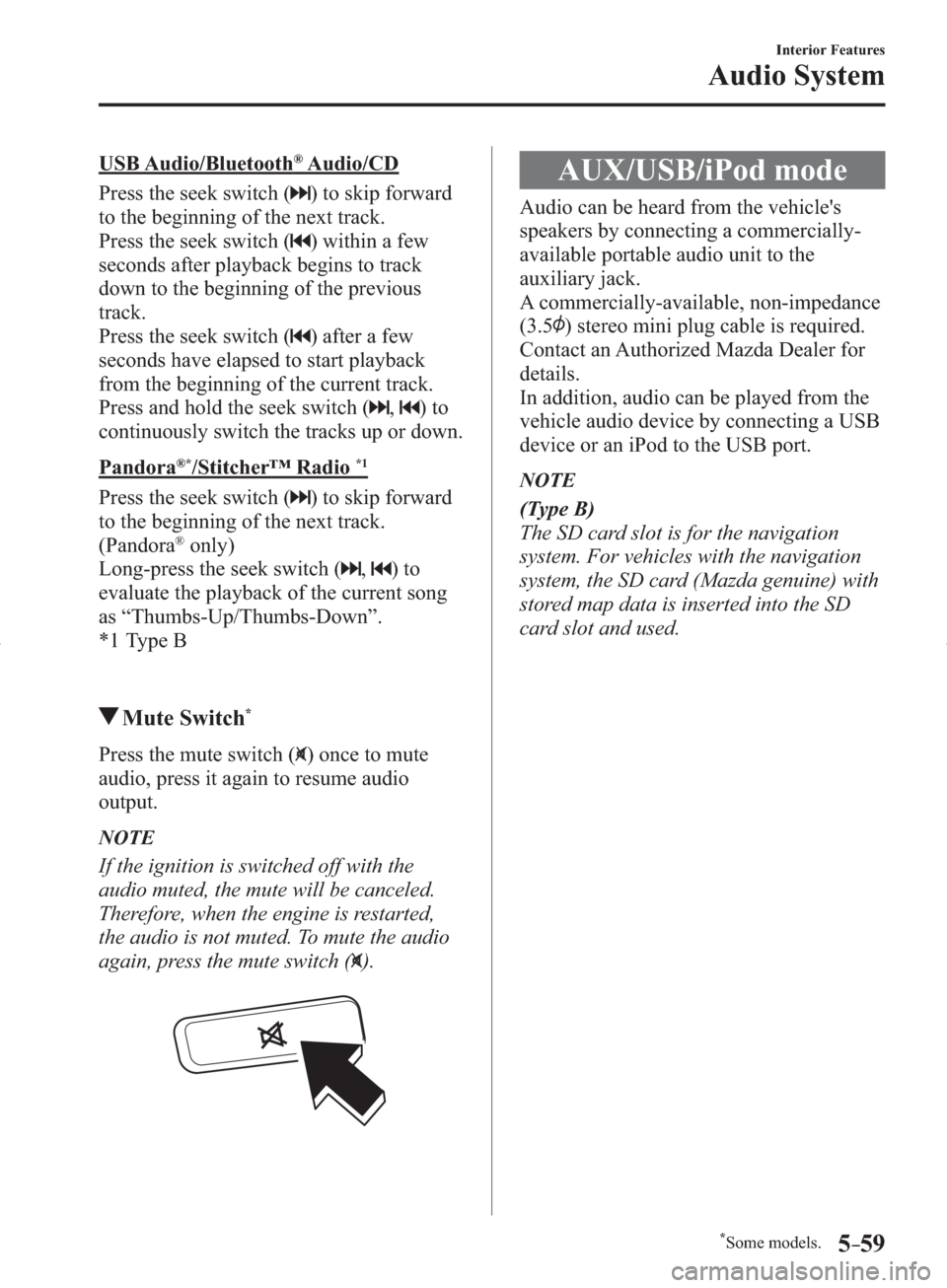

USB Audio/Bluetooth ® Audio/CD
Press the seek switch (
) to skip forward
to the beginning of the next track.
Press the seek switch (
) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
Press the seek switch (
) after a few
seconds have elapsed to start playback
from the beginning of the current track.
Press and hold the seek switch (
,) to
continuously switch the tracks up or down.
Pandora
®* /Stitcher™ Radio *1
Press the seek switch () to skip forward
to the beginning of the next track.
(Pandora
® only)
Long-press the seek switch (
,) to
evaluate the playback of the current song
as “Thumbs-Up/Thumbs-Down”.
*1 Type B
Mute Switch *
Press the mute switch () once to mute
audio, press it again to resume audio
output.
NOTE
If the ignition is switched off with the
audio muted, the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the audio
again, press the mute switch (
).
AUX/USB/iPod mode
Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A commercially-available, non-impedance
(3.5
) stereo mini plug cable is required.
Contact an Authorized Mazda Dealer for
details.
In addition, audio can be played from the
vehicle audio device by connecting a USB
device or an iPod to the USB port.
NOTE
(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine) with
stored map data is inserted into the SD
card slot and used.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.5–75
Interior Features
Bluetooth®
Bluetooth ® (Type A/Type B) *
Bluetooth ® Hands-Free outline
When a Bluetooth
® device (mobile phone) is connected to the vehicle's hands-free unit
via radio wave transmission, a call can be made or received using the talk button, pick-up
button and hang-up button, or by operating the panel. For example, even if a device (mobile
phone) is in your coat pocket, a call can be made without taking the device (mobile phone)
out and operating it directly.
Bluetooth
® audio outline
When a portable audio unit equipped with the Bluetooth
® communication function is
programmed to the vehicle, you can listen to music stored on the programmed portable
audio device from the vehicle's speakers. It is not necessary to connect the portable audio
device to the vehicle's external input terminal. After programming, operate the vehicle audio
control panel to play/stop the audio.
NOTE



y For your safety, a device can be paired (programmed) only when the vehicle is parked. If
the vehicle starts to move, the pairing procedure will end. Park the vehicle in a safe place
before pairing.



y The communication range of a Bluetooth ® equipped device is about 10 meters (32 ft) or
less.
CAUTION
Some Bluetooth ® mobile devices are not compatible with the vehicle. Consult an
Authorized Mazda Dealer, Mazda's call center or Web support center for information
regarding Bluetooth
® mobile device compatibility:




¾ U.S.A.
 Phone: 800-430-0153
 Web: www.MazdaUSA.com/bluetooth



¾ Canada
 Phone: 800-430-0153
 Web: www.mazdahandsfree.ca



¾ Mexico
 Center of Attention to Client (CAC)
 Phone: 01-800-01-MAZDA
 Web:
 www.mazdamexico.com.mx
/C\FCA&('#*A'FKVKQPKPFD

5–76
Interior Features
Bluetooth®
Applicable Bluetooth ® specifi cation
Ver. 2.0 or higher (Type A)
Ver. 2.1
EDR (Type B)
Component Parts
Microphone Talk button, Pick-up button and Hang-up button
Microphone
Talk button
Hang-up button Pick-up button
Audio unit
Type A Type B
Microphone (hands-free)
The microphone is used for speaking voice commands or exchanging conversation.
Talk button, Pick-Up button and Hang-Up button (hands-free)
The basic functions of Bluetooth
® Hands-Free can be used for such things as making calls or
hanging up using the talk, pick-up and hang-up buttons on the steering wheel.
Commander switch (Type B)
The commander switch is used for volume adjustment and display operation. Tilt or turn the
commander and move the cursor. Press the commander knob to select the icon.
