2014 LINCOLN MKZ odometer

GAUGES
E152749
Tachometer
A
Information display
B
Speedometer
C
Fuel gauge
D
Engine coolant temperature gauge
E
Information Display
Odometer
Located in the bottom of the
information display Registers the
accumulated distance your vehicle
has traveled. Outside Air Temperature
Shows the outside air temperature.
Trip Computer
See
General Information (page 101).
95
Instrument Cluster

Trip 1 & 2
E138660
Choose between the
standard or enhanced trip
display.
Trip 1 & 2
Trip odometer
Elapsed trip time
Average fuel economy
Press and hold OK to reset the currently displayed trip information.
• Trip odometer — shows the accumulated trip distance.
• Trip Timer— timer stops when the vehicle is turned off and restarts when the vehicle is restarted.
• Average fuel economy — shows the average fuel economy for a given trip.
Fuel Economy
E144640
Use the left or right arrow
buttons to choose the
desired fuel economy
display.
Fuel Economy
Instantaneous Fuel Economy
• Instantaneous Fuel Economy: This display shows a visual graph of your instantaneous fuel economy.
Driver Assist
E144639
Use the up or down arrow
buttons to choose between
the following display options.
102
Information Displays

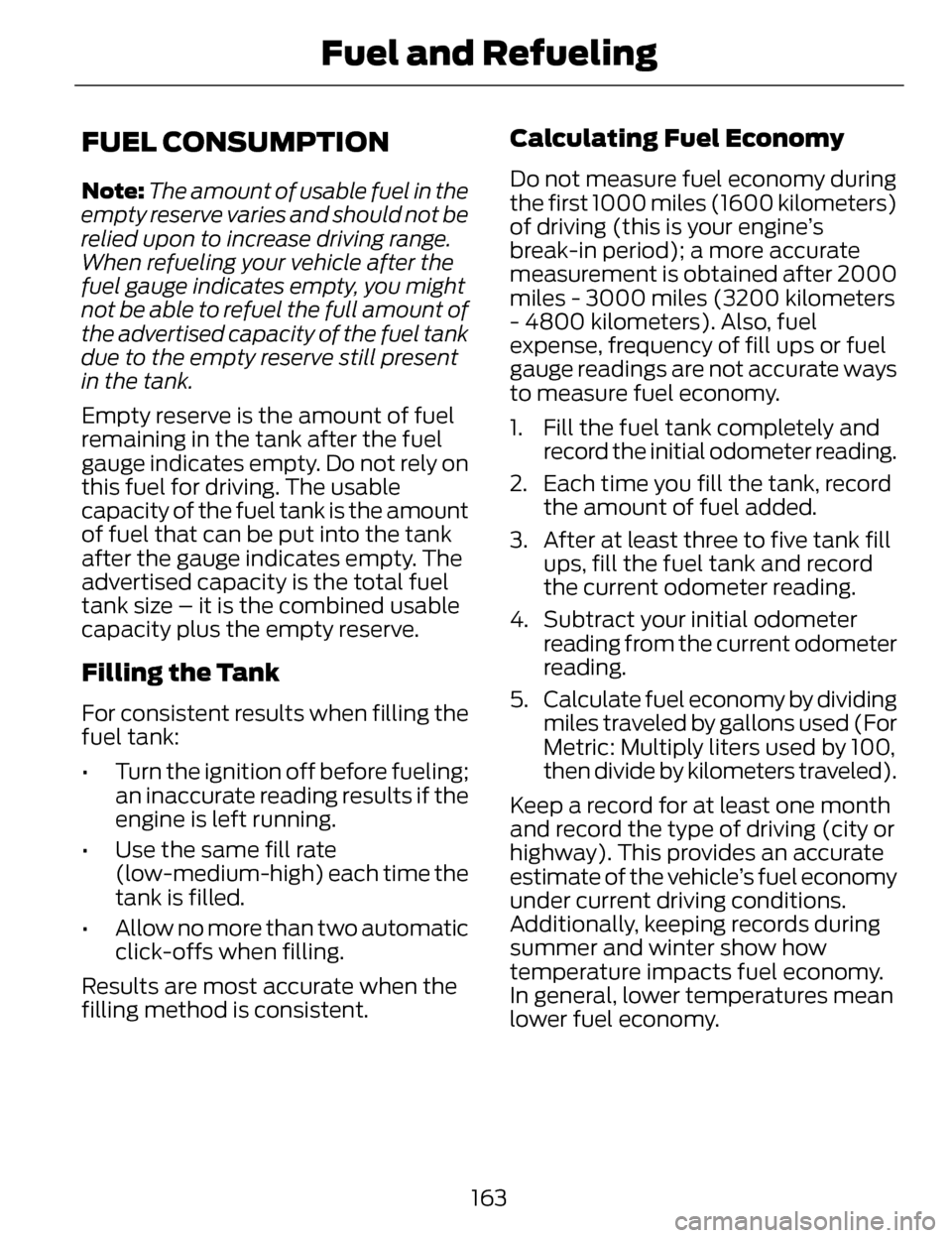

FUEL CONSUMPTION
Note:The amount of usable fuel in the
empty reserve varies and should not be
relied upon to increase driving range.
When refueling your vehicle after the
fuel gauge indicates empty, you might
not be able to refuel the full amount of
the advertised capacity of the fuel tank
due to the empty reserve still present
in the tank.
Empty reserve is the amount of fuel
remaining in the tank after the fuel
gauge indicates empty. Do not rely on
this fuel for driving. The usable
capacity of the fuel tank is the amount
of fuel that can be put into the tank
after the gauge indicates empty. The
advertised capacity is the total fuel
tank size – it is the combined usable
capacity plus the empty reserve.
Filling the Tank
For consistent results when filling the
fuel tank:
• Turn the ignition off before fueling; an inaccurate reading results if the
engine is left running.
• Use the same fill rate (low-medium-high) each time the
tank is filled.
• Allow no more than two automatic click-offs when filling.
Results are most accurate when the
filling method is consistent.
Calculating Fuel Economy
Do not measure fuel economy during
the first 1000 miles (1600 kilometers)
of driving (this is your engine’s
break-in period); a more accurate
measurement is obtained after 2000
miles - 3000 miles (3200 kilometers
- 4800 kilometers). Also, fuel
expense, frequency of fill ups or fuel
gauge readings are not accurate ways
to measure fuel economy.
1. Fill the fuel tank completely and record the initial odometer reading.
2. Each time you fill the tank, record the amount of fuel added.
3. After at least three to five tank fill ups, fill the fuel tank and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
5. Calculate fuel economy by dividing miles traveled by gallons used (For
Metric: Multiply liters used by 100,
then divide by kilometers traveled).
Keep a record for at least one month
and record the type of driving (city or
highway). This provides an accurate
estimate of the vehicle’s fuel economy
under current driving conditions.
Additionally, keeping records during
summer and winter show how
temperature impacts fuel economy.
In general, lower temperatures mean
lower fuel economy.
163
Fuel and Refueling

1. Contact your Sales Representativeor Service Advisor at your
selling/servicing authorized dealer.
2. If your inquiry or concern remains unresolved, contact the Sales
Manager, Service Manager or
Customer Relations Manager.
3. If you require assistance or clarification on Ford Motor
Company policies, please contact
the Ford Customer Relationship
Center.
In order to help you serve you better,
please have the following information
available when contacting a Customer
Relationship Center:
• Vehicle Identification Number.
• Your telephone number (home and business).
• The name of the authorized dealer and city where located.
• The vehicle’s current odometer reading.
In some states, you must directly
notify Ford in writing before pursuing
remedies under your state’s warranty
laws. Ford is also allowed a final repair
attempt in some states.
In the United States, a warranty
dispute must be submitted to the BBB
AUTO LINE before taking action under
the Magnuson-Moss Warranty Act, or
to the extent allowed by state law,
before pursuing replacement or
repurchase remedies provided by
certain state laws. This dispute handling procedure is not required
prior to enforcing state created rights
or other rights which are independent
of the Magnuson-Moss Warranty Act
or state replacement or repurchase
laws.
IN CALIFORNIA (U.S. ONLY)
California Civil Code Section 1793.2(d)
requires that, if a manufacturer or its
representative is unable to repair a
motor vehicle to conform to the
vehicle’s applicable express warranty
after a reasonable number of
attempts, the manufacturer shall be
required to either replace the vehicle
with one substantially identical or
repurchase the vehicle and reimburse
the buyer in an amount equal to the
actual price paid or payable by the
consumer (less a reasonable
allowance for consumer use). The
consumer has the right to choose
whether to receive a refund or
replacement vehicle.
California Civil Code Section
1793.22(b) presumes that the
manufacturer has had a reasonable
number of attempts to conform the
vehicle to its applicable express
warranties if, within the first 18
months of ownership of a new vehicle
or the first 18000 miles (29 000 km),
whichever occurs first:
1. Two or more repair attempts are
made on the same non-conformity
likely to cause death or serious
bodily injury OR
249
Customer Assistance

Vehicle Health Report (If Equipped)
WARNING
Always follow scheduled
maintenance instructions,
regularly inspect your vehicle, and
seek repair for any damage or problem
you suspect. Vehicle Health Report
supplements, but cannot replace,
normal maintenance and vehicle
inspection. Vehicle Health Report only
monitors certain systems
electronically monitored by your
vehicle and will not monitor or report
the status of any other system, (such
as brake lining wear). Failure to
perform scheduled maintenance and
regularly inspect your vehicle may
result in vehicle damage and serious
injury.
Note: This feature is only available in
the United States.
Note: Your Vehicle Health Report
feature requires activation prior to use.
Visit www.SYNCMyRide.com to
register. There is no fee or subscription
associated with Vehicle Health Report,
but you must register to use this
feature.
Note: This feature may not function
properly if you have enabled caller ID
blocking on your cellular phone. Before
running a report, review the Vehicle
Health Report Privacy Notice.
Note: In order to allow a break-in
period for your vehicle, you may not be
able to create a Vehicle Health Report
until your vehicle odometer has
reached 200 miles. Note:
Cellular phone and SMS charges
may apply when making a report.
Register for Vehicle Health Report and
set your report preferences at
www.SYNCMyRide.com. After
registering, you can request a Vehicle
Health Report (inside your vehicle).
Return to your account at
www.SYNCMyRide.com to view your
report. You can also choose for SYNC
to remind you automatically to run
reports at specific mileage intervals.
Cellular phone airtime usage may
apply when reporting.
The system allows you to check your
vehicle’s overall health in the form of
a diagnostic report card. The Vehicle
Health Report contains valuable
information, such as:
• Vehicle diagnostic information
• Scheduled maintenance
• Open recalls and Field Service Actions
• Items noted during vehicle inspections by your authorized
dealer that still need servicing.
Making a Report
E142608
If you want to run a report by
using the touchscreen, touch
Apps > Vehicle Health
Report.
E142599
To run a report by voice
command, press the voice
button on the steering wheel
and, when prompted, say "Vehicle
health report".
403
MyLincoln Touch™

SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
If you operate your vehicle primarily
in any of the following conditions, you
need to perform extra maintenance
as indicated. If you operate your
vehicle occasionally under any of
these conditions, it is not necessary
to perform the extra maintenance. For
specific recommendations, see your
dealership service advisor or
technician. Perform the services shown in the
following tables when specified or
within 3000 miles (4800 kilometers)
of the OIL CHANGE REQUIRED
message appearing in the information
display.
•
Example 1: The OIL CHANGE
REQUIRED message comes on at
28751 miles (46270 kilometers).
Perform the 30000-mile (48000
kilometer) automatic transmission
fluid replacement.
• Example 2: The OIL CHANGE
REQUIRED message has not
come on, but the odometer reads
30000 miles (48000 kilometers)
(for example, the Intelligent
Oil-Life Monitor was reset at
25000 miles [40000 kilometers]).
Perform the engine air filter
replacement.
Towing a trailer or using a car-top carrier
Change engine oil and filter as indicated by inform-
ation display and perform services listed in the
Normal Scheduled Maintenance chart.
As required
Inspect and lubricate U-joints.
Inspect frequently,
service as required
See axle maintenance items under Exceptions.
Every 30000 miles
(48000 km)
Change automatic transmission fluid.
443
Scheduled Maintenance
