Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following
circumstances:
●When rotating the tires
●When the tire inflation pressure is changed such as when changing
travelling speed or load weight
●When changing the tire size
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the “ENGINE START
STOP” switch off.
While the vehicle is moving, initialization is not performed.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (→P. 6 1 7 )
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 485 ページ ２０１４年１月２４日　金曜日　午前１０時４分

486
4-3. Do-it-yourself maintenance

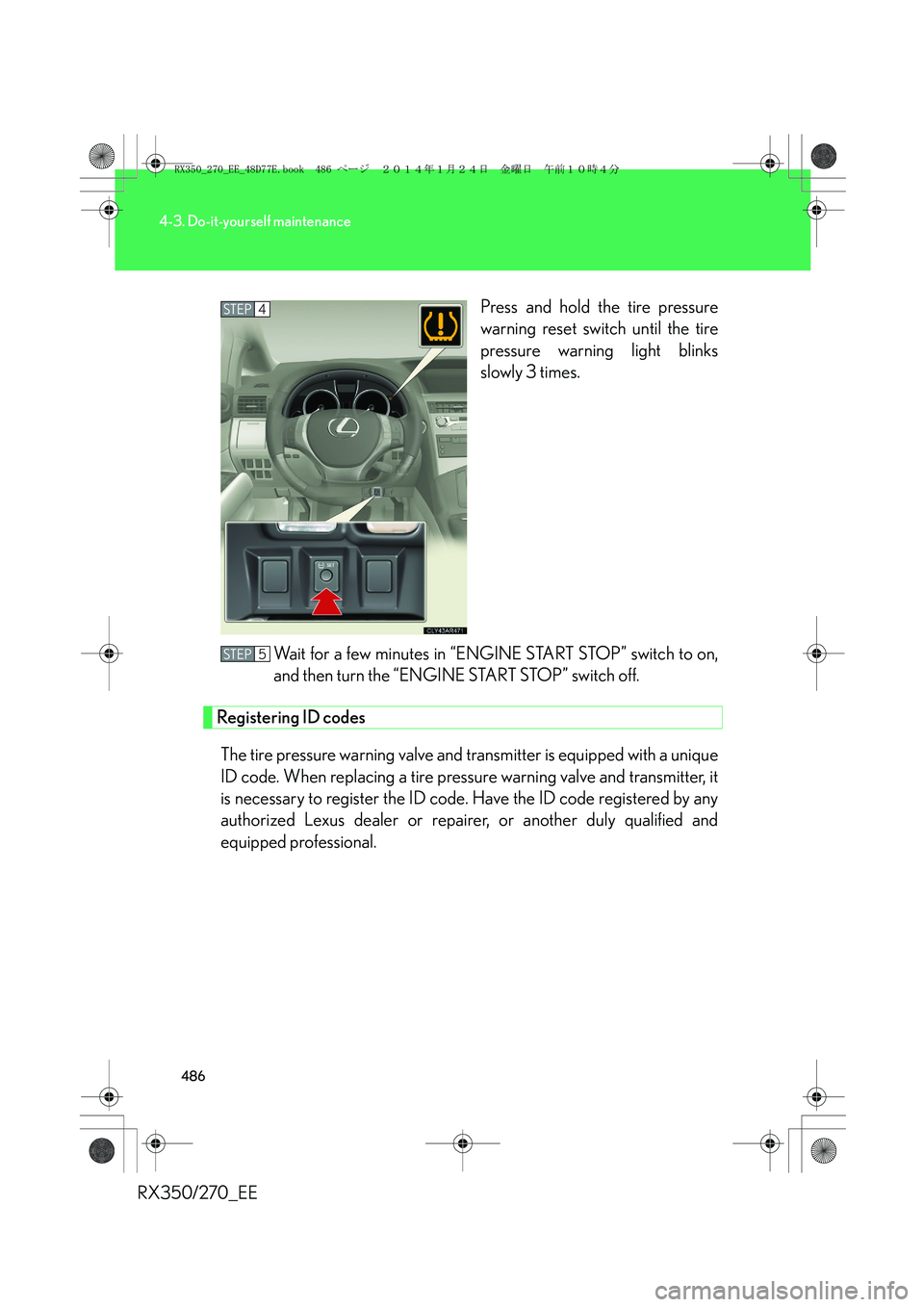

RX350/270_EEPress and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly 3 times.
Wait for a few minutes in “ENGINE START STOP” switch to on,
and then turn the “ENGINE START STOP” switch off.
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a unique
ID code. When replacing a tire pressure warning valve and transmitter, it
is necessary to register the ID code. Have the ID code registered by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
STEP4
STEP5
RX350_270_EE_48D77E.book 486 ページ ２０１４年１月２４日　金曜日　午前１０時４分

488
4-3. Do-it-yourself maintenance
RX350/270_EE
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire infla-
tion pressure adjustment.
●If you have accidentally turned the “ENGINE START STOP” switch off during
initialization, it is not necessary to press the reset switch again as initialization
will restart automatically when the “ENGINE START STOP” switch has been
turned to IGNITION ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary,
adjust the tire inflation pressure to the specified level when the tires are cold,
and conduct initialization again.
■Warning performance of the tire pressure warning system
The warning of the tire pressure warning system will change in accordance with
driving conditions. For this reason, the system may give a warning even if the tire
pressure does not reach a low enough level, or if the pressure is higher than the
pressure that was adjusted to when the system was initialized.
■When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases,
the settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
●When operating the tire pressure warning reset switch, the tire pressure warn-
ing light does not blink 3 times.
●After carrying out the initialization procedure, the tire pressure warning light
blinks for 1 minute then stays on after driving for 10 minutes.
RX350_270_EE_48D77E.book 488 ページ ２０１４年１月２４日　金曜日　午前１０時４分

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air condi-
tioning efficiency.
■Removal method
Turn the “ENGINE START STOP” switch off.
Open the glove box. Lift and
remove the partition.
Remove the glove box cover.
Remove the filter cover.
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 499 ページ ２０１４年１月２４日　金曜日　午前１０時４分

504
4-3. Do-it-yourself maintenance
RX350/270_EE
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch off.
After a system failure, see “Fuse layout and amperage ratings”
for details about which fuse to check. (→P. 507)
Remove the engine compartment cover. (→P. 4 7 0 )
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 504 ページ ２０１４年１月２４日　金曜日　午前１０時４分

508
4-3. Do-it-yourself maintenance
RX350/270_EE
12ABS NO. 150 AVehicle stability control
13EPS60 AElectric power steering system
14ALT140 A
IG1 MAIN, TOWING BATT,
DEICER, TOWING, STOP, RDI FAN
NO. 1, FILTER, RR DEF, AIR SUS,
HEATER, ABS NO. 2, H-LP CLN,
PBD, ECU-IG1 NO. 1, ECU-IG1 NO.
3, GAUGE NO. 1, ECU-IG1 NO. 2,
E P S , F R W I P, R R W I P, F R WA S H , R R
WASH, RH S-HTR, LH S-HTR, TAIL,
PANEL, D/L ALT B, FR FOG, FR
DOOR, FL DOOR, RR DOOR, RL
DOOR, PSB, P-SEAT LH, P-SEAT
RH, TI&TE, FUEL OPN, DR LOCK,
OBD, RR FOG, S/ROOF, 4WD,
INVERTER, ECU-ACC, P/POINT,
CIG, RADIO NO. 2
15AMP130 AAudio system
16EFI MAIN30 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, electronic controlled transmis-
sion, EFI NO. 1, EFI NO. 2, F/PMP
17AMP230 AAudio system
18IG2 MAIN30 AIGN, GAUGE NO. 2, ECU IG 2
19IP J/B25 APow e r d o o r l o c k s y s t e m
20STR LOCK20 AStarter system
21RAD NO. 315 AMeters and gauges, navigation sys-
tem, audio system
22HAZ15 AEmergency flashers
FuseAmpereCircuit
RX350_270_EE_48D77E.book 508 ページ ２０１４年１月２４日　金曜日　午前１０時４分

510
4-3. Do-it-yourself maintenance
RX350/270_EE
35A/F*110 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
WIP-S*27. 5 ACruise control
36ECU-IG1 NO. 410 A
Adaptive front-lighting system, air
conditioning system, rear window
defogger, vehicle stability control sys-
tem, electric cooling fans
37BK/UP LP7. 5 ABack-up lights
38ECU-IG1 NO. 515 AAir conditioning system
39ECU-IG1 NO. 610 A
Adaptive front-lighting system, head
light cleaner, cruise control, electroni-
cally modulated air suspension, vehi-
cle stability control, air conditioning
system
40EFI NO. 210 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
41F/ P M P*215 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
42DEICER25 AWindshield wipers and washer
43STOP7. 5 A
Vehicle stability control, vehicle
dynamics integrated management,
stop lights, electronic controlled
transmission, multiport fuel injection
system/sequential multiport fuel injec-
tion system, shift lock control system,
starter system
44TOW IN G BAT T20 ATr a i l e r b a t t e r y
FuseAmpereCircuit
RX350_270_EE_48D77E.book 510 ページ ２０１４年１月２４日　金曜日　午前１０時４分
