431
3-5. Other interior features
3
Interior features
RX350/270_EE

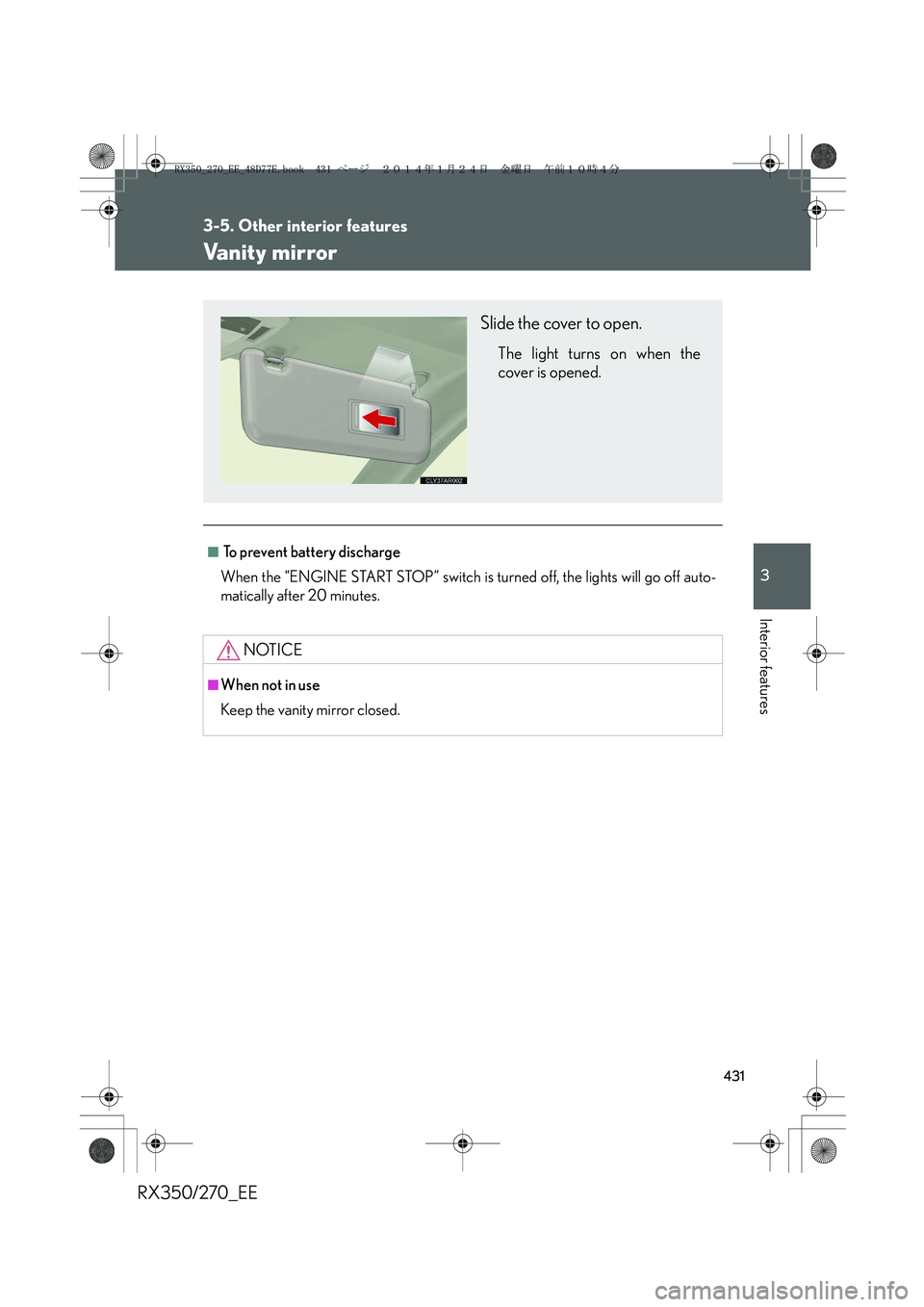

Vanity mirror
■ To prevent battery discharge
When the “ENGINE START STOP” switch is turned off, the lights will go off auto-
matically after 20 minutes.
NOTICE
■When not in use
Keep the vanity mirror closed.
Slide the cover to open.
The light turns on when the
cover is opened.
RX350_270_EE_48D77E.book 431 ページ ２０１４年１月２４日　金曜日　午前１０時４分

432
3-5. Other interior features
RX350/270_EE
Clock
■The clock is displayed when
The clock is displayed when the “ENGINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode.
■When the battery is disconnected
The time display will automatically be set to 1:00.
The clock can be adjusted by pressing the buttons.
Without a navigation system
Adjusts the hours
Adjusts the minutes
With a navigation system
Refer to the “Navigation System Owner’s Manual”.
RX350_270_EE_48D77E.book 432 ページ ２０１４年１月２４日　金曜日　午前１０時４分

436
3-5. Other interior features
RX350/270_EE
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlets
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlets longer than necessary when the engine is off.
Luggage compartment
Open the cover.
RX350_270_EE_48D77E.book 436 ページ ２０１４年１月２４日　金曜日　午前１０時４分

437
3-5. Other interior features
3
Interior features
RX350/270_EE
Heated steering wheel∗
■The heated steering wheel can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■To prevent battery discharge
The heated steering wheel will automatically turn off after about 30 minutes.
■If the indicator light does not come on
If the indicator light does not come on when the switch is pressed, a malfunction
may have occurred in the system. Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
∗: If equipped
The heated steering wheel heats the leather portions on the left and right
of the steering wheel.
Turns the heater on/off
The indicator light comes on
when the heater is operating.
RX350_270_EE_48D77E.book 437 ページ ２０１４年１月２４日　金曜日　午前１０時４分

439
3-5. Other interior features
3
Interior features
RX350/270_EE
Seat heaters and ventilators∗
■Operating condition
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the knob at “0”. The indicator light turns off.
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
■Seat heaters
Turns the seat heater on
The indicator light comes on.
The higher the number is, the
warmer the seat becomes.
■Seat heaters/ventilators
Turns the seat heater on
The indicator light comes on.
The higher the number is, the
warmer the seat becomes.
Blows air from the seat
The indicator light comes on.
The higher the number is, the
stronger the airflow becomes.
∗: If equipped
RX350_270_EE_48D77E.book 439 ページ ２０１４年１月２４日　金曜日　午前１０時４分

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precaution:
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fans and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean water
immediately.
If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the “ENGINE START STOP” switch is off.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fans may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (→P. 4 7 8 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in your eyes
RX350_270_EE_48D77E.book 463 ページ ２０１４年１月２４日　金曜日　午前１０時４分

467
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death or
serious injury:
●When using a floor jack, follow the instructions of the manual provided with the
jack.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body underneath the vehicle when it is supported
only by the floor jack.
●Always use floor jack and/or automotive jack stands on a solid, flat, level surface.
●Do not start the engine while the vehicle is supported by the floor jack.
●Stop the vehicle on level, firm ground, firmly set the parking brake and shift the
shift lever to P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
floor jack.
●Vehicles with electronically modulated air suspension:
Be sure to turn off the height control and stop the engine. Otherwise, the vehicle
height may change due to the automatic leveling function. (→P. 2 5 6 )
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.
RX350_270_EE_48D77E.book 467 ページ ２０１４年１月２４日　金曜日　午前１０時４分

480
4-3. Do-it-yourself maintenance
RX350/270_EE■Checking battery fluid
Check that the level is between
“UPPER LEVEL” and “LOWER
LEVEL”.
“UPPER LEVEL”
“LOWER LEVEL”
If the fluid level is at or below
“LOWER LEVEL”, add distilled
water.
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the battery
In some cases, the engine may not start. Follow the procedure below to initialize the
system.
Shift the shift lever to P, and turn the “ENGINE START STOP” switch off.
Open and close any of the doors.
Start the engine. (If the engine does not start first time, repeat the proce-
dure.)
If the engine will not start even after multiple attempts at the above method, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional.
STEP1
STEP2
STEP3
