4417-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→P. 5 6 3
Oil quantity (Low → Full) 1.5 L (1.6 qt., 1.3 Imp. qt.)
Items Clean funnel
1
2
3
IS300h_EE_OM53C61E.book 441 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4427-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil (if equipped)
The engine oil maintenance data should be reset. Perform the following procedures:
While the hybrid system is operating, switch the multi-information display to the “Set-
tings” screen. (→P. 1 1 7 )
Select “Maintenance System” on the “Settings” screen.
Select “Yes” on the “Maintenance System” screen.
A message will be displayed when the reset
procedure has been completed.
1
2
3
IS300h_EE_OM53C61E.book 442 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4437-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin dis-
orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground.
Call any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional, service station or auto parts store for information concerning recycling
or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
IS300h_EE_OM53C61E.book 443 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4447-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)

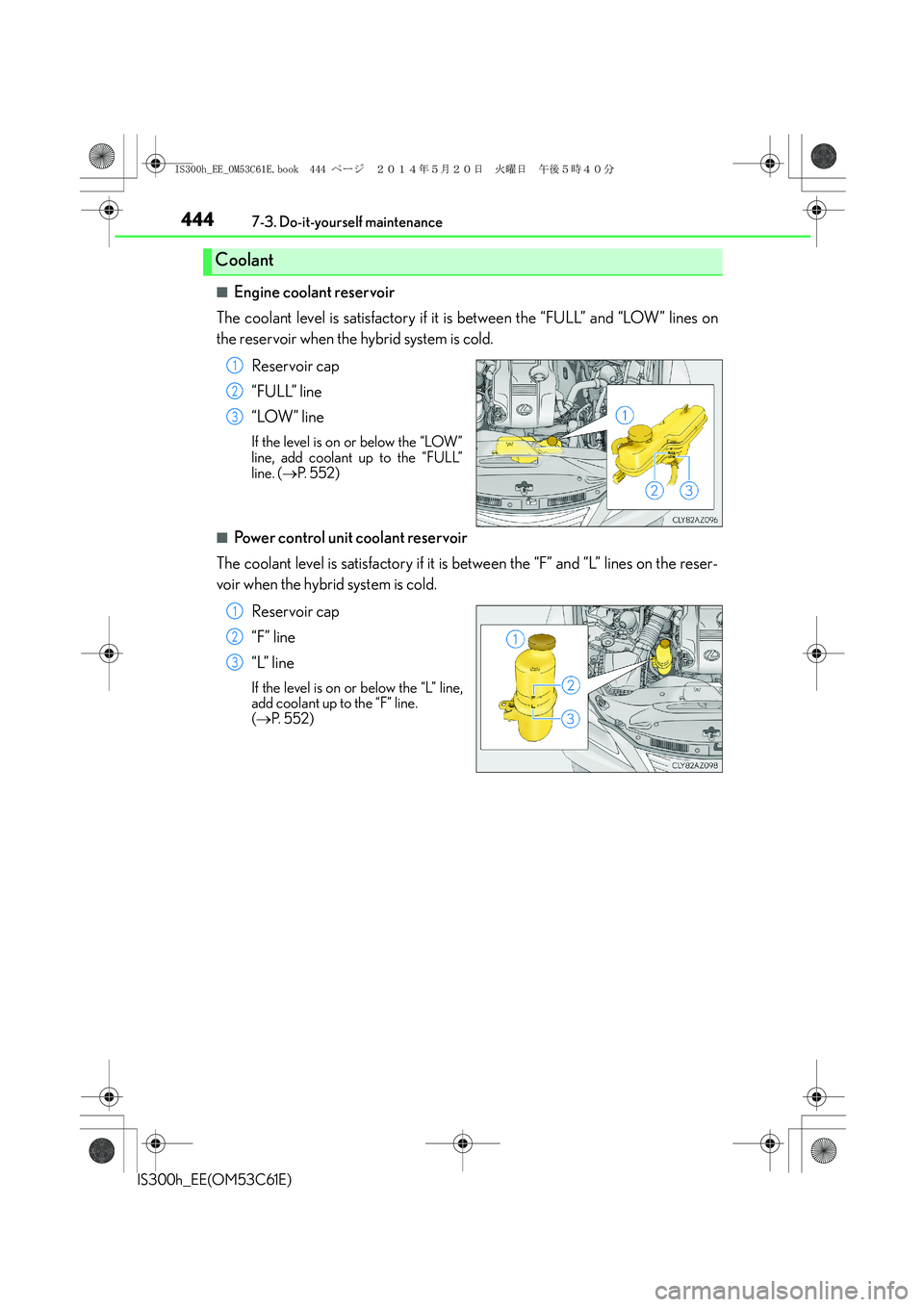

■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the hybrid system is cold.
Reser voir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (→P. 552)
■Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the hybrid system is cold.
Reser voir cap
“F” line
“L” line
If the level is on or below the “L” line,
add coolant up to the “F” line.
(→P. 5 5 2 )
Coolant
1
2
3
1
2
3
IS300h_EE_OM53C61E.book 444 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4457-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water.
(Minimum temperature: -35°C [-31°F])
For more details about coolant, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reservoir caps,
drain cock and water pump.
If you cannot find a leak, have any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, test the cap and check for leaks in the cooling sys-
tem.
CAUTION
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps or water filler cap.
(→P. 5 5 5 )
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
IS300h_EE_OM53C61E.book 445 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4467-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
Check the radiators and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If any washer does not work or the
warning message appears on the multi-
information display, the washer tank
may be empty. Add washer fluid.
Radiators and condenser
CAUTION
■When the hybrid system is hot
Do not touch the radiators or condenser as they may be hot and cause serious injuries,
such as burns.
Washer fluid
CAUTION
■When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.
IS300h_EE_OM53C61E.book 446 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4477-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
The 12-volt battery is located on the
left-hand side of luggage compart-
ment.
Remove the 12-volt battery cover.
Make sure that the 12-volt battery terminals are not corroded and that there are
no loose connections, cracks, or loose clamps.
Te r m i n a l s
Hold-down clamp
12-volt battery
Location
Removing the 12-volt battery cover
Exterior
1
2
IS300h_EE_OM53C61E.book 447 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4487-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
The meanings of each caution symbol on the top of the 12-volt battery are as fol-
lows:
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following precautions before recharging:
●If recharging with the 12-volt battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and disconnecting
the charger cables to the 12-volt battery.
■After recharging/reconnecting the 12-volt battery
●The hybrid system may not start. Follow the procedure below to initialize the system.
Shift the shift lever to P.
Open and close any of the doors.
Restart the hybrid system.
●Unlocking the doors using the smart entry & start system may not be possible immedi-
ately after reconnecting the 12-volt battery. If this happens, use the wireless remote
control or the mechanical key to lock/unlock the doors.
●Start the hybrid system with the power switch in ACCESSORY mode. The hybrid sys-
tem may not start with the power switch turned off. However, the hybrid system will
operate normally from the second attempt.
●The power switch mode is recorded by the vehicle. If the 12-volt battery is reconnected,
the vehicle will return the power switch mode to the status it was in before the 12-volt
battery was disconnected. Make sure to turn off the power switch before disconnecting
the 12-volt battery. Take extra care when connecting the 12-volt battery if the power
switch mode prior to the 12-volt battery being disconnected is unknown.
If the system will not start even after multiple attempts at all the methods above, contact
any authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
Caution symbols
No smoking, no naked
flames, no sparks12-volt battery acid
Shield eyesNote operating instructions
Keep away from childrenExplosive gas
1
2
3
IS300h_EE_OM53C61E.book 448 ページ ２０１４年５月２０日　火曜日　午後５時４０分
