Page 409 of 612

4096-1. Using the air conditioning system
6
Interior features
IS300h_EE(OM53C61E)
Turn the heated steering wheel on/off
The indicator light comes on when the
heated steering wheel is operating.
Heated steering wheel∗/seat heaters∗/seat ventila-
tors
∗
∗
: If equipped
Heated steering wheel and seat heaters heat the side grips of the steering
wheel and seats, respectively. Seat ventilators maintain good airflow by blow-
ing air from the seats.
CAUTION
●Care should be taken to prevent injury if anyone in the following categories comes in
contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
●Observe the following precautions to prevent minor burns or overheating,
• Do not cover the seat with a blanket or cushion when using the seat heater.
• Do not use seat heater more than necessary.
NOTICE
●Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, nails, etc.) into the seat.
●To prevent 12-volt battery discharge, do not use the functions when the hybrid system
is off.
Heated steering wheel
IS300h_EE_OM53C61E.book 409 ページ 2014年5月20日 火曜日 午後5時40分
Page 410 of 612

4106-1. Using the air conditioning system
IS300h_EE(OM53C61E)
●The heated steering wheel can be used when the power switch is in ON mode.
●The heated steering wheel will automatically turn off after about 30 minutes.
Each time the switch is pressed, the
intensity of the seat heater changes and
the level indicator lights (amber) light
as follows:
Hi (3 segments lit) → Mid (2 segments
lit) → Lo (1 segment lit) → Off
■The seat heaters can be used when
The power switch is in ON mode.
■Seat heater timer control
To enable seat heater timer control, press and hold the driver and front passenger seat
heater switches at the same time until a buzzer sounds once. If a seat heater is turned on
while seat heater timer control is enabled, the intensity of the seat heater will automati-
cally change from Hi→Mid→Lo.
The timing of the change in seat heater intensity differs depending on the temperature
inside the cabin, etc. when the seat heater is operating.
To disable seat heater timer control, press and hold the driver and front passenger seat
heater switches at the same time until a buzzer sounds twice.
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)
light as follows:
Hi (3 segments lit) → Mid (2 segments
lit) → Lo (1 segment lit) → Off
The seat ventilators can be used when the power switch is in ON mode.
Seat heaters
Ty p e A Ty p e B
Seat ventilators
IS300h_EE_OM53C61E.book 410 ページ 2014年5月20日 火曜日 午後5時40分
Page 411 of 612
411
IS300h_EE(OM53C61E)
6
Interior features
6-2. Using the interior lights
Interior lights list
Outer foot lights
Front interior light (→P. 4 1 2 )
Front personal lights (→P. 4 1 2 )
Inside door handle lights
Rear interior light (→P. 4 1 2 )Rear personal lights (→P. 4 1 2 )
Power window switch lights
Door courtesy lights
Footwell lights1
2
3
4
5
6
7
8
9
IS300h_EE_OM53C61E.book 411 ページ 2014年5月20日 火曜日 午後5時40分

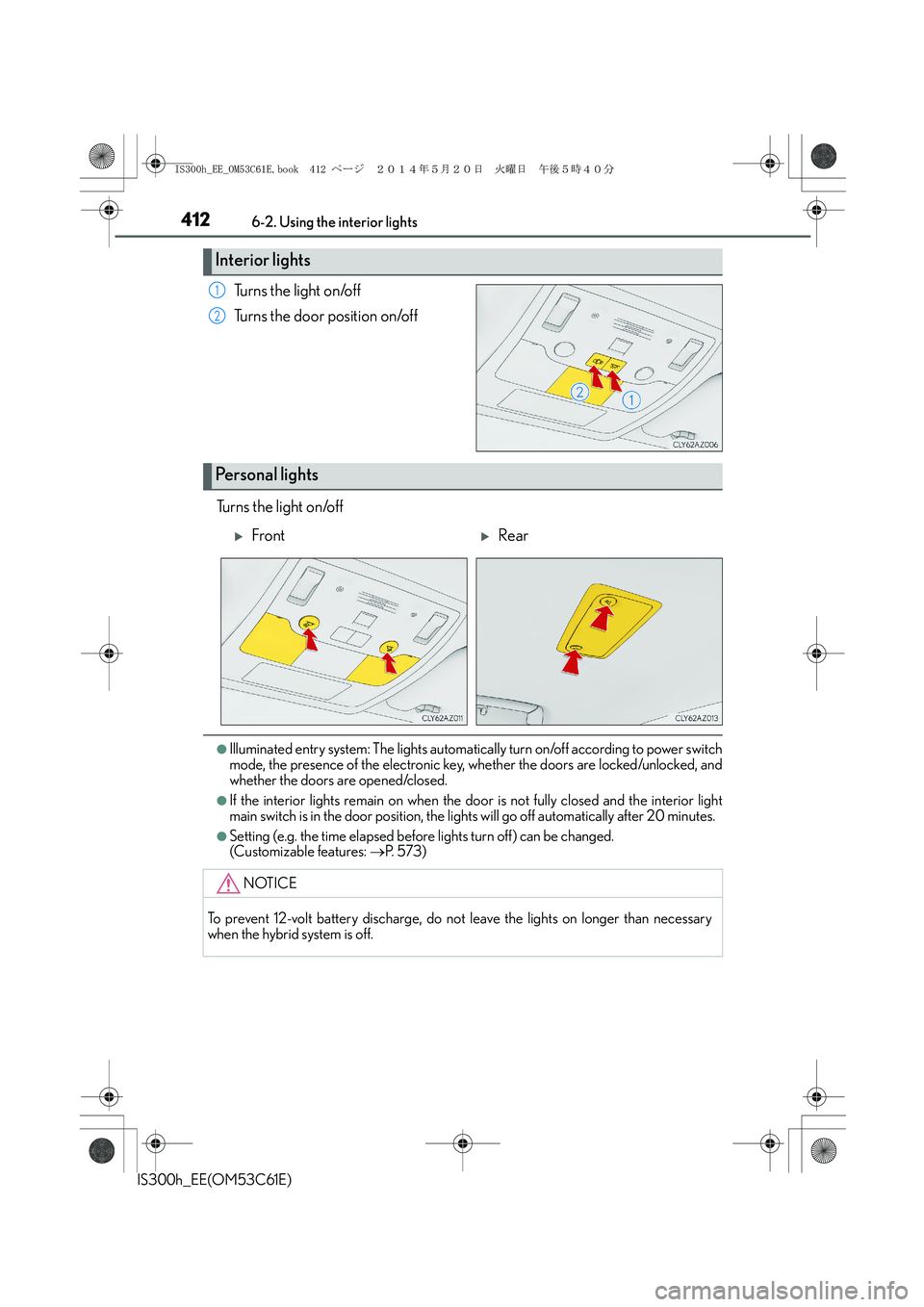

Page 412 of 612
4126-2. Using the interior lights
IS300h_EE(OM53C61E)
Turns the light on/off
Turns the door position on/off
Turns the light on/off
●Illuminated entry system: The lights automatically turn on/off according to power switch
mode, the presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
●If the interior lights remain on when the door is not fully closed and the interior light
main switch is in the door position, the lights will go off automatically after 20 minutes.
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: →P. 5 7 3 )
Interior lights
1
2
Personal lights
XFront XRear
NOTICE
To prevent 12-volt battery discharge, do not leave the lights on longer than necessary
when the hybrid system is off.
IS300h_EE_OM53C61E.book 412 ページ 2014年5月20日 火曜日 午後5時40分
Page 413 of 612
413
IS300h_EE(OM53C61E)
6
Interior features
6-3. Using the storage features
List of storage features
Glove box (→P. 414)
Bottle holders (→P. 4 1 5 )Cup holders (if equipped)
(→P. 4 1 5 )
Console box (→P. 4 1 4 )
CAUTION
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact with other
stored items.
• Lighters or spray cans may explode. If they come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an
occupant being struck by an open lid or the items stored inside.
1
2
3
4
IS300h_EE_OM53C61E.book 413 ページ 2014年5月20日 火曜日 午後5時40分
Page 414 of 612
4146-3. Using the storage features
IS300h_EE(OM53C61E)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the power switch is in ACCESSORY or ON mode.
●The trunk opener main switch is located in the glove box. (→P. 1 4 5 )
Push the knob.
Lift by hand to fully open the console
box.
Glove box
1
2
3
●The insert inside the glove box can be
removed.
Console box
IS300h_EE_OM53C61E.book 414 ページ 2014年5月20日 火曜日 午後5時40分
Page 415 of 612
4156-3. Using the storage features
6
Interior features
IS300h_EE(OM53C61E)
■Cup holders
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depending on its size or shape.
●The rubber mats at the bottom of the front cup holders can be removed.
Cup holders/Bottle holders
XFront XRear (if equipped)
To open, pull down the armrest and
press the button and release the
rear cup holder on the armrest.
IS300h_EE_OM53C61E.book 415 ページ 2014年5月20日 火曜日 午後5時40分
Page 416 of 612
4166-3. Using the storage features
IS300h_EE(OM53C61E)
CAUTION
●Do not place anything other than cups or aluminum cans in the cup holders and bot-
tle in the bottle holders. Other items may be thrown out of the holders in the event of
an accident or sudden braking, causing injury.
●To prevent burns, cover hot drinks when placed in the cup holders.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.
IS300h_EE_OM53C61E.book 416 ページ 2014年5月20日 火曜日 午後5時40分
