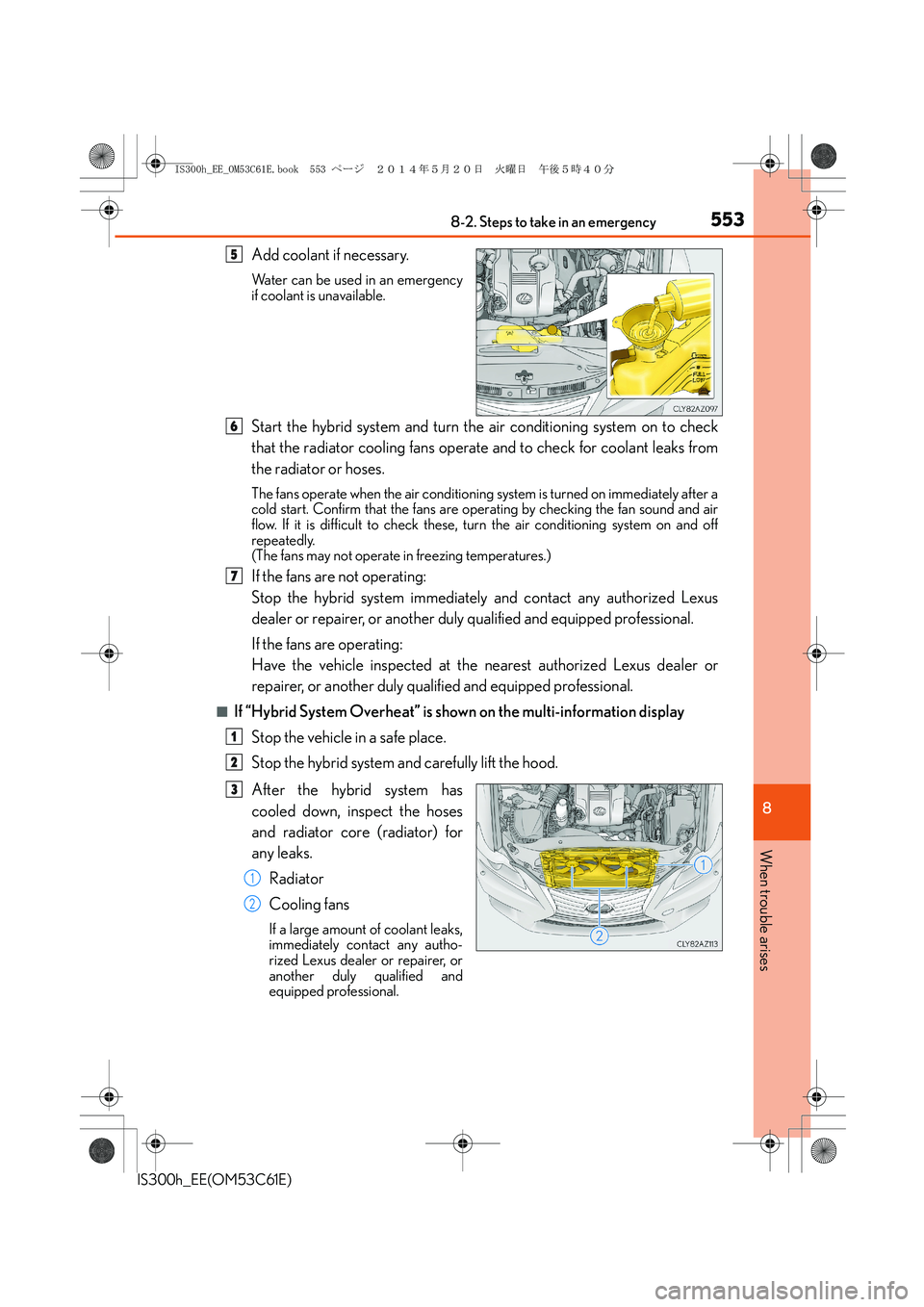

5538-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air
flow. If it is difficult to check these, turn the air conditioning system on and off
repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
If the fans are operating:
Have the vehicle inspected at the nearest authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■If “Hybrid System Overheat” is shown on the multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact any autho-
rized Lexus dealer or repairer, or
another duly qualified and
equipped professional.
5
6
7
1
2
3
1
2
IS300h_EE_OM53C61E.book 553 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5548-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
The coolant level is satisfactory if
it is between the “F” and “L” lines
on the reservoir.
Reservoir
“F”
“L”
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
4
1
2
3
5
6
IS300h_EE_OM53C61E.book 554 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5649-1. Specifications
IS300h_EE(OM53C61E)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil has
fuel-saving and environmental pro-
tection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2
IS300h_EE_OM53C61E.book 564 ページ ２０１４年５月２０日　火曜日　午後５時４０分

573
IS300h_EE(OM53C61E)
9
Vehicle specifications
9-2. Customization
■Changing by using the Remote Touch or Lexus Display Audio controller (if
equipped)
XVehicles with a Remote Touch
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
XVehicles with a Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter control switches
→P. 116
Customizable features
Your vehicle includes a variety of electronic features that can be personalized
to your preferences. The settings of these features can be changed by using
the meter control switches, the Remote Touch or Lexus Display Audio con-
troller or at any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Customizing vehicle features
1
2
1
2
IS300h_EE_OM53C61E.book 573 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5749-2. Customization
IS300h_EE(OM53C61E)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the Remote Touch or Lexus Display Audio controller
Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the meter control switches
Vehicles without a Remote Touch or Lexus Display Audio controller: Settings
that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display (→P. 104, 109, 115)
Customizable features
1
2
3
4
Function*1Default settingCustomized setting
Language*2English
French
—OO—
German
Spanish
Italian
Russian
Units*2km (L/100 km)km (km/L)—OO—miles (MPG)
Maintenance system
initializationOFFON—OO—
EV indicatorON
(Self-lighting)OFF—OO—
switch settings*3Drive
information 1Desired status
screen
*4—OO—
Drive information 1
Current fuel
economy
*5—OO—Average fuel
economy (after
reset)
1234
IS300h_EE_OM53C61E.book 574 ページ ２０１４年５月２０日　火曜日　午後５時４０分

575
9 9-2. Customization
Vehicle specifications
IS300h_EE(OM53C61E)
*1: For details about each function: →P. 1 1 7
*2: The default setting varies according to country.
*3:Except F SPORT models
*4: Some status screens cannot be registered (indicated on multi-information display).
*5: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank.
*6:F SPORT models
*7: The customized setting varies according to country.
Drive information 2
Distance
(range)
*5—OO—Average speed
(after reset)
Pop-up displayONOFF—OO—
Accent color*3BlueRedOOO—
Tachometer settingsON (Self-
changing)
Hybrid System Indi-
cator (Always)
—OO—Tachometer
(Always)
Needle*6BlueRed—OO—White
Speed indicator*6OFF
50 to 200 km/h
(30 to 125 mph)
*7
—OO—50 to 160 km/h
(30 to 100 mph)*7
REV indicator*64000 r/min
2000 to 6000
r/m i n
—OO—
OFF
REV peak*6ONOFF—OO—
Function*1Default settingCustomized setting1234
IS300h_EE_OM53C61E.book 575 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5809-2. Customization
IS300h_EE(OM53C61E)
■Lexus parking assist-sensor*1 (→P. 2 6 7 )
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
■Automatic air conditioning system (→P. 3 9 8 )
FunctionDefault settingCustomized setting
Detection distance of the
front center sensorFarNearO——O
Detection distance of the
rear center sensorFarNearO——O
Buzzer volume31 to 5O——O
Display setting*2All sensors dis-
playedDisplay offO——O
1234
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to “AUTO”
switch operation
OnOffO——O
A/C Auto switch operationOnOffO——O
1234
IS300h_EE_OM53C61E.book 580 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5829-2. Customization
IS300h_EE(OM53C61E)
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door lock
are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be locked.
• If the vehicle is started with all doors locked, the speed-detecting automatic door
lock will not operate.
• If the vehicle is started with any door unlocked, the speed-detecting automatic door
lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be custom-
ized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational signal (Emergency flashers) function set-
tings.
■When customizing using the Remote Touch or Lexus Display Audio controller
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent 12-volt battery discharge, leave the hybrid system operating while customiz-
ing the features.
CAUTION
■During customization
As the hybrid system needs to be operating during customization, ensure that the vehi-
cle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon monoxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
customizing features.
