4026-1. Using the air conditioning system
IS300h_EE(OM53C61E)
XWith a navigation system
Adjust the left-hand side temperature setting
Adjust the fan speed setting
Changing the fan speed setting during the automatic mode operation
(→P. 4 0 5 )
Select the air flow mode
Adjust the right-hand side temperature setting
Display the option control screen (→P. 4 0 3 )
Tu r n t h e f a n o f f
Select to set auto mode on/off
Adjust the temperature setting
To adjust or select settings, move the Remote Touch knob to select the screen
button, and then press the Remote Touch knob to enter the selected function. (With “DUAL” mode) (Without “DUAL” mode)
1
2
3
4
5
6
7
8
9
IS300h_EE_OM53C61E.book 402 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4046-1. Using the air conditioning system
IS300h_EE(OM53C61E)
■Switching between outside air and recirculated air modes
Press to change to recirculated air mode.
Press to change to outside air mode.
The indicator above the selected button comes on.
■Pollen removal mode (if equipped)
Pollen is removed from the air and the air flows to the upper part of the body.
Select
on the option control screen.
When the pollen removal mode is on, is displayed on the air conditioning
control screen.
In order to prevent the windshield from fogging up when the outside air is cold, the
dehumidification function may operate.
The pollens are filtered out even if the pollen removal mode is turned off.
■Defogging the windshield
Defoggers are used to defog the windshield and front side windows.
Press .
Set the outside/recirculated air mode button to outside air mode if the recirculated
air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press again when the windshield is
defogged.
■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove raindrops, dew
and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Other functions
IS300h_EE_OM53C61E.book 404 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4367-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
CAUTION
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energized. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Make sure that the “ACCESSORY” or “IGNITION ON” on the multi-information
display and the “READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, power control unit, radiator, exhaust manifold, etc.
right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flamma-
ble.
●Take care because brake fluid can harm your hands or eyes and damage painted sur-
faces. If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically start to
run if the air conditioning is on and/or the coolant temperature is high. (→P. 446)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or when
the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
IS300h_EE_OM53C61E.book 436 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4427-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil (if equipped)
The engine oil maintenance data should be reset. Perform the following procedures:
While the hybrid system is operating, switch the multi-information display to the “Set-
tings” screen. (→P. 1 1 7 )
Select “Maintenance System” on the “Settings” screen.
Select “Yes” on the “Maintenance System” screen.
A message will be displayed when the reset
procedure has been completed.
1
2
3
IS300h_EE_OM53C61E.book 442 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4467-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
Check the radiators and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If any washer does not work or the
warning message appears on the multi-
information display, the washer tank
may be empty. Add washer fluid.
Radiators and condenser
CAUTION
■When the hybrid system is hot
Do not touch the radiators or condenser as they may be hot and cause serious injuries,
such as burns.
Washer fluid
CAUTION
■When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.
IS300h_EE_OM53C61E.book 446 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4547-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)

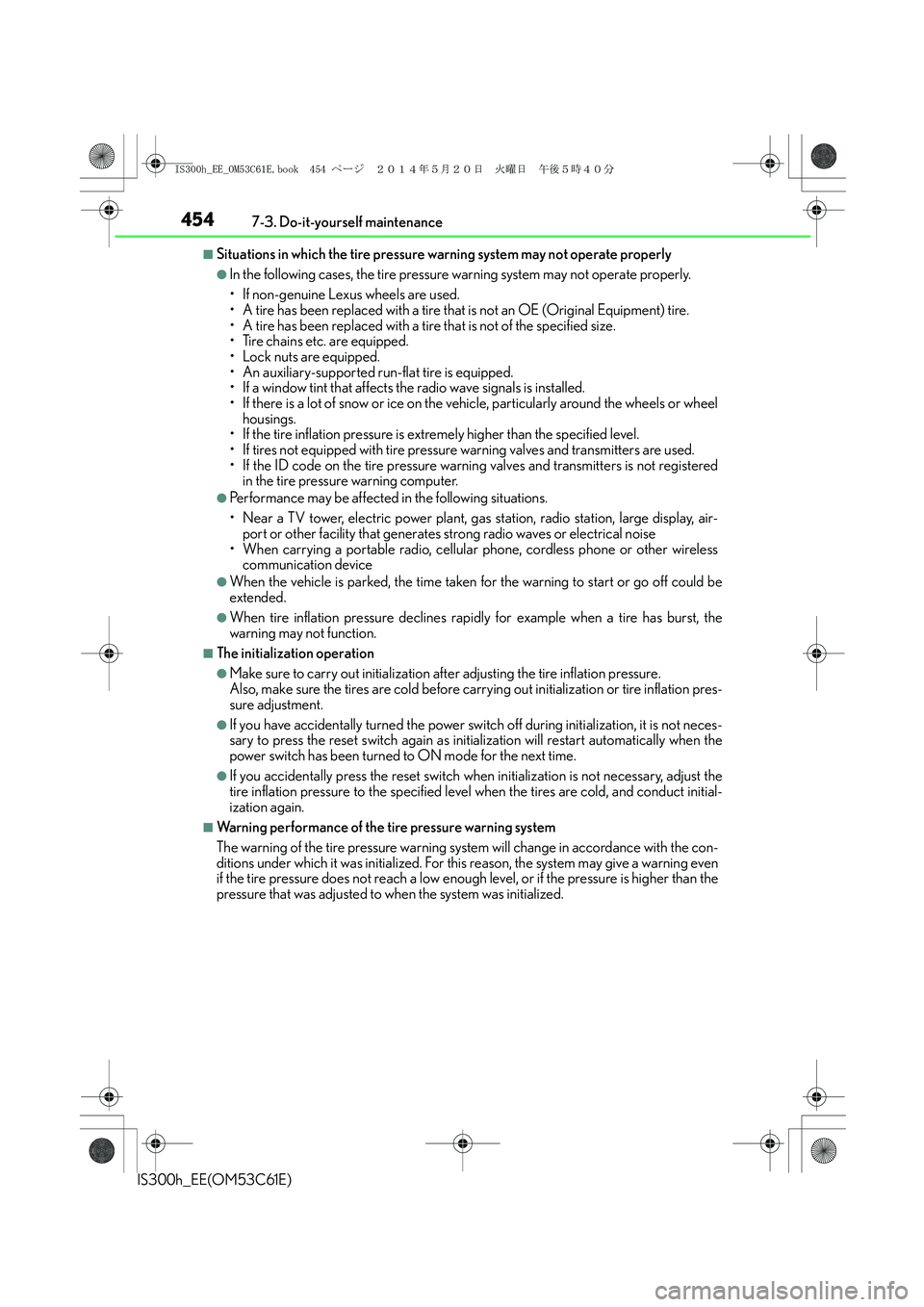

■Situations in which the tire pressure warning system may not operate properly
●In the following cases, the tire pressure warning system may not operate properly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• Lock nuts are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or wheel
housings.
• If the tire inflation pressure is extremely higher than the specified level.
• If tires not equipped with tire pressure warning valves and transmitters are used.
• If the ID code on the tire pressure warning valves and transmitters is not registered
in the tire pressure warning computer.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates strong radio waves or electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device
●When the vehicle is parked, the time taken for the warning to start or go off could be
extended.
●When tire inflation pressure declines rapidly for example when a tire has burst, the
warning may not function.
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation pres-
sure adjustment.
●If you have accidentally turned the power switch off during initialization, it is not neces-
sary to press the reset switch again as initialization will restart automatically when the
power switch has been turned to ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust the
tire inflation pressure to the specified level when the tires are cold, and conduct initial-
ization again.
■Warning performance of the tire pressure warning system
The warning of the tire pressure warning system will change in accordance with the con-
ditions under which it was initialized. For this reason, the system may give a warning even
if the tire pressure does not reach a low enough level, or if the pressure is higher than the
pressure that was adjusted to when the system was initialized.
IS300h_EE_OM53C61E.book 454 ページ ２０１４年５月２０日　火曜日　午後５時４０分

493
8When trouble arises
IS300h_EE(OM53C61E)
8-1. Essential information
Emergency flashers................... 494
If your vehicle has to
be stopped in an
emergency ................................. 4958-2. Steps to take in an
emergency
If your vehicle needs to
be towed ..................................... 496
If you think something is
wrong ...........................................502
If a warning light turns
on or a warning buzzer
sounds..........................................503
If a warning message is
displayed.....................................509
If you have a flat tire
(vehicles without
run-flat tires).............................. 526
If you have a flat tire
(vehicles with
run-flat tires)..............................540
If the hybrid system will
not start ........................................ 541
If the shift lever cannot
be shifted from P ..................... 543
If the electronic key does
not operate properly ............. 544
If the 12-volt battery is
discharged ................................. 547
If your vehicle overheats ......... 552
If the vehicle becomes
stuck ............................................. 556
IS300h_EE_OM53C61E.book 493 ページ ２０１４年５月２０日　火曜日　午後５時４０分

496
IS300h_EE(OM53C61E)8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional or commercial towing service before towing.
●A warning message for the hybrid system is shown on the multi-information
display and the vehicle does not move.
●The vehicle makes an abnormal sound.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional or commercial towing service, using a lift-type truck or flatbed
truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.
Situations needs to contact dealers before towing
