IS250_EE(OM53C51E)4-3. Operating the lights and wipers
Turning the end of the lever turns on the lights as follows:
The front position, tail, license
plate and instrument panel
lights turn on.
The headlights and all lights
listed above turn on.
The headlights, daytime run-
ning lights and all the lights
listed above turn on and off
automatically.
(When the engine switch is in
IGNITION ON mode.)
The daytime running lights turn
on.
With the headlights on, push the
lever away from you to turn on the
high beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and release
it to flash the high beams once.
You can flash the high beams with the
headlights on or off.
Headlight switch
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
4
Turning on the high beam headlights
1
2

3866-1. Using the air conditioning system
IS250_EE(OM53C51E)
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into and accu-
mulate in the air conditioning system. This may then cause odor to be emitted from the
vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode prior
to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately
after the air conditioning system is started in automatic mode.
■Air conditioning filter
→P. 440
■Customization
Settings (e.g. A/C Auto switch operation) can be changed.
(Customizable features →P. 5 5 8 )
CAUTION
■To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can cause
the outer surface of the windshield to fog up, blocking your vision.
■To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mirror defog-
gers are on.
●Do not touch the glass at lower part of the windshield or to the side of the front pillars
when the windshield wiper de-icer is on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine is
off.
●Do not place anything on the instrument
panel which may cover the air outlets. Other-
wise, air flow may be obstructed, preventing
the windshield defoggers from defogging.

4097-1. Maintenance and care
7
Maintenance and care
IS250_EE(OM53C51E)
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain
the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or brush to
apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty surfaces and let
them dry. Excellent results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the belts
periodically for excessive wear, fraying or cuts.
■When cleaning the carpeted portions of the glove box, console box, etc.
If a strong adhesive tape is used, there is a possibility that the surface of the carpet could
be damaged.
CAUTION
■Water in the vehicle
●Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(→P. 4 2 )
An electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the wind-
shield, obstructing the driver’s view and leading to an accident, resulting in death or
serious injury.

4107-1. Maintenance and care
IS250_EE(OM53C51E)
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle interior
or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkaline or
acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior part’s
painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park the
vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they
may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into contact
with electrical components such as the audio system above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield (vehicles with LDA [Lane Departure
Alert])
Be careful not to touch the camera sensor (→P. 2 4 1 ) .
If the camera is accidentally scratched or hit, LDA may not operate properly or may
cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window clean. Wipe the window in strokes running
parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

4467-3. Do-it-yourself maintenance
IS250_EE(OM53C51E)
XLeft side instrument panel (left-hand drive vehicles)
Remove the lid.
XLeft side instrument panel (right-hand drive vehicles)
Remove the lid.
Remove the fuse with the pullout
tool.
Only type A fuses can be removed
using the pullout tool.
3

539
9 9-1. Specifications
Vehicle specifications
IS250_EE(OM53C51E)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

569Alphabetical index
IS250_EE(OM53C51E)
Anti-lock Brake System (ABS) ....... 265
Function ..................................................265
Warning light ....................................... 477
Approach warning ............................... 234
Armrest .................................................... 400
Assist grips ..............................................402
Audio input ............................................... 301
Audio system .......................................... 294
Audio CD player .................................319
Audio input ............................................ 301
AUX port/
USB port ............................................. 301
Bluetooth
® audio .............................. 343
iPod........................................................... 326
Optimal use ......................................... 309
Portable music player...................... 334
Radio .......................................................... 317
Steering wheel audio switch ....... 300
USB memory....................................... 329
Automatic headlight leveling
system .................................................. 208
Warning light ....................................... 477
Automatic High Beam .......................209
Automatic light control system ......206
AUX port .................................................. 301
Average fuel economy..........................101
Average vehicle speed .........................101Back-up light
Replacing light bulb ......................... 456
Wattage ................................................. 548
Battery....................................................... 422
Battery checking................................. 422
If the vehicle has discharged
battery...................................................527
Preparing and checking
before winter.................................... 288
Warning light....................................... 476
Blind Spot Monitor (BSM) .............. 278
Blower customization......................... 383
Bluetooth®
Audio system....................................... 343
Hands-free system
(for cellular phone) ....................... 345
Bottle holders......................................... 393
Brake
Fluid .......................................................... 545
Parking brake ...................................... 205
Warning light....................................... 476
Brake assist ............................................ 265
Break-in tips ............................................. 177
Brightness control
Instrument panel light control ........ 98
BSM (Blind Spot Monitor) ............... 278
B

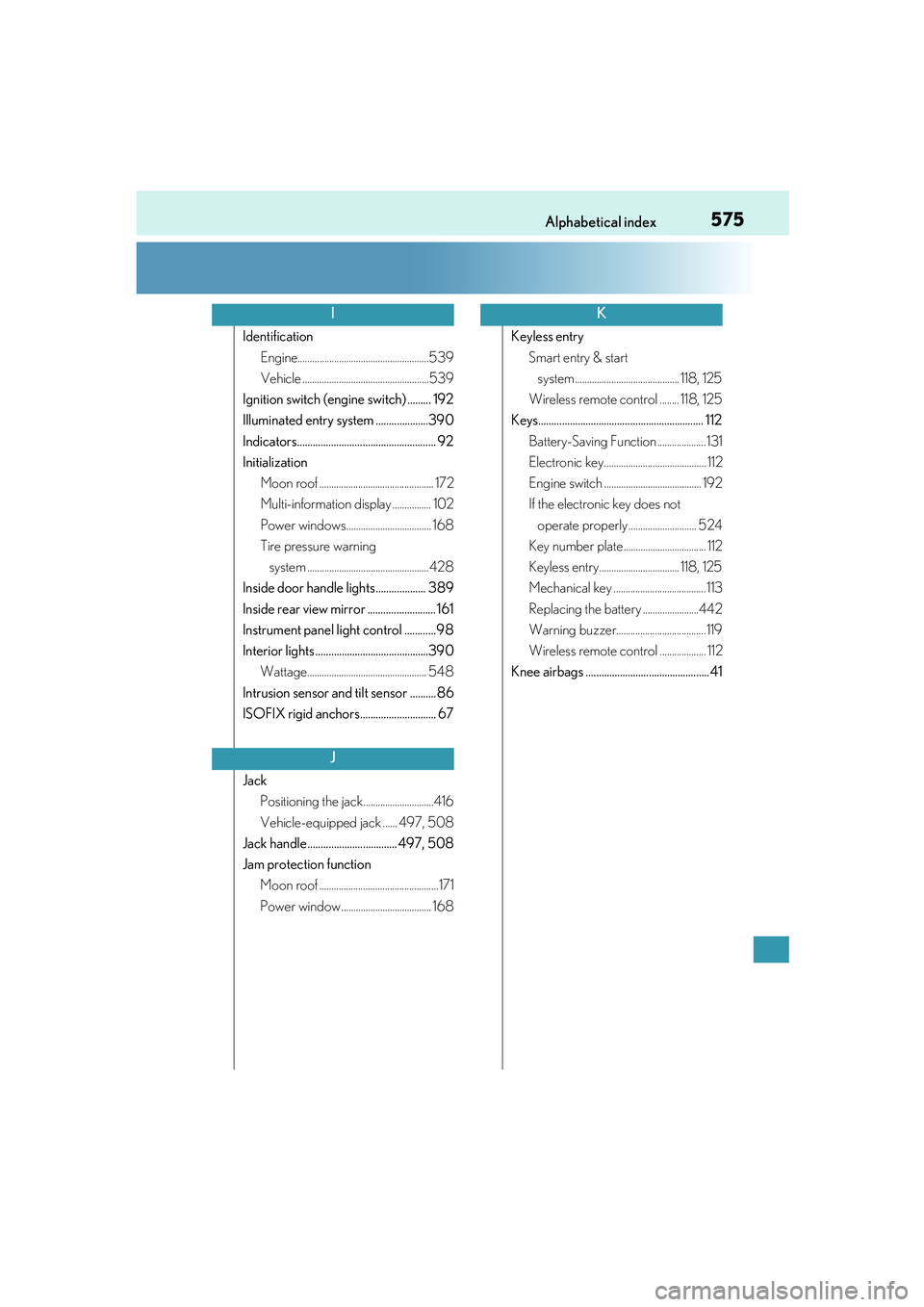

575Alphabetical index
IS250_EE(OM53C51E)
Identification
Engine......................................................539
Vehicle ....................................................539
Ignition switch (engine switch) ......... 192
Illuminated entry system ....................390
Indicators..................................................... 92
Initialization
Moon roof ............................................... 172
Multi-information display ................ 102
Power windows................................... 168
Tire pressure warning
system ..................................................428
Inside door handle lights ................... 389
Inside rear view mirror .......................... 161
Instrument panel light control ............98
Interior lights ...........................................390
Wattage................................................. 548
Intrusion sensor and tilt sensor ..........86
ISOFIX rigid anchors............................. 67
Jack
Positioning the jack.............................416
Vehicle-equipped jack ...... 497, 508
Jack handle .................................. 497, 508
Jam protection function
Moon roof .................................................171
Power window ..................................... 168Keyless entry
Smart entry & start
system........................................... 118, 125
Wireless remote control ........ 118, 125
Keys............................................................... 112
Battery-Saving Function .................... 131
Electronic key.......................................... 112
Engine switch ........................................ 192
If the electronic key does not
operate properly ............................ 524
Key number plate .................................. 112
Keyless entry................................. 118, 125
Mechanical key ...................................... 113
Replacing the battery .......................442
Warning buzzer.....................................119
Wireless remote control ................... 112
Knee airbags ............................................... 41
I
J
K
