2014 Lexus IS F seats

TABLE OF CONTENTSIndex
2
IS F_U
1-1. Key informationKeys ...................................................... 28
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 32
Wireless remote control .............. 43
Doors.................................................... 46
Trunk...................................................... 51
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .......................................... 55
Driving position memory ............. 56
Seat position memory ................... 60
Head restraints................................. 62
Seat belts ............................................ 65
Steering wheel.................................. 72
Anti-glare inside rear view mirror ................................................ 74
Outside rear view mirrors ........... 76 1-4. Opening and closing the
windows and moon roof
Power windows................................ 78
Moon roof ........................................... 81
1-5. Refueling Opening the fuel tank cap.......... 85
1-6. Theft deterrent system Engine immobilizer system ........ 88
Alarm.................................................... 90
Theft prevention labels ................ 93
1-7. Safety information Correct driving posture ............... 94
SRS airbags ....................................... 96
Front passenger occupant classification system .................. 108
Child restraint systems ................. 113
Installing child restraints ............... 117
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Rear view monitor system
• Intuitive parking assist • Audio/video system
• Rear window and outside rear view
mirror defogging
• Climate control

IS F_U
10
A
Power window
switches
P. 78
Pictorial indexInterior
Seat belts P. 65
SRS front passenger
airbag
P. 96
SRS knee airbags
P. 96
SRS driver airbag P. 96
Floor mats P. 361
Bottle holders/door pockets P. 344Head restraints P. 62
Front seats P. 55
Cup holders P. 342
SRS side airbags P. 96
Console box P. 340
Power outlet P. 353
Ashtray ∗ P. 351
Armrest P. 356
AUX port
USB port P. 279
P. 260, 268
Cup holders P. 342

Before driving1

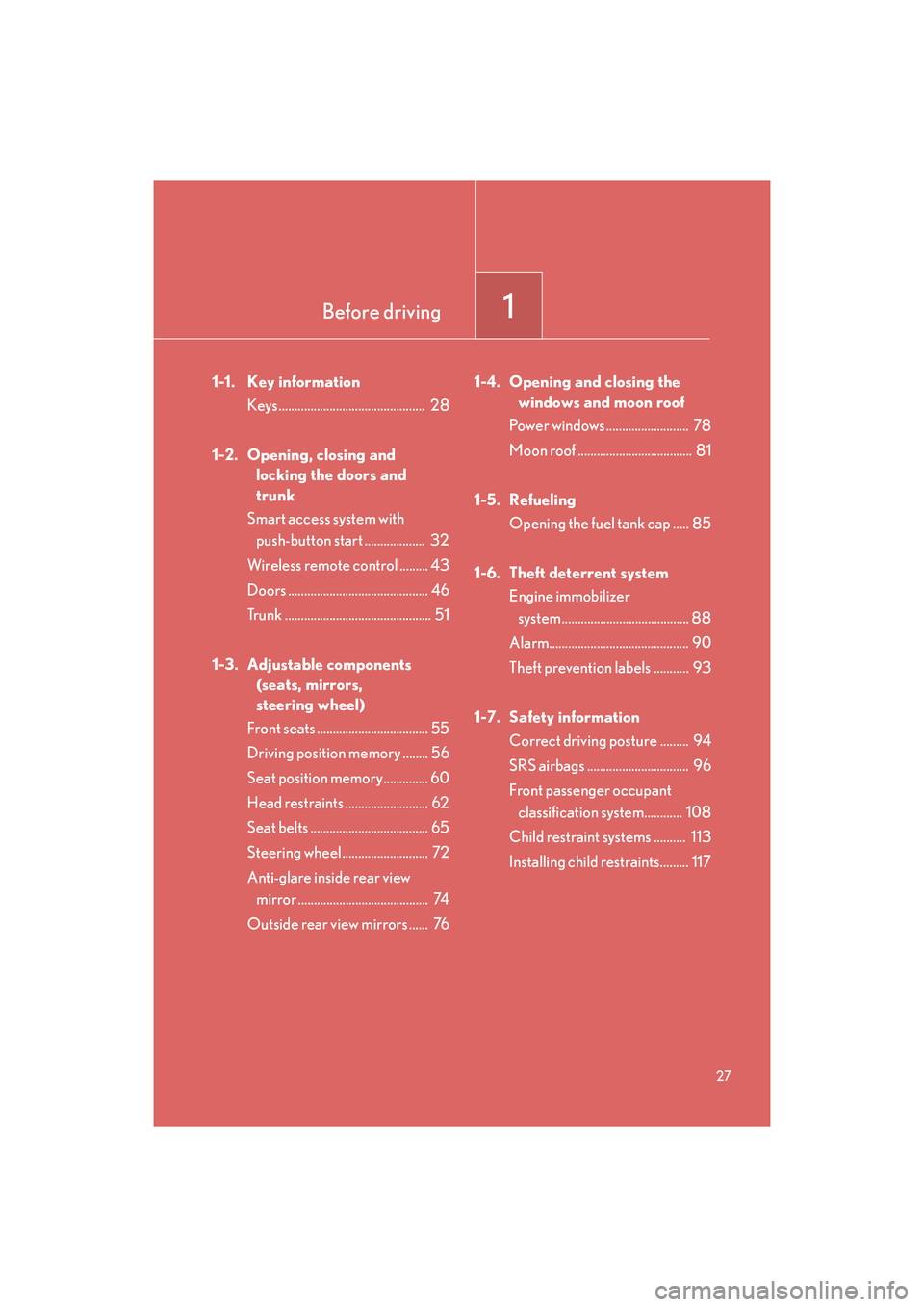

27
IS F_U
1-1. Key informationKeys .............................................. 28
1-2. Opening, closing and locking the doors and
trunk
Smart access system with push-button start ................... 32
Wireless remote control ......... 43
Doors ............................................ 46
Trunk .............................................. 51
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ................................... 55
Driving position memory ........ 56
Seat position memory.............. 60
Head restraints .......................... 62
Seat belts ..................................... 65
Steering wheel........................... 72
Anti-glare inside rear view mirror ......................................... 74
Outside rear view mirrors ...... 76 1-4. Opening and closing the
windows and moon roof
Power windows .......................... 78
Moon roof .................................... 81
1-5. Refueling Opening the fuel tank cap ..... 85
1-6. Theft deterrent system Engine immobilizer system ........................................ 88
Alarm............................................ 90
Theft prevention labels ........... 93
1-7. Safety information Correct driving posture ......... 94
SRS airbags ................................ 96
Front passenger occupant classification system............ 108
Child restraint systems .......... 113
Installing child restraints......... 117

55
1
Before driving
IS F_U
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
CAUTION
■Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to reduce
the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt, increas-
ing the risk of death or serious injury in the event of an accident.
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

56
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_U
Driving position memory (driver’s seat)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
Push the “SET” button, then
within 3 seconds push button
“1”, “2” or “3” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Check that the shift lever is set in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP3
STEP1
STEP2

57
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_U
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following.
Using the wireless remote control Turn the “ENGINE START STOP” switch OFF and close the
driver's door.
While pressing the desired button
(“1”, “2” or “3”), push on the
wireless remote control until the
signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver ’s
door is opened.
To prevent unintended triggering of the alarm, open and close a door
once after a driving position has been recorded. (If a door is not opened
within 60 seconds after is pressed, the doors will be locked again and
the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( →P. 9 0 )
STEP1
STEP2

58
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_UUsing the door lock switch
Carry only the key (including the card key
∗) to which you want to link
the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.
Turn the “ENGINE START STOP” switch OFF and close the
driver's door. While pressing the desired button
(“1”, “2” or “3”), press the lock or
unlock side on the driver’s door
lock switch until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver's
door is opened.
∗: Canada only
STEP1
STEP2

59
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_U
■Canceling the linked door unlock operationTurn the “ENGINE START STOP” switch OFF and close the driver's door.
Using the wireless remote control: While pushing the “SET” button, press on the wireless remote control until the signal beeps.
Using the door lock switch: While pressing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memo ry after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
STEP1
STEP2
