2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
INFORMATION
●
The tag information can not be preserved
while scanning or ca ching the radio sta-
tion.
●If tagging the music information fails,
“Saving the HD Radio tag failed.” will be
displayed on the screen . If this occurs, tag
the information again.
●HD Radio™ stations can be preset.
●An orange “HD)” logo indicator will be
displayed on the screen when in digital.
The “HD)” logo will first appear in a gray
color indicating the st ation is indeed (an
analog and) a digital station. Once the
digital signal is acquired, the logo will
change to a bright orange color.
●The song title, artist name and music
genre will appear on the screen when
available by the radio station.
●As a user works through the analog radio
stations, (where applicable) the radio
receiver will automatically tune from an
analog signal to a digital signal within 5
seconds.
●Tag information cannot be obtained while
scanning or while time-shift playback of
the cache operation is being performed.
GX_EMVN_OM60K84U_(U).book Page 178 Tuesday, July 2, 2013 11:51 AM

179
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
TROUBLESHOOTING GUIDE
ExperienceCauseAction
Mismatch of time align-
ment- a user may hear a
short period of program-
ming replayed or an echo,
stutter or skip.The radio stations analog
and digital volume is not
properly aligned or the sta-
tion is in ballgame mode.
None, radio broadcast issue. A
user can contact the radio station.
Sound fades, blending in
and out.Radio is shifting between
analog and digital audio.
Reception issue, may clear-up as
the vehicle continues to be driven.
Turning the indicator of the “HD
radio” button off can force radio in
an analog audio.
Audio mute condition
when an HD2/HD3 multi-
cast channel had been play-
ing.The radio does not have ac-
cess to digital signals at the
moment.This is normal behavior, wait until
the digital signal returns. If out of
the coverage area, seek a new sta-
tion.
Audio mute delay when se-
lecting an HD2/HD3 mul-
ticast channel preset.
The digital multicast con-
tent is not available until HD
Radio™ broadcast can be
decoded and make the au-
dio available. This takes up
to 7 seconds.
This is normal behavior, wait for the
audio to become available.
Text information does not
match the present song au-
dio.Data service issue by the
radio broadcaster.Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/
report_radio_station_experiences.
No text information shown
for the present selected fre-
quency.Data service issue by the
radio broadcaster.
Broadcaster should be notified.
Complete the form;
www.ibiquity.com/automotive/
report_radio_station_experiences.
GX_EMVN_OM60K84U_(U).book Page 179 Tuesday, July 2, 2013 11:51 AM

182
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
No.Function
Select to display the audio source selection screen.
Select to display a receivable channel list.
Select to display the sound setting screen.
Select to display text messages.
Select to select a prog ram type/channel category.
Select to scan for receivable channels.
Select to tune to preset stations/channels.
Select to change the pa ge of preset buttons.
•Turn to step up/down channels.
• Turn to move up/down the list.
•Press to select a preset channel.
• Press and hold to seek for a channel.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
GX_EMVN_OM60K84U_(U).book Page 182 Tuesday, July 2, 2013 11:51 AM

186
2. RADIO OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50

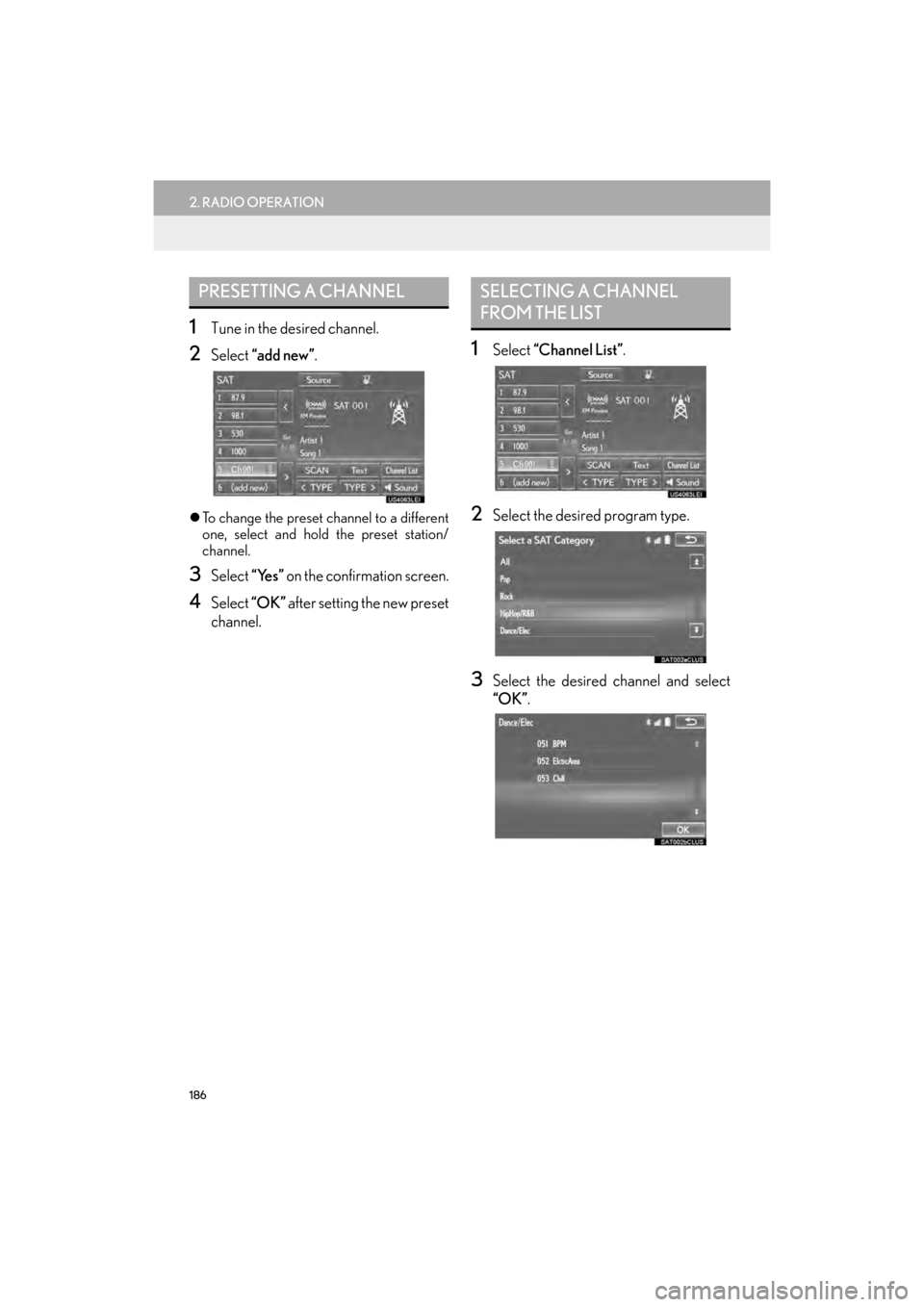

1Tune in the desired channel.
2Select “add new” .
zTo change the preset channel to a different
one, select and hold the preset station/
channel.
3Select “Yes” on the confirmation screen.
4Select “OK” after setting the new preset
channel.
1Select “Channel List” .
2Select the desired program type.
3Select the desired channel and select
“OK”.
PRESETTING A CHANNELSELECTING A CHANNEL
FROM THE LIST
GX_EMVN_OM60K84U_(U).book Page 186 Tuesday, July 2, 2013 11:51 AM

236
4. REAR SEAT ENTERTAINMENT SYSTEM OPERATION
GX_EMVN_OM60K84U_(U)13.07.02 11:50
■CONTROLLER
No.Function
Press to select a preset station/
channel.
z Press to select a station/channel.
z Press and hold to seek for a sta-
tion/channel.
zPress to select a station/channel.
z Press and hold to seek for a sta-
tion/channel.
CACHING A RADIO
PROGRAM
While the cache radio is playing on the
front seat, the below screen will be dis-
played.
No.Function
Returns to the live radio broadcast
GX_EMVN_OM60K84U_(U).book Page 236 Tuesday, July 2, 2013 11:51 AM

255
5. AUDIO/VISUAL REMOTE CONTROLS
GX_EMVN_OM60K84U_(U)13.06.28 16:22
4
AUDIO/VIDEO SYSTEM
X switch
ModeOperationFunction
AM/FM
RadioPressPreset station up/down
Press and hold
(0.8 sec. or more)Seek up/down continuously while the switch is being
pressed
SAT
PressPreset channel up/down
Press and hold
(0.8 sec. or more)Type seek up/down
Press and hold
(1.5 sec. or more)Fast up/down
CD
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
MP3/
WMA/AAC
discPressFile up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
DVD
PressChapter up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
USB
PressFile/Track up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
iPod
PressTrack/File up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
BT audio
PressTrack up/down
Press and hold
(0.8 sec. or more)Fast forward/rewind
GX_EMVN_OM60K84U_(U).book Page 255 Tuesday, July 2, 2013 11:51 AM

257
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
6. SETUP
1. AUDIO SETTINGS
1Press the “SETUP” button.
2Select “A u d i o ” .
3Select the items to be set.
*: Only in DVD video mode
Detailed audio settings can be pro-
grammed.AUDIO SETTINGS SCREEN
No.FunctionPage
Select to set the iPod audio
signal input settings.258
Select to set the video signal
format settings.258
Select to change the number
of preset radio stations dis-
played on the screen.
259
Select to set detailed cover
art settings.259
*Select to set detailed DVD
settings.260
GX_EMVN_OM60K84U_(U).book Page 257 Tuesday, July 2, 2013 11:51 AM

259
6. SETUP
GX_EMVN_OM60K84U_(U)13.07.02 11:50
4
AUDIO/VIDEO SYSTEM
1Display the audio setting screen.
(→ P.257)
2Select “Number of Radio Presets” .
3Select the button with the desired num-
ber to be displayed.
z“Default” : Select to default the settings.
1Display the audio setting screen.
(→ P.257)
2Select “Cover Art Settings” .
3Select the desired button to be set.
SETTING THE NUMBER OF
RADIO PRESETSCOVER ART SETTINGS
No.Function
Select on/off to set the cover art dis-
play in DISC mode.
Select on/off to set the cover art dis-
play in USB mode.
Select on/off to set the priority of the
Gracenote database in USB mode.
Select on/off to set the cover art dis-
play in iPod mode.
Select on/off to set the priority of the
Gracenote database in iPod mode.
INFORMATION
●
Images from the Gracenote database
displayed on the screen may be different
from the actual cover art.
GX_EMVN_OM60K84U_(U).book Page 259 Tuesday, July 2, 2013 11:51 AM
