2014 Lexus GS350 fuse box

5
1
8 7
6
5
4
3
2
GS350_OM_OM30D41U_(U)
9
5-6. Using the storage featuresList of storage features ............ 564
• Glove box ............................... 566
• Console box ...........................567
• Cup holders ...........................568
• Auxiliary boxes ..................... 570
Trunk features ................................ 571
5-7. Other interior features Sun visors and vanity mirrors .................... 574
Clock ...............................................575
Ashtrays .......................................... 576
Power outlets ................................577
Heated steering wheel .............579
Seat heaters/ seat ventilators .......................... 581
Armrest ..........................................585
Rear sunshade/ rear door sunshades.............. 586
Trunk storage extension .......... 589
Coat hooks ................................... 590
Assist grips .................................... 591
Utility hook ................................... 592
Garage door opener ............... 593
Safety Connect...........................600 6-1. Maintenance and care
Cleaning and protecting the vehicle exterior ................608
Cleaning and protecting the vehicle interior.................... 612
6-2. Maintenance Maintenance requirements ..... 615
General maintenance................618
Emission inspection and maintenance (I/M)
programs .....................................622
6-3. Do-it-yourself maintenance Do-it-yourself service precautions................................ 623
Hood ................................................626
Positioning a floor jack.............. 627
Engine compartment ............... 629
Tires.................................................. 642
Tire inflation pressure ............... 652
Wheels ........................................... 655
Air conditio ning filter ................657
Electronic key battery.............. 659
Checking and replacing fuses................................................ 661
Headlight aim ............................... 674
Light bulbs ..................................... 6766Maintenance and care

629
GS350_OM_OM30D41U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Engine compartment
Fuse boxes ( P. 6 6 1 )
Battery ( P. 6 3 8 )
Engine oil level dipstick (P. 6 3 1 )
Engine coolant reservoir (P. 6 3 4 )
Engine oil filler cap ( P. 6 3 2 ) Brake fluid reservoir
(P. 6 3 7 )
Washer fluid tank ( P. 6 4 1 )
Electric cooling fans
Condenser ( P. 636)
Radiator ( P. 636)1
2
3
4
5
6
7
8
9
10

661
GS350_OM_OM30D41U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Checking and replacing fuses
Turn the engine switch off.
After a system failure, see “Fuse la yout and amperage ratings” for
details about which fuse to check. ( P. 664)
Open the Fuse box cover.
Engine compartment (type A fuse box)
Push the tab in and lift the lid off.
Engine compartment (type B fuse box)
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
1
2
3

GS350_OM_OM30D41U_(U)
6636-3. Do-it-yourself maintenance
6
Maintenance and care

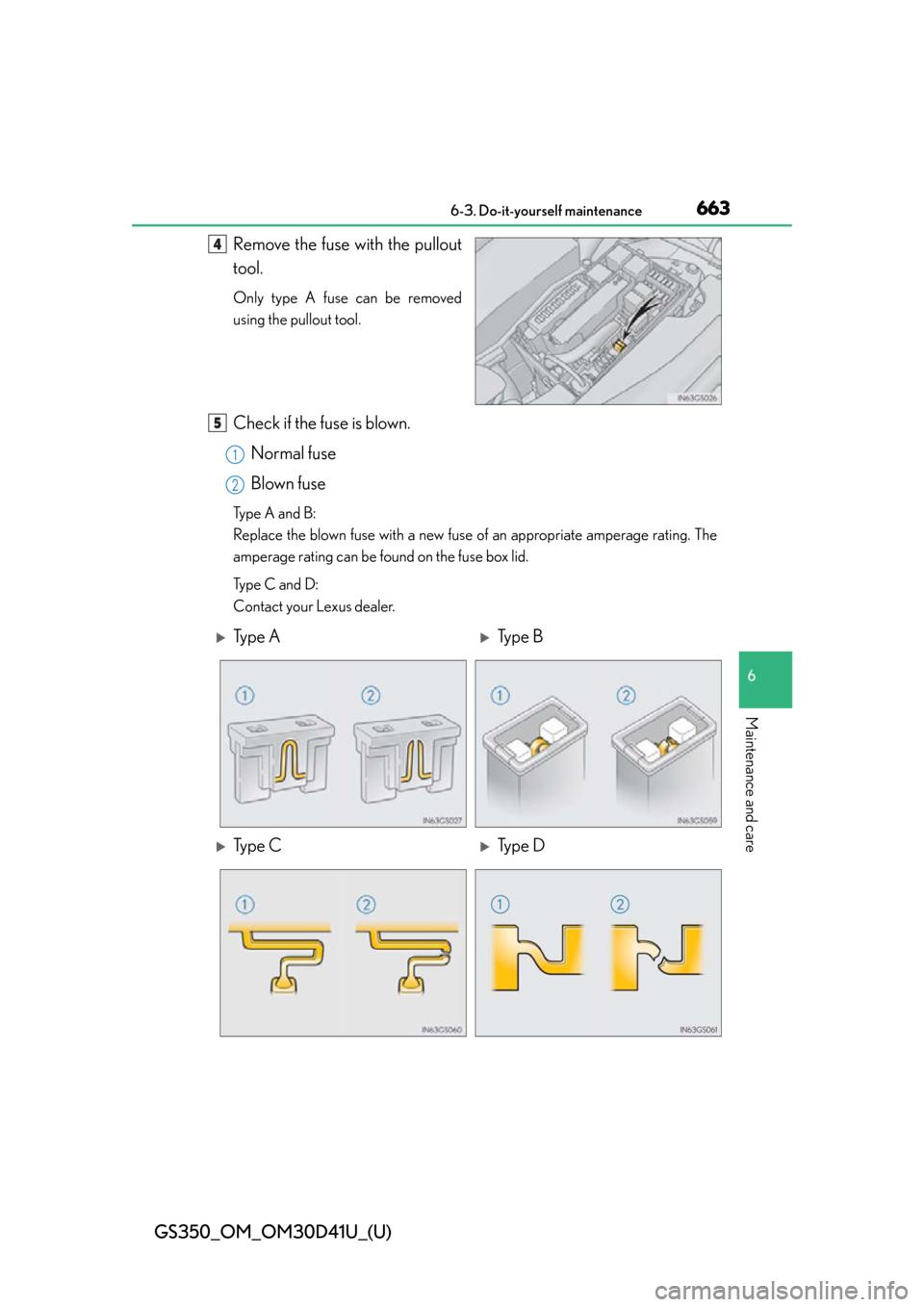

Remove the fuse with the pullout
tool.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact your Lexus dealer.
4
5
1
2
Ty p e AType B
Ty p e CType D

664
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance
■Engine compartment (type A fuse box)
Fuse layout and amperage ratings
FuseAmpereCircuit
1LH J/B-B40Left-hand junction block
2VGRS40VGRS
3RH J/B-B40Right-hand junction block
4P/ I - B N O. 280F/PMP, EFI MAIN, A/F HTR, EDU, IG2
MAIN
5ALT150RH J/B ALT, P/I ALT, LH J/B ALT, LUG J/B
ALT
6P/ I A LT100RR DEF, TAIL, FR FOG, DEICER, PANEL,
RR S/SHADE
7RH J/B ALT80Right-hand junction block
8MPX-B10
Smart access system with push-button start,
electric tilt and telescopic steering column,
power seats, head-up display, front right-
hand door ECU, gauges and meters, steer-
ing sensor, yaw rate and G sensor, overhead
module, front left-hand door ECU, power
trunk opener and closer, RR CTRL SW,
clock, body ECU, CAN gateway ECU

666
GS350_OM_OM30D41U_(U)
6-3. Do-it-yourself maintenance

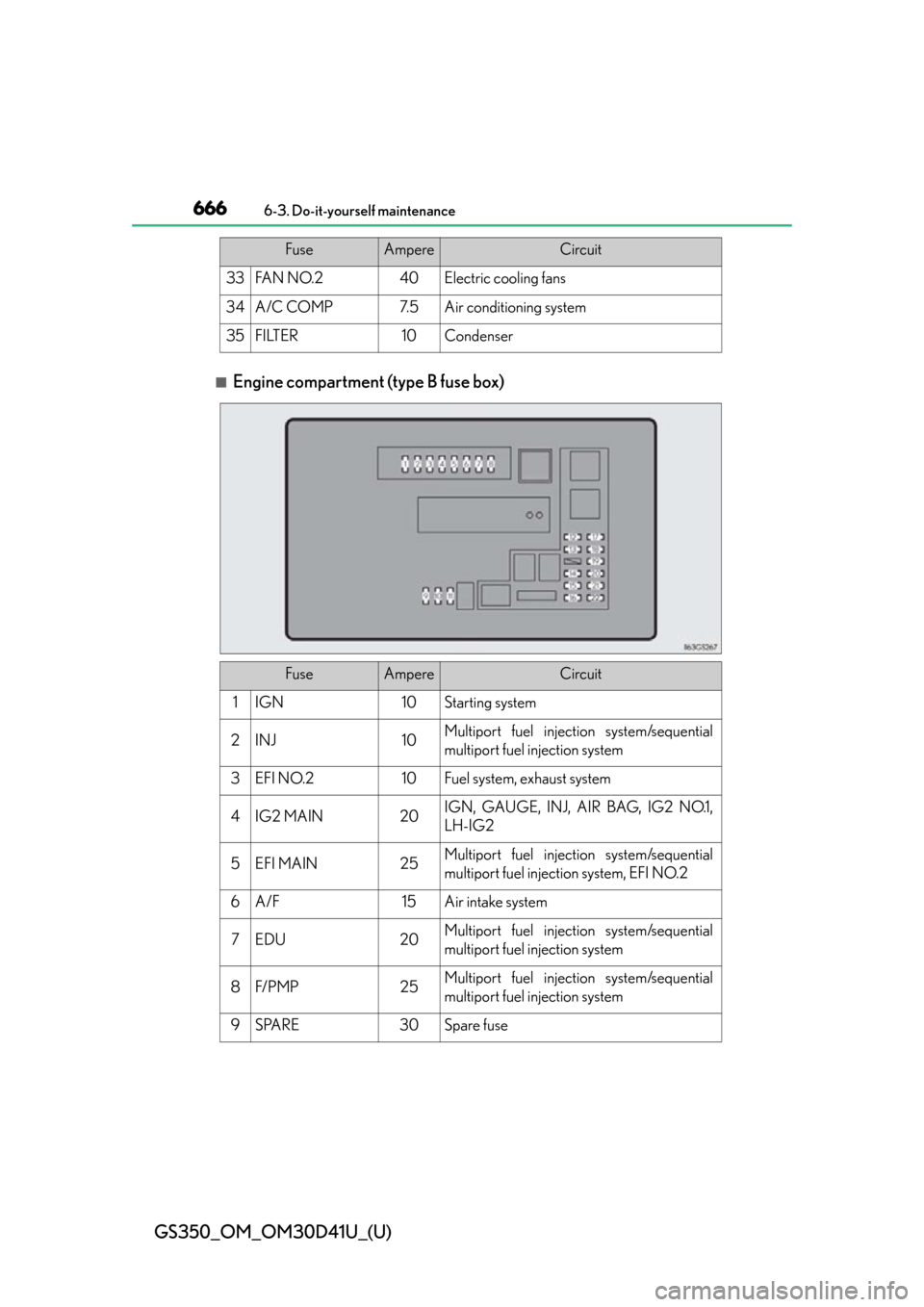

■Engine compartment (type B fuse box)
33FAN NO.240Electric cooling fans
34A/C COMP7. 5Air conditioning system
35FILTER10Condenser
FuseAmpereCircuit
FuseAmpereCircuit
1IGN10Starting system
2INJ10Multiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.210Fuel system, exhaust system
4IG2 MAIN20IGN, GAUGE, INJ, AIR BAG, IG2 NO.1,
LH-IG2
5EFI MAIN25Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.2
6A/F15Air intake system
7EDU20Multiport fuel injection system/sequential
multiport fuel injection system
8F/ P M P25Multiport fuel injection system/sequential
multiport fuel injection system
9SPARE30Spare fuse

GS350_OM_OM30D41U_(U)
6736-3. Do-it-yourself maintenance
6
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (P. 6 76 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexu s products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
