1. QUICK REFERENCE ............................... 94
MAP SCREEN............................................................. 94
NAVIGATION MENU SCREEN ...................... 96
2. MAP SCREEN OPERATION ................ 98
CURRENT POSITION DISPLAY..................... 98
MAP SCALE ................................................................ 99
ORIENTATION OF THE MAP......................... 100
SWITCHING MAP CONFIGURATIONS ......................................... 101
SCREEN SCROLL OPERATION................... 103
ADJUSTING LOCATION IN SMALL INCREMENTS....................................................... 105
3. MAP SCREEN INFORMATION ........ 106
DISPLAYING POI*2 ICONS ............................ 106
ROUTE TRACE ........................................................ 108
DISPLAYING INFORMATION ABOUT THE ICON WHERE
THE CURSOR IS SET ........................................ 109
STANDARD MAP ICONS .................................. 110
4. TRAFFIC AND PARKING INFORMATION .......................................111
DISPLAYING TRA FFIC AND TRAFFIC
PREDICTION INFORMATION...................... 111
PARKING INFORMATION ............................... 115
1BASIC OPERATION
NAVIGATION SYSTEM *1
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
*1: if equipped
*2: Point of Interest
GS_Navi+MM_OM30E40E_(EE).book Page 91 Thursday, July 24, 2014 3:57 PM

94
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
XUsing the “MENU” button
To display this screen, press the “MENU” button on the Remote Touch, then select
“Nav” , and select if the navigation menu screen is displayed.
XUsing the “MAP/VOICE” button
To display this screen, press the “MAP/VOICE” button on the Remote Touch.
No.NameFunctionPage
2D north up, 2D
heading up or 3D
heading up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. In 3D map, only a head-
ing-up view is available.
100
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS186
GS_Navi+MM_OM30E40E_(EE).book Page 94 Thursday, July 24, 2014 3:57 PM

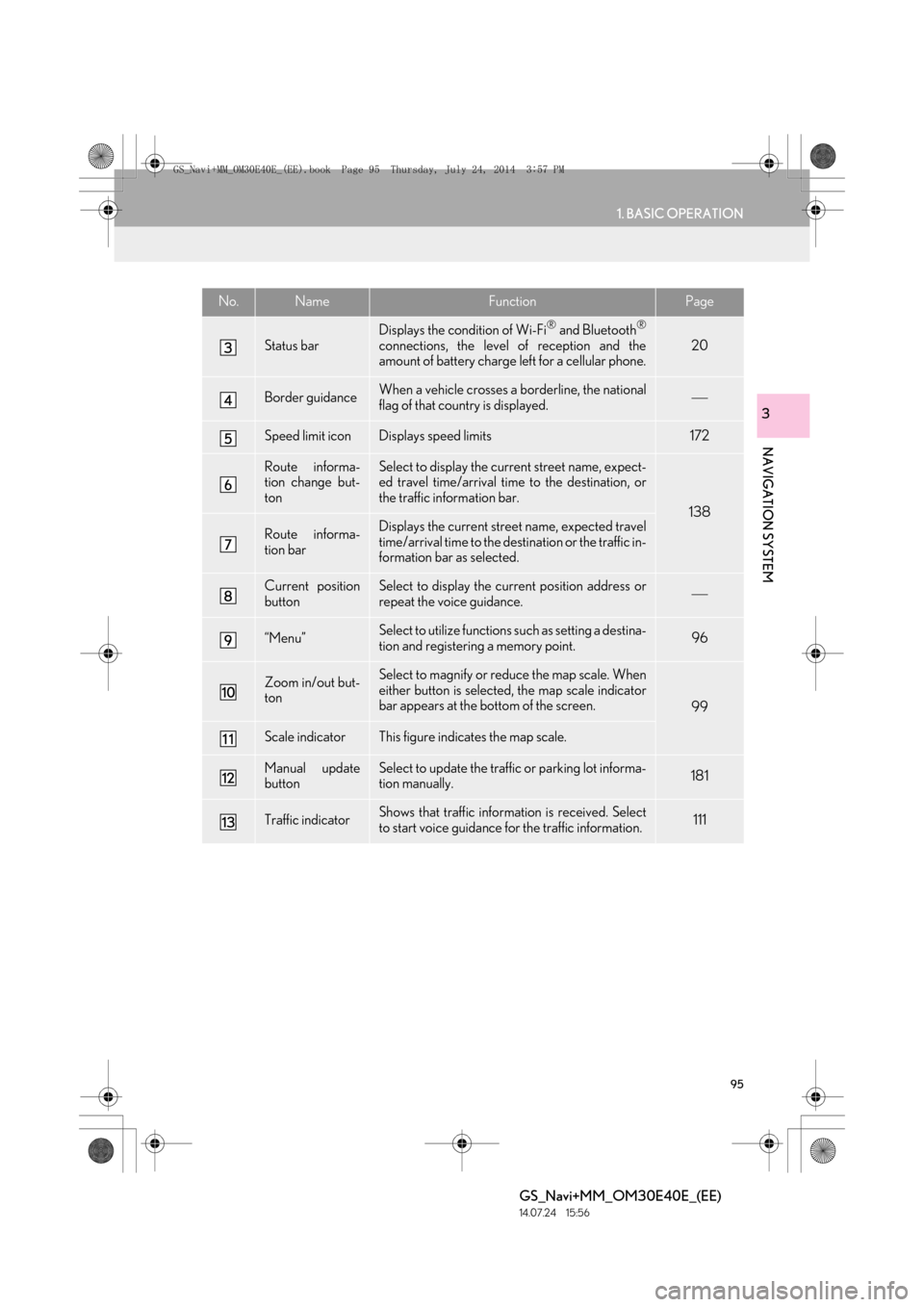

95
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
NAVIGATION SYSTEM
3
Status bar
Displays the condition of Wi-Fi® and Bluetooth®
connections, the level of reception and the
amount of battery charge left for a cellular phone.20
Border guidanceWhen a vehicle crosses a borderline, the national
flag of that country is displayed.
Speed limit iconDisplays speed limits172
Route informa-
tion change but-
tonSelect to display the current street name, expect-
ed travel time/arrival time to the destination, or
the traffic information bar.
138
Route informa-
tion barDisplays the current street name, expected travel
time/arrival time to the destination or the traffic in-
formation bar as selected.
Current position
buttonSelect to display the current position address or
repeat the voice guidance.
“Menu”Select to utilize functions such as setting a destina-
tion and registering a memory point.96
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
99
Scale indicatorThis figure indicates the map scale.
Manual update
buttonSelect to update the traffic or parking lot informa-
tion manually. 181
Traffic indicatorShows that traffic information is received. Select
to start voice guidance for the traffic information.111
No.NameFunctionPage
GS_Navi+MM_OM30E40E_(EE).book Page 95 Thursday, July 24, 2014 3:57 PM

96
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
NAVIGATION MENU SCREEN
This screen is used for functions such as setting a destination and registering memory
points.
XUsing the “MENU” button
Press the “MENU” button on the Remote Touch. Select “Nav”, and select “Menu” to
display the navigation menu screen.
X Using the “MAP/VOICE” button
Press the “MAP/VOICE” button on the Remote Touch, and select “Menu” to display
the navigation menu screen.
GS_Navi+MM_OM30E40E_(EE).book Page 96 Thursday, July 24, 2014 3:57 PM

97
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
NAVIGATION SYSTEM
3
No.FunctionPage
Select to search for a destination.118
Select to suspend or resume guidance.137
Select to change routes and/or destinations and to view route over-
view.146
Select to enable changes to “Home”, “Memory points”, “Quick access”,
“Area to avoid”, etc.152
Select to set the desired map configuration.101
Select to set the Points of Interest to be displayed on the screen.106
Select to start/stop recording the route trace.108
Select to register the current position or the cursor position as a mem-
ory point. Can be changed to a desired name, icon, etc.152
GS_Navi+MM_OM30E40E_(EE).book Page 97 Thursday, July 24, 2014 3:57 PM

98
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
2. MAP SCREEN OPERATION
1Press the “MENU” button on the
Remote Touch.
Press the “MAP/VOICE” button on the
Remote Touch.
2Select “Nav”. (Using the “MENU” but-
ton)
3Check that the current position map is
displayed.
z Select if the navigation menu
screen is displayed.
CURRENT POSITION DISPLAY
zTo correct the current position manually:
→ P.1 7 5
INFORMATION
●
While driving, the current position mark
is fixed on the screen and the map moves.
●The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
●After 12-volt battery disconnection, or on
a new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
GS_Navi+MM_OM30E40E_(EE).book Page 98 Thursday, July 24, 2014 3:57 PM

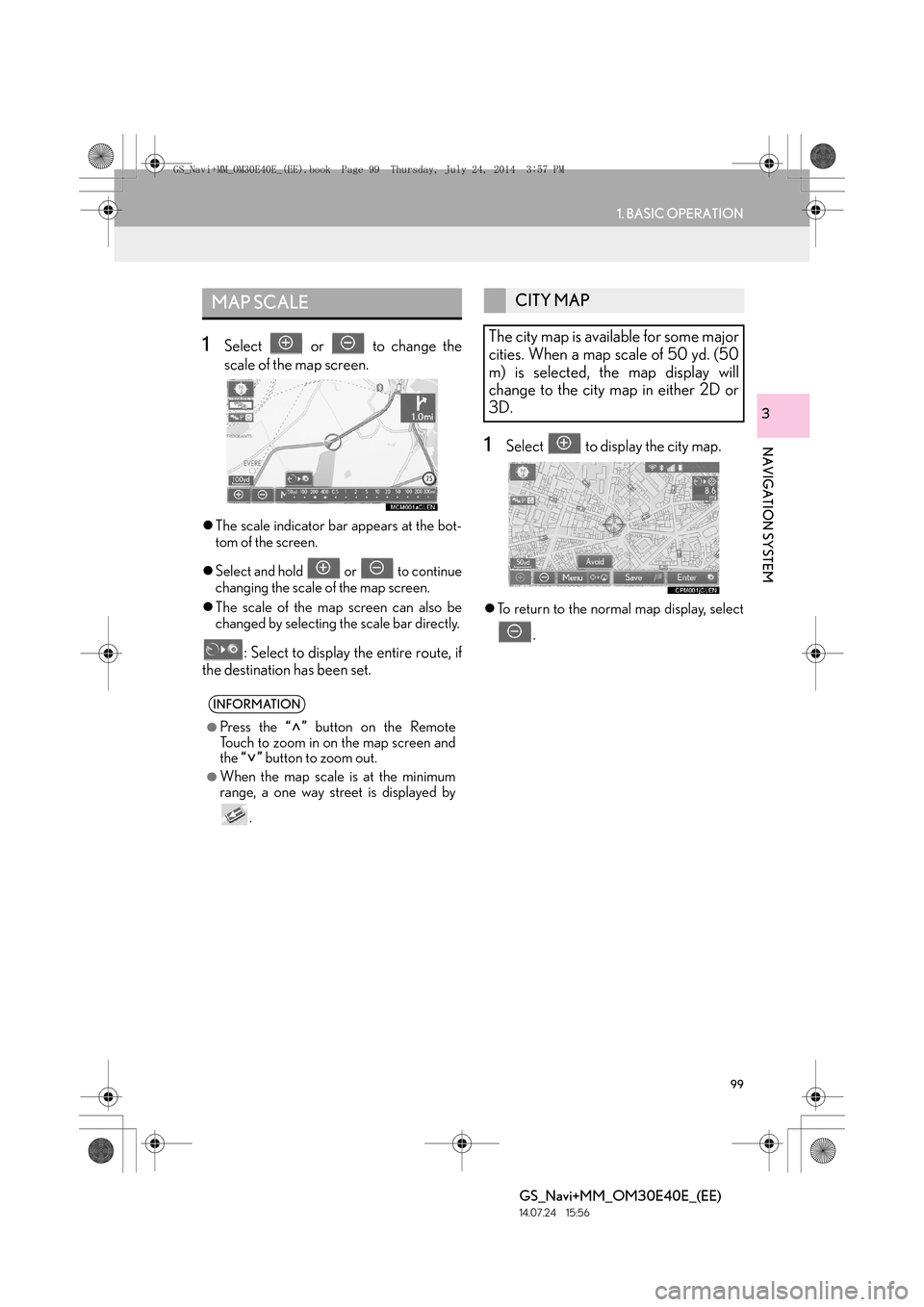

99
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
NAVIGATION SYSTEM
3
1Select or to change the
scale of the map screen.
zThe scale indicator bar appears at the bot-
tom of the screen.
z Select and hold or to continue
changing the scale of the map screen.
z The scale of the map screen can also be
changed by selecting the scale bar directly.
: Select to display the entire route, if
the destination has been set.
1Select to display the city map.
z To return to the normal map display, select
.
MAP SCALE
INFORMATION
●
Press the “” button on the Remote
Touch to zoom in on the map screen and
the “” button to zoom out.
●When the map scale is at the minimum
range, a one way street is displayed by
.
CITY MAP
The city map is available for some major
cities. When a map scale of 50 yd. (50
m) is selected, the map display will
change to the city map in either 2D or
3D.
GS_Navi+MM_OM30E40E_(EE).book Page 99 Thursday, July 24, 2014 3:57 PM

100
1. BASIC OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1Select , or .
X North-up screen
X Heading-up screen
X 3D screen : North-up symbol
Regardless of the direction of vehicle travel,
north is always up.
: Heading-up symbol (When in 2D map
mode.)
The direction of vehicle travel is always up.
A red arrow indicates north.
: Heading-up symbol (When in 3D map
mode.)
The direction of vehicle travel is always up.
A red arrow indicates north.
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol displayed
at the top left of the screen.
