2014 Lexus ES300h Owner's Manual

7687-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
CAUTION
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.
NOTICE
■Precaution when installing a different tire
When differently constructed tires or tires of different makers, models or tread pat-
terns are installed, the tire pressure warning system may not operate properly.

769
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have
been performed, contact your Lexus dealer.
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
1
2

7707-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Stop the vehicle immediately.
Warning messageDetails
Indicates abnormal engine oil pressure The warning light may come on if the engine oil
pressure is too low.
Indicates a malfunction in the hybrid system
(Hybrid vehicles)

7717-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer.
Have the vehicle inspected immediately.
Warning messageDetails
Indicates a malfunction in the pre-collision system
Indicates a malfunction in the intuitive parking assistThe malfunctioning assist-sensor is flashing.
Indicates a malfunction in the dynamic radar cruise
control system (if equipped) or the cruise control sys-
temPress the “ON/OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
(Flashes)
(If equipped)
(If equipped)

7727-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
Indicates a malfunction in the LDA (Lane Departure
Alert) system
Indicates a malfunction in the Automatic High Beam
system
Indicates a malfunction in the EPS (Electric Power
Steering) system
Warning messageDetails
(If equipped)
(If equipped)

7737-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises

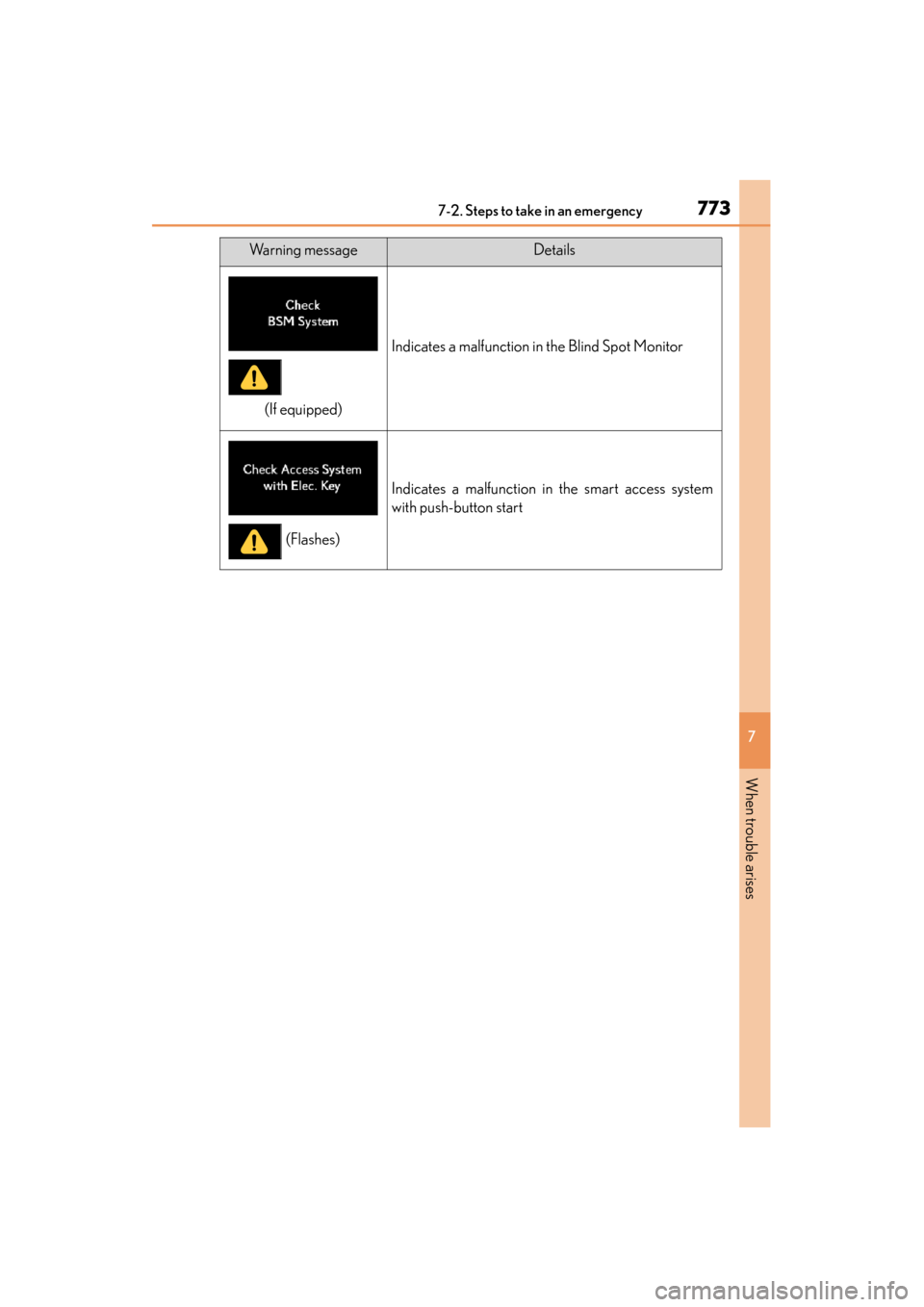

Indicates a malfunction in the Blind Spot Monitor
Indicates a malfunction in the smart access system
with push-button start
Warning messageDetails
(If equipped)
(Flashes)

7747-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the specified steps to correct the suspected
problem, check that the warning message goes off.
Follow the correction procedures.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed The system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
door(s) are not yet
fully closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
hood is not yet fully
closed.
Close the hood.

7757-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
Indicates that the trunk is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
trunk is not yet fully
closed.
Close the trunk.
Indicates that the win-
dows are not fully closed
(with the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close all the windows.
Indicates that the moon
roof is not fully closed
(with the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close the moon roof.
Indicates that the win-
dows and the moon roof
are not fully closed (with
the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close all the windows
and the moon roof.
Warning messageDetailsCorrection procedure
(Flashes)
(Flashes)
(Flashes)
