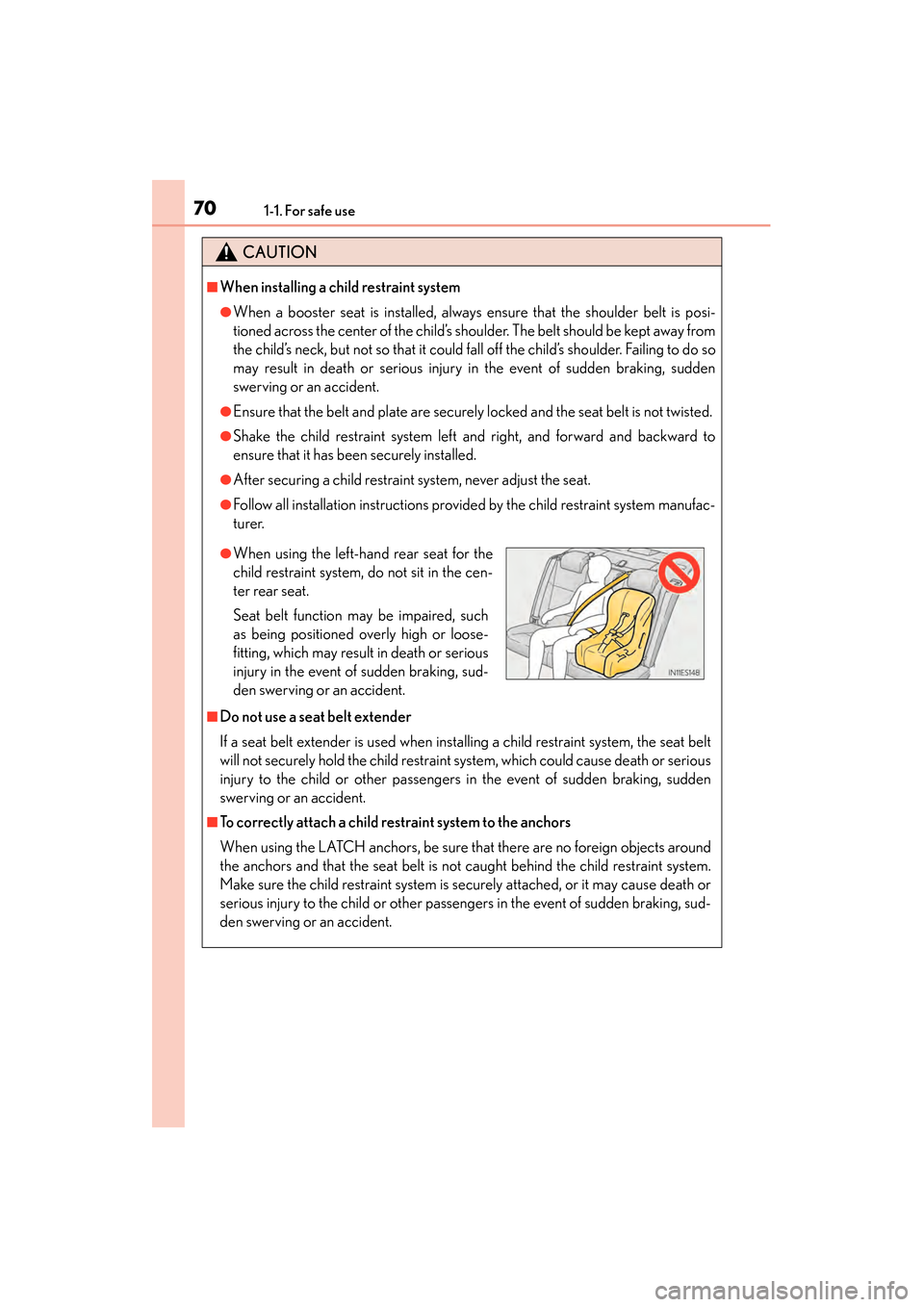

701-1. For safe use
ES350_300h_OM_OM33A60U_(U)
CAUTION
■When installing a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of sudden braking, sudden
swerving or an accident.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of sudden braking, sudden
swerving or an accident.
■To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects around
the anchors and that the seat belt is not caught behind the child restraint system.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child or other passengers in the event of sudden braking, sud-
den swerving or an accident.
●When using the left-hand rear seat for the
child restraint system, do not sit in the cen-
ter rear seat.
Seat belt function may be impaired, such
as being positioned overly high or loose-
fitting, which may result in death or serious
injury in the event of sudden braking, sud-
den swerving or an accident.

771-2. Hybrid system
ES350_300h_OM_OM33A60U_(U)
1
For safety and security
There is an air intake vent beside the
rear left seat for the purpose of
cooling the hybrid battery (traction
battery). If the vent becomes
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the emer-
gency shut off system blocks off the high voltage current and stops the fuel
pump to minimize the risk of electrocution and fuel leakage. If the emer-
gency shut off system activates, your vehicle will not restart. To restart the
hybrid system, contact your Lexus dealer.
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the instruc-
tions.
( →P. 76 9 )
Hybrid battery (traction battery) air vent
Emergency shut off system
Hybrid warning message

861-3. Theft deterrent system
ES350_300h_OM_OM33A60U_(U)
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than
using the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)
●The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the system
is set.
Do one of the following to deactivate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the “START STOP ENGINE” <“POWER”> switch to ACCES-
SORY or IGNITION ON mode, or start the engine tem>. (The alarm will be deactivated or stopped after a few seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

871-3. Theft deterrent system
ES350_300h_OM_OM33A60U_(U)
1
For safety and security
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the fol-
lowing:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The 12-volt battery is recharged or replaced when the vehicle is locked. (→P. 8 1 5 )
●A person inside the vehicle opens a door,
the trunk or hood.
XGasoline vehicles
XHybrid vehicles

881-3. Theft deterrent system
ES350_300h_OM_OM33A60U_(U)
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent intrud-
ers.
●Do not leave the key inside the vehicle when the alarm is operating, and make sure
the key is not inside the vehicle when recharging or replacing the battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.

121
ES350_300h_OM_OM33A60U_(U)
3
Operation of
each component
3-1. Key information
Keys ...................................................122
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ............ 125
Wireless remote control .......... 139
Doors ................................................142
Trunk .................................................. 147
3-3. Adjusting the seats Front seats...................................... 154
Driving position memory ......... 156
Head restraints .............................162
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 166
Inside rear view mirror.............. 168
Outside rear view mirrors ......... 171
3-5. Opening, closing the windows and moon roof
Power windows ............................. 174
Moon roof ....................................... 177

122
ES350_300h_OM_OM33A60U_(U)
3-1. Key information
Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart access systemwith push-button start ( →P. 1 2 5 )
• Operating the wireless remote control function ( →P. 1 3 9 )
Mechanical keys
Key number plate
To take out the mechanical key, push
the release button and take the key
out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cylin-
der, turn it over and re-attempt to
insert it.
After using the mechanical key, store
it in the electronic key. Carry the
mechanical key together with the
electronic key. If the electronic key
battery is depleted or the entry func-
tion does not operate properly, you
will need the mechanical key.
( → P. 8 1 0 )
The keys
1
2
3
Using the mechanical key

ES350_300h_OM_OM33A60U_(U)
1233-1. Key information
3
Operation of each component
■When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circumstances
demand. (→P. 1 4 8 , 6 1 6 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using the other
mechanical key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves that
could interfere with the operation of the aircraft.
