311-1. For safe use
ES350_300h_OM_OM33A60U_(U)
1
For safety and security
Make sure that you can see backward clearly by adjusting the inside and
outside rear view mirrors properly. (→P. 168, 171)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident and the adjust-
ment mechanism may also be damaged.
●When driving over long distances, take regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue
driving and take a break immediately.

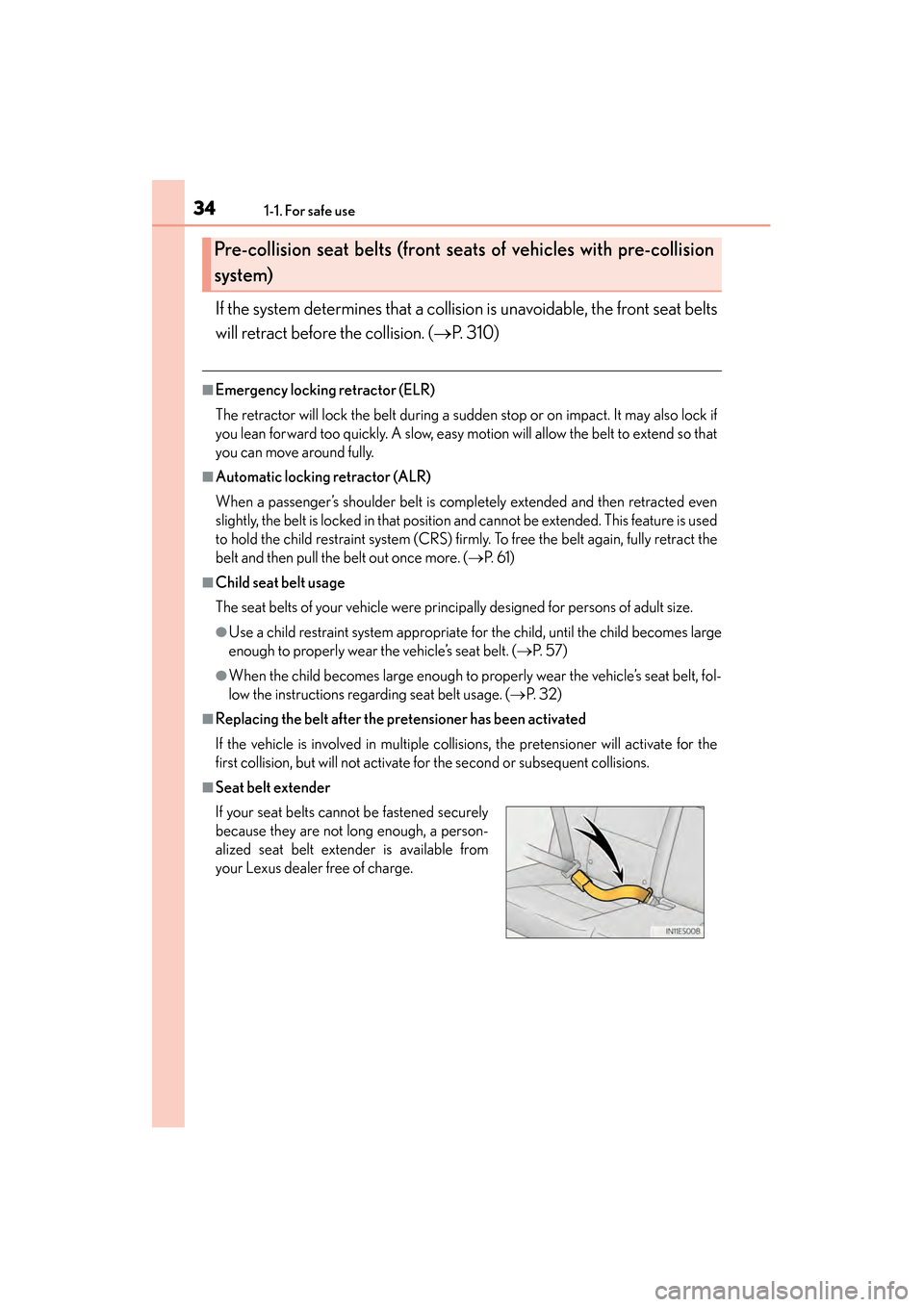

341-1. For safe use
ES350_300h_OM_OM33A60U_(U)
If the system determines that a collision is unavoidable, the front seat belts
will retract before the collision. (→P. 310)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is used
to hold the child restraint system (CRS) firmly . To free the belt again, fully retract the
belt and then pull the belt out once more. ( →P. 6 1 )
■Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( →P. 5 7 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, fol-
low the instructions regarding seat belt usage. ( →P. 3 2 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.
■Seat belt extender
Pre-collision seat belts (front seat s of vehicles with pre-collision
system)
If your seat belts cannot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.

361-1. For safe use
ES350_300h_OM_OM33A60U_(U)
CAUTION
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 3 2 )
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
( → P. 3 3 )
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling may lead to incorrect operation.

561-1. For safe use
ES350_300h_OM_OM33A60U_(U)
Safety information for children
●It is recommended that children sit in the rear seats to avoid accidental
contact with the shift lever, wiper switch etc.
●Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the power
window accidentally. (→P. 143, 174)
●Do not let small children operate equipment which may catch or pinch
body parts, such as the power window, hood, trunk, seats etc.
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropri ate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the windows, the
moon roof or other features of the vehicl e. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.

611-1. For safe use
ES350_300h_OM_OM33A60U_(U)
1
For safety and security
Installing child restraints
Child restraint LATCH anchors
LATCH anchors are provided for the
outboard rear seats. (Buttons display-
ing the location of the anchors are
attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism (ALR/
ELR belts except driver’s seat belt)
(→P. 3 4 )
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using the LATCH anchors or a seat
belt. Attach the top tether strap when installing a child restraint.
The lap/shoulder belt can be used if your child restraint system is not
compatible with the LATCH (Lower Anchors and Tethe rs for Children)
system.

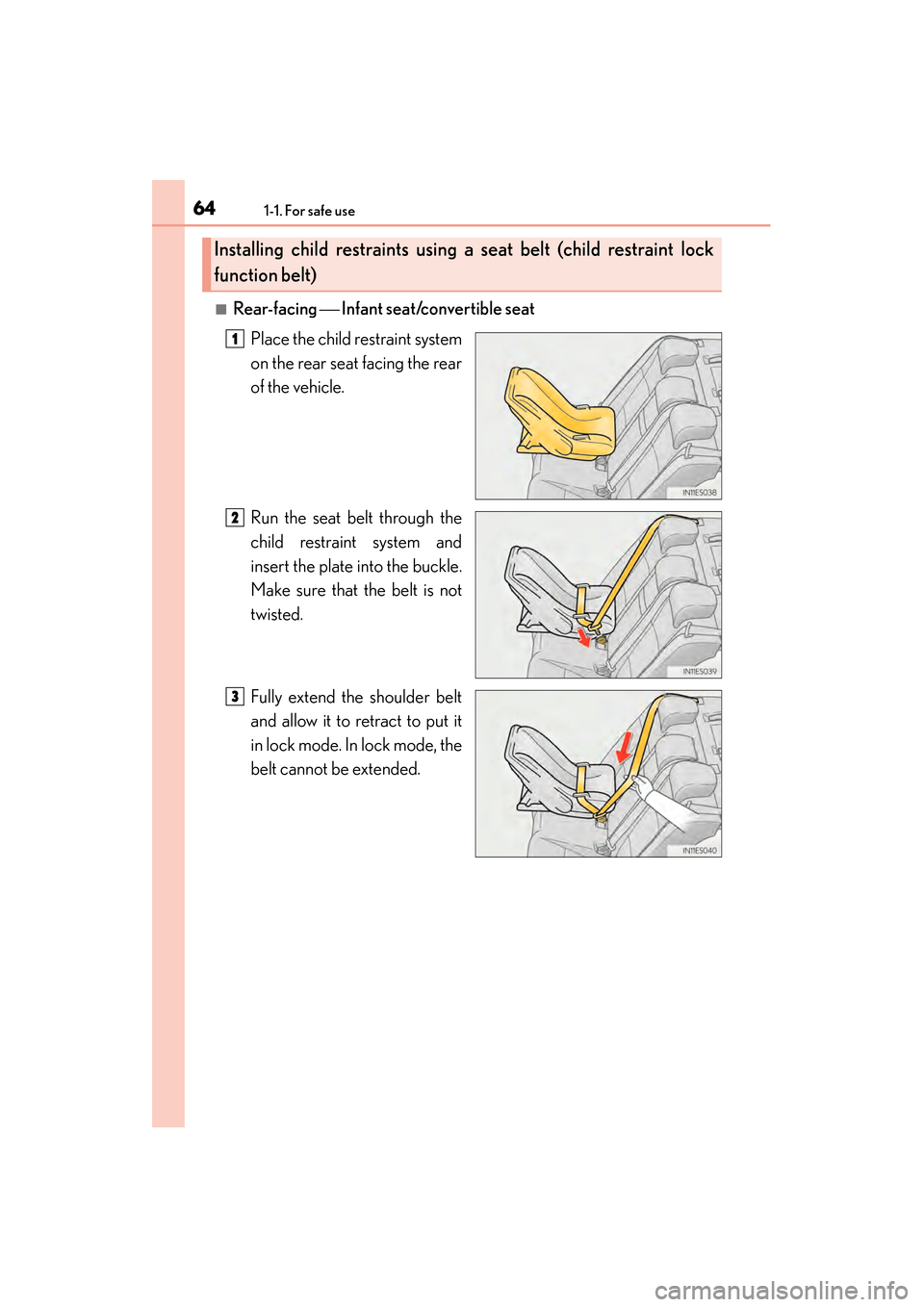

641-1. For safe use
ES350_300h_OM_OM33A60U_(U)
■Rear-facing  Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode, the
belt cannot be extended.
Installing child restraints using a seat belt (child restraint lock
function belt)
1
2
3

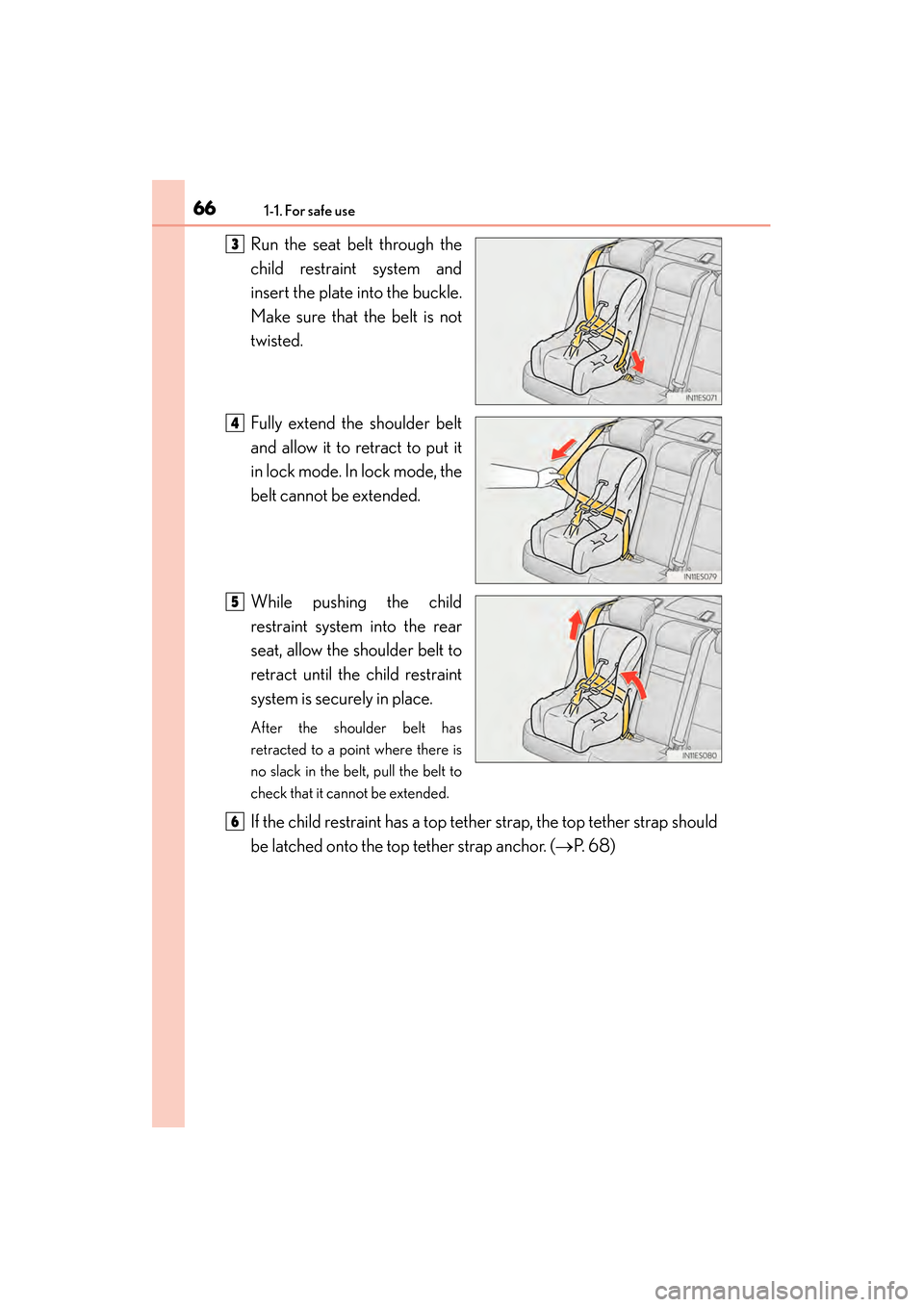

661-1. For safe use
ES350_300h_OM_OM33A60U_(U)
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode, the
belt cannot be extended.
While pushing the child
restraint system into the rear
seat, allow the shoulder belt to
retract until the child restraint
system is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap should
be latched onto the top tether strap anchor. (→P. 6 8 )
3
4
5
6

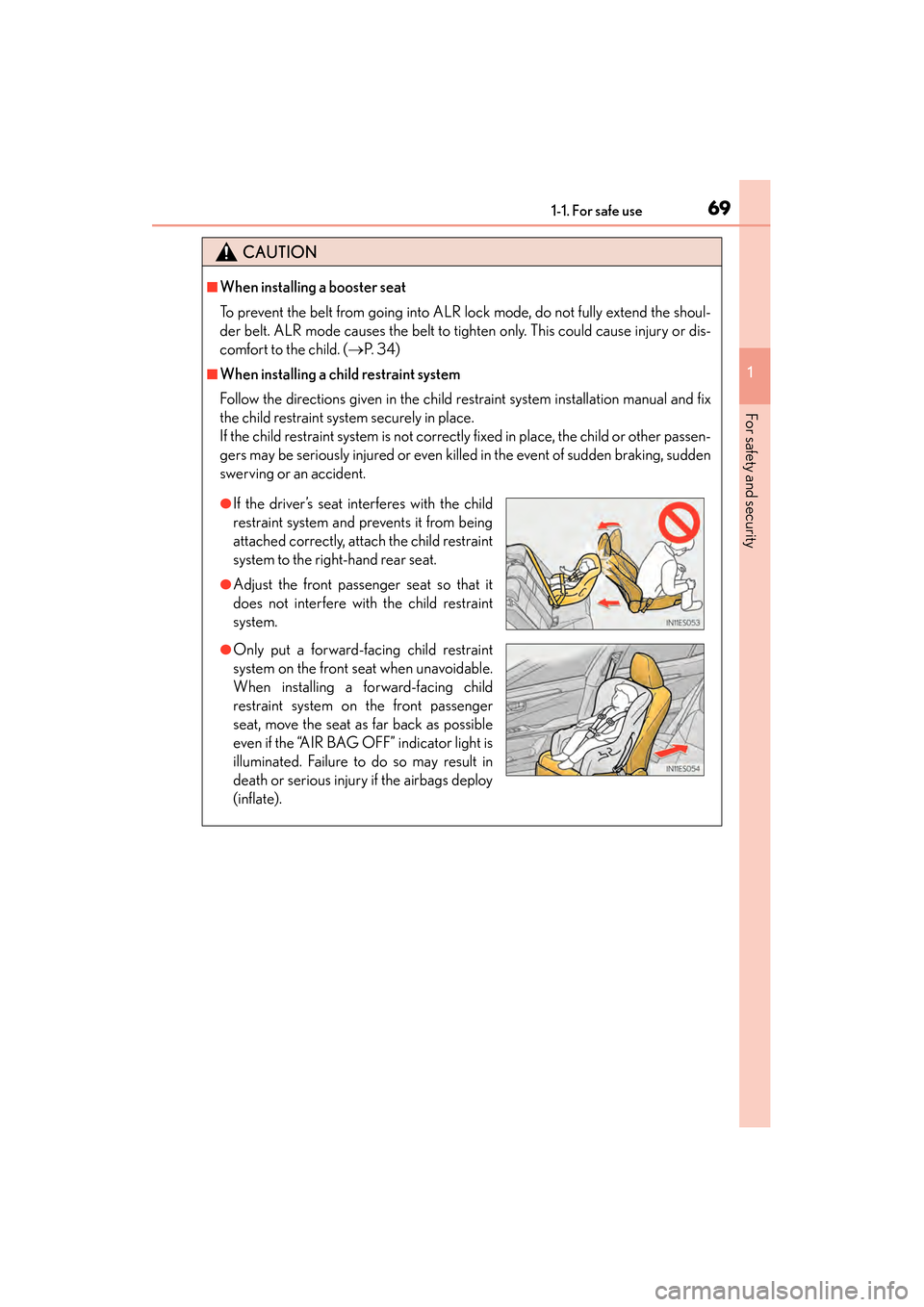

691-1. For safe use
ES350_300h_OM_OM33A60U_(U)
1
For safety and security
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoul-
der belt. ALR mode causes the belt to tighten only. This could cause injury or dis-
comfort to the child. (→P. 3 4 )
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking, sudden
swerving or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Adjust the front passenger seat so that it
does not interfere with the child restraint
system.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failure to do so may result in
death or serious injury if the airbags deploy
(inflate).
