1. AUDIO/VIDEO SYSTEM OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
■CHANGING A CHAPTER
1Press the “” or “” button of
“PRST·TRACK” or turn the
“TUNE·SCROLL” knob to change the
chapter.
1Select the menu item using , ,
or and select “Enter”. The
player starts playing the disc from the
start of the selected item.
z When is selected, the previous
screen is displayed.
DESCRIPTION OF DVD VIDEO
CONTROLS
Screen buttonFunction
“Top Menu”,
“Menu”Select to display the menu
screen for DVD video.
The menu control key ap-
pears on the screen. (See
page 242.)
Select to pause the video
screen.
Select to rewind during
playback.
Select to stop the video
screen.
Select to resume normal
play during pause.
Select to fast forward dur-
ing playback and forward
frame by frame during
pause.
SELECTING A MENU ITEM
INFORMATION
●
According to the DVD disc, some menu
items can be selected directly. (For
details, see the manual that comes with
the DVD disc provided separately.)

268
1. AUDIO/VIDEO SYSTEM OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zThe portable player will be automatically
connected under the fo llowing conditions:
•The “START STOP ENGINE” <“POWER”> switch is in either ACCES-
SORY or IGNITION ON mode.
•When “Bluetooth* Power” is switched
from off to on.
• When the portable player is discon- nected for some reason.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
1Select “Connect” .
2Select the desired portable player.
3When the connection is completed, this
screen is displayed. It is now possible to
use the portable player.
CONNECTING A Bluetooth®
AUDIO PLAYER
To use the Bluetooth® audio system, it is
necessary to register a portable player
with the system. Once the portable play-
er has been registered , it is possible to
listen to the music.
Once the portable player has been reg-
istered, it is possible to listen to music
through the navigation system. (See
“REGISTERING A Bluetooth
® DE-
VICE” on page 195.)
INFORMATION
●
For operating the portable player, see the
instruction manual that comes with it.
WHEN “Bluetooth* Power” IS
ON
WHEN “Bluetooth* Power” IS
OFF
Manually connect the portable player in
accordance with the following proce-
dure.

269
1. AUDIO/VIDEO SYSTEM OPERATION
5
AUDIO/VIDEO SYSTEM
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zIf the Bluetooth® device is disconnected
on purpose, such as it was turned off, this
does not happen. Reconnect the portable
player manually.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
1Press the “MEDIA” button if a
Bluetooth
® audio player has already
been connected.
2Select the “BT Audio” tab or press the
“MEDIA” button repeatedly until the
“BT Audio” tab is selected.
zFor the Remote Touch operation method,
see “SWITCHING BETWEEN FUNC-
TIONS” on page 211.
: Select to start playing the music.
: Select to pause the music.
zTo start playing the music again, select .
INFORMATION
●
Selecting “Connect Portable Player” on
the “Bluetooth*” screen also connects a
Bluetooth
® audio player. (See page
200.)
●When none of the selectable portable
players have been registered, a screen
confirming registration is displayed. Reg-
istration method is the same as phone
registration. (See page 152.)
●When the currently connected portable
player is selected, a screen confirming
the selected player’s disconnection is dis-
played. (See page 201.)
●If connection fails once, a changing con-
nection method conf irmation screen is
displayed. If connect ion fails 2 or more
times, a message will be displayed. When
this message is displayed, try again.
RECONNECTING THE
PORTABLE PLAYER
If the portable player is disconnected
due to poor reception from the
Bluetooth
® network when the “START
STOP ENGINE” <“POWER”> switch is
in ACCESSORY or IGNITION ON
mode, the system automatically
reconnects the portable player.
PLAYING Bluetooth® AUDIO
PLAYING AND PAUSING
Bluetooth® AUDIO

294
1. AIR CONDITIONING SYSTEM OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
2. SOME BASICS
1Press the “MENU” button on the
Remote Touch.
2Select “Climate” .
CLIMATE CONTROL
The “START STOP ENGINE” <“POW-
ER”> switch must be in IGNITION ON
mode.
zA function that enables automatic return
to the previous screen from the air condi-
tioning control screen can be selected.
See page 51 for details.
NOTICE
●To prevent 12-volt battery discharge, do
not leave the air conditioning system on
longer than necessary when the engine
is stopped.
INFORMATION
●
During use, various odors from inside and
outside the vehicle may enter into and
accumulate in the air conditioning sys-
tem. This may then cause odor to be
emitted from the vents.
●To reduce potential odors from occur-
ring:
• It is recommended that the air condi- tioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning
system is started in automatic operation
mode.
VOICE COMMAND SYSTEM
Press this switch to operate the voice
command system.
z For the operation of the voice command
system and the list of commands, see
pages 308 and 317.

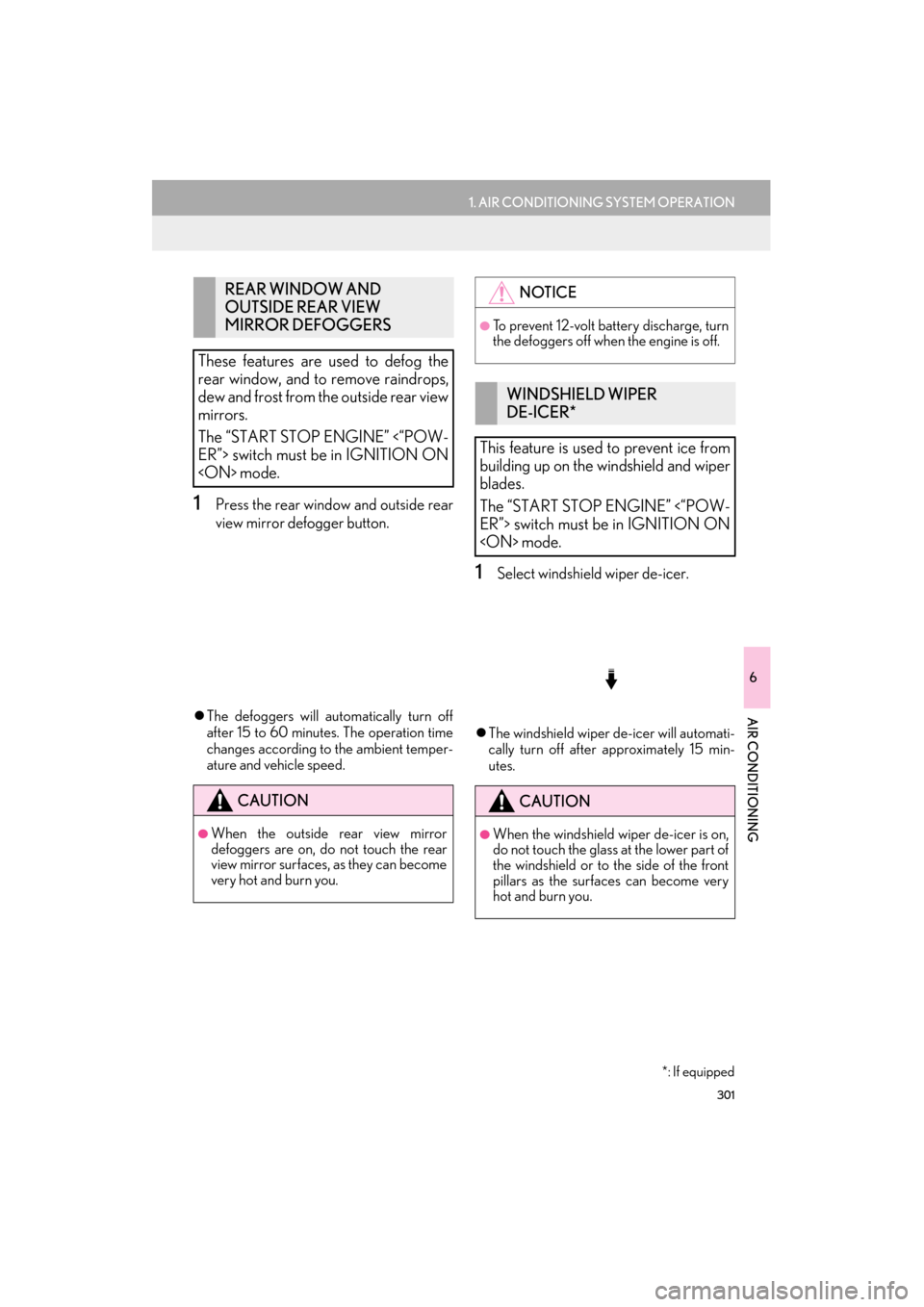

301
1. AIR CONDITIONING SYSTEM OPERATION
6
AIR CONDITIONING
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Press the rear window and outside rear
view mirror defogger button.
zThe defoggers will automatically turn off
after 15 to 60 minutes. The operation time
changes according to the ambient temper-
ature and vehicle speed.
1Select windshield wiper de-icer.
zThe windshield wiper de-icer will automati-
cally turn off after approximately 15 min-
utes.
REAR WINDOW AND
OUTSIDE REAR VIEW
MIRROR DEFOGGERS
These features are used to defog the
rear window, and to remove raindrops,
dew and frost from the outside rear view
mirrors.
The “START STOP ENGINE” <“POW-
ER”> switch must be in IGNITION ON
mode.
CAUTION
●When the outside rear view mirror
defoggers are on, do not touch the rear
view mirror surfaces, as they can become
very hot and burn you.
NOTICE
●To prevent 12-volt battery discharge, turn
the defoggers off when the engine is off.
WINDSHIELD WIPER
DE-ICER*
This feature is used to prevent ice from
building up on the windshield and wiper
blades.
The “START STOP ENGINE” <“POW-
ER”> switch must be in IGNITION ON
mode.
CAUTION
●When the windshield wiper de-icer is on,
do not touch the glass at the lower part of
the windshield or to the side of the front
pillars as the surfaces can become very
hot and burn you.
*: If equipped

302
1. AIR CONDITIONING SYSTEM OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
1Select .
zUsually the system will turn off automati-
cally after approximately 1 to 3 minutes.
z In the Eco drive mode, the air conditioning
system is controlled as follows to prioritize
fuel efficiency:
• Engine speed and compressor operation
controlled to restrict heating/cooling
capacity
• Fan speed restricted when automatic mode is selected z
To improve air conditioning performance,
perform the following operations:
• Adjust the fan speed and temperature
• Turn off Eco drive mode (refer to
“Owner ’s Manual”.)
z Unlocking the vehicle using an electronic
key and turning the “START STOP
ENGINE” <“POWER”> switch to IGNI-
TION ON mode will recall that key’s
registered air conditioning settings.
z When the “START STOP ENGINE”
<“POWER”> switch is turned off, the cur-
rent air conditioning settings will automati-
cally be registered to the electronic key
that was used to unlock the vehicle.
The system may not operate correctly if
more than one electronic key is in the vicin-
ity or if the smart access system with push
button start is used to unlock a passenger
door.
Settings for the electronic key and the cor-
responding door can be changed. Contact
your Lexus dealer.
MICRO DUST AND POLLEN
FILTER
Outside air mode switches to recirculat-
ed air mode. Pollen is removed from the
air that flows to the upper part of the
body.
z To stop the operation, select again.
AIR CONDITIONING SYSTEM
OPERATING HINTS
OPERATION OF THE AIR
CONDITIONING SYSTEM IN
ECO DRIVE MODE (HYBRID
VEHICLE)
REGISTERING AIR
CONDITIONING SETTINGS
TO ELECTRONIC KEYS

304
1. AIR CONDITIONING SYSTEM OPERATION
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
zIn order to reduce the air conditioning
power consumption, the air conditioning
system may switch to recirculated air mode
automatically. This may also reduce fuel
consumption.
z Recirculated air mode is selected as a
default mode when the “START STOP
ENGINE” <“POWER”> switch is turned to
IGNITION ON mode.
z It is possible to switch to outside air mode at
any time by pressing the air intake control
button.
z In automatic mode, the system detects
exhaust gas and other pollutants and auto-
matically switches between outside air and
recirculated air modes.
When the dehumidification function is off,
and the fan is operating, turning automatic
mode on will activate the dehumidification
function. z
In order to prevent the windshield from fog-
ging up when the outside air is cold, the fol-
lowing may occur:
• Outside air mode does not switch to
recirculated air mode.
• The dehumidification function operates.
• The operation cancels after approxi- mately 1 minute.
z In rainy weather, the windows may fog up.
Press the windshield air flow button.
z In extremely humid weather, the windows
may fog up.
z The pollens are filtered out even if
is
turned off.
z In the following situations, the correct out-
side temperature may not be displayed, or
the display may take longer than normal to
change.
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
WHEN THE OUTSIDE
TEMPERATURE EXCEEDS
75°F (24°C) AND THE AIR
CONDITIONING SYSTEM IS
ON
AUTOMATIC MODE FOR AIR
INTAKE CONTROL
MICRO DUST AND POLLEN
FILTER
OUTSIDE TEMPERATURE

378
1. REAR VIEW MONITOR SYSTEM
ES350/300h_Navi_OM33A66U_(U)13.07.11 10:10
SCREEN DESCRIPTION
The rear view monitor system screen will be displayed if the shift lever is shifted to the
“R” position while the “START STOP ENGINE” <“POWER”> switch is in IGNITION
ON mode.
No.DisplayFunction
Vehicle width extension
guide lines
Displays a guide path when the vehicle is being backed
straight up.
• The displayed width is wider than the actual vehicle
width.
Vehicle center guide linesThese lines indicate the estimated vehicle center on the
ground.
Distance guide lines
Shows distance behind the vehicle.
•Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
•Displays a point approximately 3 ft. (1 m) (blue) from the
edge of the bumper.
Intuitive parking assist
If an obstacle is detected while the intuitive parking assist
is on, a display is shown in the top right corner of the
screen.
