881-3. Theft deterrent system
CT200h_OM_OM76135E_(EE)
■Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
• The movement of people outside the vehicle
●Places with extreme vibrations or noises, or situations in which the vehicle is subject to
repeated impacts or vibrations:
• When parked in a parking garage
• When the vehicle is transported by a ferry, trailer, train, etc.
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
■Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
●The vehicle is transported by a ferry, trailer, train, etc.
●The vehicle is parked in a parking garage.
●The vehicle is inside a car wash that moves the vehicle.
●Any of the tires loses air pressure.
●The vehicle is jacked up.
●An earthquake occurs or the road caves in.
●A window or the moon roof (if equipped) is
open.
In this case, the sensor may detect the follow-
ing:
• Wind or the movement of objects such asleaves and insects inside the vehicle
• Ultrasonic waves emitted from devices such as the intrusion sensors of other vehi-
cles
●Unstable items, such as dangling accessories
or clothes hanging on the coat hooks, are in
the vehicle.
CT200h_OM_OM76135E_(EE).book Page 88 Friday, May 30, 2014 11 :14 AM

219
4
4-5. Using the driving support systems
Driving
CT200h_OM_OM76135E_(EE)
Lexus parking assist-sensor∗
Front corner sensors
Rear corner sensors
Rear center sensors
Turns the Lexus parking assist-sensor
on/off
When on, the indicator light comes on
to inform the driver that the system is
operational.
∗: If equipped
The distance from your vehicle to ne arby obstacles when parallel parking or
maneuvering into a garage is measured by the sensors and communicated via
the displays and a buzzer. Always check the surrounding area when using this
system.
Types of sensors
1
2
3
Lexus parking assist-sensor switch
CT200h_OM_OM76135E_(EE).book Page 219 Friday, May 30, 2014 1 1:14 AM

2204-5. Using the driving support systems
CT200h_OM_OM76135E_(EE)
When the sensors detect an obstacle, the following displays inform the driver of
the position and distance to the obstacle.
■Multi-information displayFront corner sensor operation
Rear corner sensor operation
Rear center sensor operation
■Lexus Display Audio or navigati on system screen (if equipped)
Lexus parking assist-sensor dis-
play
When the rear view monitor system*or Lexus parking assist monitor* is
not displayed.
A graphic is automatically displayed
when an obstacle is detected. The
screen can be set so that the graphic
is not displayed. ( →P. 2 2 3 )
: Select to mute the buzzer sounds.
Insert display
When the rear view monitor system*
or Lexus parking assist monitor* is
displayed.
A simplified image is displayed on
the right upper corner of the naviga-
tion system screen when an obstacle
is detected.
*: if equipped
Display
XVehicles with monochrome displayXVehicles with color display
1
2
3
1
2
CT200h_OM_OM76135E_(EE).book Page 220 Friday, May 30, 2014 1 1:14 AM

2234-5. Using the driving support systems
4
Driving
CT200h_OM_OM76135E_(EE)
You can change the buzzer sounds volume and the screen operating conditions.
XLexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller, and then
select “Setup” on the screen.
Select “Vehicle”, and then select “LEXUS park assist” on the screen.
Select the desired item.
XNavigation system
Press the “MENU” button on the Remote Touch, and then select “Setup” on
the screen.
Select “Vehicle”, and then select “LEXUS park assist settings” on the screen.
Select the desired item.The buzzer sounds volume can be adjusted.
On or off can be selected for Lexus parking assist-sensor display.
Rear center sensor display and tone indication can be set.
■The Lexus parking assist-sensor can be operated when
●Front corner sensors:
• The power switch is in ON mode.
• The shift position is in other than P.
• The vehicle speed is less than about 10 km/h (6 mph).(At any speed when the shift position is in R)
●Rear corner and rear center sensors:
• The power switch is in ON mode.
• The shift position is in R.
Setting up Lexus parking assist-senso r (vehicles with a Lexus Display
Audio or navigation system)
1
2
3
1
2
3
XLexus Display Audio screenXNavigation system screen
1
2
3
CT200h_OM_OM76135E_(EE).book Page 223 Friday, May 30, 2014 1 1:14 AM

2244-5. Using the driving support systems
CT200h_OM_OM76135E_(EE)
■Lexus parking assist-sensor display
When an obstacle is detected while the rear view monitor system or Lexus parking assist
monitor is in use, the warning indicator will appear in the upper corner of the screen even
if the display setting has been set to off.
■Sensor detection information
●The sensor’s detection areas are limited to the areas around the vehicle’s bumper.
●Certain vehicle conditions and the surround ing environment may affect the ability of a
sensor to correctly detect an obstacle. Particular instances where this may occur are
listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this prob- lem.)
• The sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an abnormal
display, or obstacles may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air
brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• The area directly under the bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Lexus suspension (low ered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of their shape,
signs and other objects may be judged by a sensor to be closer than they are.
●The shape of the obstacle may prevent a sensor from detecting it. Pay particular atten-
tion to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that absorb sound waves
• Sharply-angled objects
• Low obstacles
• Tall obstacles with upper sections projecting outwards in the direction of your vehi-
cle
CT200h_OM_OM76135E_(EE).book Page 224 Friday, May 30, 2014 1 1:14 AM

2254-5. Using the driving support systems
4
Driving
CT200h_OM_OM76135E_(EE)
●The following situations may occur during use.
• Depending on the shape of the obstacle and other factors, the detection distancemay shorten, or detection may be impossible.
• Obstacles may not be detected if they are too close to the sensor.
• There will be a short delay between obst acle detection and display. Even at slow
speeds, there is a possibility that the obstacl e will come within the sensor’s detection
areas before the display is shown and the buzzer sounds.
• Thin posts or objects lower than the sensor may not be detected when approached, even if they have been detected once.
• It might be difficult to hear beeps due to the volume of audio system or air flow noise of the air conditioning system.
■If a message is displayed on the multi-information display
→ P. 5 2 1
■Customization
Settings (e.g. buzzer sounds volume) can be changed.
(Customizable features: →P. 5 8 9 )
WA R N I N G
■When using the Lexus parking assist-sensor
Observe the following precautions.
Failing to do so may result in the vehicle be ing unable to be driven safely and possibly
cause an accident.
●Do not use the sensor at speeds in excess of 10 km/h (6 mph).
●The sensors’ detection areas and reaction times are limited. When moving forward or
reversing, check the areas surrounding the vehicle (especially the sides of the vehi-
cle) for safety, and drive slowly, using the brake to control the vehicle’s speed.
●Do not install accessories within the sensors’ detection areas.
CT200h_OM_OM76135E_(EE).book Page 225 Friday, May 30, 2014 1 1:14 AM

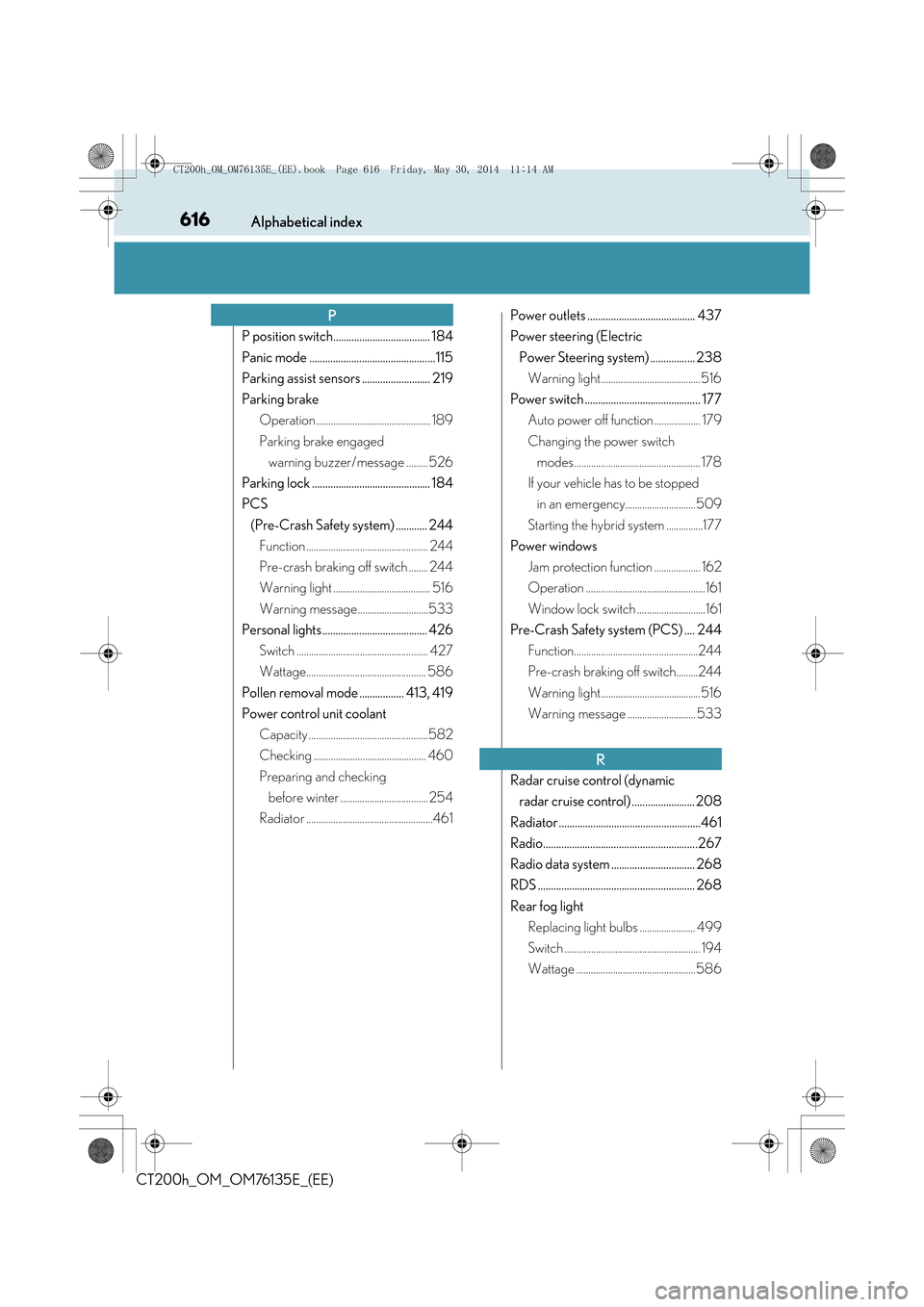

616Alphabetical index
CT200h_OM_OM76135E_(EE)
P position switch..................................... 184
Panic mode ................................................115
Parking assist sensors .......................... 219
Parking brakeOperation ............................................... 189
Parking brake engaged warning buzzer/message .........526
Parking lock ............................................. 184
PCS (Pre-Crash Safety system) ............ 244Function .................................................. 244
Pre-crash braking off switch ........ 244
Warning light ........................................ 516
Warning message.............................533
Personal lights ........................................ 426
Switch ...................................................... 427
Wattage................................................. 586
Pollen removal mode ................. 413, 419
Power control unit coolant Capacity .................................................582
Checking .............................................. 460
Preparing and checking before winter .................................... 254
Radiator ....................................................461 Power outlets ......................................... 437
Power steering (Electric
Power Steering system) ................. 238Warning light.........................................516
Power switch ............................................ 177 Auto power off function ................... 179
Changing the power switch modes.................................................... 178
If your vehicle has to be stopped in an emergency.............................509
Starting the hybrid system ...............177
Power windows
Jam protection function ................... 162
Operation .................................................161
Window lock switch ............................161
Pre-Crash Safety system (PCS) .... 244
Function...................................................244
Pre-crash braking off switch.........244
Warning light.........................................516
Warning message ............................ 533
Radar cruise control (dynamic radar cruise control) ........................ 208
Radiator ......................................................461
Radio...........................................................267
Radio data system ................................ 268
RDS ............................................................ 268
Rear fog light Replacing light bulbs ....................... 499
Switch ........................................................ 194
Wattage .................................................586
P
R
CT200h_OM_OM76135E_(EE).book Page 616 Friday, May 30, 2014 1 1:14 AM
