5108-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)

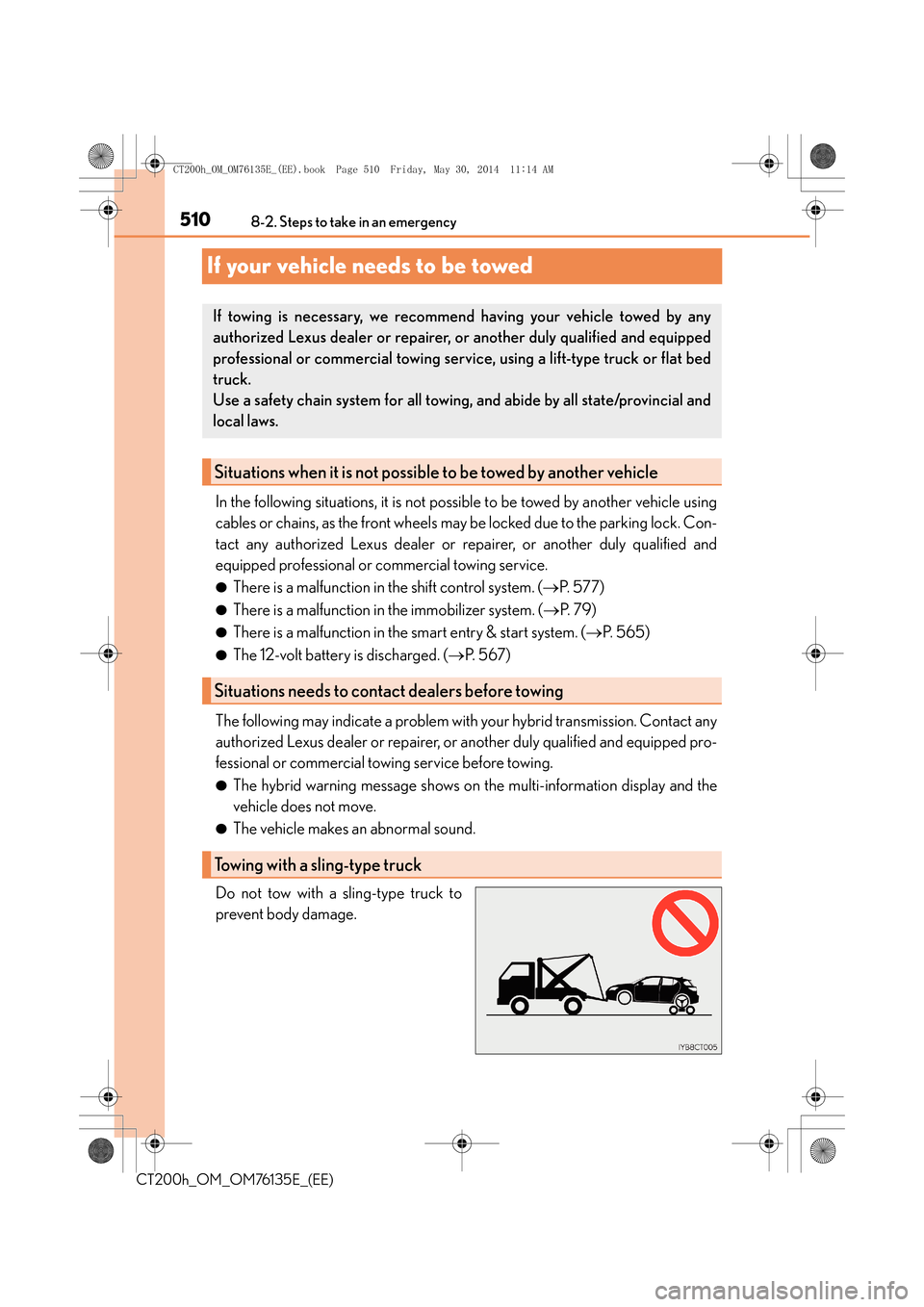

If your vehicle needs to be towed
In the following situations, it is not possible to be towed by another vehicle using
cables or chains, as the front wheels m ay be locked due to the parking lock. Con-
tact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional or commercial towing service.
●There is a malfunction in the shift control system. ( →P. 577)
●There is a malfunction in the immobilizer system. ( →P. 7 9 )
●There is a malfunction in the smart entry & start system. ( →P. 565)
●The 12-volt battery is discharged. ( →P. 5 6 7 )
The following may indicate a problem with your hybrid transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional or commercial towing service before towing.
●The hybrid warning message shows on the multi-information display and the
vehicle does not move.
●The vehicle makes an abnormal sound.
Do not tow with a sling-type truck to
prevent body damage.
If towing is necessary, we recommend having your vehicle towed by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional or commercial towing servic e, using a lift-type truck or flat bed
truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.
Situations when it is not possible to be towed by another vehicle
Situations needs to contact dealers before towing
Towing with a sling-type truck
CT200h_OM_OM76135E_(EE).book Page 510 Friday, May 30, 2014 1 1:14 AM

5218-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
If a warning message is displayed
Master warning light
The master warning light also comes on or flashes in order to indicate that a message
is currently being displayed on the multi-information display.
Multi-information display
If any of the warning lights come on again after the following actions have been
performed, contact any authorized Lexu s dealer or repairer, or another duly
qualified and equipped professional.
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
