CAUTION!
Damage to the catalytic converter
can result if your vehicle is not kept
in proper operating condition. In
the event of engine malfunction,
particularly involving engine mis-
fire or other apparent loss of perfor-
mance, have your vehicle serviced
promptly. Continued operation of
your vehicle with a severe malfunc-
tion could cause the converter to
overheat, resulting in possible dam-
age to the converter and the vehicle.
NOTE: Intentional tampering
with emissions control systems can
result in civil penalties being as-
sessed against you.
WARNING!
A hot exhaust system can start a fire
if you park over materials that can
burn. Such materials might be
grass or leaves coming into contact
with your exhaust system. Do not
park or operate your vehicle in ar-
eas where your exhaust system can
contact anything that can burn. In unusual situations involving
grossly malfunctioning engine opera-
tion, a scorching odor may indicate
severe and abnormal catalyst over-
heating. If this occurs, the vehicle
should be stopped, the engine shut
OFF and the vehicle allowed to cool.
Thereafter, service, including a
tune-up to manufacturer's specifica-
tions, should be obtained immedi-
ately.
To minimize the possibility of catalyst
damage:
Do not shut OFF the engine or in-
terrupt the ignition when the trans-
mission is in gear and the vehicle is
in motion.
Do not try to start the engine by pushing or towing the vehicle.
Do not idle the engine with any spark plug wires disconnected or
removed, such as when diagnostic
testing, or for prolonged periods
during very rough idling or mal-
functioning operating conditions.
MAINTENANCE-FREE
BATTERY
The top of the maintenance-free bat-
tery is permanently sealed. You will
never have to add water, nor is peri-
odic maintenance required.
WARNING!
Battery fluid is a corrosive acidsolution and can burn or even
blind you. Do not allow battery
fluid to contact your eyes, skin, or
clothing. Do not lean over a bat-
tery when attaching clamps. If
acid splashes in eyes or on skin,
flush the area immediately with
large amounts of water.
Battery gas is flammable and ex- plosive. Keep flame or sparks
away from the battery. Do not use
a booster battery or any other
booster source with an output
greater than 12 Volts. Do not al-
low cable clamps to touch each
other.
(Continued)
311

VEHICLE STORAGE
If you are leaving your vehicle dor-
mant for more than 21 days, you may
want to take steps to protect your
battery. You may do the following:
Remove the 60 Amp cartridge inthe Totally Integrated Power Mod-
ule (TIPM) labeled Ignition-Off
Draw (IOD).
Or, disconnect the negative cable from the battery.
Anytime you store your vehicle, or keep it out of service for two weeks
or more, run the air conditioning
system at idle for about five min-
utes in the fresh air and high blower
setting. This will ensure adequate
system lubrication to minimize the
possibility of compressor damage
when the system is started again.
REPLACEMENT BULBS
LIGHT BULBS –
Interior Bulb Number
Center & Rear Dome Lamp . . 578
Center & Rear Reading
Lamps .................578 Front Door Courtesy Lamp . . 578
Front Header Reading Lamps
(for versions/markets, where
provided)
................578
Liftgate Lamp(s) ..........578
Overhead Console Reading
Lamps ................ PC579
Removable Console Lamp
(for versions/markets, where
provided) ................194
Visor Vanity Lamps .....6501966
NOTE: For lighted switches, see
your dealer for replacement in-
structions.
All of the interior bulbs are glass
wedge base or glass cartridge types.
Aluminum base bulbs are not ap-
proved and should not be used for
replacement.
LIGHT BULBS –
Exterior Bulb Number
Headlamp . . ............H11
Headlamp (HID) (for versions/
markets, where provided) . . D1S
Front Turn Signal . . . PY27 / 7W Front Position Lamp . . . . . W5W
Front Fog Lamp . . . .
.....H11
Side Repeater Lamps . . . . W5W
Backup Lamp . . .....P27/7W
Tail/Stop Lamp . ........LED
(Serviced at Authorized Dealer)
Rear Turn Signal
Lamps ........... PY27 / 7W
Rear Fog Lamps . . .......LED
(Serviced at Authorized Dealer)
Center High-Mounted Stop
Lamp .................LED
(Serviced at Authorized Dealer)
License Plate Lamp .....W5W
BULB REPLACEMENT
NOTE: Lens fogging can occur
under certain atmospheric condi-
tions. This will usually clear as at-
mospheric conditions change to
allow the condensation to change
back into a vapor. Turning the
lamps on will usually accelerate
the clearing process.
330

Cellular Phone...........89, 218
Center High Mounted StopLight
..................333
Chains, Tire.............. .265
Changing A Flat Tire.........287
Chart, Tire Sizing............253
Check Engine Light (Malfunction
Indicator Light)
...........174
Checking Your Vehicle For Safety. .68
Checks, Safety...............68
Child Restraint..............56
Child Safety Locks............31
Clean Air Gasoline...........274
CleaningWheels
................322
Climate Control.............219
Coat Hook................156
Coin Holder.............. .156
Cold Weather Operation.......233
Compact Disc (CD) Maintenance. .218
Compact Spare Tire..........262
Compass..................186
Compass Calibration..........187
Compass Variance...........187
Computer, Trip/Travel.........185
Connector
UCI
................. .193
Universal Consumer Interface
(UCI)
.................193
Conserving Fuel.............184
Console..................156
Console, Floor..............156
Console, Overhead...........144
Console, Removable..........159
Cool Down, Turbo...........235
Cooling System.............315
Adding Coolant (Antifreeze). .317
Coolant Capacity..........333
Coolant Level........315, 317
Disposal of Used Coolant. . . .317
Drain, Flush, and Refill.....316
Inspection..............317
Points to Remember.......318
Selection of Coolant
(Antifreeze)
......316, 333, 334
Corrosion Protection..........321
Cupholders............151, 324
Data Recorder, Event..........55
Defroster, Windshield..........69
Diagnostic System, Onboard.....307
Diesel Fuel.............275, 334
Diesel Fuel Requirements.......275
Dipsticks
Automatic Transaxle
.......320
Oil (Engine).............308
Power Steering...........245
Disabled Vehicle Towing.......299
DisposalAntifreeze (Engine Coolant)
. .317
Door Locks.................22
Door Locks, Automatic.........24
DrivingThrough Flowing, Rising, or
Shallow Standing Water
.....243
Driving to Achieve Maximum Fuel
Economy
................184
Electrical Power Outlets.......149
Electric Remote Mirrors.........83
Electronic Brake Control System. .248
Brake Assist System........249
Electronic Speed Control (CruiseControl)
................136
Electronic Stability Control(ESC)
..................249
Electronic Vehicle Information Center(EVIC)
.............143, 178
Emergency, In Case ofHazard Warning Flasher
.....286
Jacking............287, 291
Jump Starting............296
Overheating.............286
Engine.................. .306
Air Cleaner.............309
Break-In Recommendations. . .68
Checking Oil Level........308
349

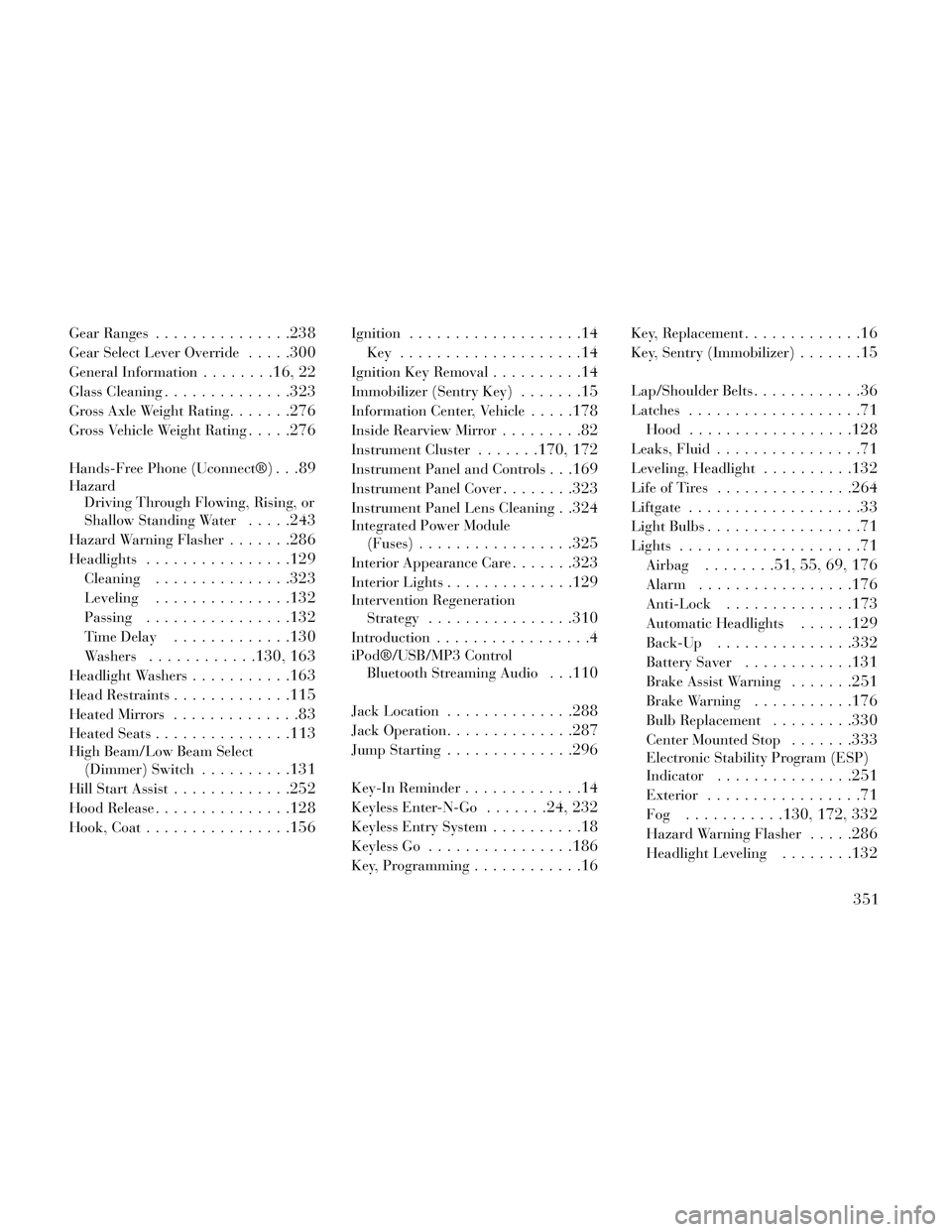

Gear Ranges...............238
Gear Select Lever Override.....300
General Information........16, 22
Glass Cleaning..............323
Gross Axle Weight Rating.......276
Gross Vehicle Weight Rating.....276
Hands-Free Phone (Uconnect®). . .89
Hazard
Driving Through Flowing, Rising, or
Shallow Standing Water
.....243
Hazard Warning Flasher.......286
Headlights................129
Cleaning.............. .323
Leveling...............132
Passing................132
Time Delay.............130
Washers............130, 163
Headlight Washers...........163
Head Restraints.............115
Heated Mirrors..............83
Heated Seats...............113
High Beam/Low Beam Select
(Dimmer) Switch
..........131
Hill Start Assist.............252
Hood Release.............. .128
Hook, Coat................156
Ignition...................14
Key....................14
Ignition Key Removal..........14
Immobilizer (Sentry Key).......15
Information Center, Vehicle.....178
Inside Rearview Mirror.........82
Instrument Cluster.......170, 172
Instrument Panel and Controls. . .169
Instrument Panel Cover........323
Instrument Panel Lens Cleaning. .324
Integrated Power Module
(Fuses)
.................325
Interior Appearance Care.......323
Interior Lights............. .129
Intervention Regeneration
Strategy
................310
Introduction.................4
iPod®/USB/MP3 ControlBluetooth Streaming Audio
. . .110
Jack Location............. .288
Jack Operation..............287
Jump Starting..............296
Key-In Reminder.............14
Keyless Enter-N-Go.......24, 232
Keyless Entry System..........18
Keyless Go................186
Key, Programming............16
Key, Replacement.............16
Key, Sentry (Immobilizer).......15
Lap/Shoulder Belts............36
Latches...................71
Hood..................128
Leaks, Fluid................71
Leveling, Headlight..........132
Life of Tires.............. .264
Liftgate...................33
Light Bulbs.................71
Lights....................71
Airbag........51, 55, 69, 176
Alarm.................176
Anti-Lock..............173
Automatic Headlights......129
Back-Up.............. .332
Battery Saver............131
Brake Assist Warning.......251
Brake Warning...........176
Bulb Replacement.........330
Center Mounted Stop.......333
Electronic Stability Program (ESP)
Indicator
...............251
Exterior.................71
Fog...........130, 172, 332
Hazard Warning Flasher.....286
Headlight Leveling........132
351
