2014 KIA SOUL key

31

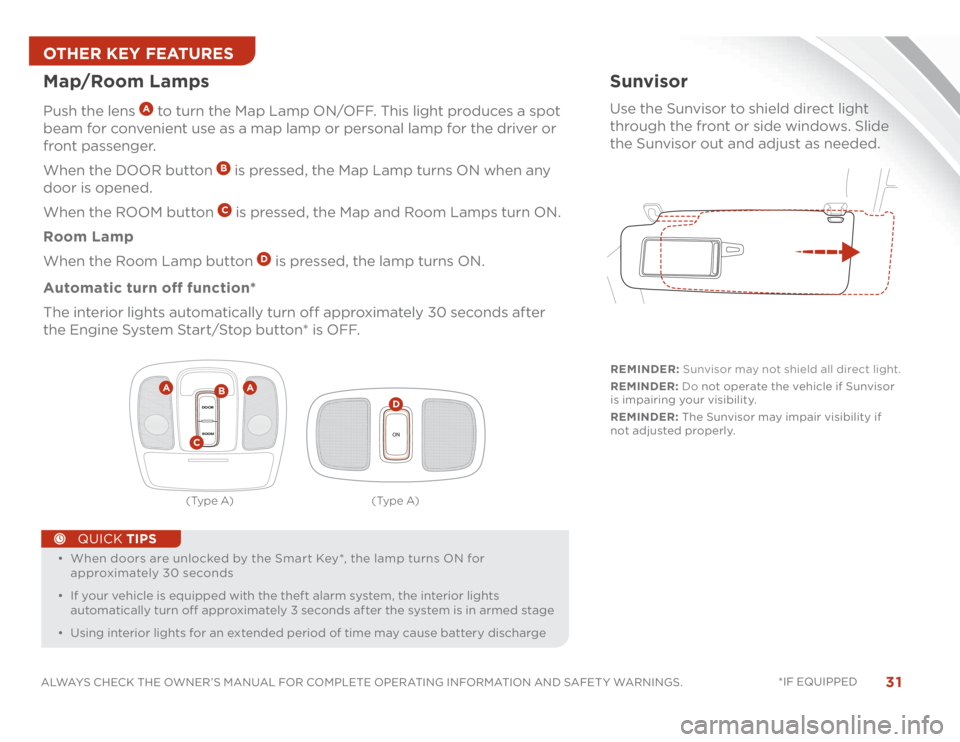

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED Map/Room LampsPush the lens
A to turn the Map Lamp ON/OFF. This light produces a spot
beam for convenient use as a map lamp or personal lamp for the driver or
front passenger.
When the DOOR button
B is pressed, the Map Lamp turns ON when any
door is opened.
When the ROOM button C is pressed, the Map and Room Lamps turn ON.
Room Lamp
When the Room Lamp button
D is pressed, the lamp turns ON.
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after
the Engine System Start/Stop button* is OFF.


O


OWhen doors are unlocked by the Smart Key*, the lamp turns ON for
approximately 30 seconds


OIf your vehicle is equipped with the theft alarm system, the interior lights
automatically turn off approximately 3 seconds after the system is in armed stage


OUsing interior lights for an extended period of time may cause battery discharge
QUICK TIPS
ON
DOORROOM
SunvisorUse the Sunvisor to shield direct light
through the front or side windows. Slide
the Sunvisor out and adjust as needed.REMINDER: Sunvisor may not shield all direct light.
REMINDER: Do not operate the vehicle if Sunvisor
is impairing your visibility.
REMINDER: The Sunvisor may impair visibility if
not adjusted properly.
A
A
D
B
C
(Type A) (Type A)
OTHER KEY FEATURES

SOUL
FEATURES & FUNCTIONS GUIDE
32
*IF EQUIPPED
Rear-Camera Display*
Warning! Check your surroundings for safety
The Rear-Camera Display system is not
a safety device. It is a supplemental system
that displays the view behind the vehicle
through the Navigation System* or UVO*
screen while the vehicle is in Reverse.
The Rear- Camera Display activates when the:
1. Engine Start/Stop* button is in the ON
position (Green Light)
2. Gear Shift Lever is in the R (Reverse)
positionREMINDER:


OThe Rear-Camera Display is not a substitute
for proper and safe backing-up procedures.
The Rear-Camera Display may not display
every object behind the vehicle. Always drive
safely and use caution when backing up.


OWhile camera is active, only the volume
controls on the Audio System can be
operated.
Panoramic Sunroof Operation*The sunroof operation is controlled through a multidirectional switch/
lever and the sunshade is controlled thought the OPEN/CLOSE
buttons. The ignition needs to be in the ON position to operate the
Sunroof and Sunshade.
Slide the Sunshade and Sunroof:

OOpen: Slide the lever
A backward


OClose: Slide the lever A forward
Tilt the Sunroof:

ORaise: Push lever
A upward


OLower: Pull lever
A downward


OAuto Close: Press the CLOSE toggle button
B
Slide the Sunshade:

OOpen: Press the OPEN toggle button
B


OClose: Press the CLOSE toggle button
B
Sunroof Open Warning*

If the Sunroof is not fully closed, the warning will chime and display on the
LCD screen* when:


O


OTo stop the Sunroof/Sunshade at any position, push or pull the sunroof
control lever in any direction
QUICK TIPS
REMINDER: Sunshade needs to remain OPEN while Sunroof is open and vehicle
is moving.
ROOM
DOOR
OPENCLOSE
B
A


OThe ignition is turned off (Smart Key*)


OThe ignition key is removed

OThe driver’s door is openedOTHER KEY FEATURES

33
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED Tire Mobility Kit*


O


OThe Tire Mobility Kit is a temporary fix and is to be used for one tire only; the tire should be
inspected as soon as possible


OThe kit should only be used for sealing/inflating passenger car tires; do not use for inflating any
other type of tires


OSome damaged tires cannot be sealed completely; do not use the kit if a tire is damaged beyond
repair
QUICK TIPS
REMINDER: The Tire Mobility Kit requires the use of the 12V/15A/180W Power Outlet, which is located on the right
side of the outlet/aux port area.
REMINDER: After tire is properly sealed, drive cautiously at no more than a total distance speed of 50 mph for no
longer than a maximum distance of up to 120 miles.


Kia Tire Mobility Kit
Video

To view a video on your
mobile device, SNAP
this QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/ps13/2014
A
B
The Tire Mobility Kit may
temporarily seal certain types of
tire damage.
For operational information,
please refer to section 6 of your
Owner’s Manual.A Sealant BottleB CompressorOTHER KEY FEATURES

SOUL
FEATURES & FUNCTIONS GUIDE
34
*IF EQUIPPED
Child Safety LocksLocated on the rear edge of the rear passenger doors,
adjust switch
A to the LOCK position to disable the inner
door handles from opening the rear doors.
Please refer to your Owner’s Manual and the separate brochure titled
“ Understanding Your Safety Belt & Supplemental Restraint System” for more
detailed information regarding your vehicle’s airbags.REMINDER: Child Safety Lock is located on rear passenger’s door jamb.
A
Button is located underneath the Rear Hatch lid. With Rear
Hatch unlocked, press the Rear Hatch Release button
A and
pull the Rear Hatch lid up by the handle to open.
Rear Hatch Release Button
A


O


OThe Rear Hatch must be unlocked before it can be opened by
the Rear Hatch Release Button


OThe Rear Hatch unlocks automatically and then can be
opened manually when the Smart Key* is within close
proximity to the vehicle
QUICK TIPS
OTHER KEY FEATURES

KE Y FE ATURE WALK THROUGH
BEFORE DELIVERY
O w n e r ’ s N a m e : _______________________________________ V I N : _____________________________M i l e a g e : ____________________
D e a l e r s h i p N a m e : _____________________________________ S a l e s C o n s u l t a n t : _______________D a t e : _______________________
Confirm “Good Battery” with Kia battery tester
Verif y all tire pressures are to spec (see driver ’s door label) L F_______ L R _______ RF_______ RR _______
Verify proper operation of Remote Keyless Entry and Smart Key lock/unlock
Ensure floor mats are snapped into place (if applicable)
Verify vehicle is clean (interior and exterior), in good condition, free of chips and scratches
Ensure all key documents are in the vehicle (Owner’s Manual, Warranty and Consumer Information booklet, Tire
Warranty booklet, and Features & Functions Guide and any supplemental audio user’s guides)
Air Conditioning / Climate Control – pages 21-23
Demons trate A ir F low Modes, Defog and Defros ting W indshield
Windshield/Rear Wipers & Washers – page 11
AUTO
OFFFRONT
REAR
A/CMODE
CLIMATE
P
ASSEN
GE
R
A
IR BA
GactiveECO
Automatic*
A/CMAX012
3
4REARA/C
PASSENGER
AIR BAG
Manual*
Manual Gear Shift* – page 25
Demons trate lif ting ring for reverse gear
SOUL CUSTOMER DELIVERY CHECKLIST
Rotate level to adjust
Intermittent Wipe Speed.
Pull to spray and wipe.MIST: Single wipe
INT: Intermittent wipe
LO: Slow wipe
HI: Fast wipe OFF: Wiper offPush to spray and wipe. Move lever Up/Down to
change Wiper modes.
ON: Normal wipe
INT: Intermittent wipe
OFF: Wiper OffR24
6315
*IF EQUIPPED
N
R
246 135
Faster
Slower

KE Y FE ATURE WALK THROUGH
DURING DELIVERY
Active ECO System* – page 6
Tire Pressure Monitoring System (TPMS) – page 3
Engine Star t/Stop But ton* – page 9
Digital Clock* – page 20
Seat Warmers / Ventilated Seats* – page 26
Fold & Unfold Rear Seatback – page 28
Panoramic Sunroof Operation* – page 32
Rear-Camera Display* – page 32
Smar t Key* – page 29
PASSENGER AIRBAG OFF Indicator – page 35
Tire Mobilit y Kit – page 33
ISG (Idle, Stop, Go) System* – page 7
Demonstrate the following with the customer
*IF EQUIPPED
E xplain first ser vice process and schedule first ser vice appointment
Tour Par ts & Ser vice depar tments, introduce staf f & explain value of Kia Par ts and Ser vice
Review recommended maintenance schedule and maintenance requirements to validate warrant y
Review business hours & Customer 360° Care
Review the Kia 10-year/100,000-mile warrant y program
Ensure 100% satisfaction with sales and deliver y process and no problems with the vehicle
Confirm time and best contact number for initial dealer follow-up
Standard Audio System –
pages 16-17
SOUL CUSTOMER DELIVERY CHECKLIST ...continued
Sales Consultant: ____________________________________________________________D a t e : ____________________
S a l e s M a n a g e r : _______________________________________________________________D a t e : ____________________
C u s t o m e r : ____________________________________________________________________D a t e : ____________________
Cruise Control* – page 13
Demonstrate operation
RADIOMEDIAPHONESETUPCLOCK
DISPSCANMENUBACK
12 34
5
6RPT
RDMSEEKTRACKCATFOLDERVOLPOWERPUSHPUSHENTERTUNE
FILE
Bluetooth®
SET
CRUISE
RES
CANCEL
AUX/USB/iPod® Port – page 20
MODEVOL
VOL
Bluetooth® Wireless
Technology – page 14
Demonstrate operation
12V120W12V180W
AUX USB
Navigation System* – page 19 F or fur ther Navigation S ys tem
operation, refer to the Digi tal
Navigation System User’s Manual. UVO System* – pages 18 F or fur ther U VO S ys tem information,
refer to the U VO S ys tem User ’s Manual.
MAP
UVO
RADIONAV
INFOSETUPPOWER
VOLTUNE
FILEPUSH
eServicesHOMESETUP
SEEKTRACKCLOCKCATEGORYVOLPOWERPUSHPUSHENTERTUNE
FILE
Bluetooth®
FM/AMSATMEDIA
