Your vehicle at a glance
22
INTERIOR OVERVIEW
OVQ020001N
1. Door lock/unlock button ....................3-13
2. Driver position memory system* .......3-59
3. Seat adjust knob*..............................3-40
4. Outside rearview mirror control switch .............................................3-109
5. Power rear quarter window switches* ...........................................3-26
6. Power window switches ....................3-26
7. Central door lock switch....................3-13
8. Power window lock switch.................3-28
9. Fuel filler lid release button...............3-30
10. Instrument panel illumination* ......3-120
11. Room light main control switch .....3-133
12. Power adjustable pedal control switch*.............................................3-61
13. Steering wheel tilt .........................3-107
14. Parking brake release lever* ...........4-16
15. Fuse box .........................................6-23
16. Hood release lever .........................3-29
17. Parking brake pedal ........................4-16
18. Brake pedal .....................................4-14
19. Accelerator pedal
20. Seat.................................................3-37
* : if equipped

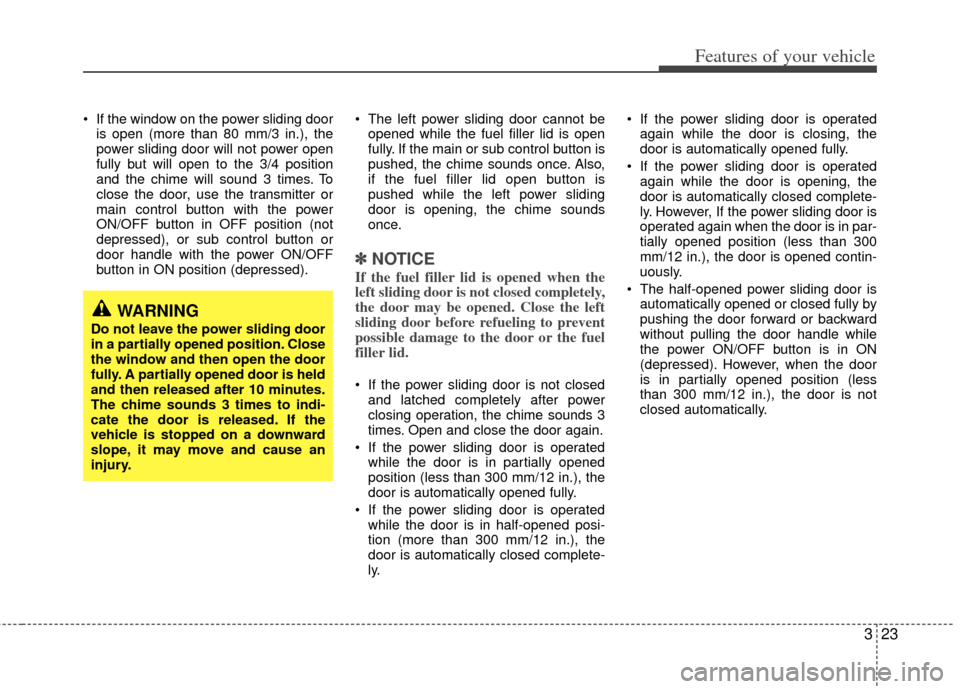

323
Features of your vehicle
If the window on the power sliding dooris open (more than 80 mm/3 in.), the
power sliding door will not power open
fully but will open to the 3/4 position
and the chime will sound 3 times. To
close the door, use the transmitter or
main control button with the power
ON/OFF button in OFF position (not
depressed), or sub control button or
door handle with the power ON/OFF
button in ON position (depressed). The left power sliding door cannot be
opened while the fuel filler lid is open
fully. If the main or sub control button is
pushed, the chime sounds once. Also,
if the fuel filler lid open button is
pushed while the left power sliding
door is opening, the chime sounds
once.
✽ ✽ NOTICE
If the fuel filler lid is opened when the
left sliding door is not closed completely,
the door may be opened. Close the left
sliding door before refueling to prevent
possible damage to the door or the fuel
filler lid.
If the power sliding door is not closed
and latched completely after power
closing operation, the chime sounds 3
times. Open and close the door again.
If the power sliding door is operated while the door is in partially opened
position (less than 300 mm/12 in.), the
door is automatically opened fully.
If the power sliding door is operated while the door is in half-opened posi-
tion (more than 300 mm/12 in.), the
door is automatically closed complete-
ly. If the power sliding door is operated
again while the door is closing, the
door is automatically opened fully.
If the power sliding door is operated again while the door is opening, the
door is automatically closed complete-
ly. However, If the power sliding door is
operated again when the door is in par-
tially opened position (less than 300
mm/12 in.), the door is opened contin-
uously.
The half-opened power sliding door is automatically opened or closed fully by
pushing the door forward or backward
without pulling the door handle while
the power ON/OFF button is in ON
(depressed). However, when the door
is in partially opened position (less
than 300 mm/12 in.), the door is not
closed automatically.
WARNING
Do not leave the power sliding door
in a partially opened position. Close
the window and then open the door
fully. A partially opened door is held
and then released after 10 minutes.
The chime sounds 3 times to indi-
cate the door is released. If the
vehicle is stopped on a downward
slope, it may move and cause an
injury.

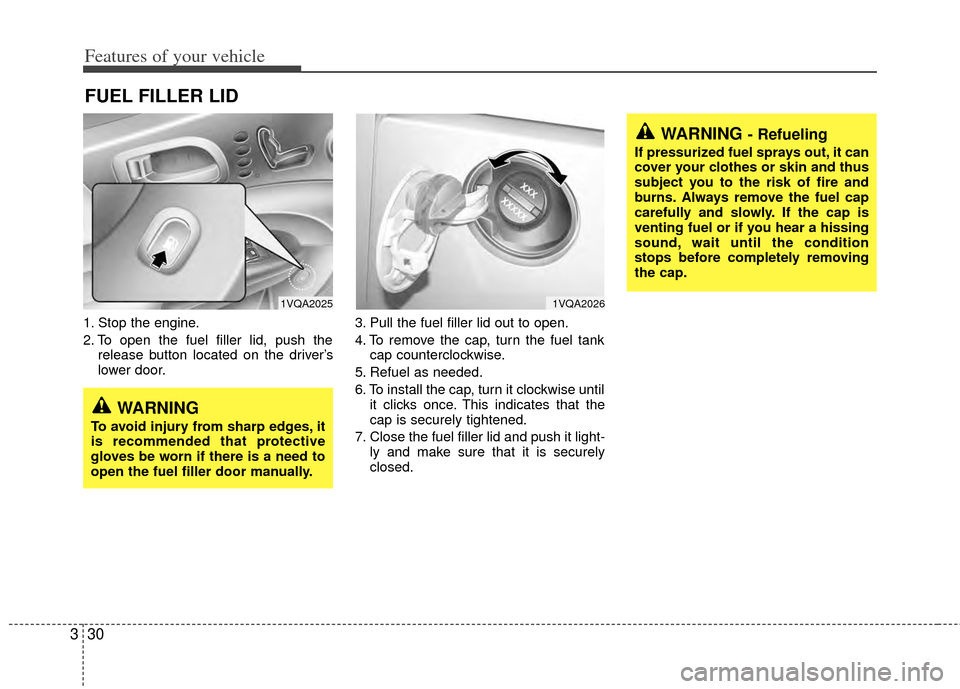

Features of your vehicle
30
3
1. Stop the engine.
2. To open the fuel filler lid, push the
release button located on the driver’s
lower door. 3. Pull the fuel filler lid out to open.
4. To remove the cap, turn the fuel tank
cap counterclockwise.
5. Refuel as needed.
6. To install the cap, turn it clockwise until it clicks once. This indicates that the
cap is securely tightened.
7. Close the fuel filler lid and push it light- ly and make sure that it is securely
closed.
FUEL FILLER LID
1VQA2026
WARNING
To avoid injury from sharp edges, it
is recommended that protective
gloves be worn if there is a need to
open the fuel filler door manually.
WARNING - Refueling
If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition
stops before completely removing
the cap.
1VQA2025
