2014 KIA OPTIMA Quick Reference Guide

23
SMS
SMS
1. Downloading SMS messages
(from mobile phone)
W h e n a n S M S e n a b l e d m o b i l e
phone is paired with the system,
unread messages will automatically
be downloaded to the system. While
you will not be able to check SMS
messages through the system due
to legal regulations, the system will
r e a d b a c k m e s s a g e s f o r y o u f o r
added convenience. The SMS read
b a c k i s a l s o p o s s i b l e w h e n t h e
vehicle is in motion.
2. Checking an SMS message
1. Pr e s s t h e k e y o n t h e
steering wheel.
2. Say the command 'Read SMS'.
3. The system will read back the
new message.
Note
●.To listen to the message again, say
‘Read again’. To listen to the next
m e s s a g e , s a y ‘ N e x t ’ . T o s e n d a
reply, say ‘Reply’. To call the sender,
say ‘Call’.
●.W h e n a n S M S e n a b l e d m o b i l e
p h o n e i s p a i r e d , n e w i n c o m i n g
m e s s a g e s w i l l a u t o m a t i c a l l y b e
notified through the system.
●.W h e n t h e n o t i f i c a t i o n w i n d o w i s
displayed, press the
Yes button to
check the new incoming message.
3. Sending an SMS message
(Custom Messages)
T h e U V O s y s t e m a l l o w s y o u t o
r e s p o n d t o i n c o m i n g m e s s a g e s
through voice commands.
1. Af t e r l i s t e n i n g t o a r e c e i v e d
message, say ‘Reply’.
2. Th e U V O s y s t e m w i l l p r o v i d e
information pertaining to the 6
Custom Messages.
3. Select the desired message to
send a response.
Note
●.You can modify custom messages
through Phone Settings.
●.T h e S M S f u n c t i o n m a y n o t b e
supported in some handset devices.

24
Operating Voice Command
Using Voice Command
1. Press the key on the steering
wheel controller.
A
display will
be shown at the top of the screen
f o l l o w e d b y a “ P l e a s e s a y a
command after the beep ” system
comment.
2. On c e t h e i c o n
b e c o m e s d i s p l a y e d , s a y t h e
d e s i r e d v o i c e c o m m a n d ( e x :
“What’s Playing”)
Note
●.P r e s s t h e k e y s h o r t l y t o
i n t e r r u p t t h e s y s t e m c o m m a n d
f e e d b a c k a n d e n t e r a v o i c e
command.
●.T o t e r m i n a t e t h e v o i c e c o n t r o l
system, either say “Exit” or press the
key for over 0.8 second.
●.The system voice comment “ Please
say a command after the beep ” will
not be stated when the Command
Feedback option is turned off.
●..For more information on the various
voice commands supported by the
s y s t e m , r e f e r t o t h e “ V o i c e
Command List” section.
Voice Command List
The voice commands for this system
are divided into Global commands and
Local commands.

● Global commands (●) : Commands
that operate in all modes.
● Local commands (○) : Commands
that operate only in corresponding
m o d e s o r w h e n s c r e e n s o f
corresponding modes are displayed.

25
Voice Command List
Command List - General Commands
CommandOperation
●Exit / Quit / CancelTerminate the voice control system
○Go backReturns to the previous step.
●RepeatRepeats the system prompt.
●Help Provides instruction on the voice commandnecessary for the current situation.
●Voice command feedback
{on, off}Turns command feedback on/off.
●TutorialP r o v i d e s g u i d a n c e o n h o w t o u s e v o i c e
recognition and Bluetooth connections
Command List - Audio Commands
1. FM/AM Radio
Command
Operation
●RadioPlays the most recent frequency for the most
recent band
●Radio {FM, AM}Plays the most recent frequency for the
corresponding Band.
●Radio {87.5 - 107.9} FM
Plays the selected FM band frequency.
●Radio {530 - 1710} AMPlays the selected AM band frequency.
●Radio FM preset {1 - 12}Plays the selected FM preset.
●Radio AM preset {1 - 6}Plays the selected AM preset.
○What's playing?Reads back HD Radio
TM(Optional) station
information.
2. SIRIUSTM
Command Operation
●SIRIUSTMPlays the most recent SIRIUSTM channel.
●SIRIUSTM preset {1 - 18}Plays the selected SIRIUSTM preset.
●SIRIUSTM channel {0 - 223}Plays the selected SIRIUSTM channel.
●SIRIUSTM channel {name}Plays the channel searched through the
SIRIUSTM channel name.
●SIRIUSTM category {name}Plays the channel searched through the
SIRIUSTM category name.
○What's playing?
Reads back SIRIUSTM channel information.

26
3. MEDIA
CommandOperation
●Play {zune®, iPod®, USB, CD}Plays the selected media mode.
●Play {BluetoothⓇ audio, AUX}Plays the selected media mode.
●Play artist {artist name} Plays songs of the selected artist.
●Play album {album name}Plays songs of the selected album.
●Play track {track name}Plays the selected track.
●Play playlist {playlist name}Plays songs of the selected playlist.
●Play genre {genre}Plays songs of the selected genre
●Play audiobook {title}(iPod® only) Plays the selected audiobook.
●Play podcast {podcast}( i P o d® o n l y ) P l a y s t h e s e l e c t e d i P o d®
podcast.
●Play composer {composer} Plays songs for the selected composer.
○What's playing?Reads back the current song information.
○Repeat {on, off}Turns the repeat feature on or off.
○Shuffle {on, off}Turns the shuffle feature on or off.
●Play {CD, zune®, iPod®, USB}
artist {name} Plays songs for the selected artist in the
selected media mode.
●Play {CD, zune®, iPod®, USB}
album {name} Plays songs for the selected album in the
selected media mode.
●Play {CD, zune®, iPod®, USB}
track {name} Plays the selected track in the selected
media mode.
●Play {CD, zune®, iPod®, USB}
playlist {name} Plays the selected playlist in the selected
media mode.
●Play {CD, zune®, iPod®, USB}
genre {genre} Plays songs for the selected genre in the
selected media mode.
●Play {CD, zune®, iPod®, USB}
composer {name} Plays songs for the selected composer in
the selected media mode.
●Play iPod® audiobook {title}
(iPod
® only) Plays the selected iPod®
audiobook.
●Play iPod® podcast {podcast} (iPod
® only) Plays the selected iPod®
podcast.
Voice Command List Voice Command List

27
3.

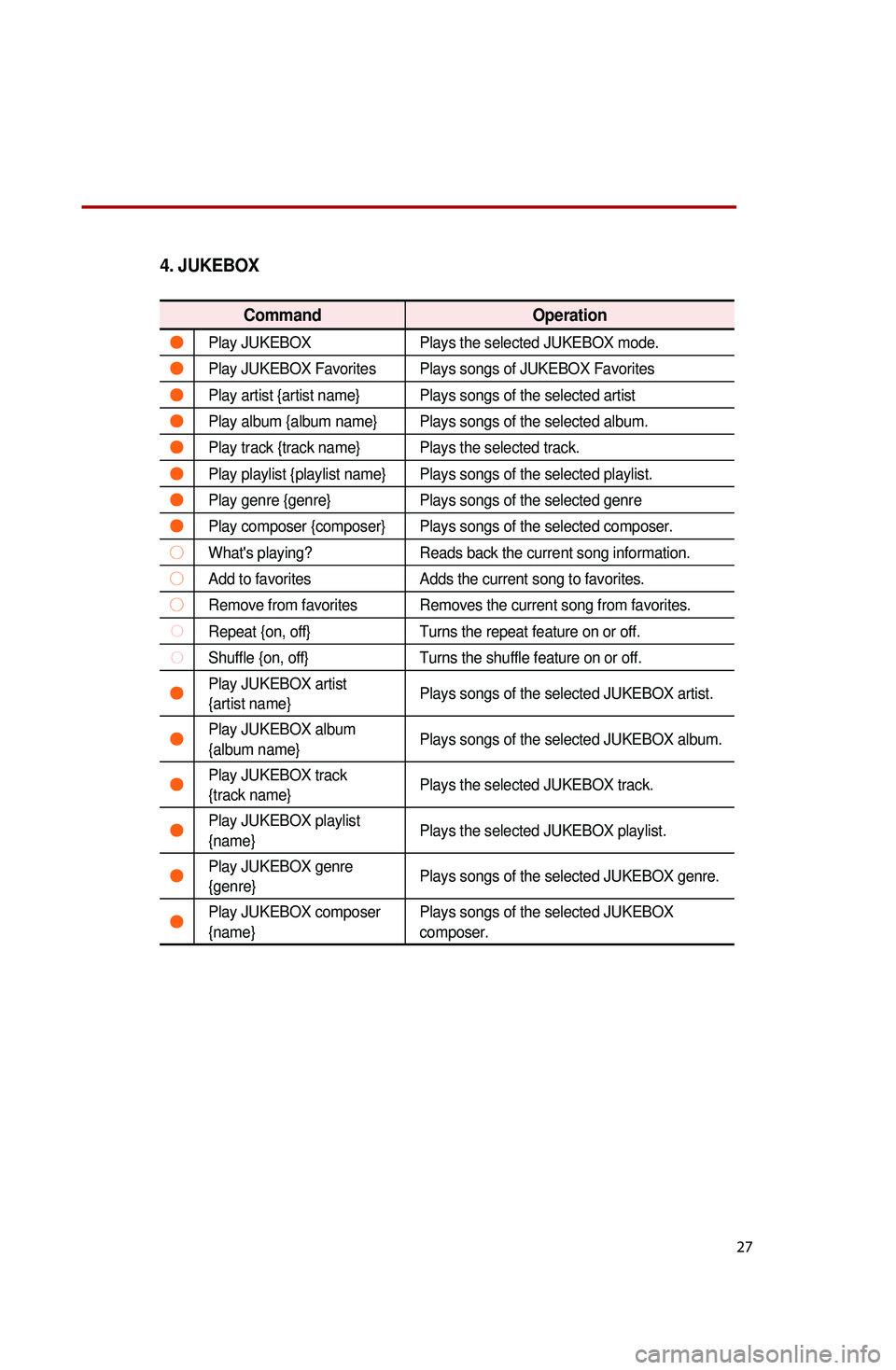

MEDIA4. JUKEBOX
Command Operation
●Play JUKEBOXPlays the selected JUKEBOX mode.
●Play JUKEBOX FavoritesPlays songs of JUKEBOX Favorites
●Play artist {artist name}Plays songs of the selected artist
●Play album {album name}Plays songs of the selected album.
●Play track {track name}Plays the selected track.
●Play playlist {playlist name}Plays songs of the selected playlist.
●Play genre {genre}Plays songs of the selected genre
●Play composer {composer}Plays songs of the selected composer.
○What's playing?Reads back the current song information.
○Add to favoritesAdds the current song to favorites.
○Remove from favoritesRemoves the current song from favorites.
○Repeat {on, off}Turns the repeat feature on or off.
○Shuffle {on, off}Turns the shuffle feature on or off.
●Play JUKEBOX artist
{artist name}Plays songs of the selected JUKEBOX artist.
●Play JUKEBOX album
{album name}Plays songs of the selected JUKEBOX album.
●Play JUKEBOX track
{track name}Plays the selected JUKEBOX track.
●Play JUKEBOX playlist
{name}Plays the selected JUKEBOX playlist.
●Play JUKEBOX genre
{genre}Plays songs of the selected JUKEBOX genre.
●Play
JUKEBOX composer
{name} Plays songs of the selected
JUKEBOX
composer.

28
5. PANDORA Radio
CommandOperation
●Play PANDORACalls the desired name.
●P l a y P A N D O R A S t a t i o n
{stationname}Dials the desired number.
○Shuffle
Calls the desired person at the home number.
○SkipCalls the desires person at the office number.
○Thumbs UpCalls the desires person on the mobile number.
○Thumbs DownStarts dial by number operation.
○Bookmark this trackStarts call by name operation.
○Bookmark this artistTurns on Phone mode screen.
○What’s playingReads back the current song information.
Command List - UVO eServices Commands
Command Operation
●eServicesDisplays UVO eServices mode.
●Roadside AssistMakes call to Roadside Assist agent.
●eServices GuideReceive guidance on methods of using UVO
eServices.
●Vehicle Diagnostics
Starts the Vehicle Diagnostics process.
Voice Command List

29
Command List - Phone Commands
CommandOperation
●Call {name}Calls the desired name.
●Dial {number}Dials the desired number.
●Call {name} at homeCalls the desired person at the home number.
●Call {name} at officeCalls the desires person at the office number.
●Call {name} on mobileCalls the desires person on the mobile number.
●Dial by numberStarts dial by number operation.
●Call a contactStarts call by name operation.
●PhoneTurns on Phone mode screen.
●Dial internationalStarts international call operation.
●Phone connectionsTurns on Phone connections screen.
●Phone settingsTurns on Phone settings screen.
●SMSReads back new SMS message
f o r
B l u e t o o t hⓇ w i r e l e s s t e c h n o l o g y S M S
capable phones.
●Read SMS Reads back new SMS message
f o r
B l u e t o o t hⓇ w i r e l e s s t e c h n o l o g y S M S
enabled devices.
●Recent calls Turns on Recent Calls list screen.
●RedialCalls the last dialed call.

30
