2014 KIA CADENZA key

41

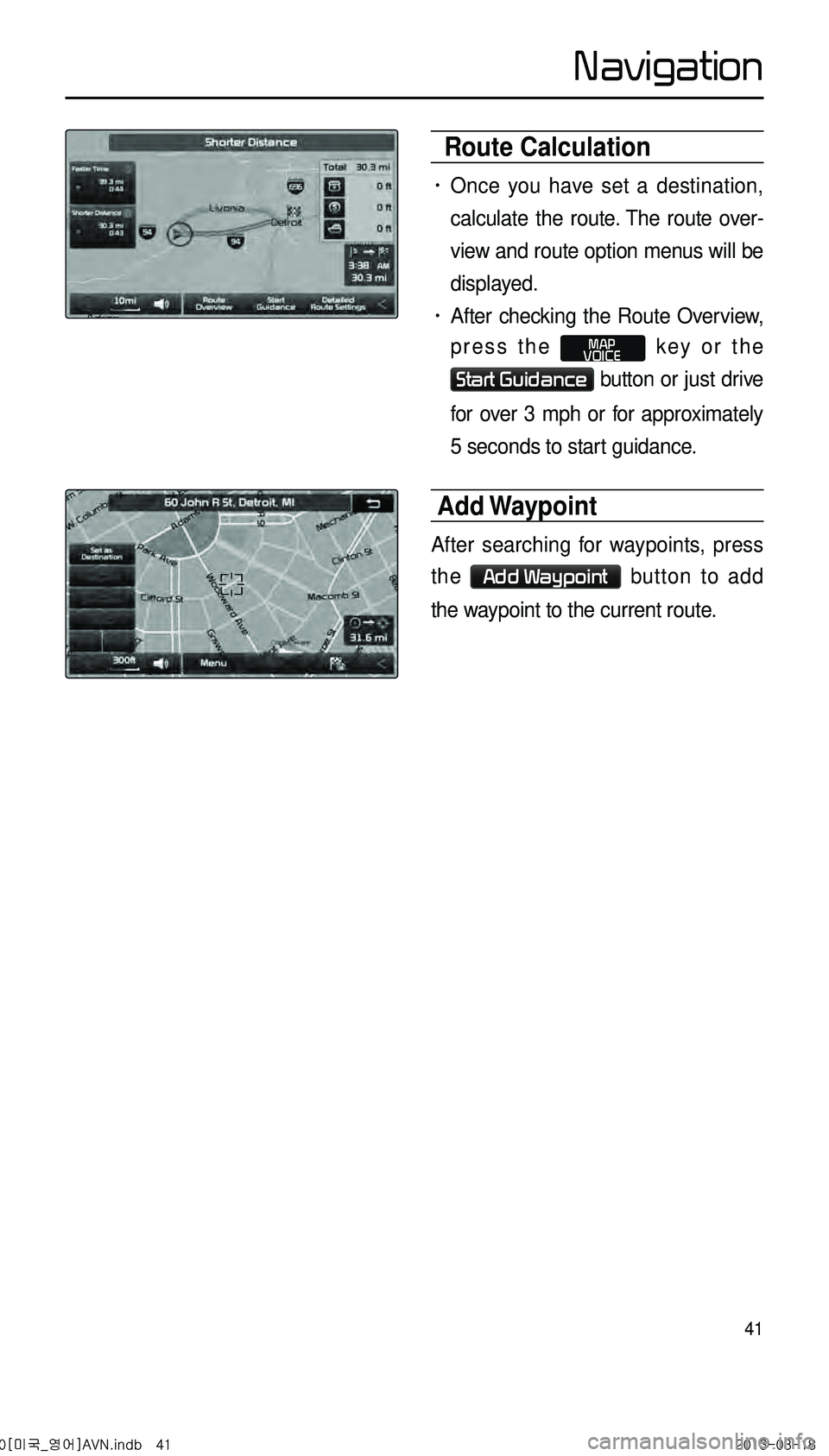

Route Calculation
• Once you have set a destination,
calculate the route. The route over-
view and route option menus will be
displayed.
• After checking the Route Overview,
press the
MAP
VOICE key or the
Start Guidance button or just drive
for over 3 mph or for approximately
5 seconds to start guidance.
Add Waypoint
After searching for waypoints, press
the
Add Waypoint button to add
the waypoint to the current route.
0[미국_영어]AVN.indb 412013-03-18
Navigation

45
Route Menu
Press the ROUTE key to use, edit,
or optimize various route options.
Cancel Route
Press the ROUTE key ▶ Press
Cancel Route .
Route Overview
Press the ROUTE
key ▶ Press
Route Overview .
Within the Route Overview screen,
press the
Alternative Route button
to display other potential routes to the
set destination.
From the alternative route options,
select the desired route.
Route Info
Press the ROUTE key ▶ Press
Route Info .
The turn points and distance informa-
tion
by key roads within the set route
are played.
Press the MAP button
next to each road name to display the
map position for the corresponding
location.
0[미국_영어]AVN.indb 452013-03-18
Navigation

46
Route Option
Press the ROUTE
key ▶ Press
Route Option ▶ Set and press
Done . Route Options refer to condi-
tions used to calculate the route to the
destination. The route is automatically re-
calculated if the route options and detailed
route settings are changed.
Detour
Press the ROUTE key ▶ Press
Detour .
The Detour menu is used to redefine
the route by setting a detour to a cer -
tain distance from the current position.
Avoid Streets
Press the ROUTE key ▶ Press
Avoid Streets ▶ Select the
streets you want to avoid and press
Done .
This feature is used to select specific
streets to avoid within the current route.
Select
Avoid to avoid the particular
streets in the route overview that are
desired to be avoided.
Edit Route
Press the ROUTE key ▶ Press
Edit Route ▶ Set and press
Done .
The Edit Route menu displays the
start point, waypoints, and the desti -
nation in list format and is used to edit
corresponding positions or the order
of destinations within the route.
0[미국_영어]AVN.indb 462013-03-18
Navigation

47
Avoid Area
Press the ROUTE
key ▶Press
Avoid Area ▶ Set and press
Done .
This feature is used by creating a rect -
angle over the area to avoid.
An area set as an avoid area is
excluded from the calculated route. If
a route had been calculated prior to
creating an avoid area, the route will
automatically be recalculated.
The screen will prompt to select the
first corner of the square of the avoid
area, followed by the second corner.
0[미국_영어]AVN.indb 472013-03-18
Navigation

48
Using Bluetooth®
Handsfree
Pairing from the Bluetooth®
Device
Press the key on the steering
wheel remote controller or press
the
PHONE ▶ Press Ye s .
In the Search from Device screen
▶ Search f
or the car name and pair
the de vice

▶ Enter the Passk e
y ▶
Bluetooth
® becomes connected.
• When searching from the
Bluetooth
® device, the car name
is Santa Fe Sport and the default
passkey is '0000'.
• To learn more about searching from
Bluetooth
® devices and pairing,
refer to the user's manual for your
Bluetooth
® device.
• The Bluetooth® Audio screen is
displayed once audio streaming is
connected.
• For more information on mobile
phone compatibility, visit the Kia
Motor website
(http://www.kia.com/bluetooth).
0[미국_영어]AVN.indb 482013-03-18
Bluetooth® Handsfree

49
Making/Answering
Calls
Calling by Dialing a Number
Enter number on the dial pad ▶
Press the
Send or the
key on the steering wheel remote
controller.
If you press the Send button
without entering a number, the Call
History screen is displayed. Press and
hold the dial pad
0 +(over 0.8 sec-
onds) to enter a "+".
Name Description
1 SendCalls the entered phone
number
2 End Deletes all entered numbers
12
0[미국_영어]AVN.indb 492013-03-18
Bluetooth® Handsfree

50
Answering a Call
Incoming call notice ▶ Press the
Accept button or the key
on the steering wheel remote
controller.
When there is an incoming on within
the connected phone, the bell will
sound and the phone number of the
other party will be displayed on the
incoming call pop-up, as shown here.
Operating Menus
during a Call
Ending a Call
While on a call ▶Press the
End button or the key
on the steering wheel remote
controller.
The Bluetooth® handsfree call will end.
0[미국_영어]AVN.indb 502013-03-18
Bluetooth® Handsfree

51
Switching Call to Bluetooth®
Phone
During handsfree call ▶ Press the
Private button or press and hold
the key (over 0.8 seconds)
on the steering wheel remote
controller.
The call will be switched from the
handsfree to the Bluetooth
® mobile
phone.
Switching Call to the Handsfree
During call on mobile phone ▶
Press the
Use Handsfree button
or press and hold the key
(over 0.8 seconds) on the steering
wheel remote controller.
The call will be switched from the
Bluetooth
® mobile phone to the car
handsfree.
0[미국_영어]AVN.indb 512013-03-18
Bluetooth® Handsfree
