Temperature Control
Rotate this control to regulate the tem-
perature of the air inside the passenger
compartment. Rotating the dial left
into the blue area of the scale indicates
cooler temperatures, while rotating
right into the red area indicates
warmer temperatures.
NOTE: If your air conditioning performance seems lower
than expected, check the front of the A/C condenser
located in front of the radiator for an accumulation of dirt
or insects. Clean with a gentle water spray from behind
the radiator and through the condenser. Fabric front
fascia protectors may reduce airflow to the condenser,
reducing air conditioning performance.
Mode Control (Air Direction)
Rotate this control to choose from sev-
eral patterns of air distribution. You
can select either a primary mode as
identified by the symbols on the con-
trol, or a blend of two of these modes.
The closer the setting is to a particular
symbol, the more air distribution you
receive from that mode.
Panel
Air is directed through the outlets in the instru-
ment panel. These outlets can be adjusted to direct
airflow.
NOTE: The center instrument panel outlets can be aimed
so that they are directed toward the rear seat passengers
for maximum airflow to the rear.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 401
Page 410 of 678

The operator can override the AUTO mode setting to
change airflow distribution by rotating the Mode Control
knob (on the right) to one of the following positions:
•Panel
Air is directed through the outlets in the instru-
ment panel. These outlets can be adjusted to direct
airflow.
NOTE: The center instrument panel outlets can be aimed
so that they are directed toward the rear seat passengers
for maximum airflow to the rear.
• Bi-Level
Air is directed through the panel and floor outlets.
NOTE: For all settings, except full cold or full hot, there
is a difference in temperature between the upper and
lower outlets. The warmer air flows to the floor outlets. This feature gives improved comfort during sunny but
cool conditions.
•
Floor
Air is directed through the floor outlets with a
small amount flowing through the defrost and
side window demist outlets.
• Mix
Air is directed through the floor, defrost, and side
window demist outlets. This setting works best in
cold or snowy conditions that require extra heat to the
windshield. This setting is good for maintaining comfort
while reducing moisture on the windshield.
• Defrost
Air is directed through the windshield and side
window demist outlets. Use this mode with maxi-
mum blower and temperature settings for best wind-
shield and side window defrosting.
408 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 413 of 678

fresh air and high blower settings. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes a problem, increase blower speed.
Vehicle windows tend to fog on the inside in mild but
rainy or humid weather.
NOTE:Recirculate without A/C should not be used for
long periods as fogging may occur.
Side Window Demisters
A side window demister outlet is located at each end of the
instrument panel. These non-adjustable outlets direct air
toward the side windows when the system is in the Floor, Mix, or Defrost mode. The air is directed at the area of the
windows through which you view the outside mirrors.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter — If Equipped
The A/C Filter prevents most dust and pollen from
entering the cabin. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”
in “Maintaining Your Vehicle” for A/C Air Filter service
information or see your authorized dealer for service.
Refer to “Maintenance Schedules” for filter service inter-
vals.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 411
Page 418 of 678

▫Tread Wear Indicators ..................503
▫ Life Of Tire ........................ .504
▫ Replacement Tires .....................505
TIRE CHAINS (TRACTION DEVICES) .......506
TIRE ROTATION RECOMMENDATIONS .....508
TIRE PRESSURE MONITOR SYSTEM (TPMS) . .509
▫ Premium and Base TPM System ...........512
▫ Premium System — If Equipped ...........516
▫ General Information ...................521
FUEL REQUIREMENTS ..................521
▫ 3.6L Engine ......................... .521
▫ Reformulated Gasoline .................522
▫ Gasoline/Oxygenate Blends ..............522▫
E-85 Usage In Non-Flex Fuel Vehicles .......523
▫ MMT In Gasoline .....................523
▫ Materials Added To Fuel ................524
▫ Fuel System Cautions ...................524
▫ Carbon Monoxide Warnings .............525
ADDING FUEL ....................... .526
▫ Fuel Filler Cap (Gas Cap) ...............526
▫ Loose Fuel Filler Cap Message ............527
VEHICLE LOADING ....................528
▫ Certification Label ....................528
TRAILER TOWING .....................530
▫ Common Towing Definitions .............530
▫ Trailer Hitch Classification ...............533
416 STARTING AND OPERATING

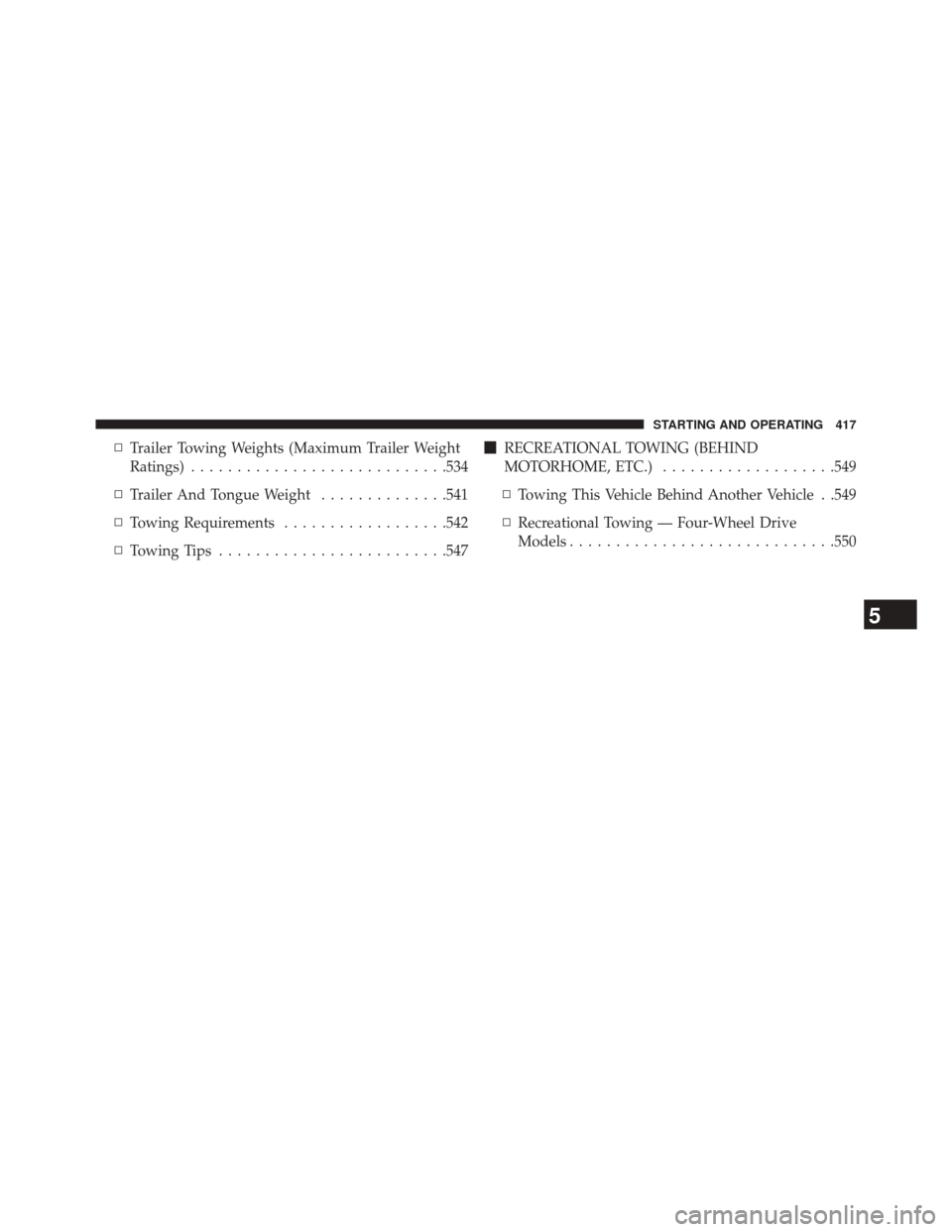

Page 419 of 678
