WARNING LIGHTSY51D-V-E01-E4342973-71E9-450C-94D9-9EA3FA5505E2
All-Wheel Drive (AWD) warning
light (if so equipped)
Y51D-V-E01-753690F1-01C5-46AF-A68E-329F2E1AAB37Thewarning light comes on when the
ignition switch is pushed to ON. It turns off
soon after the engine is started.
If the Intelligent AWD system malfunctions,
or the diameter of the front and the rear
wheels are different, the warning light will
either remain illuminated or blink. (See
“Intelligent All-Wheel Drive (AWD)” (P.5-
93).)
CAUTION
. If the warning light comes on while
driving there may be a malfunction in
the Intelligent AWD system. Reduce the
vehicle speed and have your vehicle
checked by an INFINITI retailer as soon
as possible.
. If the AWD warning light blinks on when
you are driving:
—blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode will change to 2WD to prevent the AWD
system from malfunctioning. If the
warning light turns off, you can drive
again.
—blinks slowly (about once every 2
seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
. If the warning light is still on after the
above operations, have your vehicle
checked by an INFINITI retailer as soon
as possible.
orAnti-lock Braking
System (ABS) warning light
Y51D-V-E01-BEE15A76-E254-45AA-8D27-5170CF592A69When the ignition switch is in the ON
position, the Anti-lock Braking System
(ABS) warning light illuminates and then
turns off. This indicates the ABS is opera-
tional.
If the ABS warning light illuminates while
the engine is running, or while driving, it
may indicate the ABS is not functioning
properly. Have the system checked by an
INFINITI retailer. If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. (See
“Brake system”(P.5-
98).)
Automatic transmission check
warning light
Y51D-V-E01-079F889E-A850-497A-9531-8C17CCCB810EWhen the ignition switch is pushed to the
ON position, the light comes on for 2
seconds. If the light comes on at any other
time, it may indicate the transmission is
not functioning properly. Have your INFINITI
retailer check and repair the transmission.
orBrake warning lightY51D-V-E01-27E62D81-74AA-402A-ADDC-A48DD1FF9DA9This light functions for both the parking
brake and the foot brake systems.
Parking brake indicator:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When the ignition switch is in the ON
position, the light comes on when the
parking brake is applied.
Low brake fluid warning light:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When the ignition switch is in the ON
position, the light warns of a low brake
fluid level. If the light comes on while the
engine is running with the parking brake
not applied, stop the vehicle and perform
the following:
Instruments and controls2-11
Condition:

Black plate (84,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-12Instruments and controls
1. Check the brake fluid level. If brakefluid is necessary, add fluid and have
the system checked by your INFINITI
retailer. (See “Brake fluid” (P.8-19).)
2. If the brake fluid level is correct, have the warning system checked by an
INFINITI retailer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When the parking brake is released and
the brake fluid level is sufficient, if both
the brake warning light and the Anti-lock
Braking System (ABS) warning light illumi-
nate, it may indicate the ABS is not
functioning properly. Have the brake sys-
tem checked, and if necessary repaired, by
an INFINITI retailer promptly. (See “Anti-
lock Braking System (ABS) warning light”
(P.2-11).)
WARNING
. Your brake system may not be working
properly if the warning light is on.
Driving could be dangerous. If you judge
it to be safe, drive carefully to the
nearest service station for repairs.
Otherwise, have your vehicle towed because driving it could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake fluid
reservoir, do not drive until the brake
system has been checked at an INFINITI
retailer.
Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI) sys-
tem warning light (orange; if so
equipped)
Y51D-V-E01-9068CB1D-5021-4E81-9D4E-BD508B33B490When the ignition switch is pushed to the
ON position, the indicator light will first
illuminate in orange and turn green before
turning off. This indicates that the Blind
Spot Warning (BSW) and Blind Spot Inter-
vention (BSI) systems are operational.
If the light comes on in orange and remains
on, it may indicate that the BSW and BSI
systems are not functioning properly.
Although the vehicle is still driveable, have
the systems checked by an INFINITI retailer.
See “Blind Spot Warning (BSW) system/ Blind Spot Intervention
TM(BSI) system”
(P.5-33).
Charge warning lightY51D-V-E01-DEE104B8-D716-40F8-9978-636495B1465AIf the light comes on while the engine is
running, it may indicate the charging
system is not functioning properly. Turn
the engine off and check the alternator
belt. If the belt is loose, broken, missing or
if the light remains on, see an INFINITI
retailer immediately.
CAUTION
Do not continue driving if the alternator belt
is loose, broken or missing.
Distance Control Assist (DCA)
system warning light (orange; if so
equipped)
Y51D-V-E01-65405F0A-16BD-46D0-B9C8-DCE3E18D6626This light comes on if there is a malfunc-
tion in the Distance Control Assist (DCA)
system.
If the warning light illuminates, park the
vehicle in a safe place. Turn the engine off,
restart the engine, resume driving and turn
on the DCA system again.
Condition:

Black plate (85,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
If it is not possible to turn on the system
or the warning light stays on, it may
indicate that the system is malfunctioning.
Although the vehicle is still driveable
under normal conditions, have the vehicle
checked at an INFINITI retailer.
Engine oil pressure warning
light
Y51D-V-E01-C8325BDF-F56B-4147-8D84-B2E40B07E00AThis light warns of low engine oil pressure.
If the light flickers or comes on during
normal driving, pull off the road in a safe
area, stop the engine immediatelyand call
an INFINITI retailer or other authorized
repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
“Engine oil” (P.8-14).)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not covered
by warranty. Turn off the engine as soon as
it is safe to do so.
Intelligent Cruise Control (ICC)
system warning light (orange; if so
equipped)
Y51D-V-E01-6CC09C18-AFF4-4535-828C-69A014717EF9This light comes on if there is a malfunc-
tion in the Intelligent Cruise Control (ICC)
system.
If the warning light comes on, park the
vehicle in a safe place. Turn the engine off,
restart the engine, resume driving and set
the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal
conditions, have the vehicle checked at
an INFINITI retailer.
Lane Departure Warning (LDW)
light (orange; if so equipped)
Y51D-V-E01-7ACCE53D-5E85-4E1D-8723-9E8502D9DE94When the ignition switch is pushed to the
ON position, the light will come on in
orange, turn green, and then turn off. This
indicates that the Lane Departure Warning
(LDW) and Lane Departure Prevention (LDP)
systems are operational.
While the LDW and/or LDP system is on,
the light will blink in orange and a warning
chime will sound if the vehicle is traveling close to either the left or the right of a
traveling lane with detectable lane mar-
kers.
If the light comes on in orange and remains
on, it may indicate that the LDW and LDP
systems are not functioning properly. Have
the systems checked by an INFINITI retailer.
See
“Lane Departure Warning (LDW) sys-
tem/Lane Departure Prevention (LDP) sys-
tem” (P.5-23).
Low tire pressure warning
light
Y51D-V-E01-30DE359F-7311-407E-AF3E-5C53309F6AEDYour vehicle is equipped with a Tire
Pressure Monitoring System (TPMS) that
monitors the tire pressure of all tires
except the spare.
The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.
After the ignition switch is pushed ON, this
light illuminates for about 1 second and
turns off.
Low tire pressure warning:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also
appears in the dot matrix liquid crystal
Instruments and controls2-13
Condition:

Black plate (94,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-22Instruments and controls
INDICATORS FOR OPERATIONY51D-V-E01-64909E7F-8C96-4E67-B3E1-6588D21079FB
1. Engine start operation indicatorY51D-V-E01-A88CA30F-9D2B-44F6-9328-D7C4F5F6F61EThis indicator appears when the shift lever
is in the P (Park) position.
This indicator means that the engine will
start by pushing the ignition switch with
the brake pedal depressed. You can start
the engine directly in any position of the
ignition switch.
2. Steering lock release malfunc-
tion indicator (if so equipped)
Y51D-V-E01-6BD0F440-CDEA-4278-AD0C-F1151637226AThis indicator appears when the steering
wheel cannot be released from the LOCK
position.
If this indicator appears, push the push-
button ignition switch while lightly turning
the steering wheel right and left.
3. NO KEY warningY51D-V-E01-796E92CE-2B32-4D77-9DD6-0EE555C64AB0This warning appears in either of the
following conditions.
No key inside the vehicle:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle.Unregistered Intelligent Key:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recog-
nized by the system. You cannot start the
engine with an unregistered key. Use the
registered Intelligent Key.
See
“Intelligent Key system” (P.3-6) for
more details.
4. SHIFT “P”warningY51D-V-E01-A781E6D3-618F-498F-BC4D-3983287D1D01This warning appears when the ignition
switch is pushed to stop the engine with
the shift lever in any position except the P
(Park) position.
If this warning appears, move the shift
lever to the P (Park) position or push the
ignition switch to the ON position.
An inside warning chime will also sound.
(See “Intelligent Key system” (P.3-6).)
5.“PUSH” warningY51D-V-E01-3341FC08-E770-4537-B5E3-AB7ACF1A086EThis warning appears when the shift lever
is moved to the P (Park) position with the
ignition switch in the ACC position after the
SHIFT“P”warning appears.
To push the ignition switch to the OFF
position, perform the following procedure: .
SHIFT “P”warning ?(Move the shift
lever to “P”)?PUSH warning ?(Push
the ignition switch ?ignition switch
position is turned to ON) ?PUSH
warning ?(Push the ignition switch ?
ignition switch position is turned to
OFF)
6. Intelligent Key battery discharge
indicator
Y51D-V-E01-10DAEEAD-9FC3-4942-82E3-9B4A53F13AE8This indicator appears when the Intelligent
Key battery is running out of power.
If this indicator appears, replace the
battery with a new one. (See “Intelligent
Key battery replacement” (P.8-30).)
7. Engine start operation for Intel-
ligent Key system indicator
Y51D-V-E01-F558F0B2-E1D4-41C4-9263-962DF1A50AF4This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and
vehicle are not communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while
depressing the brake pedal. (See “Intelli-
gent Key battery discharge” (P.5-12).)
Condition:

Black plate (95,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
8. Parking brake release warningY51D-V-E01-D0E7A2F3-E58C-4AB1-956B-CF6828D72988This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
9. Low fuel warningY51D-V-E01-6D57E440-020D-40C9-9287-22A41A142DF4This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
10. Low washer fluid warningY51D-V-E01-DAF8A34C-EC8E-48A9-AECD-07C6E8A313A0This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See“Window washer fluid”
(P.8-19).)
11. Door/trunk open warning (igni-
tion switch is in the ON position)
Y51D-V-E01-BF6F8B2B-DDFF-4626-ADE2-1576DA433ADAThis warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
12. Intelligent Key system warningY51D-V-E01-79D8FCFE-AC5D-4549-B87A-A9130816EC7AThis warning appears if there is a malfunc-
tion in the steering lock system (if so
equipped) or Intelligent Key system.
If this warning appears while the engine is
stopped, the steering lock (if so equipped)
cannot be released or the engine cannot be
started. If this warning appears while the
engine is running, the vehicle can be
driven. However, contact an INFINITI retai-
ler for repair as soon as possible.
13. Loose fuel cap warningGUID-B3E2FCE0-A8B6-40C3-88CC-48178F73936CThis warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap ”(P.3-21).)
14. Check tire pressure warningGUID-4C26253E-7E93-4751-9C8A-98247F5BCF66This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. If
this warning appears, stop the vehicle and
adjust the pressure to the recommended
COLD tire pressure shown on the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. (See
“Low tire pressure warning light” (P.2-13)
and “Tire Pressure Monitoring System (TPMS)”
(P.5-4).)
15.“TIMER” indicatorY51D-V-E01-7DEBFF56-E102-4EAA-903C-9E6B1C5D84E4This indicator appears when the set
“TIMER” indicator activates. You can set
the time for up to 6 hours. (See “Trip
computer” (P.2-26).)
16. Low outside temperature warn-
ing
Y51D-V-E01-BF2E7BC6-70A6-4A07-B5D8-1C5551EE8C7BThis warning appears if the outside tem-
perature is below 378F (38C). The warning
can be set not to be displayed. (See “Trip
computer” (P.2-26).)
17. Cruise indicatorY51D-V-E01-A8FF4CA5-9F3E-4DA0-B756-B293036E1D58
Cruise main switch indicator:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The indicator is displayed when the cruise
control main switch is pushed. When the
main switch is pushed again, the indicator
disappears. When the cruise control main
switch indicator is displayed, the cruise
control system is operational.
Cruise set switch indicator:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The indicator is displayed while the vehicle
speed is controlled by the cruise control
system. If the indicator blinks while the
engine is running, it may indicate that the
cruise control system is not functioning
Instruments and controls2-23
Condition:

Black plate (100,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-28Instruments and controls
affected by road or engine heat, wind
directions and other driving conditions.
The display may differ from the actual
outside temperature or the temperature
displayed on various signs or billboards.
6. SettingY51D-V-E01-AF22EFC2-EA6F-49CF-9937-74270C1E28C7Setting cannot be made while driving. A
message“Setting can only be operated
when stopped” is also displayed on the
dot matrix crystal display.
The
switch*Aandswitch*Bare
used in the setting mode to select and
decide a menu.
SKIP:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Push theswitch*Ato move to the
warning check mode.
Push the
switch*Bto select other
menus.
ALERT:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0There are 3 submenus under the alert
menu.
. BACK
Select this submenu to return to the top
page of the setting mode.
. TIMER
Select this submenu to specify when the
“TIMER” indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
MAINTENANCE:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0There are 5 submenus under the main-
tenance menu.
. BACK
Select this submenu to return to the top
page of the setting mode.
. OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset
the distance for replacing items other
than the engine oil, oil filter and tires.
OPTIONS:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0There are 4 submenus under the display
menu. .
BACK
Select this submenu to return to the top
page of the setting mode.
. LANGUAGE
Select this submenu to choose English
or French for display.
. UNIT
Select this submenu to choose the unit
from miles, MPG, 8F or km, l/100km,
8C.
. EFFECTS
Select this menu to set the dial effects
described below to on or off.
— The indicator needles sweep in the
meters when the engine is started.
7. Warning checkY51D-V-E01-84D17C85-7598-4143-B76A-A1BD37562223
SKIP:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Push theswitch*Ato move to the
warning check mode.
Push the
switch*Bto select other
menus.
DETAIL:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0This item is available only when a warning
is displayed.
Select this menu to see the details of
warnings.
Condition:

Black plate (102,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-30Instruments and controls
5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The
vehicle security system is now pre-
armed. After about 30 seconds the
vehicle security system automatically
shifts into the armed phase. The
security light begins to flash once every
approximately 3 seconds. If, during this
30-second pre-arm time period, the
door is unlocked, or the ignition switch
is pushed to ACC or ON, the system will
not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationY51D-V-E01-3A452288-F884-4B4B-B1D6-D5997C1EA010The vehicle security system will give the
following alarm:
. The headlights blink and the horn
sounds intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the
alarm reactivates if the vehicle is tampered with again.
The alarm is activated by:
. Unlocking the door or opening the trunk
lid without using the button on the
Intelligent Key, the door handle request
switch or the mechanical key. (Even if
the door is opened by releasing the
door inside lock knob, the alarm will
activate.)
. Opening the hood.
How to stop an activated alarmY51D-V-E01-DF1E4DAC-68DF-4235-AD8F-E1909167B5F8The alarm will stop by unlocking a door by
pushing the unlock button on the Intelli-
gent Key, the door handle request switch
or using the mechanical key. The alarm will
not stop if the ignition switch is pushed to
the ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by an
INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
Y51D-V-E01-4C75AC83-8C74-453D-97A9-A911C41A3437The INFINITI Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered Intelligent Key.
Never leave these keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
Condition:

Black plate (107,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

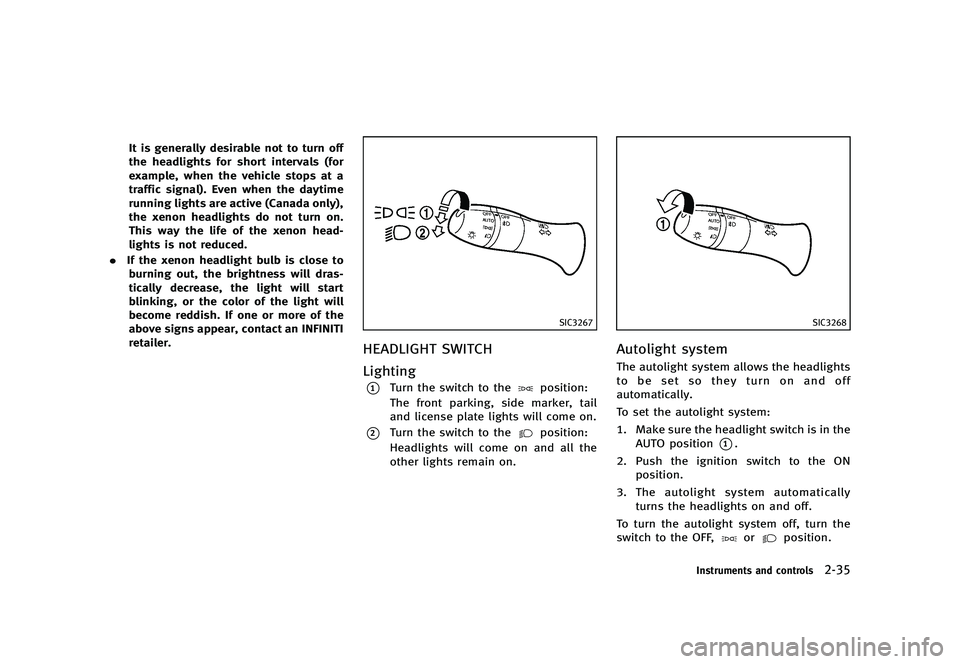

It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon head-
lights is not reduced.
. If the xenon headlight bulb is close to
burning out, the brightness will dras-
tically decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact an INFINITI
retailer.
SIC3267
HEADLIGHT SWITCHY51D-V-E01-A97D1787-5D60-49FB-97B0-C49E3C404EDC
LightingY51D-V-E01-7FF0D9DF-3DE7-4696-9944-BB1F285007B0*1Turn the switch to theposition:
The front parking, side marker, tail
and license plate lights will come on.
*2Turn the switch to theposition:
Headlights will come on and all the
other lights remain on.
SIC3268
Autolight systemY51D-V-E01-6670CC80-46B2-4BB2-A7FE-53049C3FA3BEThe autolight system allows the headlights
to be set so they turn on and off
automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
*1.
2. Push the ignition switch to the ON position.
3. The autolight system automatically
turns the headlights on and off.
To turn the autolight system off, turn the
switch to the OFF,
orposition.
Instruments and controls2-35
Condition:
