2014 INFINITI Q70 stop start

Black plate (318,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-16Starting and driving
position.
CAUTION
Use this position only when the vehicle is
completely stopped.
R (Reverse):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Use this position to back up. Always be
sure the vehicle is completely stopped
before selecting the R (Reverse) position.
The brake pedal must be depressed and
the shift lever button pushed in to move
the shift lever from the P (Park) position,
the N (Neutral) position or any drive
position to the R (Reverse) position.
N (Neutral):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Neither forward nor reverse gear is en-
gaged. The engine can be started in this
position. You may shift to the N (Neutral)
position and restart a stalled engine while
the vehicle is moving.
D (Drive):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Use this position for all normal forward
driving.
SSD1099
Paddle shifters (if so equipped)
Manual shift modeY51D-V-E01-BF0A9AA6-6CFA-4D8F-90F4-568EAE9C1B74When the shift lever is in the manual shift
gate, the transmission is ready for the
manual shift mode. Shift ranges can be
selected manually by moving the shift lever
up or down, or pulling the right-side or left-
side paddle shifter (if so equipped).
When shifting up, move the shift lever to
the + (up) side or pull the right-side paddle
shifter (+)
*A(if so equipped). The
transmission shifts to the higher range.
When shifting down, move the shift lever to
the −(down) side or pull the left-side
paddle shifter (−)
*B(if so equipped). The transmission shifts to the lower range.
When canceling the manual shift mode,
return the shift lever to the D (Drive)
position. The transmission returns to the
normal driving mode.
When you pull the paddle shifter while in
the D (Drive) position, the transmission will
shift to the upper or lower range tempora-
rily. The transmission will automatically
return to the D (Drive) position after a short
period of time. If you want to return to the
D (Drive) position manually, pull and hold
the paddle shifter for about 1.5 seconds.
In the manual shift mode, the shift range is
displayed on the position indicator in the
meter.
Shift ranges up or down one by one as
follows:
M1
?
/M2?
/M3?
/M4?
/M5?
/M6?
/M7
M7 (7th):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Use this position for all normal forward
driving at highway speeds.
M6 (6th) andM5 (5th):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Use these positions when driving up long
slopes, or for engine braking when driving
down long slopes.
Condition:

Black plate (319,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
M4 (4th),M3 (3rd) andM2 (2nd):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Use these positions for hill climbing or
engine braking on downhill grades.
M1 (1st):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Use this position when climbing steep hills
slowly or driving slowly through deep
snow, or for maximum engine braking on
steep downhill grades.
.Remember not to drive at high speeds
for extended periods of time in lower
than 7th gear. This reduces fuel econ-
omy.
. Moving the shift lever rapidly to the
same side twice will shift the ranges in
succession.
. In the manual shift mode, the transmis-
sion may not shift to the selected gear
or may automatically shift to the other
gear. This helps maintain driving per-
formance and reduces the chance of
vehicle damage or loss of control.
. When the transmission does not shift
to the selected gear, the Automatic
Transmission (AT) position indicator
light (on the dot matrix liquid crystal
display) will blink and the buzzer will
sound. .
In the manual shift mode, the transmis-
sion automatically shifts down to 1st
gear before the vehicle comes to a
stop. When accelerating again, it is
necessary to shift up to the desired
range.
Accelerator downshift —In D (Drive)
position —
Y51D-V-E01-542E1187-7AE3-48BD-B45E-F631844299CEFor passing or hill climbing, fully depress
the accelerator pedal to the floor. This
shifts the transmission down into the lower
gear, depending on the vehicle speed.
Fail-safeY51D-V-E01-B4B41F66-217F-4211-9BB6-5500BD56819FWhen the fail-safe operation occurs, note
that the transmission will be locked in any
of the forward gears according to the
condition.
If the vehicle is driven under extreme
conditions, such as excessive wheel spin-
ning and subsequent hard braking, the
fail-safe system may be activated. This will
occur even if all electrical circuits are
functioning properly. In this case, push
the ignition switch to the OFF position and
wait for 3 seconds. Then push the ignition
switch back to the ON position. The vehicle
should return to its normal operating
condition. If it does not return to its normal operating condition, have an
INFINITI retailer check the transmission
and repair if necessary.
Starting and driving5-17
Condition:

Black plate (326,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-24Starting and driving
LANE DEPARTURE WARNING (LDW)
SYSTEM
Y51D-V-E01-BAE9D9B0-19B1-47F7-B827-3ED76A70A5DB
Precautions on LDW systemY51D-V-E01-AEDC76F9-7CD2-4F91-97D1-6C38853B97B9
WARNING
.This system is only a warning device to
inform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It
is the driver’s responsibility to stay
alert, drive safely, keep the vehicle in
the traveling lane, and be in control of
the vehicle at all times.
. The system will not operate at speeds
below approximately 45 MPH (70 km/h)
or if it cannot detect lane markers.
. If the LDW system malfunctions, it will
cancel automatically, and the LDW light
(orange) will illuminate.
. If the LDW light (orange) illuminates,
pull off the road to a safe location and
stop the vehicle. Turn the engine off and
restart the engine. If the LDW light
(orange) continues to illuminate, have
the system checked by an INFINITI
retailer. .
Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
. Do not use the LDW system under the
following conditions as it may not
function properly:—During bad weather (rain, fog, snow,
wind, etc.).
—When driving on slippery roads,such as on ice or snow, etc.
—When driving on winding or uneven roads.
—When there is a lane closure due toroad repairs.
—When driving in a makeshift ortemporary lane.
—When driving on roads where the lane width is too narrow.
—When driving without normal tireconditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).
—When the vehicle is equipped withnon-original brake parts or suspen-
sion parts.
The system may not function properly
under the following conditions:
. On roads where there are multiple
parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-stan-
dard lane markers; or lane markers
covered with water, dirt, snow, etc.
. On roads where the discontinued lane
markers are still detectable.
. On roads where there are sharp curves.
. On roads where there are sharply
contrasting objects, such as shadows,
snow, water, wheel ruts, seams or lines
remaining after road repairs. (The LDW
system could detect these items as
lane markers.)
. On roads where the traveling lane
merges or separates.
. When the vehicle’s traveling direction
does not align with the lane marker.
. When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
. When rain, snow, dirt or object adheres
to the windshield in front of the lane
camera unit.
Condition:

Black plate (327,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

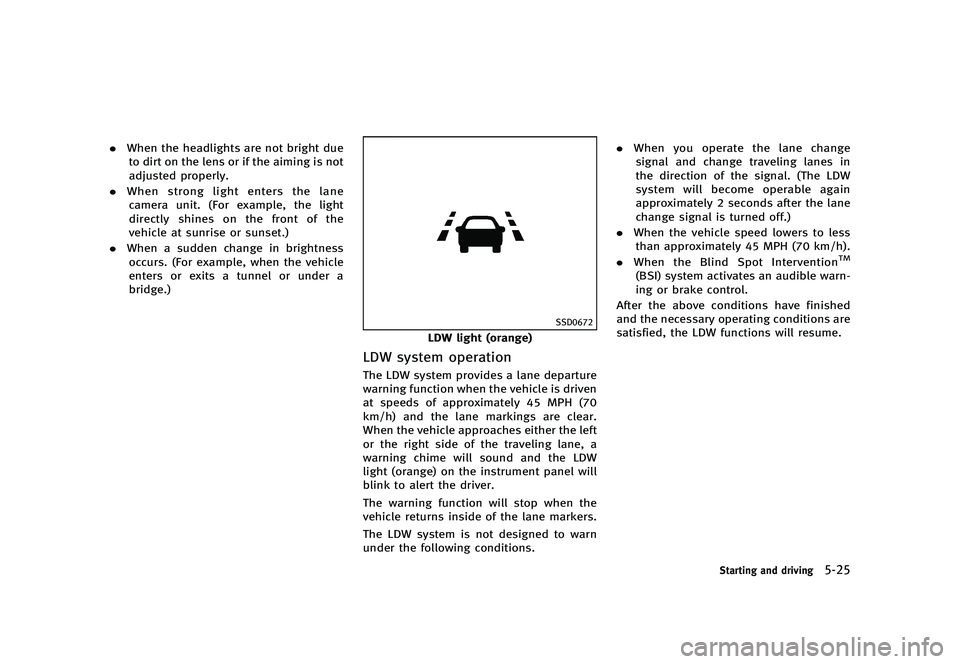

.When the headlights are not bright due
to dirt on the lens or if the aiming is not
adjusted properly.
. When strong light enters the lane
camera unit. (For example, the light
directly shines on the front of the
vehicle at sunrise or sunset.)
. When a sudden change in brightness
occurs. (For example, when the vehicle
enters or exits a tunnel or under a
bridge.)
SSD0672
LDW light (orange)
LDW system operationY51D-V-E01-2391B14F-5202-4D89-899F-8F7E17F895CDThe LDW system provides a lane departure
warning function when the vehicle is driven
at speeds of approximately 45 MPH (70
km/h) and the lane markings are clear.
When the vehicle approaches either the left
or the right side of the traveling lane, a
warning chime will sound and the LDW
light (orange) on the instrument panel will
blink to alert the driver.
The warning function will stop when the
vehicle returns inside of the lane markers.
The LDW system is not designed to warn
under the following conditions. .
When you operate the lane change
signal and change traveling lanes in
the direction of the signal. (The LDW
system will become operable again
approximately 2 seconds after the lane
change signal is turned off.)
. When the vehicle speed lowers to less
than approximately 45 MPH (70 km/h).
. When the Blind Spot Intervention
TM
(BSI) system activates an audible warn-
ing or brake control.
After the above conditions have finished
and the necessary operating conditions are
satisfied, the LDW functions will resume.
Starting and driving5-25
Condition:

Black plate (329,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
How to enable/disable the LDW
system using the settings menu
GUID-5D4D0FCE-7292-4390-BC0D-D7430B968B9APerform the following steps to enable or
disable the LDW system.
1. Push the SETTING
*1button and high-
light the “Driver Assistance” key on the
display using the INFINITI controller.
Then push the ENTER
*2button.
2. Highlight the “Driver Assistance Warn-
ings” key, and push the ENTER
*2
button.
JVS0080X
3. Highlight the “Lane Departure Warning”
key, select ON (enabled) or OFF (dis-
abled) and push the ENTER
*2button.
Temporary disabled status at high
temperature
Y51D-V-E01-0B0A10AE-593E-4626-BBFE-8D84CAD69C22If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 1048F (408C) and then
started, the LDW system may be deacti-
vated automatically. The LDW light (orange)
will flash.
When the interior temperature is reduced,
the LDW system will resume operating
automatically and the LDW light (orange) will stop flashing.
LANE DEPARTURE PREVENTION
(LDP) SYSTEM
Y51D-V-E01-FB6B6FAC-AB51-42A2-8866-1B9A38526E24
Precautions on LDP systemY51D-V-E01-AA7B1886-AED0-4152-91F5-D6A9157BE770
WARNING
.
The LDP system will not steer the vehicle
or prevent loss of control. It is the
driver’s responsibility to stay alert, drive
safely, keep the vehicle in the traveling
lane, and be in control of vehicle at all
times.
. The LDP system is primarily intended for
use on well-developed freeways or high-
ways. It may not detect the lane markers
in certain roads, weather or driving
conditions.
. Using the LDP system under some
conditions of road, lane marker or
weather, or when you change lanes
without using the lane change signal
could lead to an unexpected system
operation. In such conditions, you need
to correct the vehicle’s direction with
your steering operation to avoid acci-
dents.
Starting and driving5-27
Condition:

Black plate (330,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
5-28Starting and driving
.When the LDP system is operating, avoid
excessive or sudden steering maneu-
vers. Otherwise, you could lose control
of the vehicle.
. The LDP system will not operate at
speeds below approximately 45 MPH
(70 km/h) or if it cannot detect lane
markers.
. Do not use the LDP system under the
following conditions as it may not
function properly:
—During bad weather (rain, fog, snow,
wind, etc.).
—When driving on slippery roads,
such as on ice or snow, etc.
—When driving on winding or uneven roads.
—When there is a lane closure due to
road repairs.
—When driving in a makeshift ortemporary lane.
—When driving on roads where the
lane width is too narrow.
—When driving without normal tireconditions (for example, tire wear,
low tire pressure, installation of spare tire, tire chains, non-standard
wheels).
—When the vehicle is equipped with
non-original brake parts or suspen-
sion parts.
. If the LDP system malfunctions, it will
cancel automatically. The LDW light
(orange) on the instrument panel will
illuminate.
. If the LDW light (orange) illuminates,
pull off the road to a safe location and
stop the vehicle. Turn the engine off and
restart the engine. If the LDW light
(orange) continues to illuminate, have
the LDP system checked by an INFINITI
retailer.
. Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
The functions of the LDP system (warning
and system application of the brakes) may
or may not operate properly under the
following conditions:
.On roads where there are multiple
parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-stan- dard lane markers; lane markers cov-
ered with water, dirt, snow, etc.
. On roads where discontinued lane
markers are still detectable.
. On roads where there are sharp curves.
. On roads where there are sharply
contrasting objects, such as shadows,
snow, water, wheel ruts, seams or lines
remaining after road repairs. (The LDP
system could detect these items as
lane markers.)
. On roads where the traveling lane
merges or separates.
. When the vehicle’s traveling direction
does not align with the lane marker.
. When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
. When rain, snow, dirt or object adheres
to the windshield in front of the lane
camera unit.
. When the headlights are not bright due
to dirt on the lens or if the aiming is not
adjusted properly.
. When strong light enters the lane
camera unit. (For example, the light
directly shines on the front of the
vehicle at sunrise or sunset.)
Condition:

Black plate (331,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
.When a sudden change in brightness
occurs. (For example, when the vehicle
enters or exits a tunnel or under a
bridge.)
While the LDP system is operating, you
may hear a sound of brake operation. This
is normal and indicates that the LDP
system is operating properly.
SSD0672
LDW light (green)/ (orange)
LDP system operationY51D-V-E01-D11B0416-778F-476C-9CAA-E313B05913FEThe LDP system provides a lane departure
warning and can automatically apply the
brakes when the vehicle is driven at
speeds of approximately 45 MPH (70
km/h) and above. When the vehicle
approaches either the left or the right side
of the traveling lane, a warning chime will
sound and the LDW light (orange) on the
instrument panel will blink to alert the
driver. Then, the LDP system will automa-
tically apply the brakes for a short period
of time to help assist the driver to return
the vehicle to the center of the traveling lane.
The warning and assist functions will stop
when the vehicle returns to a position
inside of the lane marker.
Starting and driving5-29
Condition:

Black plate (341,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
rain, fog, snow, wind, etc.)
—When driving on slippery roads,such as on ice or snow, etc.
—When driving on winding or uneven roads.
—When there is a lane closure due to
road repairs.
—When driving in a makeshift lane.
—When driving on roads where thelane width is too narrow.
—When driving with a tire that is notwithin normal tire conditions (for
example, tire wear, low tire pressure,
installation of spare tire, tire chains,
non-standard wheels).
—When the vehicle is equipped withnon-original brake parts or suspen-
sion parts.
. Excessive noise (for example, audio
system volume, open vehicle window)
will interfere with the chime sound, and
it may not be heard.
.The radar sensors may not be able to
detect and activate BSI/BSW when
certain objects are present such as: —
Pedestrians, bicycles, animals
— Vehicles such as motorcycles, low
height vehicles, or high ground
clearance vehicles
— Oncoming vehicles
— Vehicles remaining in the detection
zone when you accelerate from a
stop
(See “BSW/BSI driving situations”
(P.5-40))
— A vehicle merging into an adjacent
lane at a speed approximately the
same as your vehicle
(See “BSW/BSI driving situations”
(P.5-40))
— A vehicle approaching rapidly from
behind.
(See “BSW/BSI driving situations”
(P.5-40))
— A vehicle which your vehicle over-
takes rapidly.
(See “BSW/BSI driving situations”
(P.5-40))
. Severe weather or road spray condi-
tions may reduce the ability of the
radar to detect other vehicles.
. The radar sensors detection zone is
designed based on a standard lane
width. When driving in a wider lane, the radar sensors may not detect vehicles
in an adjacent lane. When driving in a
narrow lane, the radar sensors may
detect vehicles driving two lanes away.
. The radar sensors are designed to
ignore most stationary objects, how-
ever objects such as guardrails, walls,
foliage and parked vehicles may occa-
sionally be detected. This is a normal
operating condition.
. The camera may not detect lane mar-
kers in the following situations and the
BSI system may not operate properly.
— On roads where there are multiple
parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane mar-
kers covered with water, dirt, snow,
etc.
— On roads where discontinued lane
markers are still detectable.
— On roads where there are sharp
curves.
— On roads where there are sharply
contrasting objects, such as sha-
dows, snow, water, wheel ruts,
seams or lines remaining after road
repairs.
Starting and driving5-39
Condition:
