2014 INFINITI Q70 navigation system

Black plate (179,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Vehicle information displayY51D-V-E01-91BD5A40-E22F-4072-A15D-2F69CCDEB4E71. Push the INFO button on the controlpanel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the informa- tion on the following screens, push the
BACK button to return to the INFO
menu.
See the separate Navigation System Own-
er’s Manual for the following items:
. Infiniti Connection
. Traffic Info
. Weather Info
. Where am I?
. Map Update
. Navigation Version
. GPS Position
When the ignition switch is in the ON
position, the “Navigation Version” key is
displayed after selecting the “Others”key.
SAA2479
Models with navigation system
SAA2480
Models with navigation system
JVH0180M
Models without navigation system
JVH0181M
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-11
Condition:

Black plate (180,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-12Monitor, climate, audio, phone and voice recognition systems
Fuel Economy informationY51D-V-E01-F4E666E1-1CB1-4D9B-9386-EB660514763AThe approximate distance to empty, aver-
age fuel economy and current fuel econo-
my will be displayed for reference.
To reset the average fuel economy (Avg
Fuel Econ), select the“Reset Fuel Eco”or
“Reset” key.
If the “Fuel Eco History” or“View” key is
selected, the average fuel consumption
history will be displayed in graph form
along with the average for the previous
Reset-to-Reset period.
The unit can be converted between “US”
and “Metric”. (See “How to use SETTING
button” (P.4-16).)
The fuel economy information may differ
from the information displayed on the dot
matrix liquid crystal display. This is due to
the timing difference in updating the
information and does not indicate a mal-
function.
For models without the navigation system,
the information can be displayed by
pushing the
ECON button on the
control panel.
JVH0248X
Models with navigation system
JVH0249X
Models without navigation system
TIRE PRESSURE informationY51D-V-E01-8FD3B778-0AC2-4A51-AB99-5D418C2B732B
WARNING
. When a spare tire is mounted or a wheel
is replaced, tire pressure will not be
indicated, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
The tire pressure will be displayed for
reference.
The pressure indication “*** kPa”or“***
psi” on the screen means that the pressure
is being measured. After a few driving
trips, the pressure for each tire will be
displayed.
For models with navigation system, to
change the measurement units, select the
“Select Units” key with the INFINITI con-
troller and push the ENTER button.
Condition:

Black plate (181,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
The unit can be converted in the LANGUAGE
& UNITS settings display. (See“How to use
SETTING button” (P.4-16) for details.)
In case of low tire pressure, LOW PRES-
SURE information will be displayed on the
screen. Check the pressure of all tires.
Tire pressure rises and falls depending on
the heat caused by the vehicle’s traveling
condition and the temperature.
After tire rotation is performed, tire pres-
sure will not be displayed in the actual tire
position. Drive the vehicle at over 25 MPH
(40 km/h) for approximately 10 minutes to
reset the display.
For more details about the Tire Pressure
Monitoring System (TPMS), see “Tire Pres-
sure Monitoring System (TPMS)” (P.5-4).
When the ignition switch is in the ACC
position, the “Tire Pressure” key is not
displayed.
SAA2481
SAA2482
Models with navigation system
JVH0183M
JVH0184M
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-13
Condition:

Black plate (182,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-14Monitor, climate, audio, phone and voice recognition systems

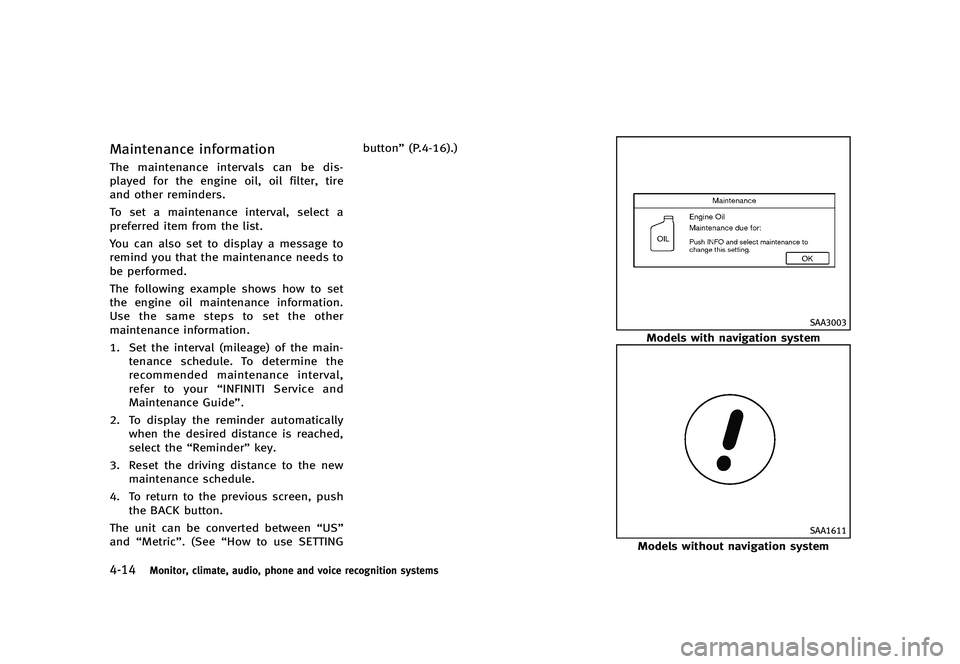

Maintenance informationY51D-V-E01-FCA7EADE-3AAB-4F62-9095-D51FFDE722D6The maintenance intervals can be dis-
played for the engine oil, oil filter, tire
and other reminders.
To set a maintenance interval, select a
preferred item from the list.
You can also set to display a message to
remind you that the maintenance needs to
be performed.
The following example shows how to set
the engine oil maintenance information.
Use the same steps to set the other
maintenance information.
1. Set the interval (mileage) of the main-tenance schedule. To determine the
recommended maintenance interval,
refer to your “INFINITI Service and
Maintenance Guide”.
2. To display the reminder automatically when the desired distance is reached,
select the “Reminder” key.
3. Reset the driving distance to the new maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US”
and “Metric”. (See “How to use SETTING button”
(P.4-16).)
SAA3003
Models with navigation system
SAA1611
Models without navigation system
Condition:

Black plate (183,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
The Reminder will be automatically dis-
played when the specified distance has
been driven and every time the ignition
switch is pushed to the ACC or ON position.
The reminder will not appear while driving.
Select the“OK”key to hide the reminder
for the rest of the current drive.
To stop the reminder from appearing,
perform one of the following actions:
. Select the “Reset Distance” key.
. Deactivate the “Reminder”.
. Increase the “Interval”distance to be
more than the current distance being
tracked.
JVH0272M
Others information (models with
navigation system)
Y51D-V-E01-E0F87E16-0593-408A-A004-FF5171E38CEDThe Others information display will appear
when pushing the INFO button and select-
ing the “Others” key.
Map Update:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0For the details of this item, see the
separate Navigation System Owner’s Man-
ual.
Navigation Version:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0For the details of this item, see the
separate Navigation System Owner’s Man-
ual. When the ignition switch is in the ignition
position, the
“Navigation Version” key is
displayed after pushing the INFO button.
GPS Position:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0For the details of this item, see the
separate Navigation System Owner’s Man-
ual.
Voice Recognition:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0For the details of this item, see “INFINITI
Voice Recognition system (models with
navigation system)” (P.4-109).
Monitor, climate, audio, phone and voice recognition systems4-15
Condition:

Black plate (184,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-16Monitor, climate, audio, phone and voice recognition systems
SAA3009
Models with navigation system
JVH0250X
Models without navigation system
HOW TO USE SETTING BUTTONY51D-V-E01-D7802818-69AA-4E09-9C01-AC61117C3752The display as illustrated will appear when
the SETTING button is pushed.
For navigation settings, refer to the sepa-
rate Navigation System Owner’s Manual.
SAA2485
Models with navigation system
JVH0251X
Models without navigation system
Condition:

Black plate (185,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Audio settingsY51D-V-E01-D6BC25CF-55FF-40AA-91C1-9D749AA404B2The display as illustrated will appear when
pushing the SETTING button and selecting
the“Audio” key.
Bass/Treble/Balance/Fade:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0To adjust the speaker tone quality and
sound balance, select the “Bass”,“Treble”,
“Balance ”or “Fade” key and adjust it with
the INFINITI controller.
These items can also be adjusted by
pushing and turning the AUDIO knob.
Speed Sensitive Vol. (if so equipped):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The audio system’s volume is increased
with the vehicle speed. Select the “Speed
Sensitive Vol.” key and adjust the effect
level with the INFINITI controller. The Speed
Sensitive Volume function is turned off
when the level is set to OFF. Increasing the
value will cause the volume to increase
faster with vehicle speed.
Precision Phased Audio (if so equipped):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, super high
pitch sound and super low pitch sound are
emphasized and midrange sound is played
naturally. BOSE
®Centerpoint®(if so equipped):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, an exciting
surround sound effect is generated from a
traditional stereo recording.
BOSE
®AudioPilot®(if so equipped):GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0BOSE®AudioPilot®adjusts the volume and
sound quality depending on the changes of
the vehicle speeds and the noise picked up
by the microphone. It compensates for
noise for different road surface conditions
and open windows.
Surround Effect (if so equipped):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0To adjust the surround sound volume,
select “Surround Effect” key and adjust it
with the INFINITI controller.
DivX
®Registration Code (models with
navigation system):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0The registration code for a device that is
used to download DivX®files will be
displayed on the screen. If a disc is loaded
or a USB memory is connected to the audio
system, this function will not be activated.
Display Album Cover Art (models with
navigation system):
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, the album
cover image is displayed when playing
iPod
®or MP3 music files through a CD, DVD or USB memory. When the image is
not properly embedded in the file or
device, the image will not be displayed.
Phone settings (models with navi-
gation system)
Y51D-V-E01-7D06210B-67BA-47C1-B33F-0F7AE684A83BFor details of the
“Phone”settings, see
“Bluetooth®Hands-Free Phone System
(models with navigation system)” (P.4-85).
Bluetooth®settings (models with
navigation system)
Y51D-V-E01-5F39FAB1-CA3C-42C4-A0E5-B7F0A83ADD39For details of the “Bluetooth®”settings,
see “Bluetooth®Hands-Free Phone System
(models with navigation system)” (P.4-85)
or “Bluetooth
®streaming audio (models
with navigation system)” (P.4-74).
Monitor, climate, audio, phone and voice recognition systems4-17
Condition:

Black plate (186,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-18Monitor, climate, audio, phone and voice recognition systems
SAA2554
Volume and Beeps settings (models
with navigation system)
Y51D-V-E01-1F52F401-A0F1-43DB-9C42-F881EFE4D287The display as illustrated will appear when
pushing the SETTING button, selecting the
“Volume & Beeps”key.
Audio Volume:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0To increase or decrease the audio volume,
select the “Audio Volume” key and adjust
it with the INFINITI controller.
Guidance Volume:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0To adjust the guidance voice volume, select
the “Guidance Volume” key and adjust it
with the INFINITI controller. Ringtone/Incoming Call/Outgoing Call:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0For the details of these items, see
“Blue-
tooth®Hands-Free Phone System (models
with navigation system)” (P.4-85).
Switch Beeps:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, you will
hear a beep sound when you use a button.
Guidance Voice:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, you will
hear voice guidance in the navigation
operation or in other operations.
JVH0176M
Switch Beeps settings (models
without navigation system)
Y51D-V-E01-9C169DA0-AC51-4928-B0DC-07D98431A656The “Switch Beeps” screen will appear
when pushing the SETTING button, select-
ing the “Switch Beeps” key with the
INFINITI controller and pushing the ENTER
button.
Switch Beeps:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0When this item is turned to ON, you will
hear a beep sound when you use a button.
ECO DRIVE settings (if so equipped)Y51D-V-E01-AF9127FB-4313-4532-B1C1-1E5F2A7A0FE1To adjust the Eco pedal driver’s assist,
select the “Standard”, “Soft“or“OFF” key
Condition:
