2014 INFINITI Q70 navigation system

Black plate (169,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4 Monitor, climate, audio, phone and voice recogni-tion systems
Safety note ...
.......................................................... 4-3
Center multi-function control panel ...
...................... 4-4
How to use INFINITI controller ...
.......................... 4-6
How to use touch screen (models with
navigation system) ...
.......................................... 4-6
Menu options (models with
navigation system) ...
.......................................... 4-8
How to select menus on the screen ...
................. 4-9
Vehicle information and settings ...
........................ 4-10
How to use STATUS button ...
............................ 4-10
How to use brightness control and display
ON/OFF button ...
.............................................. 4-10
How to use DISP button ...
................................ 4-10
How to use ECON button (models without
navigation system) ...
........................................ 4-10
How to use INFO button ...
................................ 4-10
How to use SETTING button ...
........................... 4-16
RearView monitor ...
.............................................. 4-26
How to read displayed lines ...
.......................... 4-27
How to park with predictive course lines ...
....... 4-28
Difference between predictive and
actual distances ...
............................................ 4-29
Predictive course line settings ...
....................... 4-32
How to adjust screen ...
.................................... 4-32
Sonar indicator (if so equipped) ...
.................... 4-33 Operating tips
...
.............................................. 4-33
Ventilators ...
........................................................ 4-33
Automatic climate control ...
.................................. 4-34
Automatic climate control (Type A) ...
............... 4-37
Automatic climate control (Type B) ...
............... 4-41
Forest Air
®(if so equipped) ...
......................... 4-43
Operating tips ...
.............................................. 4-47
Linking Intelligent Key ...
................................. 4-48
In-cabin microfilter ...
....................................... 4-48
Servicing climate control ...
.............................. 4-48
Audio system ...
.................................................... 4-49
Audio operation precautions ...
........................ 4-49
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................... 4-62
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
.................. 4-66
USB input operation ...
.................................... 4-69
Bluetooth
®streaming audio (models with
navigation system) ...
....................................... 4-74
iPod
®player operation ...
................................ 4-79
CD/DVD/USB memory care and cleaning ...
...... 4-81
Steering-wheel-mounted controls
for audio ...
..................................................... 4-82
Antenna ...
....................................................... 4-83
Car phone or CB radio ...
...................................... 4-84
Condition:

Black plate (170,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Bluetooth®Hands-Free Phone System
(models with navigation system) ...
........................ 4-85
Regulatory information ...
.................................. 4-86
Voice commands ...
........................................... 4-86
Control buttons ...
............................................. 4-87
Connecting procedure ...
.................................... 4-87
Phone selection ...
............................................. 4-88
Quick Dial ...
..................................................... 4-88
Making a call ...
................................................ 4-90
Receiving a call ...
............................................. 4-91
During a call ...
................................................. 4-92
Phone setting ...
................................................ 4-92
Troubleshooting guide ...
................................... 4-94
Bluetooth
®Hands-Free Phone System
(models without navigation system) ...
................... 4-95
Regulatory information ...
.................................. 4-96 Control buttons
...
............................................ 4-97
Voice recognition system ...
............................. 4-97
Pairing procedure ...
...................................... 4-102
Phonebook registration ...
.............................. 4-103
Making a call ...
............................................. 4-104
Receiving a call ...
.......................................... 4-104
During a call ...
.............................................. 4-104
Phone settings ...
........................................... 4-105
Voice adaptation mode ...
.............................. 4-108
INFINITI Voice Recognition system (models with
navigation system) ...
.......................................... 4-109
INFINITI Voice Recognition
standard mode ...
.......................................... 4-110
Using the system ...
....................................... 4-113
INFINITI Voice Recognition alternate
command mode ...
......................................... 4-121
Using the system ...
....................................... 4-129
Troubleshooting guide ...
............................... 4-134
Condition:

Black plate (172,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-4Monitor, climate, audio, phone and voice recognition systems
Y51D-V-E01-D43391EA-34C3-427B-8F03-AEF473377191
SAA2953
Models with navigation system
1. “DISP” display setting button (P.4-10)
2, 5, 6. For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.) 3.
“INFO” vehicle and navigation infor-
mation button (P.4-10)
4. “SETTING” button (P.4-16)
7. INFINITI controller (P.4-6)
8. “STATUS” status display button
(P.4-10) 9.
“
OFF” brightness control and
display ON/OFF button (P.4-10)
CENTER MULTI-FUNCTION CONTROL PANEL
Condition:

Black plate (173,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SAA2954
Models without navigation system
1. “INFO” vehicle information button
(P.4-10)
2. “STATUS” status display button
(P.4-10)
3. “DISP” display setting button (P.4-10)
4. “
”brightness UP button (P.4-10) 5.
“
ECON” button (P.4-10)
6. “SETTING” button (P.4-16)
7. INFINITI controller (P.4-6)
8. “
OFF” brightness control and
display ON/OFF button (P.4-10) 9.
“
”brightness DOWN button
(P.4-10)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
Monitor, climate, audio, phone and voice recognition systems4-5
Condition:

Black plate (174,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-6Monitor, climate, audio, phone and voice recognition systems
SAA2955
Models with navigation system
SAA2956
Models without navigation system
HOW TO USE INFINITI CONTROLLERY51D-V-E01-81257972-4FFA-44BB-89C0-5DC8A6572A3CChoose an item on the display by rotating
or pushing the center dial
*2upward/
downward, and push the ENTER button
*1
for operation.
If you push the BACK button
*3before the
setup is completed, the setup will be
canceled and/or the display will return to
the previous screen.
After the setup is completed, push the
BACK button
*3and return to the previous
screen.
For the VOICE button
*4functions, refer to
the separate Navigation System Owner’s
Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
Y51D-V-E01-E3646515-44AE-4EF5-8609-E7E4870E4D3C
CAUTION
. The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. If the glass screen
breaks, do not touch it. Doing so could
result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is necessary, use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “grayed
out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that could
distract you. If distracted, you could lose
control of your vehicle and cause an
accident.
Condition:

Black plate (176,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

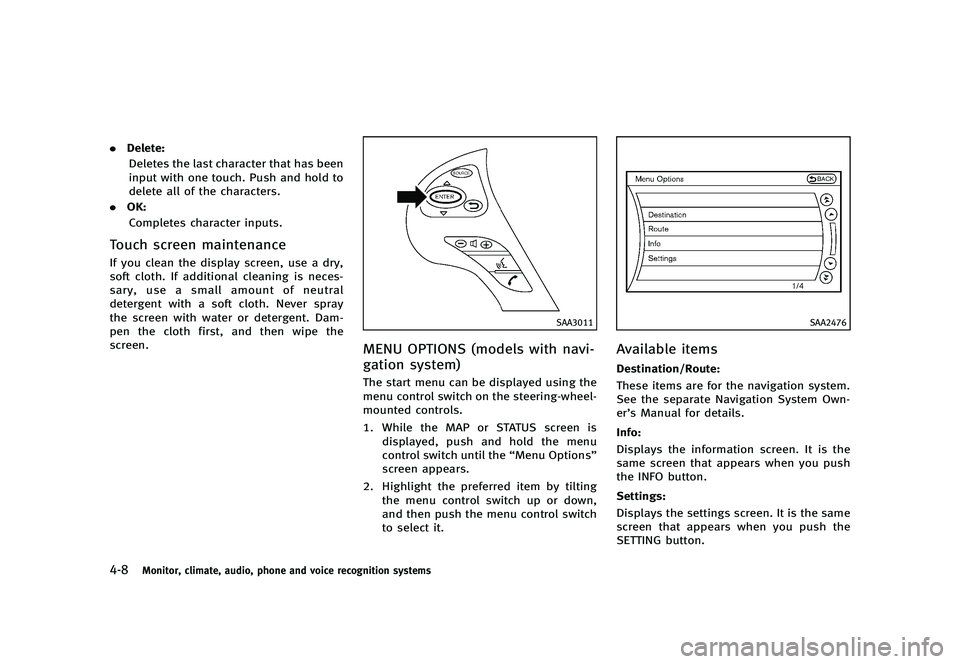

4-8Monitor, climate, audio, phone and voice recognition systems
.Delete:
Deletes the last character that has been
input with one touch. Push and hold to
delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenanceY51D-V-E01-491B2ECA-8F9C-463C-B82A-4020E68B17B2If you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral
detergent with a soft cloth. Never spray
the screen with water or detergent. Dam-
pen the cloth first, and then wipe the
screen.
SAA3011
MENU OPTIONS (models with navi-
gation system)
Y51D-V-E01-47D7B56A-1A5D-45EE-8622-D8477605952FThe start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is displayed, push and hold the menu
control switch until the “Menu Options”
screen appears.
2. Highlight the preferred item by tilting the menu control switch up or down,
and then push the menu control switch
to select it.
SAA2476
Available itemsY51D-V-E01-6B0A1332-273A-422F-BC78-A5B175DC042E
Destination/Route:GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0These items are for the navigation system.
See the separate Navigation System Own-
er’s Manual for details.
Info:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Displays the information screen. It is the
same screen that appears when you push
the INFO button.
Settings:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
Condition:

Black plate (177,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
SAA2477
Models with navigation system
SAA3149
Models without navigation system
HOW TO SELECT MENUS ON THE
SCREEN
Y51D-V-E01-86BB56D9-4948-444F-8C73-EF7EB1C3A5A7Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the
INFINITI controller and push the ENTER
button.
Whenever a menu selection is made or
menu item is highlighted, different areas
on the screen provide you with important
information. See the following for details.
1. Header:Shows the path used to get to the
current screen.
2. Menu Selections: Shows the options to choose within
that menu screen.
3. UP/DOWN Movement indicator: Shows that the INFINITI controller may
be used to move UP/DOWN on the
screen and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu.
5. Footer/Information Line: Provides more information (if available) about the menu selection currently
highlighted.
Monitor, climate, audio, phone and voice recognition systems4-9
Condition:

Black plate (178,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
4-10Monitor, climate, audio, phone and voice recognition systems
Y51D-V-E01-12ABF638-7C1C-4AFD-AD0F-F79EF0C30835
HOW TO USE STATUS BUTTONY51D-V-E01-1F7FDD9D-55DB-4CD2-B7BC-36AA83A45621You can check information related to the
audio, climate control system, fuel con-
sumption and navigation system (if so
equipped) by pressing the STATUS button
repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
Y51D-V-E01-47C1A803-CD64-42B5-B4F4-5B5BF1BC8805Push the“OFF”button to switch the
display brightness to the daytime mode or
the nighttime mode, and to adjust the
display brightness using the INFINITI con-
troller while the indicator is displayed at
the bottom of the screen.
Push and hold the “
OFF”button for
more than 2 seconds to turn the display
off. Push the button again to turn the
display on.
Models without navigation system:
The display brightness can also be ad-
justed using the “
”button or “”
button.
HOW TO USE DISP BUTTONY51D-V-E01-66FB10D2-2840-4A84-8CC2-E3C4679E3AC5Push the DISP button to show the display
setting screen. (See “Display settings
(models without navigation system)” (P.4-
20) or “Display settings (models with
navigation system)” (P.4-20) .)
HOW TO USE ECON BUTTON (mod-
els without navigation system)
Y51D-V-E01-F33D4B2C-B3A2-4597-A2BB-B37393E4DF60Push the“ECON”button to show fuel
economy information. (See “Fuel Economy
information” (P.4-12).)
HOW TO USE INFO BUTTONY51D-V-E01-99586B1F-168B-4156-B513-0080B5E3B7E5The display screen shows vehicle and
navigation (if so equipped) information
for your convenience.
The information shown on the screen
should be a guide to determine the
condition of the vehicle. See the following
for details.
JVH0256M
Models with navigation system
SAA2145
Models without navigation system
VEHICLE INFORMATION AND SETTINGS
Condition:
