2014 Hyundai Santa Fe Owner's Manual

Maintenance
112 7

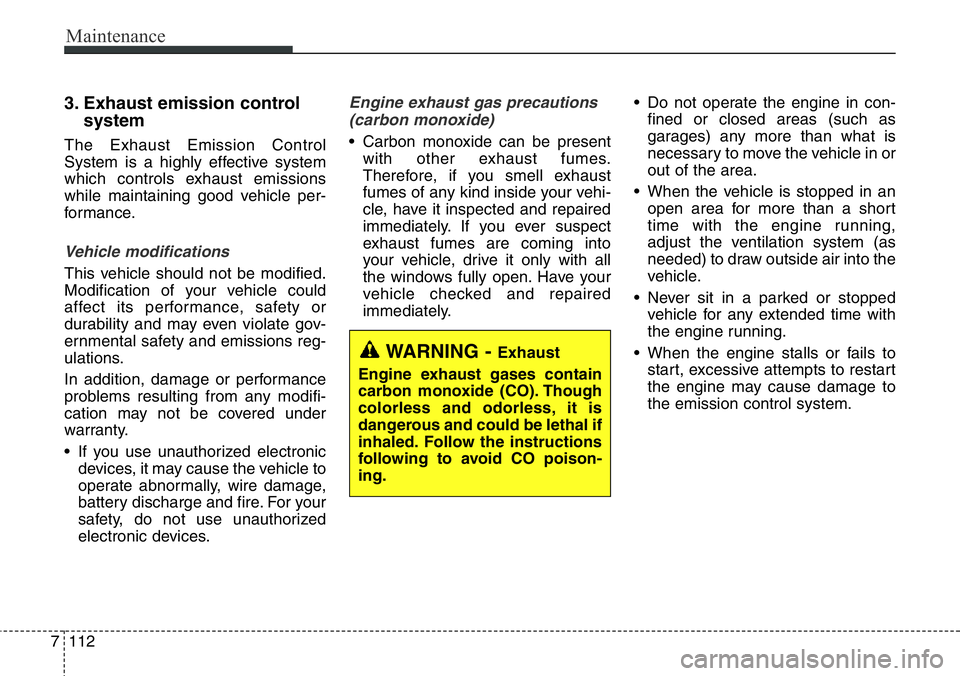

3. Exhaust emission control
system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
• If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
• Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.• Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
• When the vehicle is stopped in an
open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
• Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
• When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to
the emission control system.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poison-
ing.

7113
Maintenance

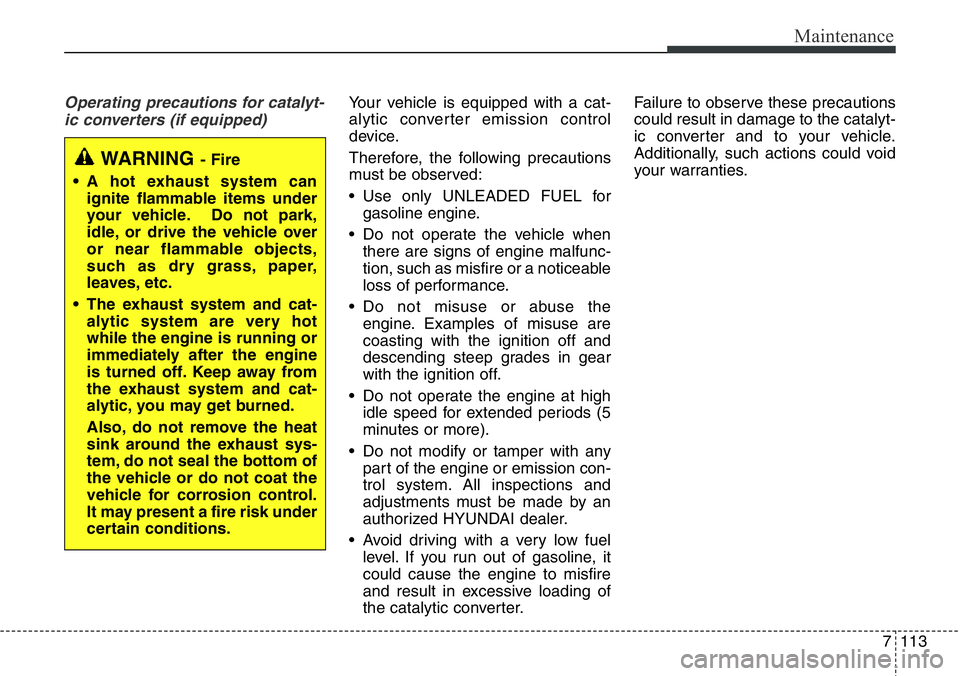

Operating precautions for catalyt-
ic converters (if equipped)Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
• Use only UNLEADED FUEL for
gasoline engine.
• Do not operate the vehicle when
there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
• Do not misuse or abuse the
engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
• Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
• Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
• Avoid driving with a very low fuel
level. If you run out of gasoline, it
could cause the engine to misfire
and result in excessive loading of
the catalytic converter.Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
WARNING- Fire
• A hot exhaust system can
ignite flammable items under
your vehicle. Do not park,
idle, or drive the vehicle over
or near flammable objects,
such as dry grass, paper,
leaves, etc.
• The exhaust system and cat-
alytic system are very hot
while the engine is running or
immediately after the engine
is turned off. Keep away from
the exhaust system and cat-
alytic, you may get burned.
Also, do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

Maintenance
114 7

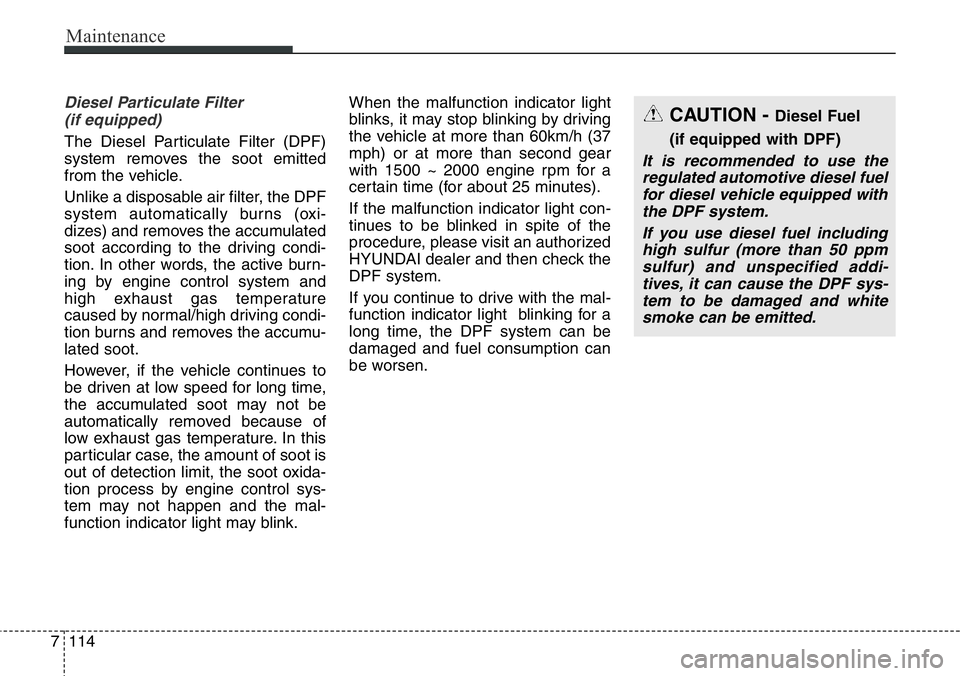

Diesel Particulate Filter
(if equipped)
The Diesel Particulate Filter (DPF)
system removes the soot emitted
from the vehicle.
Unlike a disposable air filter, the DPF
system automatically burns (oxi-
dizes) and removes the accumulated
soot according to the driving condi-
tion. In other words, the active burn-
ing by engine control system and
high exhaust gas temperature
caused by normal/high driving condi-
tion burns and removes the accumu-
lated soot.
However, if the vehicle continues to
be driven at low speed for long time,
the accumulated soot may not be
automatically removed because of
low exhaust gas temperature. In this
particular case, the amount of soot is
out of detection limit, the soot oxida-
tion process by engine control sys-
tem may not happen and the mal-
function indicator light may blink.When the malfunction indicator light
blinks, it may stop blinking by driving
the vehicle at more than 60km/h (37
mph) or at more than second gear
with 1500 ~ 2000 engine rpm for a
certain time (for about 25 minutes).
If the malfunction indicator light con-
tinues to be blinked in spite of the
procedure, please visit an authorized
HYUNDAI dealer and then check the
DPF system.
If you continue to drive with the mal-
function indicator light blinking for a
long time, the DPF system can be
damaged and fuel consumption can
be worsen.
CAUTION - Diesel Fuel
(if equipped with DPF)
It is recommended to use the
regulated automotive diesel fuel
for diesel vehicle equipped with
the DPF system.
If you use diesel fuel including
high sulfur (more than 50 ppm
sulfur) and unspecified addi-
tives, it can cause the DPF sys-
tem to be damaged and white
smoke can be emitted.

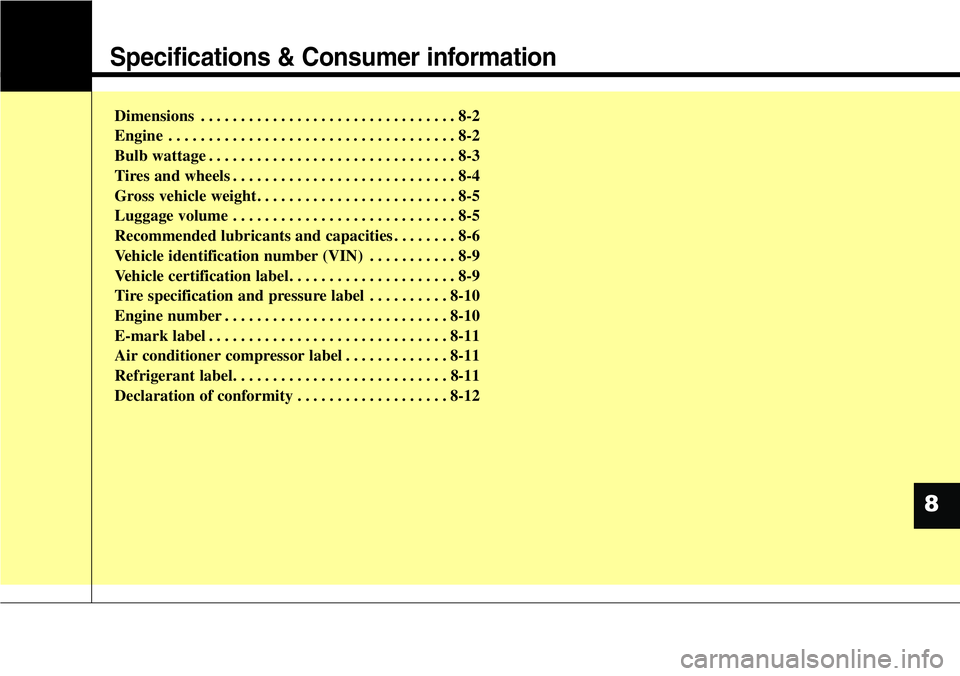

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
E-mark label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Air conditioner compressor label . . . . . . . . . . . . . 8-11
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Declaration of conformity . . . . . . . . . . . . . . . . . . . 8-12
8

Specifications & Consumer information
2 8

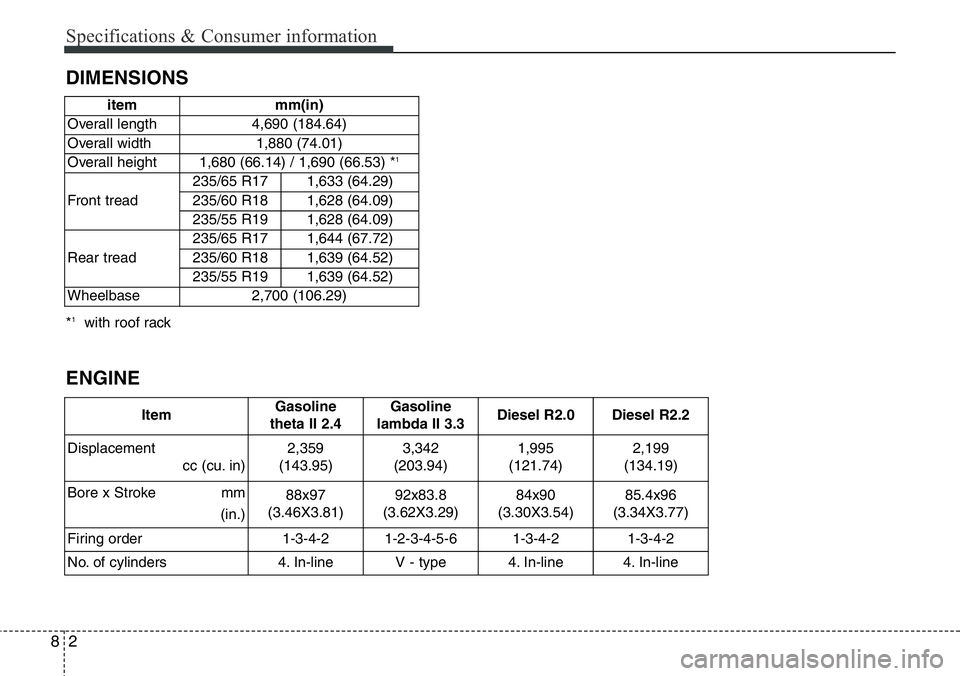

DIMENSIONS
*1with roof rack
ENGINE
ItemGasoline
theta II 2.4Gasoline
lambda II 3.3Diesel R2.0Diesel R2.2
Displacement
cc (cu. in)
2,359
(143.95)3,342
(203.94)1,995
(121.74)2,199
(134.19)
Bore x Stroke mm
(in.)
88x97
(3.46X3.81)92x83.8
(3.62X3.29)84x90
(3.30X3.54)85.4x96
(3.34X3.77)
Firing order
1-3-4-2 1-2-3-4-5-61-3-4-21-3-4-2
No. of cylinders
4. In-line V - type4. In-line4. In-line
item mm(in)
Overall length 4,690 (184.64)
Overall width 1,880 (74.01)
Overall height 1,680 (66.14) / 1,690 (66.53) *
1
Front tread235/65 R17 1,633 (64.29)
235/60 R18 1,628 (64.09)
235/55 R19 1,628 (64.09)
Rear tread235/65 R17 1,644 (67.72)
235/60 R18 1,639 (64.52)
235/55 R19 1,639 (64.52)
Wheelbase 2,700 (106.29)

83
Specifications & Consumer information

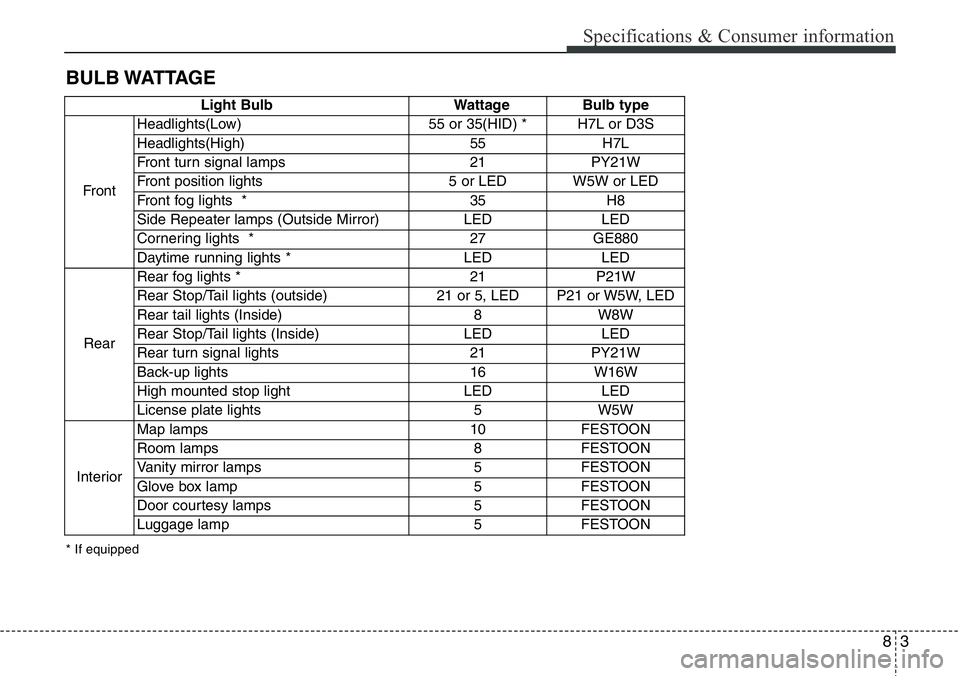

BULB WATTAGE
* If equipped
Light Bulb Wattage Bulb type
FrontHeadlights(Low) 55 or 35(HID) * H7L or D3S
Headlights(High) 55 H7L
Front turn signal lamps 21 PY21W
Front position lights 5 or LED W5W or LED
Front fog lights * 35 H8
Side Repeater lamps (Outside Mirror) LED LED
Cornering lights * 27 GE880
Daytime running lights * LED LED
RearRear fog lights * 21 P21W
Rear Stop/Tail lights (outside) 21 or 5, LED P21 or W5W, LED
Rear tail lights (Inside) 8 W8W
Rear Stop/Tail lights (Inside) LED LED
Rear turn signal lights 21 PY21W
Back-up lights 16 W16W
High mounted stop light LED LED
License plate lights 5 W5W
InteriorMap lamps 10 FESTOON
Room lamps 8 FESTOON
Vanity mirror lamps 5 FESTOON
Glove box lamp 5 FESTOON
Door courtesy lamps 5 FESTOON
Luggage lamp 5 FESTOON

Specifications & Consumer information
4 8

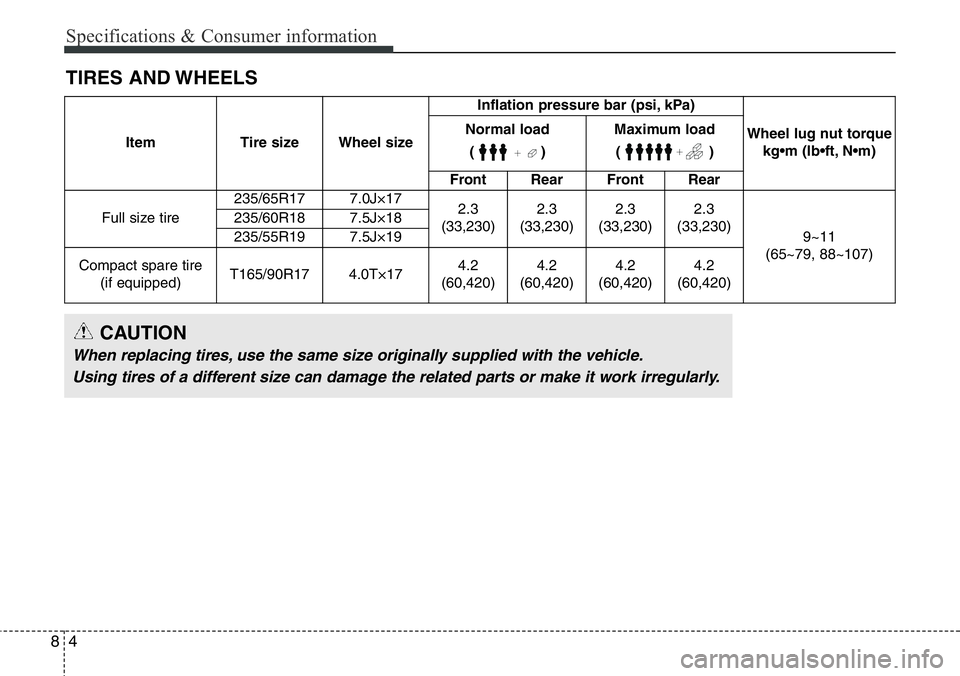

TIRES AND WHEELS
Item Tire size Wheel sizeInflation pressure bar (psi, kPa)
Wheel lug nut torque
kg•m (lb•ft, N•m) Normal load
()Maximum load
()
Front Rear Front Rear
Full size tire235/65R17 7.0J×17
2.3
(33,230)2.3
(33,230)2.3
(33,230)2.3
(33,230)
9~11
(65~79, 88~107) 235/60R18 7.5J×18
235/55R19 7.5J×19
Compact spare tire
(if equipped)T165/90R17 4.0T×174.2
(60,420)4.2
(60,420)4.2
(60,420)4.2
(60,420)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.

85
Specifications & Consumer information

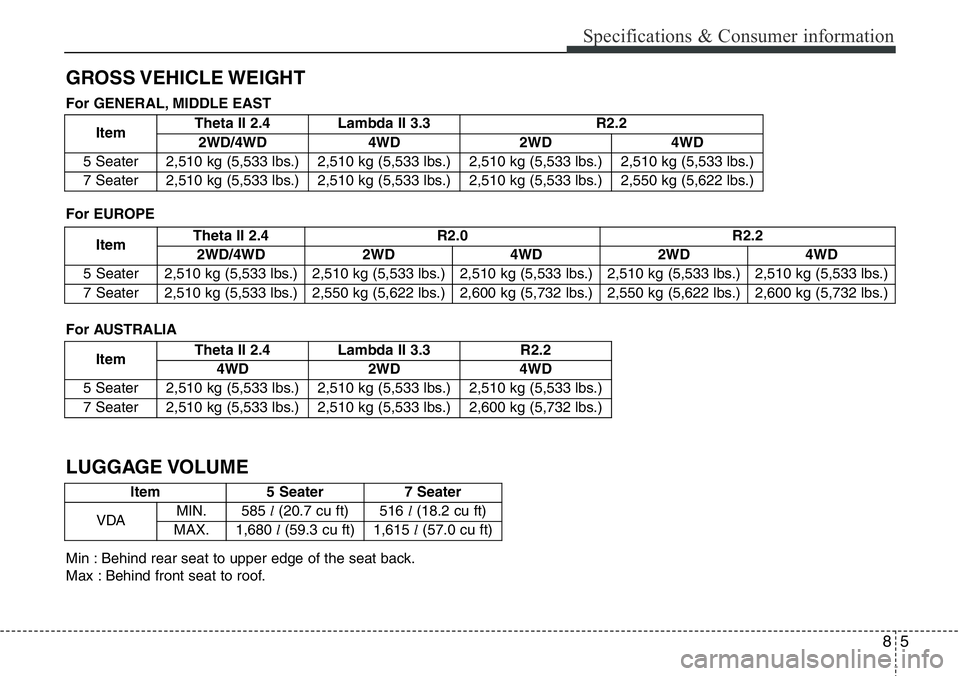

GROSS VEHICLE WEIGHT
ItemTheta II 2.4 R2.0 R2.2
2WD/4WD 2WD 4WD 2WD 4WD
5 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.)
7 Seater 2,510 kg (5,533 lbs.) 2,550 kg (5,622 lbs.) 2,600 kg (5,732 lbs.) 2,550 kg (5,622 lbs.) 2,600 kg (5,732 lbs.)
ItemTheta II 2.4 Lambda II 3.3 R2.2
4WD 2WD 4WD
5 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.)
7 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,600 kg (5,732 lbs.)
ItemTheta II 2.4 Lambda II 3.3 R2.2
2WD/4WD 4WD 2WD 4WD
5 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.)
7 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,550 kg (5,622 lbs.)
For GENERAL, MIDDLE EAST
For EUROPE
For AUSTRALIA
ltem 5 Seater 7 Seater
VDAMIN.585 l(20.7 cu ft) 516 l(18.2 cu ft)
MAX.1,680 l(59.3 cu ft) 1,615 l(57.0 cu ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
LUGGAGE VOLUME
