2014 HYUNDAI I20 display

#!'%$&%" '&$
(( Continued)
• Do not place beverages close to the audio system. Spilling bever-
ages may lead to system m alfunc-
tion.
• In case of product malfunction, please contact your place of pur-
chase or After Service c enter.
• Placing the audio system within an electromagnetic environment may
result in noise interference.
• Prevent caustic solutions such as perfume and cosmetic oil from
contacting the dashboard because
they may cause damage or discol-
oration.
Information on status iconsIcons showing audio status are shown
in the upper-right corner of the screen.
Icon
Description
Mute
Mute engaged
Bluetooth
Remote
Controller
Bluetooth Remote
Control available
Battery
Remaining battery life
of a connected
Bluetooth
®device
Handsfree +
Audio stream-
ing connection
Bluetooth
®
Handsfree
call and audio stream-
ing available
Handsfree
connection
Bluetooth
®
Handsfree
call available
Bluetooth
®
audio streaming
Bluetooth
®
audio
streaming available
Downloading contacts
Downloading contacts
through Bluetooth
®
wireless communica-
tions
Icon
Description
Line busy
Phone call in progress
Mute mic
Mic muted during a
call (caller cannot
hear your voice)
Phone signal strength
Display the phone sig-
nal strength for a cell
phone connected by
Bluetooth
®

#!'%$&%" '&$DDRM Mode❈ The actual features may differ
from the illustration. May change
according to the transmission con-
tent of DRM.(1) BandSwitch between FM, AM and DRM.(2) PresetsView all presets.(3) Services

Cycle between the services available
with the broadcasting frequency.
(4) MenuNavigate to the menu screen.(5) No signalWhen no signal or weak signal in
DRM Mode, Display No signal icon.(6) Services Index• Displays the number of services available with the broadcasting fre-
quency.
• Highlights the currently receiving service.
• No. of services depends on the broadcasting station and it may
vary from 1 ~ 4.(7) Text InformationText Information may or may not be
available and it depends on the
broadcasting station.
Switching between FM, AM and DRM• Press the
[RADIO]
button on the
audio system to switch between
FM, AM and DRM.
• Select [Band] on the screen to switch between FM, AM and DRM.
Searching stationsPress the
[SEEK/TRACK]
button to
search stations.
PresetsSave up to 40 frequently used stations.
To listen to a preset, select the
desired station list.
Press and hold the desired slot from
1 through 40. This saves the current
station in the selected slot.
If the slot is empty, simply selecting
saves the station to the slot.Changing Service• Select [Services ] in order to
cycle between the available servic-
es from 1 ➟ 2 ➟ 3 ➟ 4 ➟ 1.
• Number of services depends on the broadcasting station and can
vary between 1 ~ 4.

##!'%$&%" '&$MMedia
Information
- Using MP3
Supported audio formatsFile formats other than the formats
above may not be recognized or
playable. Information such as file-
n ame may not be displayed.
Range of supported file types1. Bitrate range (Kbps)
2. Bit Per Sample range (bit) 3. Sampling frequency (Hz)
• The sound quality of MP3/WMA
compressed and WAV files may
vary depending on the bitrate. (A
higher bitrate can have better
sound quality.)
• The product only recognizes files with the MP3, WMA or WAV exten-
sion. Files without one of these
extensions are not recognized.
4. Number of recognizable folders and files
• Folders: 2,000 for USB
• Files: 6,000 for USB
• No recognition limit for folder hier- archies.
5. Character display range (Unicode)
• Filenames: Up to 64 English char- acters (64 Korean characters)
• Foldernames: Up to 32 English characters (32 Korean characters)
NOTICEi

#
!'%$&%" '&$
TT he scroll feature can be used to dis-
play file and folder names that are
too long to display on the s creen.Languages supported (Unicode sup-
port)• Korean: 2,604 characters
• English: 94 characters
• Common Chinese characters:
4,888 characters
• Special symbols: 986 charactersJapanese/Simplified Chinese charac-
ters are not supported.
Information- Using the USB Devices
• Starting the vehicle while a USB device is connected can damage the
device. Please disconnect USB
devices before starting the vehicle.
• Starting the vehicle or stopping the engine while an external USB device
is connected can result in failure of
the external USB device to operate.
• Be cautious of static electricity when connecting/disconnecting external
USB devices.
• An encrypted MP3 player is not rec- ognized when connected as an exter-
nal device.
• External USB devices may not be recognized, depending on the state
of the external USB device.
• Only products with byte/sectors for- matted at 4 KB or lower are recog-nized.
• Only USB devices in FAT12/16/32 format are recognized; NTFS and
ExFAT file systems are not recog-
nized.
• Some USB devices are not recog- nized due to compatibility issues.
(Continued)(Continued)
• Do not touch the USB connections.
• Connecting and disconnecting USB
devices rapidly over a short period
of time can cause equipment failure.
• Abnormal sounds may be audible when the USB device is disconnect-
ed.
• Turn the audio off before connecting or disconnecting external USB
devices.
• Recognition may take longer depending on the type, capacity or
file format of the external USB
device. This is not a product mal-
function.
• Use of USB devices for purposes other than playing music files is pro-
hibited.
• Image display and video playback are not supported.
• Use of USB accessories, including charge and heat through the USB
interface, can lead to reduced prod-
uct performance or malfunctions.
Do not use USB devices or acces-
sories for these purposes.
(Continued)
NOTICENOTICE
i

#
!'%$&%" '&$

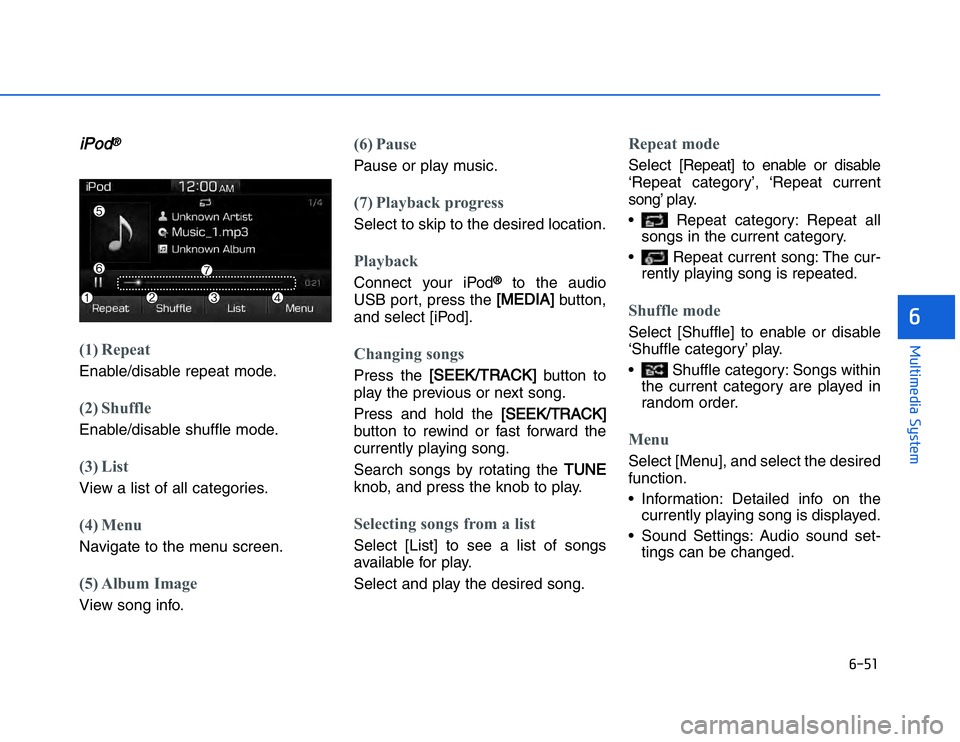

iiPod
®
(1) RepeatEnable/disable repeat mode.(2) ShuffleEnable/disable shuffle mode.(3) ListView a list of all categories. (4) MenuNavigate to the menu screen.(5) Album ImageView song info.
(6) PausePause or play music.(7) Playback progressSelect to skip to the desired location.PlaybackConnect your iPod
®
to the audio
USB port, press the
[MEDIA]
button,
and select [iPod].
Changing songsPress the
[SEEK/TRACK]
button to
play the previous or next song.
Press and hold the
[SEEK/TRACK]
button to rewind or fast forward the
currently playing song.
Search songs by rotating the
TUNE
knob, and press the knob to play.Selecting songs from a listSelect [List] to see a list of songs
available for play.
Select and play the desired song.
Repeat modeSelect [Rep eat] to enable or disable
‘Repeat category’, ‘Repeat current
song’ play.
• Repeat category: Repeat all songs in the current category.
• Repeat current song: The cur- rently playing song is repeated.Shuffle modeSelect [Shuffle] to enable or disable
‘Shuffle category’ play.
• Shuffle category: Songs withinthe current category are played in
random order.MenuSelect [Menu], and select the desired
function.
• Information: Detailed info on thecurrently playing song is displayed.
• Sound Settings: Audio sound set- tings can be changed.

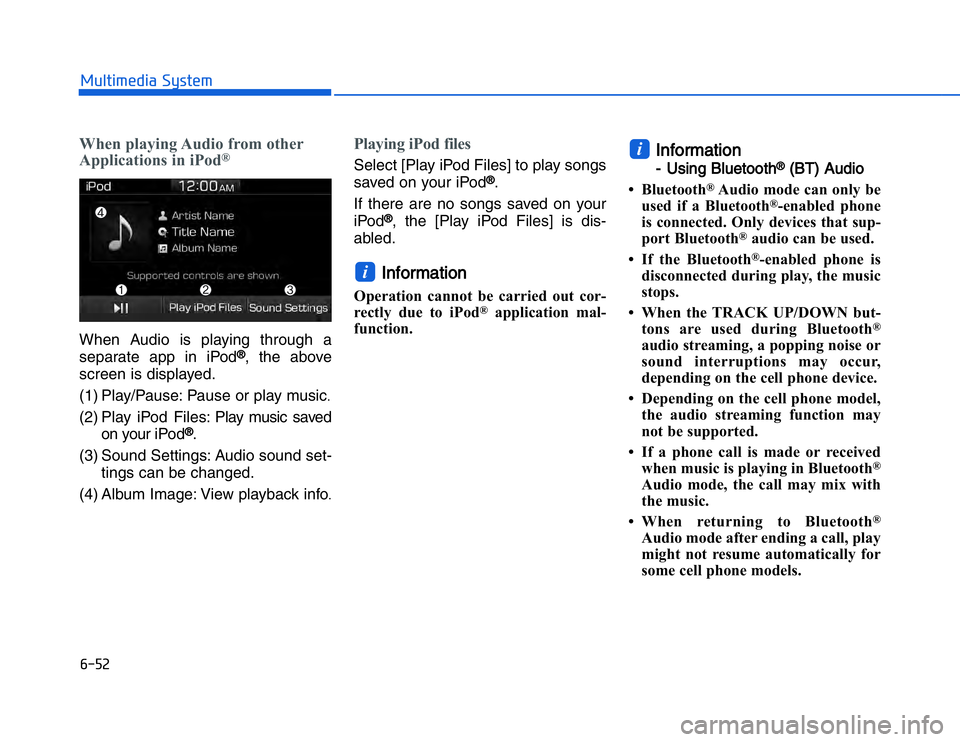

#!'%$&%" '&$When playing Audio from other
Applications in iPod
®
When Audio is playing through a
separate app in iPod
®®, the above
screen is displayed.
(1) Play/Pause: Pause or play music
.
(2) Play iPod Files: Play music saved on your iPod
®.
(3) Sound Settings: Audio sound set- tings can be changed.
(4) Album Image: View playback info
.
Playing iPod filesSelect [Play iPod Files] to play songs
saved on your iPod
®.
If there are no songs saved on your
iPod
®, the [Play iPod Files] is dis-
abled.Information
Operation cannot be carried out cor-
rectly due to iPod
®
application mal-
function.
Information- Using Bluetooth
®
(BT) Audio
• Bluetooth
®Audio mode can only be
used if a Bluetooth
®-enabled phone
is connected. Only devices that sup-
port Bluetooth
®
audio can be used.
• If the Bluetooth®-enabled phone is
disconnected during play, the music
stops.
• When the TRACK UP/DOWN but- tons are used during Bluetooth
®
audio streaming, a popping noise or
sound interruptions may occur,
depending on the cell phone device.
• Depending on the cell phone model, the audio streaming function may
not be supported.
• If a phone call is made or received when music is playing in Bluetooth
®
Audio mode, the call may mix with
the music.
• When returning to Bluetooth
®
Audio mode after ending a call, play
might not resume automatically for
some cell phone models.
i
i

#
!'%$&%" '&$
PPairing a Bluetooth
®
device
Information on pairing Bluetooth
®
devices• Pairing refers to the process ofpairing Bluetooth
®
cell phones or
devices with the system prior to
connection. This is a necessary
procedure for Bluetooth
®
connec-
tion and usage.
• Up to five devices can be paired.
• Pairing Bluetooth
®
device is not
allowed while vehicle is moving.
Pairing the first Bluetooth
®
devices
Press the
[PHONE]
button on the
audio system or the
[CALL]
button on
the steering wheel remote control ➟
Search for the vehicle from the
Bluetooth
®
device, and pair ➟ Enter
t h e p a s s key on the B l u e t o o t h
®
device
or approve passkey ➟ Bluetooth
®
pairing completed.
1. When the
[PHONE]
button on the
audio system or the [CALL]
button
on the steering wheel remote con-
trol is pressed, the following
screen is displayed. Devices can
now be paired. (1) Vehicle name: Searched name in
Bluetooth
®
device.
Information
The vehicle name in the image above
is an example. Refer to your device for
the actual name of your device.
2. Search for available Bluetooth
®
devices in the Bluetooth
®
menu of
your Bluetooth
®
device (cell
phone, etc.).
3. Confirm that the vehicle name in your Bluetooth
®
device matches
the vehicle name shown on the
audio screen, then select it. 4-1. For devices that require passkey
entry, a passkey entry screen is
shown on your Bluetooth
®
device.
- Enter the passkey ‘0000’, in your Bluetooth
®
device.
4-2. For devices that require passkey confirmation, the following
screen is shown on the audio
system. A 6-digit passkey input
screen is shown in the
Bluetooth
®
device.
- After confirming that the 6-digit passkey on the audio screen
and the Bluetooth
®
device are
identical, select [OK] in your
Bluetooth
® device.
i

#
!'%$&%" '&$
If there are connected devicesPress the [
[
PHONE]
button on the
audio system ➟ Select [Settings] ➟
Select [Connections] ➟Select
Bluetooth
®
device to connect ➟Select
[Connect] ➟Connect Bluetooth
®.
Information
• Only two Bluetooth
®
devices can be
connected. One for Calls and Music
and the other for Remote control.
• When a Bluetooth
®device is connect-
ed, other devices cannot be paired.
Accepting/rejecting phone callsReceiving phone calls with
Bluetooth
®
connected.
(1) Caller name: If the caller number is in your contacts, the correspon-
ding name is displayed.
(2) Incoming phone number: Incoming phone number is displayed.
(3) Accept: Accept call.
(4) Reject: Reject call.
Information
• When the incoming call screen is displayed, audio mode and the set-
tings screen cannot be shown. Only
call volume control is supported.
• Some Bluetooth
®may not support the
call reject function.
• Some Bluetooth®
devices may not
support the phone number display
function.
i
i
