CC losing the hood1. Before closing the hood, check the
following:
• All filler caps in engine compart- ment must be correctly installed.
• Gloves, rags or any other com- bustible material must be removed
from the engine compartment.
2. Return the support rod to its clip to prevent it from rattling.
3. Lower the hood halfway (lifted approximately 30cm from the
closed position) and push down to
securely lock in place. Then dou-
ble check to be sure the hood is
secure.
•
Before closing the hood, ensure
that all obstructions are
removed from the hood opening.
Closing the hood with an
obstruction present in the hood
opening may result in property
damage or severe personal
injury.
•
Do not leave gloves, rags or any
other combustible material in the
engine compartment. Doing so
may cause a heat-induced fire.
•
Do not move the vehicle with the
hood raised. The view will be
blocked and the hood could fall
or be damaged.
WARNING
Always double check to be surethat the hood is firmly latched
before driving away. Check there
is no hood open warning light or
message displayed on the instru-
ment cluster. Driving with the hood
opened may cause a total loss of
visibility, which might result in an
accident.
WARNING

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3''#()*"!+#)
%"()+*

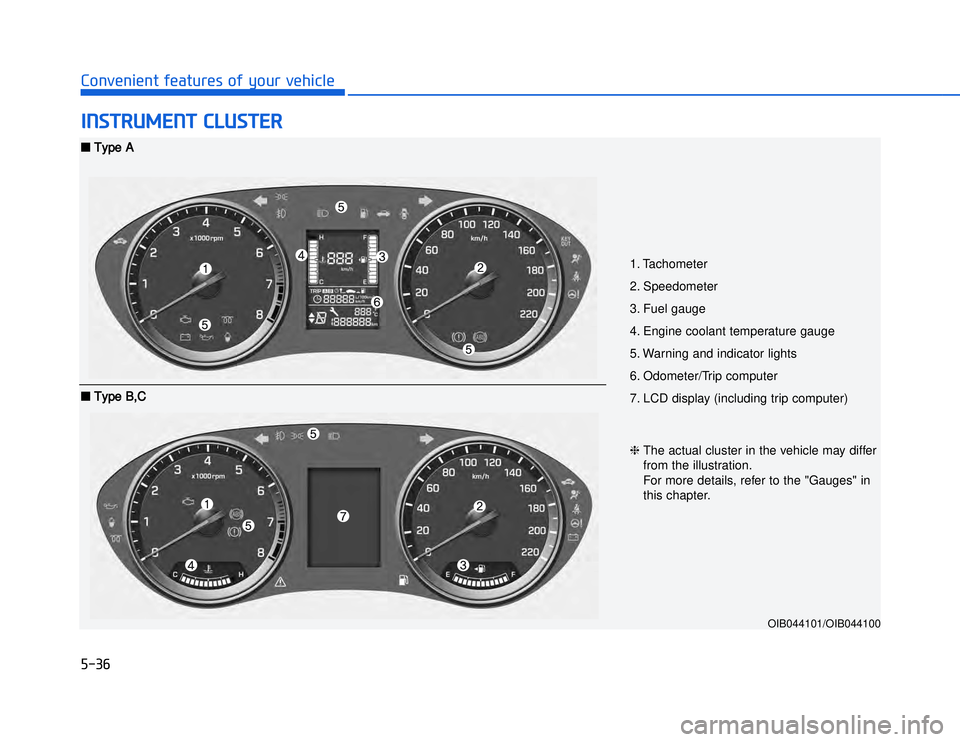

1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. Odometer/Trip computer
7. LCD display (including trip computer)
OIB044101/OIB044100
■ Type A
❈ The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to the "Gauges" in
this chapter.
■Type B,C

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

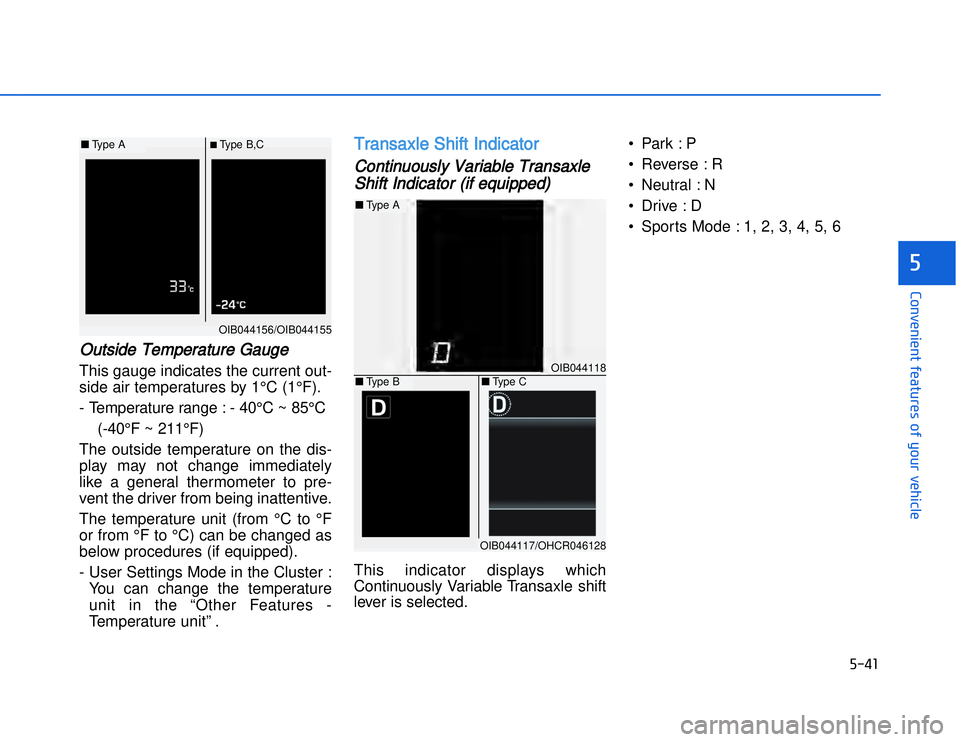

OOutside Temperature GaugeThis gauge indicates the current out-
side air temperatures by 1°C (1°F).
- Temperature range : - 40°C ~ 85°C
(-40°F ~ 211°F)
The outside temperature on the dis-
play may not change immediately
like a general thermometer to pre-
vent the driver from being inattentive.
The temperature unit (from °C to °F
or from °F to °C) can be changed as
below procedures (if equipped).
- User Settings Mode in the Cluster : You can change the temperature
unit in the “Other Features -
Temperature unit” .
Transaxle Shift IndicatorContinuously Variable TransaxleShift Indicator (if equipped)This indicator displays which
Continuously Variable Transaxle shift
lever is selected. • Park : P
• Reverse : R
• Neutral : N
•Drive : D
• Sports Mode : 1, 2, 3, 4, 5, 6
OIB044156/OIB044155
■
Type A
■Type B,C
OIB044118
■Type A■Type B
■Type COIB044117/OHCR046128

LLCD display messages
(if equipped)Shift to "P" position
(for smart key system and Continuously Variable Transaxle)• This warning message illuminates
if you try to turn off the engine with-
out the shift lever in P (Park) posi-
tion.
• At this time, the Engine Start/Stop button turns to the ACC position (If
you press the Engine Start/Stop
button once more, it will turn to the
ON position).
Low Key Battery (for smart key system)This warning message illuminates if
the battery of the smart key is dis-
charged when the Engine Start/Stop
button is in the OFF position.
Press start button while turningwheel (for smart key system)This warning message illuminates if
the steering wheel does not unlock
normally when the Engine Start/Stop
button is pressed.
Press the Engine Start/Stop button
while turning the steering wheel right
and left.
)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OIB044130/OHCR046113
■
Type B ■Type C
OIB044131/OIB047131-
■
Type B ■Type C
OIB044132/OHCR046115
■
Ty p e B ■Type C

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

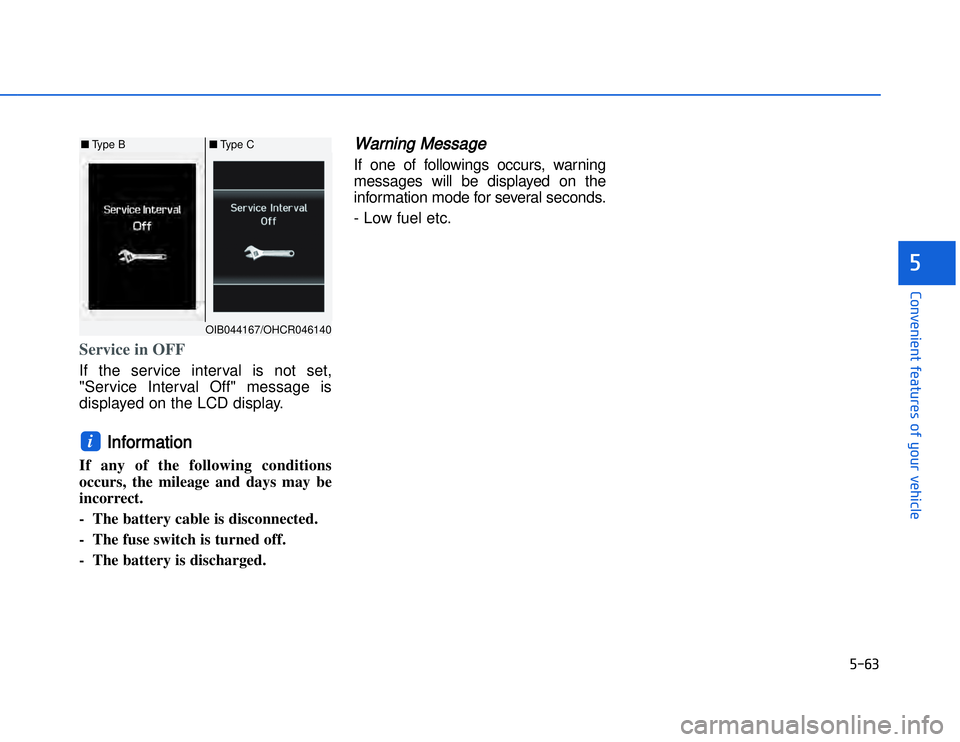

Service in OFFIf the service interval is not set,
"Service Interval Off" message is
displayed on the LCD display.
IInformation
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
Warning MessageIf one of followings occurs, warning
messages will be displayed on the
information mode for several seconds.
- Low fuel etc.
i
OIB044167/OHCR046140
■
Type B ■Type C

)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3

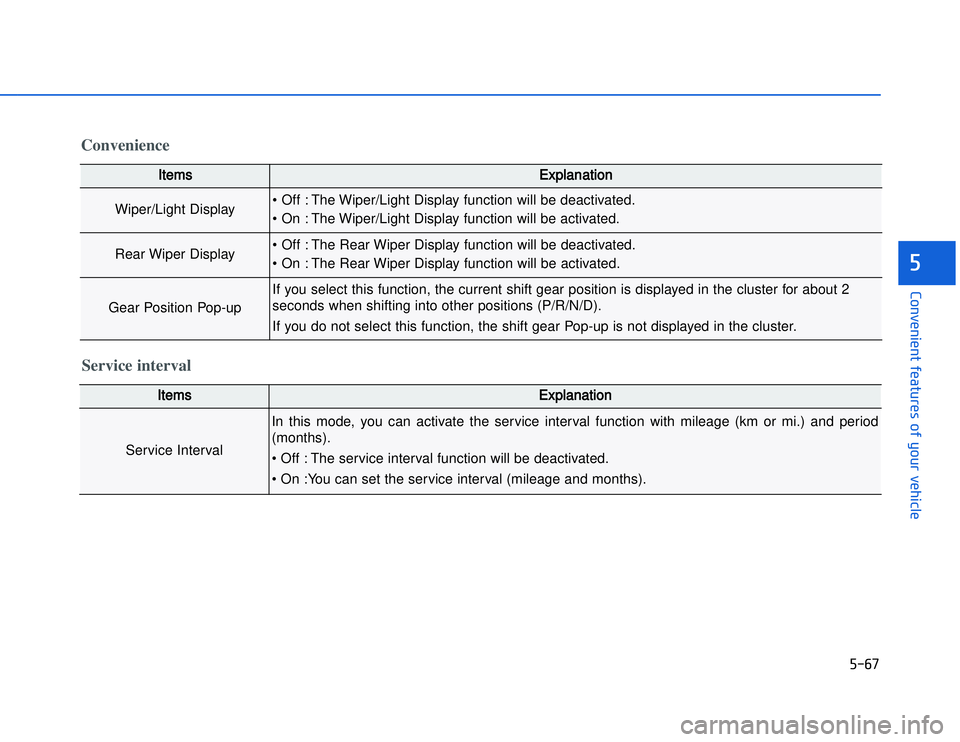

IItems
Explanation
Wiper/Light Display
• Off : The Wiper/Light Display function will be deactivated.
• On : The Wiper/Light Display function will be activated.
Rear Wiper Display
• Off : The Rear Wiper Display function will be deactivated.
• On : The Rear Wiper Display function will be activated.
Gear Position Pop-up
If you select this function, the current shift gear position is displayed in the cluster for about 2
seconds when shifting into other positions (P/R/N/D).
If you do not select this function, the shift gear Pop-up is not displayed in the cluster.
Convenience
Items
Explanation
Service Interval
In this mode, you can activate the service interval function with mileage (km or mi.) and period
(months).
• Off : The service interval function will be deactivated.
• On :You can set the service interval (mileage and months).
Service interval

))*'
&!")+*
)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
Cluster Type AThe trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.

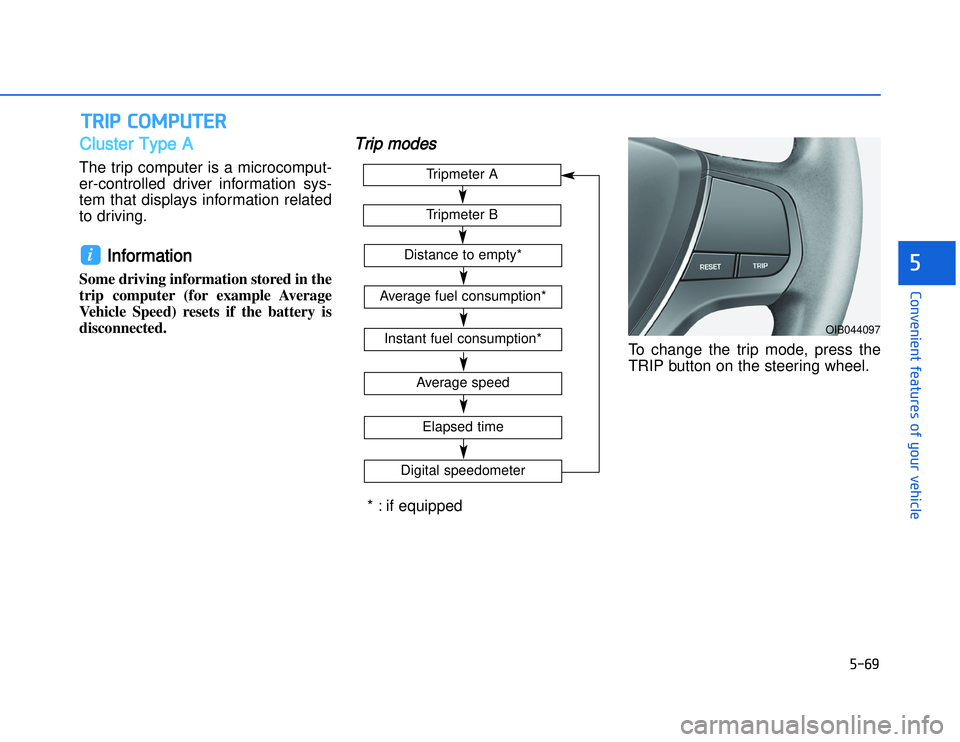

Trip modes
To change the trip mode, press the
TRIP button on the steering wheel.
i
Tripmeter BTripmeter A
Average fuel consumption*Instant fuel consumption*
Average speedElapsed time
Digital speedometerDistance to empty*
* : if equipped
OIB044097

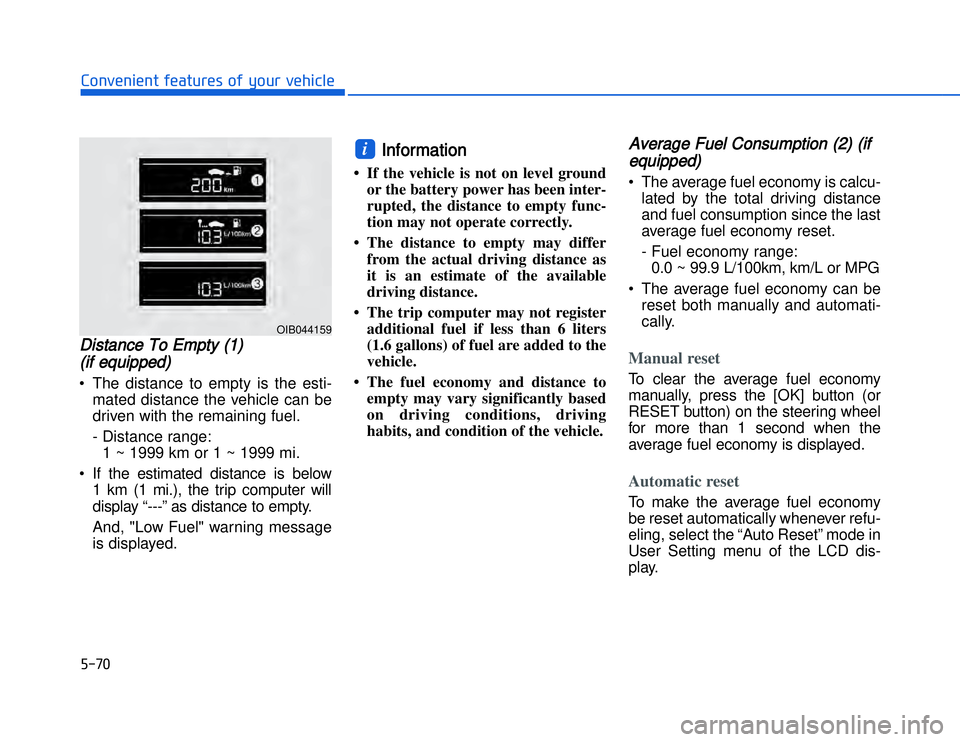

)'#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3DDistance To Empty (1)
(if equipped)• The distance to empty is the esti-
mated distance the vehicle can be
driven with the remaining fuel.
- Distance range: 1 ~ 1999 km or 1 ~ 1999 mi.
• If the estimated distance is below 1 km (1 mi.), the trip computer will
display “---” as distance to empty.
And, "Low Fuel" warning message
is displayed.
Information
If the vehicle is not on level ground or the battery power has been inter-
rupted, the distance to empty func-
tion may not operate correctly.
The distance to empty may differ from the actual driving distance as
it is an estimate of the available
driving distance.
The trip computer may not register additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
The fuel economy and distance to empty may vary significantly based
on driving conditions, driving
habits, and condition of the vehicle.
Average Fuel Consumption (2) (ifequipped)• The average fuel economy is calcu-
lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9 L/100km, km/L or MPG
• The average fuel economy can be reset both manually and automati-
cally.Manual resetTo clear the average fuel economy
manually, press the [OK] button (or
RESET button) on the steering wheel
for more than 1 second when the
average fuel economy is displayed.Automatic resetTo make the average fuel economy
be reset automatically whenever refu-
eling, select the “Auto Reset” mode in
User Setting menu of the LCD dis-
play.
i
OIB044159
