771
Maintenance

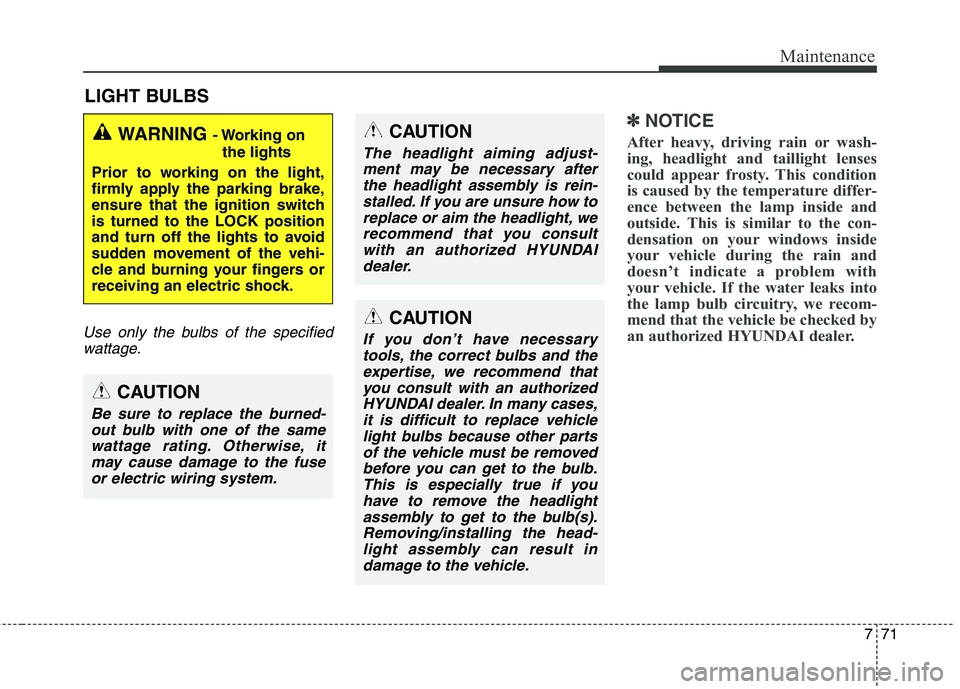

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽ ✽
NOTICE
After heavy, driving rain or wash-
ing, headlight and taillight lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, we recom-
mend that the vehicle be checked by
an authorized HYUNDAI dealer.WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION
Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
The headlight aiming adjust-
ment may be necessary after
the headlight assembly is rein-
stalled. If you are unsure how to
replace or aim the headlight, we
recommend that you consult
with an authorized HYUNDAI
dealer.
CAUTION
If you don’t have necessary
tools, the correct bulbs and the
expertise, we recommend that
you consult with an authorized
HYUNDAI dealer. In many cases,
it is difficult to replace vehicle
light bulbs because other parts
of the vehicle must be removed
before you can get to the bulb.
This is especially true if you
have to remove the headlight
assembly to get to the bulb(s).
Removing/installing the head-
light assembly can result in
damage to the vehicle.
I5
Index
Fuel gauge ....................................................................4-59
Fuel requirements ............................................................1-3
Fuse switch ....................................................................7-60
Fuses ..............................................................................7-58
Fuse switch ................................................................7-60
Fuse/relay panel description ......................................7-62
Instrument panel fuse ................................................7-59
Gauge
Engine temperature gauge ..........................................4-58
Fuel gauge ..................................................................4-59
GAW (Gross axle weight) ............................................5-63
GAWR (Gross axle weight rating) ................................5-63
Glove box ....................................................................4-118
GVW (Gross vehicle weight)........................................5-63
GVWR (Gross vehicle weight rating) ..........................5-63
Hazardous driving conditions ......................................5-49
Headlamp delay ............................................................4-83
Headlamp welcome function ........................................4-84
Headrest(front) ................................................................3-8
Headrest(rear) ................................................................3-11
Hight adjustment ..........................................................3-20
Highway driving............................................................5-52Hood ..............................................................................4-32
Horn ..............................................................................4-45
How to use this manual ..................................................1-2
Indicator symbols on the instrument cluster ..................1-7
Indicators and warnings ................................................4-67
Inside rearview mirror ..................................................4-48
Instrument cluster ..........................................................4-56
Engine temperature gauge ..........................................4-58
Fuel gauge ..................................................................4-59
Instrument panel illumination ....................................4-57
LCD display warning ................................................4-78
Odometer ....................................................................4-60
Speedometer ..............................................................4-57
Tachometer ................................................................4-57
Trip computer ............................................................4-61
Warning and indicators ..............................................4-67
Instrument panel fuse ....................................................7-59
Instrument panel illumination ......................................4-57
Instrument panel overview ..............................................2-5
Interior care ..................................................................7-89
Interior features ..........................................................4-121
Aux, USB and iPod port ..........................................4-125
Cargo area cover ......................................................4-126
Clothes hanger ..........................................................4-124
Cup holder ................................................................4-121
G
H
I
