Maintenance
36 7

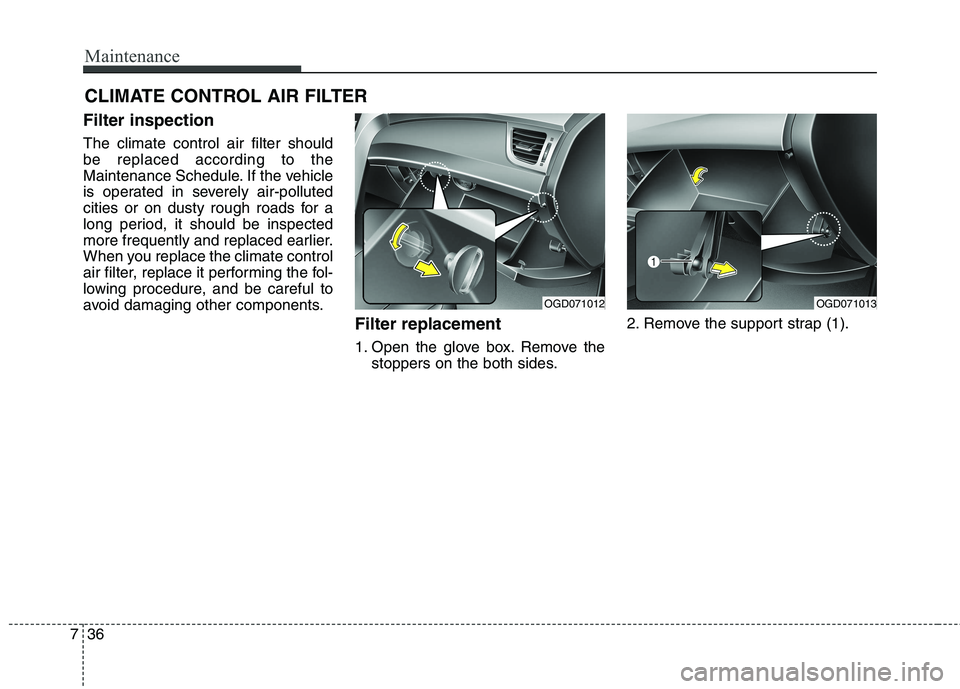

CLIMATE CONTROL AIR FILTER
Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.
Filter replacement
1. Open the glove box. Remove the
stoppers on the both sides.2. Remove the support strap (1).
OGD071012OGD071013

Maintenance
64 7
DescriptionFuse ratingProtected component
WIPER RR15ARear Wiper Relay, Rear Wiper Motor, Multifunction Switch
STOP LAMP15AStop Lamp Switch, ICM Relay Box (HAC Relay)
P/WDW RH25A
PDM 27.5ASmart Key Control Module, Start/Stop Button Switch
MODULE 57.5AEMS BOX (Head Lamp Washer Relay), Ionizer Unit, Panorama Sunroof,
DC-DC Converter, DSL BOX (PTC Relay), E/R Fuse & Relay BOX(RLY. ),
Driver/Passenger Seat Warmer Module
IG120AE/R Fuse & Relay Box (Fuse – F)
MODULE 610AOutside Mirror Switch, Audio, Navigation Head Unit, Digital Clock, DC-DC Converter
MDPS7.5AEPS Control Module
DR LOCK20ADoor Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay),
Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH
INTERIOR LAMP10AGlove Box Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Room Lamp,
Luggage Lamp, DR Warning Switch
MULTI MEDIA15AAudio, Navigation Head Unit, DC-DC Converter (Audio)
A/BAG15ASRS Control Module
