Scheduled MaintenanceNormal UsageSevere Usage*
Engine Oil and FilterReplace7,500 or 12 mos.Replace3,750 or 6 mos.
Fuel Additive *1Add7,500 or 12 mos.AddSame As Normal
Tire RotationPerform7,500Perform7,500
Air Cleaner FilterInspectReplace7,50030,000InspectReplaceSame As NormalMore Frequently
Battery ConditionInspect7,500InspectSame As Normal
Vacuum HoseInspect7,500InspectSame As Normal
Climate Control Air Filter (For A/C and Heater unit)Replace15,000 ReplaceMore Frequently
Air Conditioning RefrigerantInspect15,000InspectSame As Normal
Brake Hoses & LinesInspect15,000InspectSame As Normal
Front Brake Disc / Pads, CalipersInspect15,000InspectMore Frequently
Rear Brake Disc / PadsInspect15,000InspectMore Frequently
Drive Shafts & BootsInspect15,000InspectMore Frequently
Exhaust Pipe & MufflerInspect15,000InspectSame As Normal
Fuel Tank Air FilterInspect30,000InspectSame As Normal
Steering Gear Box, Linkage & Boots/Upper & Lower Arm Ball JointsInspect15,000Inspect7,500 or 6 mos.
Suspension Mounting BoltsInspect15,000InspectSame As Normal
Brake / Clutch FluidInspect30,000InspectSame As Normal
Fuel Lines, Fuel Hoses and ConnectionsInspect30,000InspectSame As Normal
Parking BrakeInspect30,000InspectMore Frequently
Spark Plugs (Iridium Coated)Replace105,000ReplaceMore Frequently
Vapor Hose & Fuel Filler CapInspect30,000InspectSame As Normal
Automatic Transaxle FluidNo check, No service requiredReplace60,000
Manual Transaxle FluidInspect37,500Replace75,000
Fuel FilterInspect30,000ReplaceMore Frequently
Valve Clearance Inspect60,000InspectSame As Normal
Coolant1st Replace 120,000 or 120 mos. Add’l Replace 30,000 or 24 mos.ReplaceSame As Normal
Drive Belt1st Inspect 60,000 or 72 mos.Add’l Inspect 15,000 or 24 mos.InspectSame As Normal
*1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized Hyundai dearler along with information on how to use \
them. Do not mix other additives.
*See Owner’s Manual for details.
Looking for more detailed information? This Quick Reference Guide does not replace your vehicle’s Owner’s Manual. If you require additional information or are unsure of a specific issue, you should always refer to the vehicle’s Owner’s Manual or contact your authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing; however, specifications and equipment can change without notice. No warranty or g\
uarantee is being extended in this Quick Reference Guide, and Hyundai reserves the right to change product specifications and equipment at any time without incurring obligations. Some vehicles are shown with optional equipment. Specifications apply to U.S. vehicles only. Please contact your Hyundai dealer for current vehicle specifications.
NP150-Q2014(REV 11/04/13) Printed 11/07/13
MAINTENANCE
www.hyundai.com
Roadside Assistance: 1-800-243-7766
Consumer Affairs: 1-800-633-5151
XM®Radio: 1-800-967-2346
HYUNDAI ACCENT
Quick Reference Guide
☐ TIRE PRESSURE MONITORING SYSTEM
(TPMS) – page 22
Explain TPMS function to customer.
- When illuminated, one or more
tires are under-inflated.
- Blinks for approximately one minute
then remains illuminated when there
is a malfunction with the TPMS.
☐ CLOCK ADJUSTMENT – page 20
- With Radio Off
☐ VEHICLE SETTINGS – pages 10-11
- Demonstrate vehicle settings
in instrument cluster
- Show radio presets
☐ BLUETOOTH – page 18
- Demonstrate phone pairing
Refer to www.hyundaiusa.com/bluetooth
- Demonstrate QR code
1. Press and hold the SETUP button
until the clock blinks.
2. Rotate the TUNE knob to adjust.
3. Press TUNE knob when done.
WALK THE CUSTOMER THROUGH EACH OF
THE FOLLOWING KEY DELIVERY FEATURES

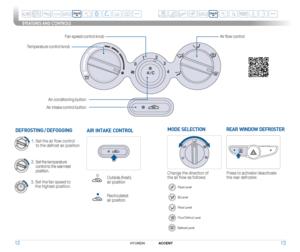

☐ CLIMATE CONTROL – pages 12-13
- Explain the different air modes to customer.
Instrument cluster
Pages 10-11
Trip computer**
Page 11
Cruise control system
Page 14
Wiper and washer
Page 07
Head lights and fog lights
Page 06
Audio
Page 19
Transmission
Page 21
AUX, USB and iPod port
Page 20
Climate control
Pages 12-13
Steering wheel adjustment
Page 04
* Some vehicles may not be equipped with all the listed features.

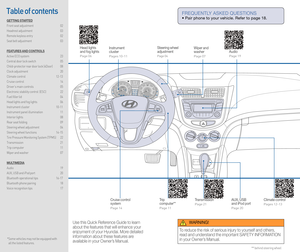

Table of contents
GETTING STARTED
Front seat adjustment 02
Headrest adjustment 03
Remote keyless entry 02
Seat belt adjustment 03
FEATURES AND CONTROLS
Active ECO system 23
Central door lock switch 05
Child-protector rear door lock (4Door) 08
Clock adjustment 20
Climate control 12-13
Cruise control 14
Driver’s main controls 05
Electronic stability control (ESC) 22
Fuel filler lid 04
Head lights and fog lights 06
Instrument cluster 10-11
Instrument panel illumination 11
Interior lights 08
Rear seat folding 09
Steering wheel adjustment 04
Steering wheel functions 14-15
Tire Pressure Monitoring System (TPMS) 22
Transmission 21
Trip computer 11
Wiper and washer 07
MULTIMEDIA
Audio 19
AUX, USB and iPod port 20
Bluetooth operational tips 16-17
Bluetooth phone pairing 18
Voice recognition tips 17
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features are
available in your Owner’s Manual.
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
** behind steering wheel
FREQUENTLY ASKED QUESTIONS
• Pair phone to your vehicle. Refer to page 18.
GET TING STARTED
B
AForward and backward
BSeat cushion height (driver’s seat only)
Seatback angleC
CA
FRONT SEAT ADJUSTMENT
HEADREST ADJUSTMENT
Height adjustment
Lock knob
To raise headrest height, pull up on headrest.
To lower headrest, press lock knob while pushing down on headrest.
0302ACCENTHYUNDAI
REMOTE KEYLESS ENTRY
Lock()
Press the button.
Once - Lock
Twice - Confirmation chirp
Unlock()
Press the button.
Once - Unlock driver’ s door
Twice - Unlock all doors
You can change the system to unlock
all doors by pressing the button once.
If you want this feature, refer to the
Owner’s Manual.
Panic()
Press and hold.
Press any button to turn off panic.
SEAT BELT ADJUSTMENT (Front seat)
Pull up to raise.
Press button and
push down to lower.
MEMO
MEMO
0504ACCENTHYUNDAI
TiltTelescopic
STEERING WHEEL ADJUSTMENT
1. Pull the lever down.
2. Set the angle and height .
3. Pull the lever upward to lock in place.
NOTE
Do not adjust the steering wheel
while driving.
DRIVER’S MAIN CONTROLS
Window Auto down/up
(driver’s side only)
Press past detent to fully open/close
window.
Power Window Lock Switch
Disables the power window switches
on the passenger doors.
Outside Rearview Mirrors
Press L (left) or R (right) on the switch.
Then adjust the mirror by using the
directional switch.
Door Lock
Locks/unlocks all doors.
CENTRAL DOOR LOCK SWITCH
After adding fuel, always reinstall
the fuel cap onto the filler neck by
rotating it clockwise until it clicks one
time.
Failure to do this may result in
the Check Engine Light illuminating.
NOTE
FUEL FILLER LID
FEATURES AND CONTROLS
C
C
MEMO
MEMO
0908ACCENTHYUNDAI
FEATURES AND CONTROLS
INTERIOR LIGHTS
ON
Light will turn on.
DOOR
Light will turn on when any door is
open except trunk.
With the ignition switch off, lights
will stay on for approximately 30
seconds after door is closed.
The lights will turn off immediately if
the doors are locked or when the
ignition is ON.
OFF
The lights stay off at all times,
except when individually turned on.
NOTE
If the lights are left on for more
than 20 minutes with the ignition
switch off, they will automatically
turn off to prevent a dead battery.
CHILD-PROTECTOR REAR DOOR LOCK
Lock ()
Move the lever to the “ ” position.
Unlock ( )
Move the lever to the “ ” position.
REAR SEAT FOLDING
1. Disconnect the center shoulder belt.
2. Pull up the release lever.
3. Fold down the seatback.
