2014 HONDA PILOT engine

23
INSTRUMENT PANEL INDICATORSBriefly appear with each engine start. Red and amber indicators are most critical. Blueand green indicators are used for general information. See your Owner’s Manual formore information.
Malfunction IndicatorsIf an indicator remains on, there may be a problem; see your dealer
On/Off Indicators
Condition IndicatorsAction is needed by driver
PASSENGER AIRBAG OFF(located on center panel)
SIDE AIRBAG OFF
CRUISE CONTROL onECOFuel economy on
Fog lights on*
Exterior lights on
Turn signals/hazards on
High beams on
*if equipped
Charging system
Low brake fluid, Brake system
Low oil pressure
AntiLock Brake System (ABS)
Variable Torque Management(VTM4) (4WD only)
Malfunction lamp(check engine light)
Vehicle Stability Assist®(VSA)Supplemental Restraint System(SRS)
Daytime Running Lights (DRL)
Power tailgate*
Tire Pressure Monitoring System(TPMS)
Parking brake on: Release
Door/Tailgate open:Close door(s) / tailgate
Seat belt reminder:Fasten seat belt(s) Maintenance Minder™: Make dealer appointment
A/T temperature (4WD only):Pull over and let engine idle
Starter system: Hold ignitionswitch in START (III) forup to 15 seconds
Low fuel:Refill
Low tire pressure:Add air
Immobilizer (blinks): Use other vehicle key andsee dealer
VTM4 (blinks): Pull over and let engine idle
CRUISE MAIN on
VSA OFF
14 Pilot TRG_LX EX EXL EXLRES_ATG_NEW STYLE 8/12/2013 8:53 AM Page 3

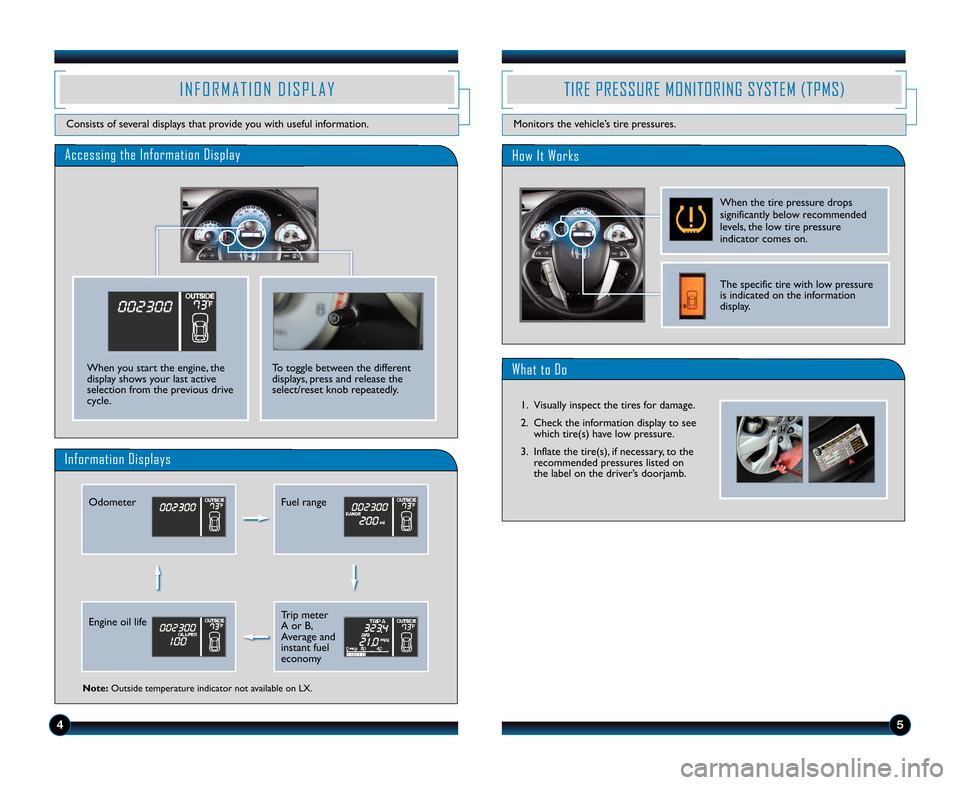

I N F O R M A T I O N D I S P L A Y
Consists of several displays that provide you with useful information.
45
What to Do
How It Works
TIRE PRESSURE MONITORING SYSTEM (TPMS)
Monitors the vehicle’s tire pressures.
1. Visually inspect the tires for damage.
2. Check the information display to see which tire(s) have low pressure.
3. Inflate the tire(s)\b if necessary\b to the recommended pressures listed on
the label on the driver’s doorjamb.
I N F O R M A T I O N D I S P L A Y
Consists of several displays that provide you with useful information.
Accessing the Information Display
Information Displays
OdometerFuel range
Engine oil lifeTrip meter
A or B\b
Average and
instant fuel
economy
To toggle between the different
displays\b press and release the
select/reset knob repeatedly.When you start the engine\b the
display shows your last active
selection from the previous drive
cycle.
Note: Outside temperature indicator not available on LX.
When the tire pressure drops
significantly below recommended
levels\b the low tire pressure
indicator comes on.
The specific tire with low pressure
is indicated on the information
display.
14 Pilot TRG_LX EX E\AXL EXLRES_ATG_NEW S\ATYLE 8/12/2013 8\f5\A4 AM Page 4

2120
F U E L R E C O M M E N D A T I O N
Use of unleaded gasoline of 87 octane or h\1igher is recommended.
• Honda recommends TOP TIER Detergent Gasoline where available.
• Do NOT use gasoline containing more than 15% ethanol.
• Do NOT use gasoline containing methanol.
• Do NOT use gasoline containing MMT.
• See your Owner’s Manual for more information.
Some gasoline in North America contains MMT\b a manganesebased fuel additive.
Prolonged and consistent use of gasoline containing M\1MT can deteriorate your
vehicle’s performance\b fuel economy\b and the emission control system. Always use
MMTfree gasoline if available. Failures caused by use of gasoline containing MMT
may not be covered under your new vehicle warranty.
TOP TIER Detergent Gasoline (recommended) never contains MMT and has
detergent additives to keep your engine clean. For further information on fuel and
lubricants for your car and information on gasoline that does not contain MMT\b
contact your dealer or visit owners.honda.com.
