459
Handling the Unexpected

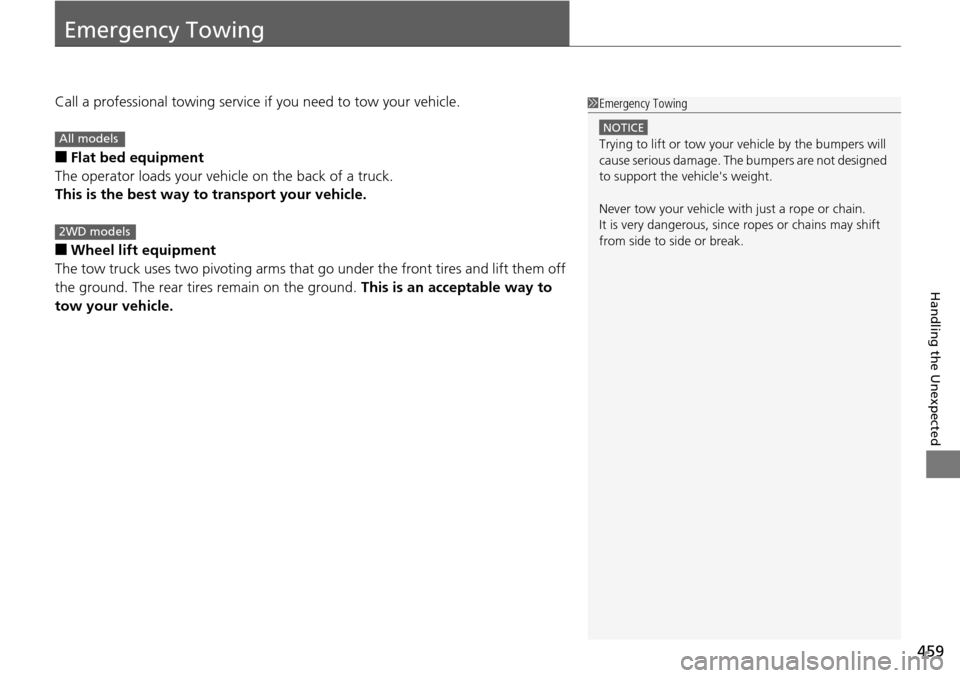

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to tra
nsport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng a
rms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.All models
2WD models
464
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: 4WD models
*3: LX models with 4WD
*4: Except LX models with 4WD
ModelHonda Pilot
No. of Passengers:
Front 2
Second 3
Third 3
Total
8Weights:Gross Vehicle Weight
Rating U.S.: 5,953 lbs (2,700 kg)*1
6,096 lbs (2,765 kg)*2
Canada: 2,700 kg*1
2,765 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,921 lbs (1,325 kg)Canada: 1,325 kgGross Axle Weight
Rating (Rear)U.S.: 3,197 lbs (1,450 kg)*1
3,251 lbs (1,475 kg)*3
3,362 lbs (1,525 kg)*4
Canada: 1,450 kg*1
1,525 kg*2
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity21.2 – 22.9 oz (600 – 650 g)Lubricant TypeND-OIL8
■ Engine Specifications
■ Fuel
■ Ba
ttery
■Wa
sher Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGKDILZKR7A11G
Fuel:TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 21.0 US gal (79.5 ℓ)
Capacity/Type60AH(5)/72AH(20)
Tank CapacityU.S.: 4.2 US qt (4.0 ℓ)
Canada: 6.9 US qt (6.5 ℓ)
■Light Bulbs
*5: Not available on all models
Headlights (Low Beam)55W (H11)
Headlights (High Beam)60 W (HB3)Daytime Running Lights60 W (HB3)
Fog Lights*555W (H11)Front Turn Signal/Parking Lights28/8W (Amber)
Side Turn Signal Lights
(on Door Mirrors)
*5 LED
Front Side Marker Lights3CP
Rear Side Marker Lights5WBrake/Taillights21/5W
Back-Up Lights18WRear Turn Signal/Taillights21/5W
High-Mount Brake Light5WRear License Plate Light5W
Interior Lights Map Lights (Front) 8W
Map Lights (Rear) 4CP
Door Courtesy Lights 2CP
Console Compartment
Light 1.4W
Glove Box Light 1.4W
Foot Light LED
Cargo Area Light 8W
Vanity Mirror Lights 1.4W
