uu Airbags u Airbag System Indicators
50

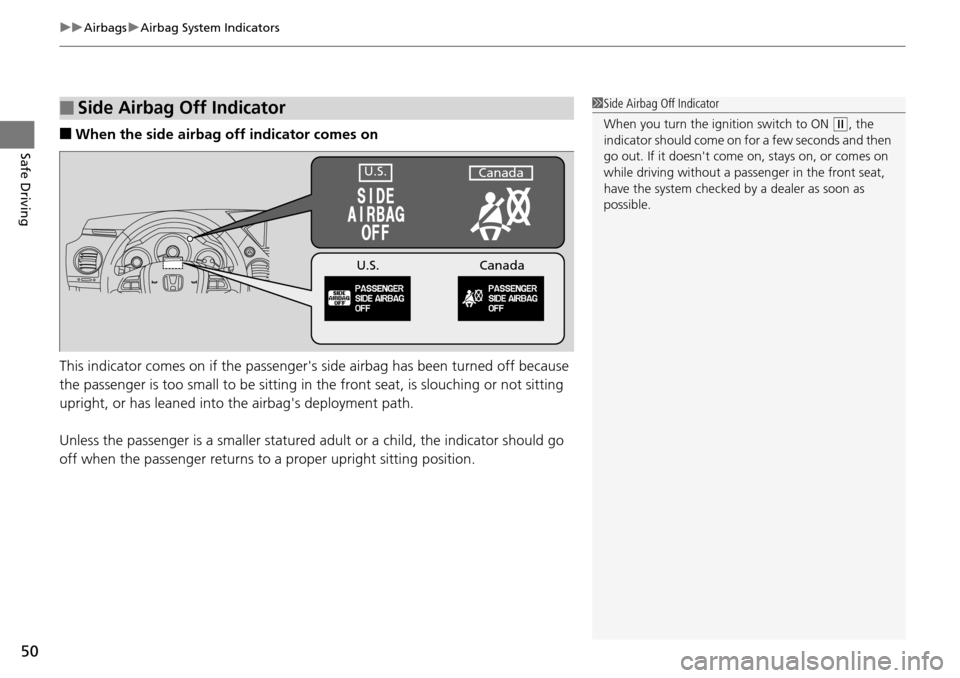

Safe Driving■When the side airbag off indicator comes on
This indicator comes on if the passenger's side airbag has been turned off because
the passen
ger is too small to be sitting in the front seat, is slouching or not sitting
upright, or has leaned into the airbag's deployment path.
Unless the passenger is a smaller statured ad
ult or a child, the indicator should go
off when the passenger returns to a proper upright sitting position.
■Side Airbag Off Indicator1 Side Airbag Off Indicator
When you turn the ignition switch to ON
(
w
, the
indicator should come on for a few seconds and then
go out. If it doesn't come on, stays on, or comes on
while driving without a pa ssenger in the front seat,
have the system checked by a dealer as soon as
possible.
Canada
U.S. U.S.
Canada

68
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage *
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds
when you turn the ignition
switch to ON
(w
, then goes
off.
●Comes on when the parking
brake is applied, and goes off
when it is released.
●Comes on when the brake
fluid level is low.
●Comes on if there is a
problem with the brake
system.
●The beeper sounds and the
indicator comes on if you
drive with the parking brake
not fully released.
●Comes on while driving -
Make sure the
parking brake is
released. Check the brake fluid
level.
2 What to do when the
indicator comes on while
driving P. 452
●Comes on along with the ABS
indicator - Have the vehicle
checked by
a dealer.
2 If the Brake System
Indicator (Red) Comes On
P. 452
Low Oil Pressure
Indicator
●Comes on when you turn the
ignition switch to ON
(w
, and
goes off when the engine
starts.
●Comes on when the engine
oil pressure is low.
●Comes on while driving -
Im
mediately stop in a safe place.
2 If the Low Oil Pressure
Indicator Comes On P. 450
U.S.
Canada
U.S.Canada
* Not available on all models

69
uu Indicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage *
Malfunction
Indicator Lamp
●Comes on when you turn the ignition
switch to ON
(w
, and goes off either
when the engine starts or after
several seconds if the engine is not
started. If “readiness codes” have not
been set, it blinks five times before it
goes off.
●Comes on if there is a problem with
the emissions control system.
●Blinks when a misfire in the engine's
cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 470●Comes on while driving - Have the
ve
hicle checked by a dealer.
●Blinks while driving - Stop in a safe
pla
ce where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take the vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 451
Charging System
Indicator
●Comes on when you turn the ignition
switch to ON
(w
, and goes off when
the engine starts.
●Comes on when the battery is not
charging.
●Comes on while driving - Turn off the
climate
control system and rear defogger
in order to reduce electricity
consumption.
2 If the Charging System Indicator
Comes On P. 450
Shift Lever
Position
Indicator
●Indicates current shift lever position.
(d
indicator:●Comes on for a few seconds when
you turn the igniti on switch to ON
(w
, then goes off.●Comes on when you press the (d

button while the shift lever is in
(D
.
2 Shifting P. 346—
* Not available on all models

70
uu Indicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage *
Transmission
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
, then goes off.●Blinks if the transmission system has a
problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have the
vehicle checked by a dealer immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds if
you are not wearing a seat belt when
you turn the ignition switch to ON
(w
. If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if either you or
the front passenger has not fastened
a seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you or the front
passenger has fastened the seat belt
- A

detection error may have occurred in
the sensor. Have the vehicle checked by a
dealer.
2 Seat Belt Reminder P. 30
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 2.8 U.S.
gal./10.8 Liter).
●Blinks if there is a problem with the
fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.
●Blinks - Have the vehicle checked by a
dealer.
* Not available on all models

72
uu Indicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage *
VSA® (Vehicle
Stability Assist)
System Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
, then goes off.●Blinks when VSA ® is active.●Comes on if there is a problem with
the VSA® system.
●Comes on if there is a problem with
the hill start assist system.
●Stays on constantly - Have the vehicle
check
ed by a dealer.
2 VSA ® (Vehicle Stability Assist), aka
ESC (Electronic Stability Control),
System P. 352
VSA ® (Vehicle
Stability Assist)
OFF Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
, then goes off.●Comes on when you deactivate
VSA ®.
2VSA ® On and Off P. 353—
Door Open
Indicator
●Comes on for a few seconds if you
turn the ignition switch to ON
(w
,
then goes off.
●Comes on if any door, glass hatch, or
tailgate is not completely closed.
●Goes off when all doors, glass hatch, and
tailgate are closed.
Door, Glass
Hatch, and
Tailgate Open
Indicator
*
●Comes on for a few seconds if you
turn the ignition switch to ON
(w
,
then goes off.
●Comes on if any door, glass hatch, or
tailgate is not completely closed.
●Goes off when all doors, glass hatch, and
tailgate are closed.
—
* Not available on all models

74
uu Indicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage *
TPMS Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
.●Comes on if there is a problem with
the TPMS, or when a compact spare
tire is temporarily installed.
●Stays on constantly or does not come
on at all
- Have the vehicle checked by a
dealer. If the vehicle is fitted with a
compact spare, get your regular tire
repaired or replaced and put back on
your vehicle as soon as you can.
—
Low Tire
Pressure
Indicator
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w
.●Comes on if the tire pressure of any
of the tires becomes significantly low.
●Comes on for a while and then goes
off when a compact spare tire is
temporarily installed.
●Blinks for about one minute, and
then stays on if th ere is a problem
with the TPMS, or when a compact
spare tire is temporarily installed.
●Comes on while driving - Stop in a safe
place,
check tire pressures, and inflate
the tire(s) if necessary.
●Blinks and remains on - Have the
vehicle checked by a d ealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
Models with
information
display
Models with
information
display
Models with
multi-
information
display
Models with info rmation display
Models with multi- information display
Models with multi-information display
* Not available on all models

75
uu Indicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage *
Turn Signal
Indicators
●The turn signal indi cators blink when
you operate the turn signal lever.
●If you press the hazard warning
button, both indicators and all turn
signals blink at the same time.
●Does not blink or blinks rapidly - A
turn s
ignal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 404, 405,
406
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.●If you remove the key from the ignition
switch while the lights are on, a chime
sounds when the driver's door is opened.
—
Fog Light
Indicator *
●Comes on when the fog lights are on.——
Side Airbag Off
Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w
, then goes off.●Comes on when the passenger side
airbag system is automatically shut
off.
●It does not mean there is a problem with
your side airbags.
●Comes on when nobody is sitting in
the passenger seat - Have the vehicle
checked by

a dealer.
●Comes on when some one is sitting in
the seat
- Have the passenger sit
properly.
U.S.
Canada
* Not available on all models

76
uu Indicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage *
Immobilizer
System Indicator
●Comes on briefly when you turn the
ignition switch to ON
(w
, then goes
off.
●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the engine.
Turn
the ignition switch to LOCK
(0
, pull
the key out, and then insert the key and
turn it to ON
(w
again.●Repeatedly blinks - The system may be
malfu
nctioning. Have the vehicle checked
by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems
can occur.
—
Security System
Alarm Indicator *
●Blinks when the secu rity system alarm
has been set.2 Security System Alarm * P. 118—
Starter System
Indicator *
●Comes on if there is a problem with
the starter system.●As a temporary measure, hold the
ignition switch to START
(e
for up to 15
seconds and start the engine. Have the
vehicle checked by a dealer.
Fuel Economy
Indicator●Comes on and stays on while you are
driving with good fuel economy.——
U.S.
CanadaU.S.
Canada
