2014 HONDA PILOT bulb

406
uu Replacing Light Bulbs u Brake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance
Brake Light, Taillight, Back-Up Light, Rear Turn
Signal Light and Rear Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Use
a Phillips-head screwdriver to remove
the bolts.
2. L
oosen the assembly by carefully prying on
the top and side edges.
u Wrap the
flat-tip screwdriver with a cloth
to prevent scratches.
Brake/Taillight: 21/5 W
Back-Up Light: 18 W
Rear Turn Signal/Taillight: 21/5 W
Rear Side Marker Light: 5 W
Bolts

407
uu Replacing Light Bulbs u Brake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance
3.Turn the socket to th e left and remove it.
Remove the old bulb.
4. Insert a new bulb.
5. Rein
stall the light assembly by sliding it into
the hole on the body.
Bulb
Socket

408

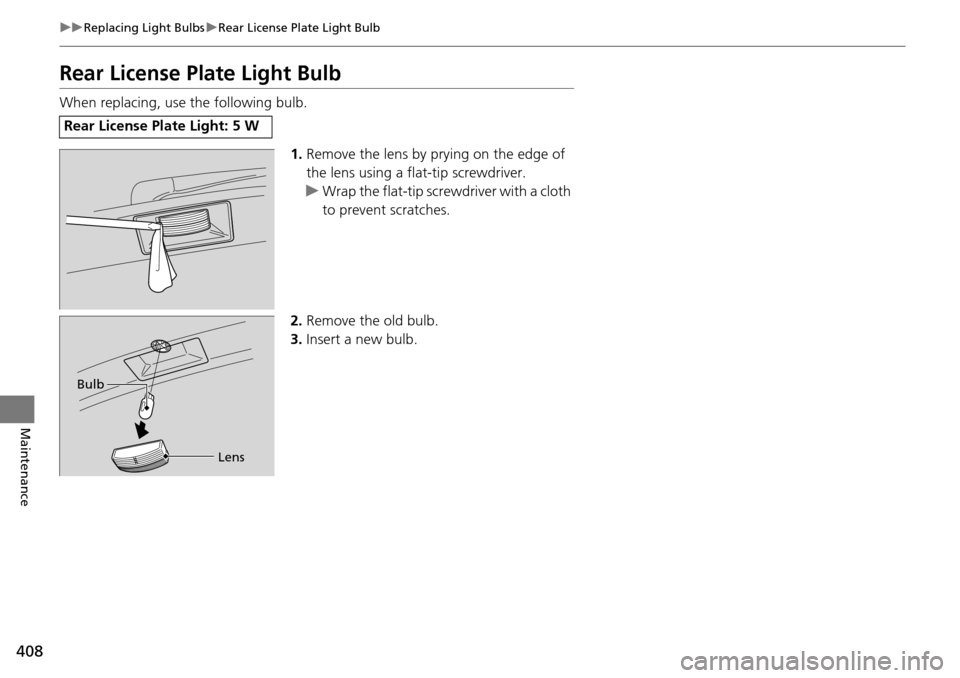

uu Replacing Light Bulbs u Rear License Plate Light Bulb
Maintenance
Rear License Plate Light Bulb
When replacing, use the following bulb.
1.R
emove the lens by prying on the edge of
the lens using a flat-tip screwdriver.
u Wrap the
flat-tip screwdriver with a cloth
to prevent scratches.
2. R
emove the old bulb.
3.In
sert a new bulb.
Rear License Plate Light: 5 W
Bulb
Lens

409
uu Replacing Light Bulbs u High-Mount Brake Light Bulb
Maintenance
High-Mount Bra ke Light Bulb
When replacing, use the following bulb.
1.Remov
e the lens segment by prying on the
edge using a flat-tip screwdriver.
u Wrap the fla
t-tip screwdriver with a cloth
to prevent scratches.
2. Remove
the screw under each lens.
3.Pull the
high-mount brake light assembly
out of the vehicle.
4. Remove the
two mounting screws from the
light assembly.
5. Remove
the lens from the light assembly.
6.Remov
e the old bulb and insert a new bulb.
High-Mount Brake Light: 5 W
Screw
Lens Segment
Bulb

464
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: 4WD models
*3: LX models with 4WD
*4: Except LX models with 4WD
ModelHonda Pilot
No. of Passengers:
Front 2
Second 3
Third 3
Total
8Weights:Gross Vehicle Weight
Rating U.S.: 5,953 lbs (2,700 kg)*1
6,096 lbs (2,765 kg)*2
Canada: 2,700 kg*1
2,765 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,921 lbs (1,325 kg)Canada: 1,325 kgGross Axle Weight
Rating (Rear)U.S.: 3,197 lbs (1,450 kg)*1
3,251 lbs (1,475 kg)*3
3,362 lbs (1,525 kg)*4
Canada: 1,450 kg*1
1,525 kg*2
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity21.2 – 22.9 oz (600 – 650 g)Lubricant TypeND-OIL8
■ Engine Specifications
■ Fuel
■ Ba
ttery
■Wa
sher Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGKDILZKR7A11G
Fuel:TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 21.0 US gal (79.5 ℓ)
Capacity/Type60AH(5)/72AH(20)
Tank CapacityU.S.: 4.2 US qt (4.0 ℓ)
Canada: 6.9 US qt (6.5 ℓ)
■Light Bulbs
*5: Not available on all models
Headlights (Low Beam)55W (H11)
Headlights (High Beam)60 W (HB3)Daytime Running Lights60 W (HB3)
Fog Lights*555W (H11)Front Turn Signal/Parking Lights28/8W (Amber)
Side Turn Signal Lights 
(on Door Mirrors)
*5 LED
Front Side Marker Lights3CP
Rear Side Marker Lights5WBrake/Taillights21/5W
Back-Up Lights18WRear Turn Signal/Taillights21/5W
High-Mount Brake Light5WRear License Plate Light5W
Interior Lights Map Lights (Front) 8W
Map Lights (Rear) 4CP
Door Courtesy Lights 2CP
Console Compartment
Light 1.4W
Glove Box Light 1.4W
Foot Light LED
Cargo Area Light 8W
Vanity Mirror Lights 1.4W
