2014 HONDA PILOT engine

454
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0
and
check to see if any appl icable fuse is blown.
Fuse locations are shown on the fuse box
co
ver. Locate the fuse in question by the
fuse number and box cover number.
Located on the passenger’s side, near the
wi
ndshield washer reservoir. Push the tabs
to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse120 A
−−
2OP Main80 A
IG Main50 A
3Blower40 A
AC Inverter30 A
4 Head Light Main
50 A
Power Window Main 40
A
5−−
6 Condenser Fan 30
A
7Cooling Fan30 A
8 Rear Defogger 30
A
9−−
10 Fog Lights *(20 A)
11Sub15 A
12 ACM 10
A
13Front Passenger’s Power
Seat Reclining *(20 A)
14 Front Passenger’s Power
S
eat Slide *(20 A)
15Oil Level7.5 A
16 FI ECU (7.5
A)
17Radio20 A
18 IG Coil 15
A
19Main15 A
20 MG Clutch 7.5 A
21DBW15 A
22 Interior Lights 7.5
A
23Back Up10 A
Circuit ProtectedAmps
* Not available on all models

455
uu Fuses u Fuse Locations
Continued

Handling the Unexpected
Located near the battery. Push the tabs to
open the box.
■Engine Compartment Sub Fuse
Box■Circuit protected and fuse rating
Circuit ProtectedAmps
1Power Tailgate Motor *(40 A)
2 VTM-4 *(20 A)
3Trailer Main(30 A)
4VSA FSR 40 A
5Rear Blower30 A
6 VSA Motor 30
A
7Hazard15 A
8 Power Tailgate Closer *(20 A)
9Driver’s Power Seat
Reclining *(20 A)
10 Driver’s Power Seat Slide
*(20 A)
11Stop & Horn20 A
12 Rear Console Accessory
Socket 15

A
13Rear Wiper10 A
14 Trailer E-Brake (20
A)
15Front Heated Seat *(20 A)
16 Center Console Accessory
Socket 15

A
17Trailer Charge(20 A)
18 Front Accessory Socket 15
A
19Rear Accessory Socket15 A
20 Glass Hatch Motor 20
A
21Rear Heated Seat *(15 A)
22 Head Light Washer Motor (30 A)
* Not available on all models

458
uu Fuses u Inspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0
. Turn
headlights and all accessories off.
2. R
emove the fuse box cover.
3.Check
the large fuse in the engine
compartment.
u If
the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect
the small fuses in the engine
compartment and the vehicle interior.
u If
there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 454 to 457.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Blown Fuse
Fuse Puller

463
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 464
Identification Numbers
Vehicle Identification Number (VIN)...... 466
Engine Number and Transmission Number...................................... 466
Devices that Emit Radio Waves ....... 467
Reporting Safety Defects .................
469Emissions Testing
Testing of Readiness Codes.............. 470
Warranty Coverages ...........
............. 472
Authorized Manuals ............
............. 474
Customer Service Information .........
475
Gracenote® End User License
Agreement ..
................................. 476

464
Information
Specifications
■Vehicle Specifications
*1: 2WD models
*2: 4WD models
*3: LX models with 4WD
*4: Except LX models with 4WD
ModelHonda Pilot
No. of Passengers:
Front 2
Second 3
Third 3
Total
8Weights:Gross Vehicle Weight
Rating U.S.: 5,953 lbs (2,700 kg)*1
6,096 lbs (2,765 kg)*2
Canada: 2,700 kg*1
2,765 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,921 lbs (1,325 kg)Canada: 1,325 kgGross Axle Weight
Rating (Rear)U.S.: 3,197 lbs (1,450 kg)*1
3,251 lbs (1,475 kg)*3
3,362 lbs (1,525 kg)*4
Canada: 1,450 kg*1
1,525 kg*2
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity21.2 – 22.9 oz (600 – 650 g)Lubricant TypeND-OIL8
■ Engine Specifications
■ Fuel
■ Ba
ttery
■Wa
sher Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGKDILZKR7A11G
Fuel:TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 21.0 US gal (79.5 ℓ)
Capacity/Type60AH(5)/72AH(20)
Tank CapacityU.S.: 4.2 US qt (4.0 ℓ)
Canada: 6.9 US qt (6.5 ℓ)
■Light Bulbs
*5: Not available on all models
Headlights (Low Beam)55W (H11)
Headlights (High Beam)60 W (HB3)Daytime Running Lights60 W (HB3)
Fog Lights*555W (H11)Front Turn Signal/Parking Lights28/8W (Amber)
Side Turn Signal Lights 
(on Door Mirrors)
*5 LED
Front Side Marker Lights3CP
Rear Side Marker Lights5WBrake/Taillights21/5W
Back-Up Lights18WRear Turn Signal/Taillights21/5W
High-Mount Brake Light5WRear License Plate Light5W
Interior Lights Map Lights (Front) 8W
Map Lights (Rear) 4CP
Door Courtesy Lights 2CP
Console Compartment
Light 1.4W
Glove Box Light 1.4W
Foot Light LED
Cargo Area Light 8W
Vanity Mirror Lights 1.4W

465
uu Specifications u 

Information
■Brake Fluid
■Automatic Transmission Fluid
*1: 2WD models
*2: 4WD models
■Rear Differential Fluid *
■Transfer Assembly Fluid *
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.2 US qt (3.1 ℓ)
*1
3.6 US qt (3.4 ℓ)*2
SpecifiedHonda VTM-4 Differential Fluid
Capacity Change2.79 US qt (2.64 ℓ)
SpecifiedHYPOID GEAR OIL API GL4 or GL5 
SAE75W-85 (SAE90 CAN BE USED)
Capacity Change0.45 US qt (0.43 ℓ)
■Engine Oil
■ En
gine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
4.2 US qt (4.0 ℓ)
Change
includi
ng
filter 4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio50/50 with distilled water
Capacity1.98 US gal (7.5 ℓ) 
(change including the remaining 
0.198 US gal (0.75 ℓ) in the reserve tank)
■ Tire
*3: U.S. LX
*4: Except U.S. LX
Regular
SizeP235/65R/17 103T*3
P235/60R/18 102T*4
Pressure 
psi (kPa [kgf/cm2])
Front31 (210 [2.1])*3
35 (240 [2.4])*4
Rear33 (230 [2.3])*3
35 (240 [2.4])*4
Compact
Spare Size
T165/80D17 104M
Pressure 
psi (kPa [kgf/cm
2])60 (420 [4.2])
Wheel SizeRegular17 x 7.5J*3
18 x 7.5J*4
Compact Spare17 x 4T
* Not available on all models

466
Information

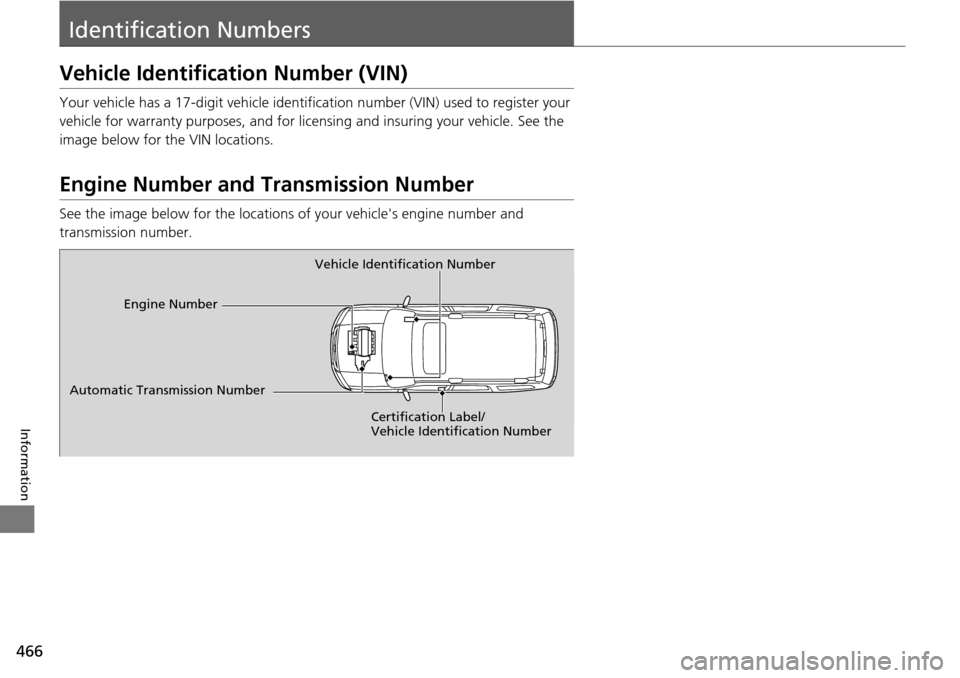

Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Automatic Transmission Number

470
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if yo
ur vehicle's emissions components
are working properly.
The codes may not be read properly if testi ng is
performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn
the ignition switch to ON (w
, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the
vehicle for retesting by doing the following:
1. F
ill the gas tank to approximately 3/4 full.
2.Park t
he vehicle and leave the engine off for 6 hours or more.
3.Make sure the a
mbient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start
the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the
vehicle in (P
. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let
the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
