2014 HONDA INSIGHT Navigation Manual

47
System Setup
Clock Adjustment
HINFO button X Setup X Other X Clock Adjustment X Clock Adjustment
Set the automatic adjustment of the sy stem clock for daylight saving and
international time zones.
Select an item.
The following items are available:
• Auto Daylight : The navigation system automati cally adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
On (factory default): Adjusts the clock automatically.
Off : Disables the feature.
• Auto Time Zone : The navigation syst em automatically adju sts the clock when
driving through different time zones.
On (factory default): Adjusts the clock automatically.
Off : Disables the feature.
• Clock Format : Sets the time notation to either 12-hour clock ( 12H, factory
default) or 24-hour clock ( 24H).
• Time Adjustment : Adjust the current time manually.
2Adjust Time P. 48
• Reset : Reset the clock settings to the factory default.
2Resetting the Clock Settings P. 48
1Clock Adjustment
You can check the time and date from any
screen using voice commands.
2 Global Commands P. 188
Auto Daylight
This function is not activated in areas that have
not adopted daylight saving time, even if you
have set Auto Daylight to On.
Auto Time Zone
If you live and work in two different time zones,
you may want to turn Auto Time Zone to Off.
When driving near a time zone boundary, the
displayed time zone ma y fluctuate between the
two zone times.
INSIGHT_KA-31TM8820.book 47 ページ ２０１１年８月９日　火曜日　午後３時３１分

48
XXClock AdjustmentXAdjust Time
System Setup
Adjust Time
HINFO button X Setup X Other X Clock Adjustment X Clock Adjustment
Adjust the current time (hours and minutes). 1.Select B or N to adjust the value.
2. Select OK on the top right of the
screen.
Resetting the Clock Settings
H INFO button X Setup X Other X Clock Adjustment X Clock Adjustment
Reset all clock settings to the factory defaults. Select OK under Reset.
INSIGHT_KA-31TM8820.book 48 ページ ２０１１年８月９日　火曜日　午後３時３１分

49
XXClock AdjustmentXSetting the Clock Type
System Setup
Setting the Clock Type
HINFO button X Setup X Other X Clock Adjustment X Clock Type
Set the design of the clock screen. 1.Select Clock Type or Background .
2. Select an option to change the
design.
3. Select OK.
INSIGHT_KA-31TM8820.book 49 ページ ２０１１年８月９日　火曜日　午後３時３１分

50
System Setup
Vehicle
HINFO button X Setup X Other X Vehicle
Set the off-road tracking feature and correct the vehicle position displayed on the
map. Select an item.
The following item s are available:
• Off-road Tracking : Set whether to display th e tracking dots on the map.
2Off-road Tracking P. 51
• Current Vehicle Position : Adjust the position of the vehicle on the map.
2Correct Vehicle Position P. 52
INSIGHT_KA-31TM8820.book 50 ページ ２０１１年８月９日　火曜日　午後３時３１分

51
XXVehicleXOff-road Tracking
System Setup

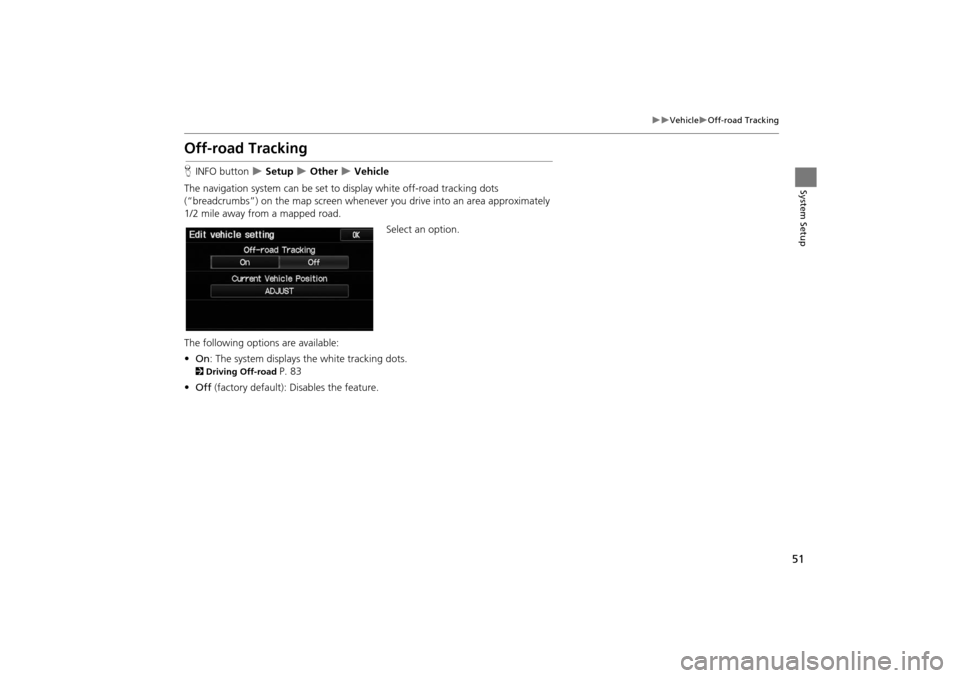

Off-road Tracking
HINFO button X Setup X Other X Vehicle
The navigation system can be set to display white off-road tracking dots
(“breadcrumbs”) on the map sc reen whenever you drive into an area approximately
1/2 mile away from a mapped road.
Select an option.
The following options are available:
• On : The system displays the white tracking dots.
2Driving Off-road P. 83
• Off (factory default): Disables the feature.
INSIGHT_KA-31TM8820_01.fm 51 ページ ２０１２年１月２４日　火曜日　午後２時５分

52
XXVehicleXCorrect Vehicle Position
System Setup
Correct Vehicle Position
HINFO button X Setup X Other X Vehicle
Manually adjust the current position of the vehicle as displayed on the map screen if
the position appear s to be incorrect.
1.Put the vehicle in Park.
2. Select ADJUST under Current
Vehicle Position .
3. Scroll the map to position the
arrowhead at your correct position.
4. Select or to position the
arrowhead in the correct direction
the vehicle is facing.
5. Select OK.1Correct Vehicle Position
An apparent position error can occur where
buildings, tunnels, and ot her objects block or
reflect the GPS signals, forcing the system to use
“dead reckoning” to determine your location
and direction.
Using this function to ad just vehicle position is
not recommended. When the system reacquires
a GPS signal, it will automatically place the
vehicle in the correct location.
If you continually have to adjust the vehicle
position, you may have problems with the GPS
reception or there may be database errors.
2 System Limitations P. 178
INSIGHT_KA-31TM8820.book 52 ページ ２０１１年８月９日　火曜日　午後３時３１分

53
System Setup
Data Reset
Reset Factory Default Settings
HINFO button X Setup X Other X Reset Factory Default
Reset all the settings on the Setup sc reens to their factory defaults.
Select Yes.1Reset Factory Default Settings
The following settings are reset:
•Brightness, Contrast, Black Level, Volume,
Guidance Prompts
•Basic Settings: Keyboard Layout, Units, Voice
Recognition Tutor, Verb al Reminder, Display
Voice Commands Tips
•Routing & Guidance: Rer outing, Unverified
Area Routing, Edit Wayp oint Search Area,
Guidance Mode
•Clock Adjustment: Auto Daylight, Auto Time
Zone, Clock Format Time, Clock Type
•Vehicle: Off-road Tracking
•Color: Map Color, Menu Color
When you transfer the vehicle to a third party,
reset all settings to default and delete all
personal data.
2 Deleting an Address Book Entry P. 35
2 Home Addresses P. 36
2 PIN Numbers P. 37
2 User Name P. 38
2 Previous Destinations P. 39
2 Edit Avoid Area P. 44
2 Deleting a Paired Phone P. 145
INSIGHT_KA-31TM8820.book 53 ページ ２０１１年８月９日　火曜日　午後３時３１分

54
XXData ResetXClear All Speed Dial
System Setup
Clear All Speed Dial
HINFO button X Setup X Other X Clear All Speed Dial
Delete all registered speed dials stored in Bluetooth® HandsFreeLink®.
Select Yes.1Clear All Speed Dial
You can also delete a speed dial individually.
2 Setting Up Speed Dialing P. 147
INSIGHT_KA-31TM8820.book 54 ページ ２０１１年８月９日　火曜日　午後３時３１分
