270Information

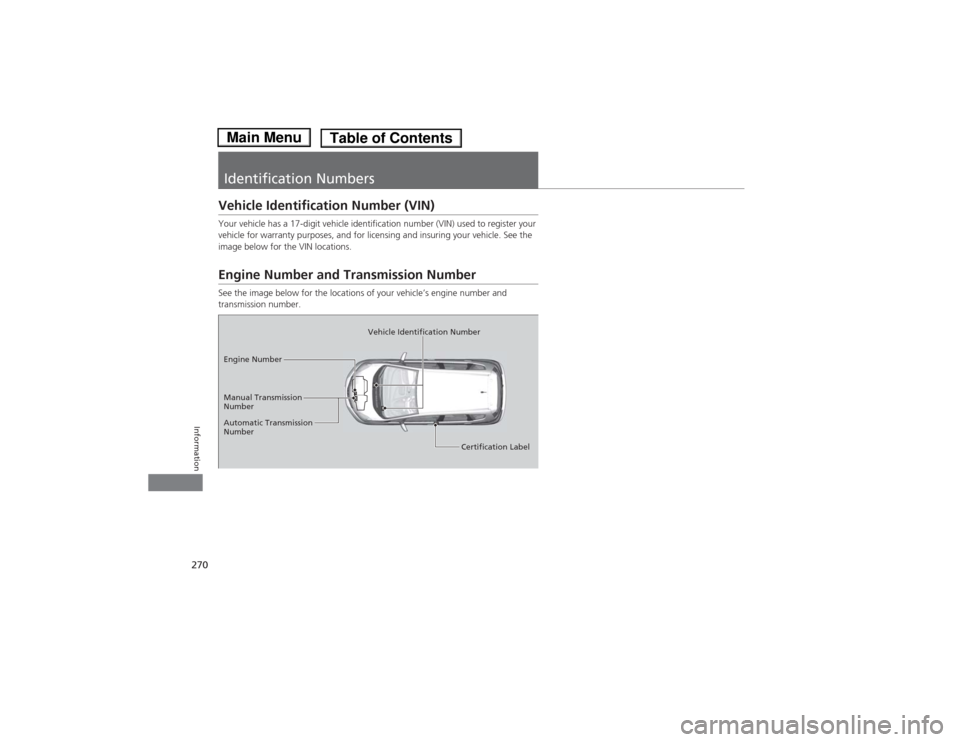

Identification NumbersVehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle’s engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label Manual Transmission
Number
Automatic Transmission
Number

273
Continued
Information
Emissions TestingTesting of Readiness CodesYour vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1.Fill the gas tank to approximately 3/4 full.
2.Park the vehicle and leave the engine off for 6 hours or more.
3.Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4.Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5.Keep the vehicle in
(P (automatic transmission) or
(N (manual transmission).
Increase the engine speed to 2,000 rpm, and hold it there for about 3 minutes.
6.Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.

Index
279Index
Index
AABS (Anti-lock Brake System).................. 183
Accessories and Modifications................ 190
Accessory Power Socket........................... 115
Active Head Restraints............................. 107
Additives
Coolant .................................................. 206
Engine Oil ............................................... 201
Washer ................................................... 211
Additives, Engine Oil............................... 201
Adjusting
Armrest .................................................. 110
Front Seats.............................................. 103
Head Restraints ....................................... 105
Headlights .............................................. 212
Mirrors.................................................... 102
Rear Seats ............................................... 108
Steering Wheel ....................................... 101
Air Conditioning System (Heating and
Cooling System)...................................... 118
Cooling................................................... 120
Defrosting the Windshield and
Windows .............................................. 120
Dust and Pollen Filter .............................. 233
Heating................................................... 119
Air Pressure...................................... 223, 269
Airbags....................................................... 34
Advanced Airbags ..................................... 40
After a Collision ........................................ 38
Airbag Care .............................................. 48
Event Data Recorder ................................. 19Front Airbags (SRS) .................................... 37
Indicator ........................................ 45, 67, 69
Passenger Airbag Off Indicator .................. 46
Sensors...................................................... 34
Side Airbag Cutoff System ......................... 43
Side Airbag Off Indicator ........................... 47
Side Airbags .............................................. 41
Side Curtain Airbags .................................. 44
Anti-lock Brake System (ABS).................. 183
Indicator .................................................... 67
Armrest..................................................... 110
Audio System............................................ 122
Adjusting the Sound ................................ 126
Auxiliary Input Jack .................................. 123
Error Messages ........................................ 135
General Information ................................ 137
MP3/WMA/AAC ...................................... 133
Recommended CDs ................................. 137
Recommended Devices ............................ 139
Remote Controls ......................................... 3
Security Code .......................................... 124
Theft Protection....................................... 124
USB Adapter Cable .................................. 123
USB Flash Drives ...................................... 139
Authorized Manuals................................. 277
Auto Door Locking/Unlocking................... 84
Customize ................................................. 85
Automatic Transmission........................... 164
Creeping ................................................. 164
Fluid ........................................................ 208
Kickdown ................................................ 164Operating the Shift Lever........... 13, 166, 168
Sequential Shift Mode ............................. 169
Shift Lever Does Not Move ...................... 253
Shifting ........................................... 165, 167
Auxiliary Input Jack.................................. 123
Average Fuel Economy.............................. 74
BBattery...................................................... 231
Charging System Indicator................. 65, 256
Jump Starting .......................................... 251
Maintenance (Checking the Battery) ........ 231
Maintenance (Replacing) ......................... 232
Belts (Seat).................................................. 26
Beverage Holders..................................... 114
Bluetooth® HandsFreeLink®..................... 140
Booster Seats (For Children)...................... 60
Brake System............................................ 181
Anti-lock Brake System (ABS)................... 183
Brake Assist System ................................. 184
Fluid ........................................................ 210
Foot Brake............................................... 182
Indicator............................................ 64, 258
Parking Brake .......................................... 181
Brightness Control (Instrument Panel)...... 99

280Index
Bulb Replacement..................................... 212
Brake Light, Taillight, Back-Up Light and
Rear Turn Signal Lights........................... 216
Fog Lights ................................................ 214
Headlights ............................................... 212
High-Mount Brake Light .......................... 217
Rear License Plate Light............................ 217
Bulb Specifications.................................... 268CCarbon Monoxide Gas................................ 61
Cargo Floor Box........................................ 115
Cargo Hooks.............................................. 117
Carrying Cargo.................................. 155, 157
CD Player................................................... 129
Certification Label.................................... 270
Changing Bulbs......................................... 212
Charging System Indicator................. 65, 256
Child Safety................................................. 49
Childproof Door Locks ............................... 83
Child Seat.................................................... 49
Booster Seats ............................................. 60
Child Seat for Infants ................................. 51
Child Seat for Small Children ..................... 52
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 56
Larger Children .......................................... 59
Rear-facing Child Seat ............................... 51
Selecting a Child Seat ................................ 53
Childproof Door Locks................................ 83Cleaning the Exterior............................... 235
Cleaning the Interior................................ 234
Clock............................................................ 76
Clutch Fluid............................................... 210
Coat Hook................................................. 116
Compact Spare Tire.......................... 239, 269
Controls....................................................... 75
Coolant (Engine)...................................... 206
Adding to the Radiator ............................ 207
Adding to the Reserve Tank..................... 206
High Temperature Indicator ....................... 67
Low Temperature Indicator........................ 67
Overheating ............................................ 254
Creeping (Automatic Transmission)........ 164
Cruise Control........................................... 173
Indicator.................................................... 71
Cup Holders.............................................. 114
Customer Service Information................. 278
DDaytime Running Lights............................ 96
Dead Battery............................................. 251
Defrosting the Windshield and
Windows................................................. 120
Devices that Emit Radio Waves............... 271
Dimming
Headlights ................................................. 95
Rearview Mirror....................................... 102
Dipstick (Engine Oil)................................. 202
Directional Signals (Turn Signal)............... 95Door Mirrors............................................. 102
Doors.......................................................... 77
Auto Door Locking.................................... 84
Auto Door Unlocking ................................ 84
Door and Tailgate Open Indicator ....... 25, 68
Keys.......................................................... 77
Locking/Unlocking the Doors from the
Inside ...................................................... 82
Locking/Unlocking the Doors from the
Outside ................................................... 79
Lockout Prevention System ....................... 81
DOT Tire Quality Grading........................ 225
Driving...................................................... 153
Automatic Transmission .......................... 164
Braking ................................................... 181
Cruise Control ........................................ 173
Shifting Gear .......................... 165, 167, 171
Starting the Engine ................................. 161
Dust and Pollen Filter.............................. 233
EElectric Power Steering (EPS) System
Indicator ........................................... 68, 258
Electronic Stability Control (ESC)............ 176
Emergency................................................ 264
Emissions Testing (Readiness Codes)...... 273
Engine....................................................... 270
Coolant .................................................. 206
Jump Starting ......................................... 251
Oil .......................................................... 201

281Index
Starting................................................... 161
Switch Buzzer ........................................... 94
Engine Coolant........................................ 206
Adding to the Radiator ........................... 207
Adding to the Reserve Tank .................... 206
High Temperature Indicator ...................... 67
Low Temperature Indicator ....................... 67
Overheating ............................................ 254
Engine Oil................................................. 201
Adding ................................................... 203
Checking ................................................ 202
Displaying Oil Life ................................... 195
Low Oil Pressure Indicator ................. 64, 256
Recommended Engine Oil ....................... 201
EPS (Electric Power Steering)
System............................................... 68, 258
Exhaust Gas Hazard (Carbon Monoxide).. 61
Exterior Care (Cleaning).......................... 235
Exterior Mirrors........................................ 102FFeatures.................................................... 121
Filters
Dust and Pollen....................................... 233
Oil .......................................................... 204
Flat Tire..................................................... 239
Floor Mats................................................ 234
Fluids
Automatic Transmission .......................... 208
Brake/Clutch ........................................... 210Engine Coolant........................................ 206
Manual Transmission ............................... 209
Windshield Washer.................................. 211
FM/AM Radio............................................ 127
Fog Light Indicator..................................... 70
Folding Down the Rear Seats.................. 108
Foot Brake................................................. 182
Front Airbags (SRS)..................................... 37
Front Seats................................................ 103
Adjusting................................................. 103
Fuel...................................................... 14, 186
Economy ................................................. 189
Gauge ....................................................... 72
Low Fuel Indicator ..................................... 66
Recommendation .................................... 186
Refueling ................................................. 186
Fuel Economy............................................ 189
Fuel Fill Cap................................................. 14
Message .................................................. 257
Fuel Fill Door............................................... 14
Fuses.......................................................... 260
Inspecting and Changing ......................... 263
Locations ................................................. 260
GGasoline (Fuel)
Economy ................................................. 189
Gauge ....................................................... 72
Information ............................................. 186
Low Fuel Indicator ..................................... 66Refueling................................................. 186
Gauges........................................................ 72
Gear Shift Lever Positions
Automatic Transmission .................. 165, 167
Manual Transmission ............................... 172
Glass (care)................................................ 236
Glove Box.................................................. 113
HHalogen Bulbs.................................. 212, 214
Handling the Unexpected........................ 237
HandsFreeLink® (HFL)............................... 140
Change Language ................................... 151
Help Features .......................................... 141
Making a Call .......................................... 146
Menus..................................................... 142
Muting a Call .......................................... 147
Phone Setup............................................ 144
Phonebook.............................................. 148
Receiving a Call ....................................... 147
Sending Numbers or Names During a
Call ....................................................... 147
Transferring a Call ................................... 147
Hazard Warning Button.............................. 2
Head Restraints........................................ 105
Headlights................................................... 95
Aiming .................................................... 212
Dimming ............................................. 95, 96
Operating.................................................. 95
Heated Door Mirrors................................ 100

282Index
Heating and Cooling System.................... 118
Cooling ................................................... 120
Defrosting the Windshield and
Windows ............................................... 120
Dust and Pollen Filter ............................... 233
Heating ................................................... 119
HFL (HandsFreeLink®)............................... 140
High-Beam Indicator.................................. 70IIdentification Numbers............................ 270
Engine and Transmission.......................... 270
Vehicle Identification ............................... 270
Ignition Switch............................................ 94
Illumination Control................................... 99
Knob ......................................................... 99
Immobilizer System.................................... 90
Indicator .................................................... 70
Indicators..................................................... 64
ABS (Anti-lock Brake System) ..................... 67
Charging System ............................... 65, 256
CRUISE CONTROL .............................. 71, 174
CRUISE MAIN .................................... 71, 173
Daytime Running Lights ............................. 71
Door and Tailgate Open....................... 25, 68
EPS (Electric Power Steering) System .. 68, 258
Fog Light ................................................... 70
High Temperature...................................... 67
High-Beam ................................................ 70
Immobilizer System .................................... 70Lights On .................................................. 70
Low Fuel ................................................... 66
Low Oil Pressure ................................ 64, 256
Low Temperature ...................................... 67
Low Tire Pressure .............................. 69, 178
Maintenance Minder
TM...................... 71, 195
Malfunction Indicator Lamp............... 65, 257
Parking Brake and Brake System ........ 64, 258
Seat Belt Reminder .............................. 27, 66
Security System Alarm ............................... 71
Shift Position ............................................. 65
Side Airbag Off ................................... 47, 69
Supplemental Restraint System ............ 45, 67
TPMS ................................................ 69, 180
Transmission ............................................. 66
Turn Signal ................................................ 70
VSA® (Vehicle Stability Assist)
System ............................................ 68, 176
VSA® OFF .......................................... 68, 177
Washer Level ............................................. 71
Information.............................................. 267
Information Display................................... 73
Instrument Panel........................................ 63
Brightness Control..................................... 99
Interior Lights........................................... 111
Interior Rearview Mirror.......................... 102
JJack (Wheel Nut Wrench)................ 238, 242
Jump Starting........................................... 251
KKeyless Lockout Prevention....................... 81
Keys............................................................. 77
Lockout Prevention ................................... 81
Rear Door Won’t Open ............................. 83
Remote Transmitter .................................. 79
Types and Functions.................................. 77
Won’t Turn ............................................... 17
Kickdown (Automatic Transmission)...... 164LLATCH (Child Seats)................................... 54
Lights.................................................. 95, 212
Bulb Replacement ................................... 212
Daytime Running Lights ............................ 96
Fog Lights ................................................. 96
High-Beam Indicator ................................. 70
Interior.................................................... 111
Light Switches........................................... 95
Lights On Indicator.................................... 70
Turn Signals .............................................. 95
Load Limits............................................... 157
Locking/Unlocking..................................... 77
Auto Door Locking/Unlocking ................... 84
Childproof Door Locks .............................. 83
From Inside ............................................... 82
From Outside ............................................ 79
Keys.......................................................... 77
Lockout Prevention System ....................... 81
Using a Key............................................... 80

284Index
Remote Transmitter.................................... 79
Replacement
Battery..................................................... 232
Bulbs ....................................................... 212
Fuses ............................................... 260, 261
Tires ........................................................ 228
Wiper Blade Rubber ......................... 218, 220
Reporting Safety Defects......................... 272
Resetting a Trip Meter............................... 73SSafe Driving................................................. 21
Safety Check................................................ 25
Safety Labels............................................... 62
Safety Message........................................... 20
Seat Belts..................................................... 26
Adjusting the Shoulder Anchor .................. 30
Automatic Seat Belt Tensioners .................. 28
Checking ................................................... 33
Detachable Anchor .................................... 31
Fastening ................................................... 29
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 56
Pregnant Women ...................................... 32
Reminder ................................................... 27
Warning Indicator ................................ 27, 66
Seats.......................................................... 103
Adjusting ................................................. 103
Front Seats .............................................. 103
Rear Seats................................................ 108Seat Under Box ....................................... 116
Security System........................................... 90
Immobilizer System Indicator ..................... 70
Security System Alarm Indicator................. 71
Select Lever................................. 13, 165, 171
Operation.......................... 13, 166, 167, 168
Releasing................................................. 253
Won’t Move ............................................ 253
Select/Reset Knob....................................... 73
Selecting a Child Seat................................. 53
Selector Knob (Audio).............................. 125
Sequential Shift Mode............................. 169
Setting the Clock........................................ 76
Shift Lever........................... 13, 165, 167, 171
Shift Position Indicator.............. 65, 166, 168
Shifting (Transmission)............. 165, 167, 171
Shoulder Anchor........................................ 30
Side Airbags................................................ 41
Cutoff System ........................................... 43
Off Indicator.............................................. 43
Side Curtain Airbags.................................. 44
Snow Tires................................................. 230
Spare Tire.......................................... 239, 269
Spark Plugs............................................... 268
Specifications............................................ 268
Specified Fuel................................... 186, 268
Speedometer.............................................. 72
SRS Airbags (Airbags)................................. 37
Starting the Engine.................................. 161
Does Not Start......................................... 250
Engine Switch Buzzer ................................ 94Jump Starting ......................................... 251
Steering Wheel........................................ 101
Adjusting ................................................ 101
Stopping................................................... 185
Summer Tires............................................ 230
Supplemental Restraint System (SRS)....... 37
Switches (Around the Steering
Wheel).............................................. 2, 3, 94
TTachometer................................................ 72
Tailgate....................................................... 88
Unable to Open ...................................... 266
Temperature
High Temperature Indicator ...................... 67
Low Temperature Indicator ....................... 67
Time (Setting)............................................. 76
Tire Pressure Monitoring System
(TPMS)..................................................... 178
Indicator ........................................... 69, 259
Tire Repair Kit.......................................... 245
Tires.......................................................... 222
Air Pressure..................................... 223, 269
Checking and Maintaining ...................... 222
Inspection ............................................... 222
Labeling .................................................. 223
Puncture (Flat Tire) .................................. 239
Regulations ............................................. 225
Rotation.................................................. 229
Spare Tire ....................................... 239, 269

285Index
Summer .................................................. 230
Tire Chains.............................................. 230
Wear Indicators....................................... 227
Winter .................................................... 230
Tools......................................................... 238
Towing a Trailer....................................... 159
Towing Your Vehicle
Emergency .............................................. 264
TPMS (Tire Pressure Monitoring
System).................................................... 178
Indicator ........................................... 69, 259
Transmission............................. 165, 167, 171
Automatic............................................... 164
Fluid ............................................... 208, 209
Manual ................................................... 171
Number .................................................. 270
Sequential Shift Mode............................. 169
Shift Position Indicator .............. 65, 166, 168
Trip Meter.................................................. 73
Troubleshooting...................................... 237
Blown Fuse ..................................... 260, 261
Brake Pedal Vibrates ................................. 17
Buzzer Sounds When Opening Door ......... 18
Emergency Towing ................................. 264
Engine Won’t Start ................................. 250
Noise When Braking ................................. 18
Overheating ............................................ 254
Puncture/Flat Tire ............................ 239, 245
Rear Door Won’t Open ....................... 17, 83
Select Lever Won’t Move ........................ 253
Warning Indicators.................................... 64Turn Signals................................................ 95
Indicators (Instrument Panel)...................... 70
UUnlocking the Doors............................ 79, 82
USB Adapter Cable........................... 122, 123
USB Flash Drives........................................ 139VVanity Mirrors............................................... 5
Vehicle Identification Number (VIN)....... 270
Vehicle Stability Assist (VSA®).................. 176
Off Button ............................................... 177
Off Indicator .............................................. 68
System Indicator ........................................ 68
Viscosity (Oil).................................... 201, 269
VSA® (Vehicle Stability Assist).................. 176WWarning Indicator On/Blinking............... 256
Warning Labels........................................... 62
Warranties (Warranty Manual provided
separately)............................................... 275
Watts......................................................... 268
Wear Indicators (Tire)............................... 227
Wheel Nut Wrench (Jack Handle)... 238, 242
Window Washers........................................ 97
Adding/Refilling Fluid............................... 211
Switch ....................................................... 97Windshield.................................................. 97
Cleaning ................................................. 236
Defrosting/Defogging .............................. 120
Washer Fluid ........................................... 211
Wiper Blades ........................................... 218
Wipers and Washers.................................. 97
Winter Tires.............................................. 230
Snow Tires .............................................. 230
Tire Chains .............................................. 230
Wipers and Washers................................... 97
Checking and Replacing Wiper
Blades ........................................... 218, 220
WMA................................................. 129, 133
Worn Tires................................................ 222
